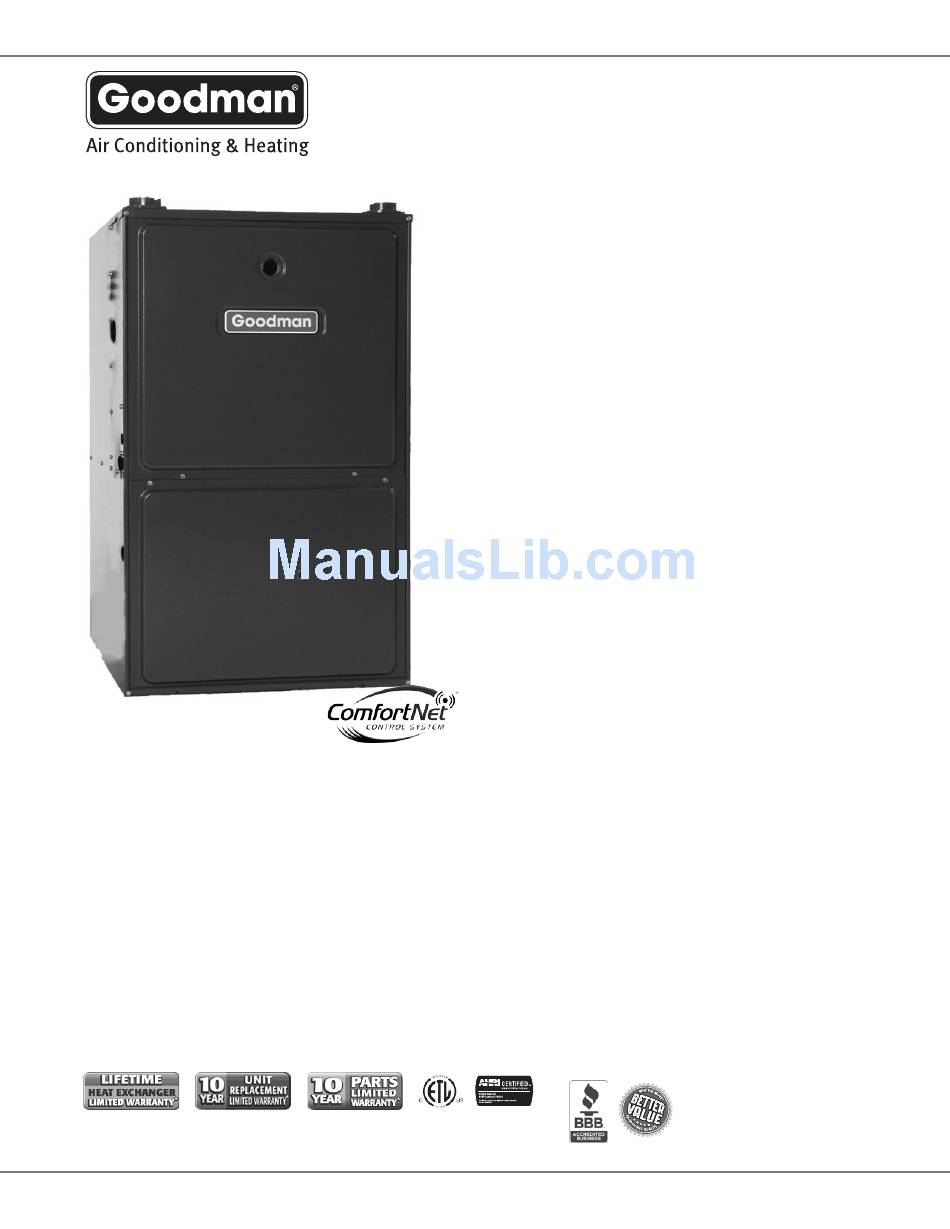

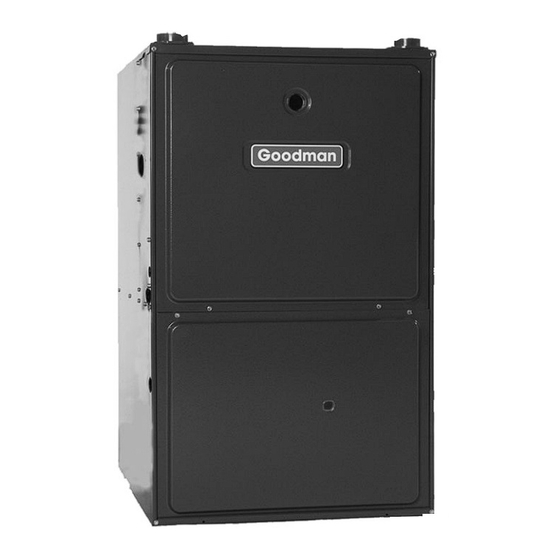

Goodman GMVM96 Manual

Cabinet Features
• Cabinet air leakage (Q ) ≤ 2%
Leak
• Fully insulated heavy-gauge steel cabinet
with durable baked-enamel finish
• Foil-faced insulation lines the heat exchanger section
• Designed for multi-position installation
• Airtight solid bottom for side-return applications and easy-cut
tabs for effortless removal in bottom air-inlet applications
• Convenient left or right connection for gas and electric service
• Coil and furnace fit flush for most installations
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat
Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-
Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Québec.
SS-GMVM96
GMVM96 / GCVM96
Standard Features
• Aluminized-steel, dual-diameter tubular heat exchanger
• Stainless-steel secondary heat exchanger
• ComfortNet
TM
• Self-calibrating, modulating gas valve operates
with two-stage or single-stage thermostats
• Efficient and quiet variable-speed circulator motor
• Furnace control board with self-diagnostics and
provisions for electronic air cleaners and humidifiers
• Multiple continuous fan speed
options for quiet air circulation
• Dual-certified for sealed combustion direct vent
(2-pipe) or non-direct vent (1-pipe) applications
• Auto-Comfort and enhanced dehumidification
modes provide energy savings and additional
comfort during the cooling months
• Quiet variable-speed induced draft blower
• All models comply with California NOx emissions standards
www.goodmanmfg.com
C N ™-C
oMfort et
M -p , M
ulti ositioN
V -s
ariable peed
u
p to
Communicating Systems compatible
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Dimensions ........................................... 4
Airflow Data .......................................... 6
Wiring Diagrams ................................. 11
Thermostats ....................................... 12
Accessories .......................................... 12
,
oMpatible
odulatiNG
G f
as urNaCe
96% afue
1/13
Supersedes 3/12
