York Affinity BHZ024 Technical Manual

York Affinity BHZ024 Technical Manual

Affinity series 2 - 5 ton 60 hertz heat pump
Hide thumbs Also See for Affinity BHZ024:

Advertisement

Table of Contents

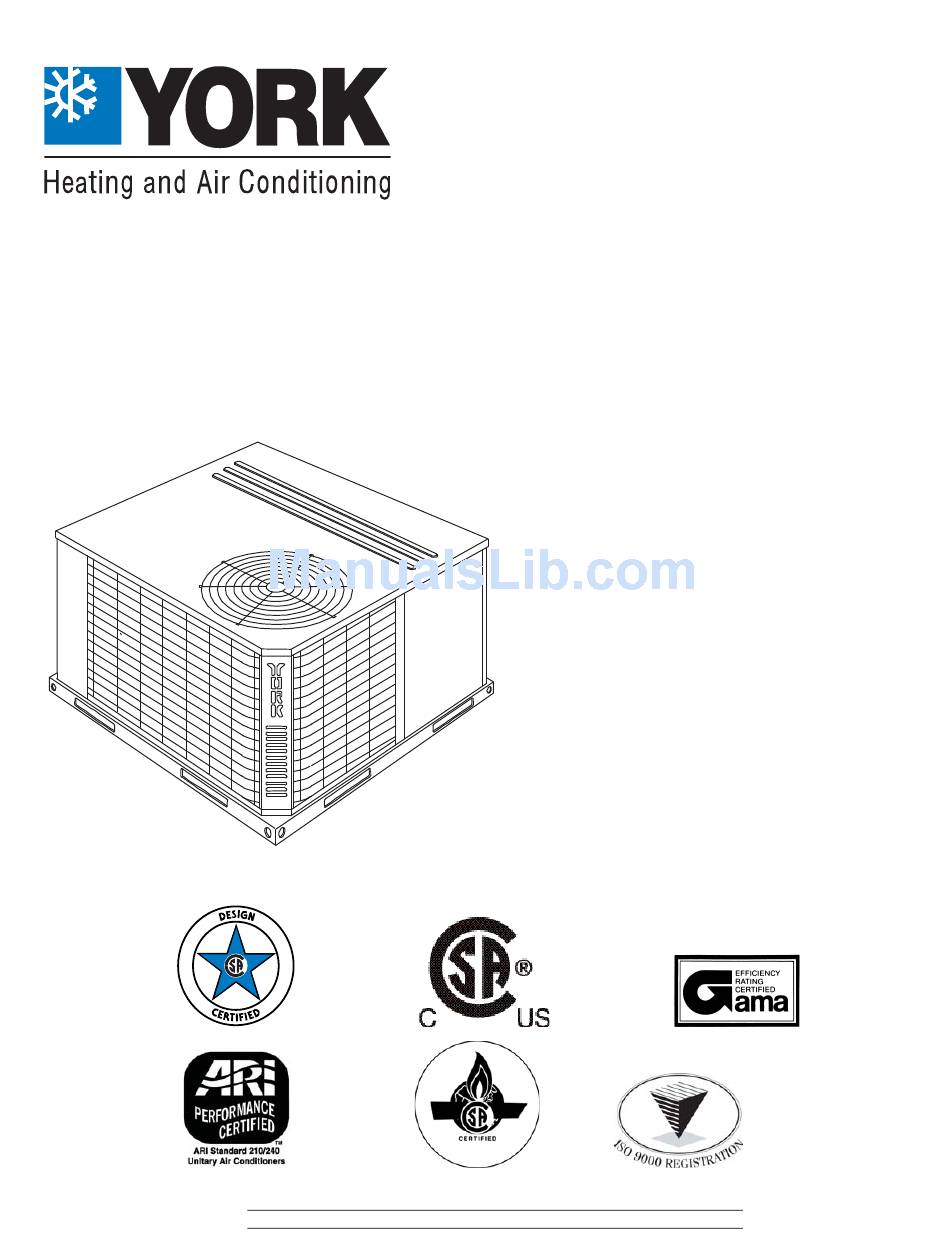

TECHNICAL GUIDE
R-410A
AFFINITY™ SERIES
BHX, BHQ AND BHZ MODELS
2 - 5 TON
60 Hertz
Tested in accordance with:
®
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
Description
®
These York
Affinity™ packaged heat pumps are designed for
outdoor installation. Only utility and duct connections are
required at the point of installation.
Field-installed electric heater accessories are available to
provide electric heat, if required.
333495-YTG-D-0609
SO 9001
Certified Quality
Management System
