Rinnai RH-9020A Instruction Manual

Rinnai RH-9020A Instruction Manual

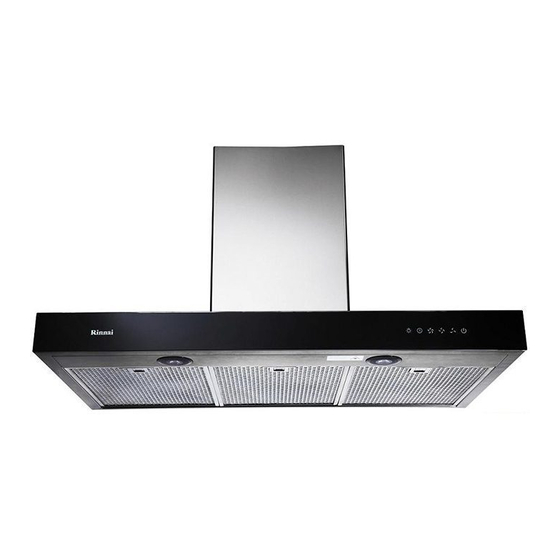

Cooker hood
Hide thumbs Also See for RH-9020A:

Advertisement

Warning.......................................................
Parts Name...................................................
Installation....................................................
Model:RH-9020A
Installation Instruction.....................................
Caution.........................................................
Operation Instruction.......................................
Maintenance & Cleaning...................................
Trouble Shooting.............................................
Warranty & Wiring Diagram............................
INSTRUCTION MANUAL
NAME
Products and accessory ............1
Instruction.............................3
Caution..................................4
Operating Instruction................5
Trouble Shooting......................7
Wiring Diagram.......................8
Specification............................9
COOKER HOOD
PAGE

Advertisement

loading

Summary of Contents for Rinnai RH-9020A

  • Page 1: Table Of Contents

    COOKER HOOD INSTRUCTION MANUAL Warning………………………………………………. Parts Name…………………………………………… PAGE NAME Installation……………………………………………. Model:RH-9020A Products and accessory …………1 Installation Instruction………………………………. Caution………………………………………………... Dimensions……………………..2 Operation Instruction………………………………… Instruction………………………..3 Maintenance & Cleaning…………………………….. Caution………………………..…..4 Trouble Shooting……………………………………… Warranty & Wiring Diagram………………………. Operating Instruction…………….5 Maintenance & Cleaning…..6 Trouble Shooting……………….…7 Wiring Diagram……………….….8...
  • Page 2 PART NAME RH-9020A Capacitor Electric Box Cover Electric Box Control Board Power cable Fan Blade (Right) Tube top cover M otor Fan Blade (Left) Ventilator Body Ventilator seal Oil Plate M ain Tube Unit LED Light LED Back Light Glass...
  • Page 3 Dimensions MODEL RH-9020A 210mm 896mm 507mm Hook Location A 153(6")
  • Page 4 Installation 1. Main Set Installation: The minimum distance between the cooker and the appliance is 75-90CM, and drill holes on the wall. Screw the main set by using screw nut together. Adjust the main set till horizontal line. 75-90cm 保持水平 Keep it horizontal (level) Aluminium Tube Installation:...
  • Page 5: Caution

    Caution Surrounding Environment: The cooker hood should install near outdoor window. Let the exhaust air from the tube blow out easily thru the window. Alternatively, make a hole on the wall, and let the exhaust air from the aluminium tube blow out. Do not squash the aluminium tube into the hole.
  • Page 6: Caution

    Operating Instruction Light Control Delay Button Turbo Speed Middle Speed Low Speed Power Control Button Button Control Button Control Button Button Power control button (Red light) 1. Push this button to turn on the power and power indicator light will be on. 2.
  • Page 7: Maintenance & Cleaning

    Maintenance & Cleaning …. 1. There is a fire risk if cleaning is not carried out in accordance with the instructions. 2. Be careful of the flame when cooking alcoholic food. It might cause to burn the cooker hood. 3. Make sure the ventilation is good when using glass hob and cooker hood together.
  • Page 8: Trouble Shooting

    Trouble Shooting 1. Motor Malfunction:  Check the electrical wiring.  Check the power plug, On / Off switch, or fuse.  Check the impeller. If can move by hand when power is on, means the condenser capacitor needed to be changed. ...
  • Page 9: Wiring Diagram

    Wiring Diagram RH-9020A MOTOR BLACK BLACK ( BROWN) FUSE POWER WHITE WHITE ( BLUE) ELECTRIC BOARD WHITE GRAY BLACK BLUE Control Board WHITE LAMP CONDENSER YELLOW LAMP LED Back Light...
  • Page 10: Specification

    Specification MODEL RH-9020A DATA MATERIAL SUS430 W896xD507xH545~985mm SIZE (*Height: From button of main unit) OUTLET DIA 153mm FAN SIZE 14CMx2 MOTOR, S INSULATION VOLTTAGE/FREQUENCY 240V/50Hz 1.5A LIGHT Ⅰ Ⅱ Ⅲ SPEED MOTOR SPEED 1200rpm 1800rpm 2400rpm CONSUMPTION POWER 180W 220W...
