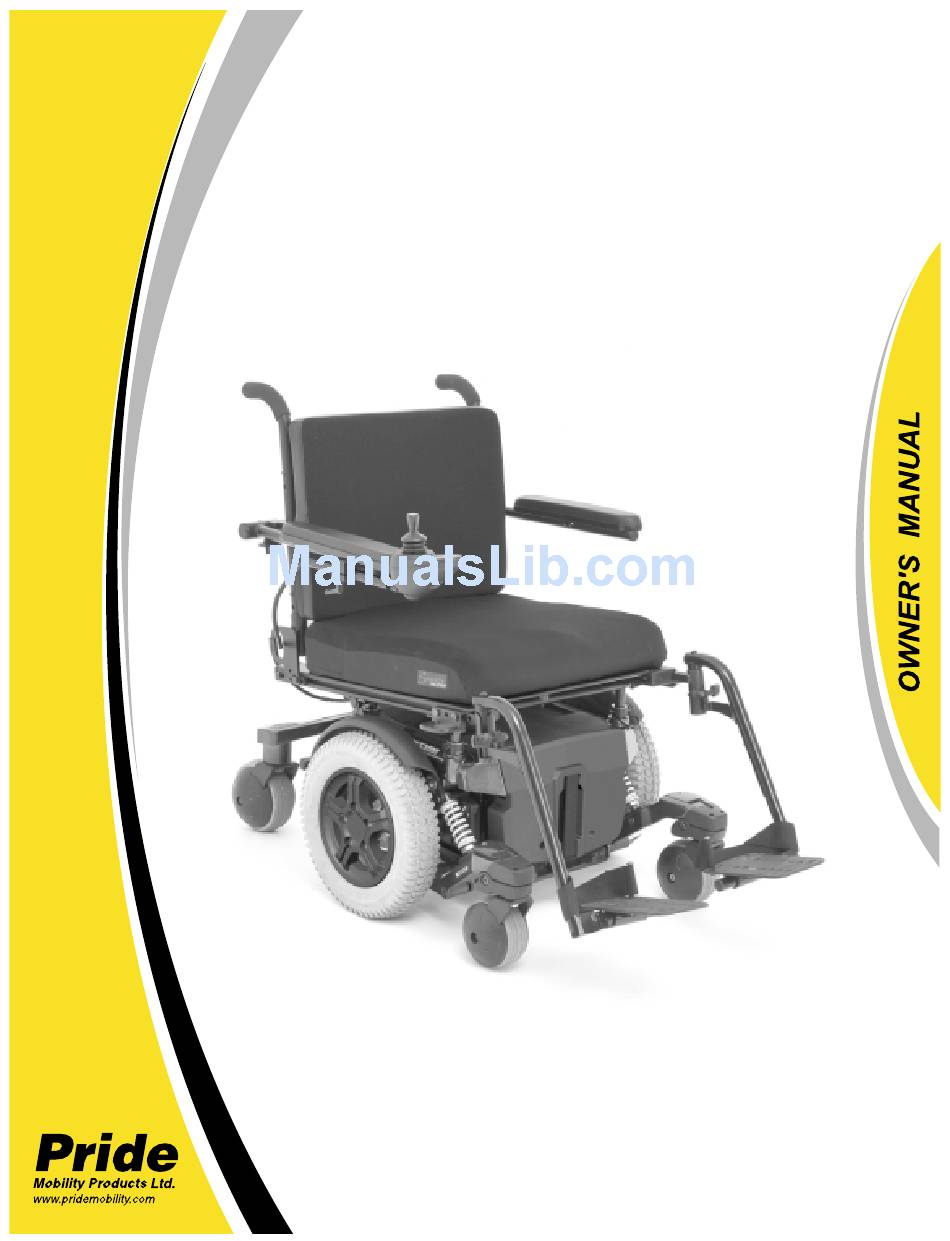

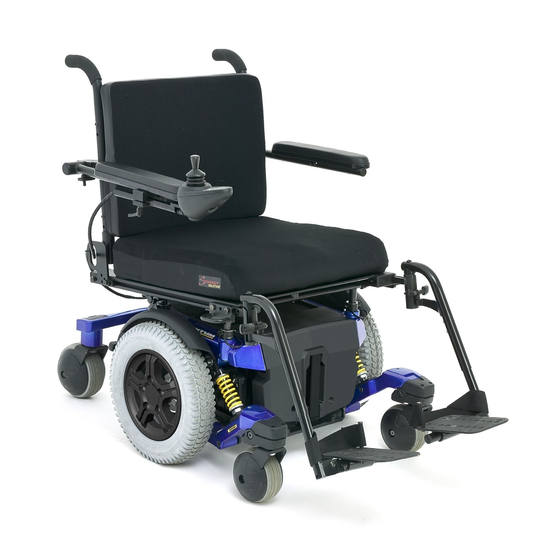

  • Page 1 QUANTUM S E R I E S Including Models: Quantum 6000 and Quantum 6000XL 32 Wedgwood Road Bicester, Oxon OX26 4UL...
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2008 Pride Mobility Products Ltd. INFMANU3149/Rev D/September 2008...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY............................22 COMFORT ADJUSTMENTS......................25 VI. BATTERIES AND CHARGING ....................... 32 VII. CARE AND MAINTENANCE ......................36 VIII. WARRANTY............................42 APPENDIX I - SPECIFICATIONS ......................

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Ltd. (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort and styling in mind. We are confident that these design fea- tures will provide you with the conveniences you expect during your daily activities.

  • Page 5: Safety

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Locked and in drive mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode.
  • Page 7 I I . S A F E T Y This product has been tested and passed at an immunity level of 20 V/m. Battery Set Configuration: + = Positive (Red) Terminal Post – = Negative (Black) Terminal Post Connect Red wires to Red Positive (+) Terminal Posts Connect Black wires to Black Negative (–) Terminal Posts Explosive conditions exist! Corrosive chemicals contained in battery.
  • Page 8 I I . S A F E T Y Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Disposal and recycling - Contact your Quantum Rehab Dealer for information on proper disposal and recycling of your Pride product and its packaging.

  • Page 9: Your Power Chair

    I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user.
  • Page 10 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
  • Page 11 I I . S A F E T Y WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 8.7 % (5°).
  • Page 12 I I . S A F E T Y Outdoor Driving Surfaces Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognises that there will be times when you will encounter other surface types.
  • Page 13 I I . S A F E T Y WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher than 5 cm (2 in.) unless you have the assistance of an attendant. WARNING! If your power chair is equipped with a kerb climber, do not attempt to climb any kerb in excess of 5 cm (2 in.) in height.

  • Page 14: Stairs And Escalators

    I I . S A F E T Y Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use a lift. WARNING! Never use your power chair to negotiate steps or escalators. Positioning Belts Your Quantum Rehab Dealer, therapist(s) and other healthcare professionals are responsible for determining your requirement for a positioning belt in order to operate your power chair safely.
  • Page 15 I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or healthcare professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks before attempting a transfer: Turn off the power to the controller.
  • Page 16 I I . S A F E T Y Prescription Drugs/Physical Limitations Users must exercise care and common sense when operating a power chair. This includes awareness of safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations. WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if you have certain physical limitations.
  • Page 17 I I I . Y O U R P O W E R C H A I R THE QUANTUM 6000 SERIES POWER CHAIR Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback and seat base.
  • Page 18 I I I . Y O U R P O W E R C H A I R REAR SEAT MOUNT CONNECTORS FRONT SEAT MOUNT REAR SHROUD CONNECTORS REAR SHROUD FASTENER (FASTENER ON OPPOSITE SIDE NOT SHOWN) FRONT COVER MANUAL FREEWHEEL LEVER Figure 6.
  • Page 19 I I I . Y O U R P O W E R C H A I R Controller Power Module: This enables the controller to communicate with the batteries and the motors. Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into your power chair.
  • Page 20 I I I . Y O U R P O W E R C H A I R Dual Manual Freewheel Levers For your convenience, your power chair is equipped with dual manual freewheel levers. The levers are located on each motor, and allow you to disengage the drive motors and manoeuvre the chair manually.
  • Page 21 I I I . Y O U R P O W E R C H A I R Hammer Motor Package Your power chair is equipped with two powerful Hammer motors. These are right angle motors capable of producing one horsepower of peak output each.

  • Page 22: Assembly

    I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified carer before using the product or making comfort adjustments.
  • Page 23 I V . A S S E M B L Y Seat Installation SEAT LATCH SAFETY It may be necessary to install the seat either prior to initial op- eration or after transporting your power chair. Contour seats are attached to the power base with the Universal Mounting System (UMS).
  • Page 24 I V . A S S E M B L Y Power Elevating Seat Option Your power chair may be equipped with a power elevating seat option. While the seat itself may be any one of the styles offered for this model, the way the seat base attaches to the power base is different.

  • Page 25: Comfort Adjustments

    Your Quantum Rehab Dealer has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your Quantum Rehab Dealer.
  • Page 26 C O M F O R T A D J U S T M E N T S NOTE: Change the seat dump by raising or lowering only one set of towers (front or rear). 10. Reinstall the retaining clips. 11.
  • Page 27 C O M F O R T A D J U S T M E N T S Seatback Angle Adjustment If your power chair is equipped with an adjustable seatback, you can adjust it to four (4) different angles: 90°, 102°, LOCKING 105°...
  • Page 28 C O M F O R T A D J U S T M E N T S Controller Position You can move the controller in toward or out away from the armrest, or change the position of the controller for ei- ther left-hand or right-hand use.
  • Page 29 C O M F O R T A D J U S T M E N T S Foot Platform Height Adjustment The foot platform height is easily adjusted to several differ- ent heights. FOOT PLATFORM To raise or lower the foot platform: BRACKET 1.
  • Page 30 C O M F O R T A D J U S T M E N T S Power Elevating Seat (Optional) If your power chair is equipped with a power elevating seat, you can change the seat height either through the controller or through a toggle switch mounted to one of the armrests.
  • Page 31 C O M F O R T A D J U S T M E N T S Positioning Belt Your power chair may be equipped with a positioning belt that can be adjusted for operator comfort. See figure 25. The positioning belt is designed to support the operator so that he/she does not slide down or forward in the seat.

  • Page 32: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level.
  • Page 33 V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries using the off-board charger: 1. Position your power chair next to a standard electrical outlet.
  • Page 34 V I . B A T T E R I E S A N D C H A R G I N G How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries. You may use your power chair all day on a daily basis or you may not use it for weeks at a time.
  • Page 35 V I . B A T T E R I E S A N D C H A R G I N G It might take a few days for the temperature of the battery to stabilise and adjust to its new ambient temperature. More importantly, it will take a few “charging cycles”...

  • Page 36: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 6000 is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Dealer.
  • Page 37 V I I . C A R E A N D M A I N T E N A N C E All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
  • Page 38 V I I . C A R E A N D M A I N T E N A N C E Yearly Checks Take your power chair to your Quantum Rehab Dealer for yearly maintenance, especially if you use your power chair on a daily basis.
  • Page 39 V I I . C A R E A N D M A I N T E N A N C E TYRE TUBE FRONT RIM HALF SCREWS WHEEL HUB REAR RIM HALF WARNING! Completely deflate the tyre before attempting repair. LUG NUTS Figure 27.
  • Page 40 V I I . C A R E A N D M A I N T E N A N C E WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. To replace the batteries: 1.
  • Page 41 V I I . C A R E A N D M A I N T E N A N C E 8. Connect A battery harness to the new rear battery according to the battery wiring diagram. See figure 31. WARNING! Make sure you tighten the fasteners so that the connections are secure.

  • Page 42: Warranty

    Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Quantum Rehab Dealer is re- sponsible for labour and service. Please contact your Quantum Rehab Dealer for information about these ser- vices and for any applicable charges.
  • Page 43 Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculation based on battery specifications and drive system performance. Test conducted at maximum weight capacity. Tested by Pride Mobility Products under simulated conditions; continuous straight-line driving until total battery depletion. Test conducted at maximum weight capacity.

  • Page 44: Appendix I - Specifications

    A P P E N D I X S P E C I F I C A T I O N S LENGTH (WITHOUT FRONT RIGGINGS) 94 cm (37 in.) TURNING RADIUS (WITHOUT FRONT RIGGINGS) WIDTH 56 cm (22 in.) 65.75 cm (25.87 in.) GROUND CLEARANCE 8.89 cm (3.5 in.)
  • Page 45 N O T E S Quantum 6000 Series www.pridemobility.com...
  • Page 46 N O T E S www.pridemobility.com Quantum 6000 Series...
  • Page 47 Quality Control - Quantum 6000 Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU3149* Product Serial #...
