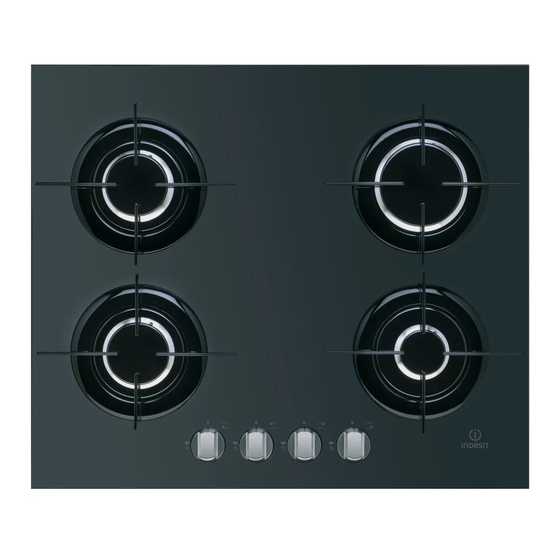

Indesit IPG 640 S (BK) GB Operating Instructions Manual
Hide thumbs
Also See for IPG 640 S (BK) GB:
- Operating instructions manual (80 pages) ,
- Operating instructions manual (16 pages) ,
- Operating instructions manual (48 pages)
Related Manuals for Indesit IPG 640 S (BK) GB
Summary of Contents for Indesit IPG 640 S (BK) GB
-
Page 1: Table Of Contents
IPG 640 S (BK) GB English Operating Instructions Contents Operating Instructions,1 Warnings,2 Assistance,3 Description of the appliance,4 Installation,5 Start-up and use,9 Precautions and tips,9 Maintenance and care,10 Troubleshooting,10 After Sales Service,11 Guarantee,12... -
Page 2: Warnings
Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... -
Page 3: Assistance
Assistance Communicating: • the type of problem encountered. • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging. -
Page 4: Description Of The Appliance
Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. -
Page 5: Installation
Installation Fitting the appliance The following precautions must be taken when installing the hob: • kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully. -
Page 6: Gas Connection
• Where the hob is not installed over a built-in oven, a wooden panel must Connect the Brown wire to the terminal marked “L” or coloured Red or Brown. be installed as insulation. This must be placed at a minimum distance of Connect the Blue wire to the terminal marked “N”... - Page 7 • Setting the burners to minimum 1. Turn the tap to the low flame position; 2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady. 3.
-
Page 8: Burner And Nozzle Specifications
Model Class Rated power (kW) Voltage and frequency Power (W) IPG 640 S GB II2H3+ 7,30 (531 g/h - G30) (521 g/h - G31) 220-240V~ 50/60Hz The values in g/h refer to the capacities with liquid gas (Butane, Propane). IPG 640 S GB... -
Page 9: Start-Up And Use
Start-up and use • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is ! The position of the corresponding gas burner is shown on every knob. extremely dangerous to leave the appliance exposed to rain and storms. -
Page 10: Maintenance And Care
Maintenance and care The flame dies in models with a safety device. Check to make sure that: • You pressed the knob all the way in. Switching the appliance off • You keep the knob pressed in long enough to activate the safety device. Disconnect your appliance from the electricity supply before carrying out •... -
Page 11: After Sales Service
After Sales Service No one is better placed to care for your Indesit appliance during the course of its working life than us – the manufacturer. Essential Contact Information Indesit Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service. -
Page 12: Guarantee
5 Year Parts Guarantee Indesit also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
