Datalogic QuickScan QS6500BT Quick Reference Manual
Handheld bar code scanner
Hide thumbs
Also See for QuickScan QS6500BT:
- Product reference manual (336 pages) ,
- Quick reference manual (21 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Datalogic QuickScan QS6500BT
Summary of Contents for Datalogic QuickScan QS6500BT

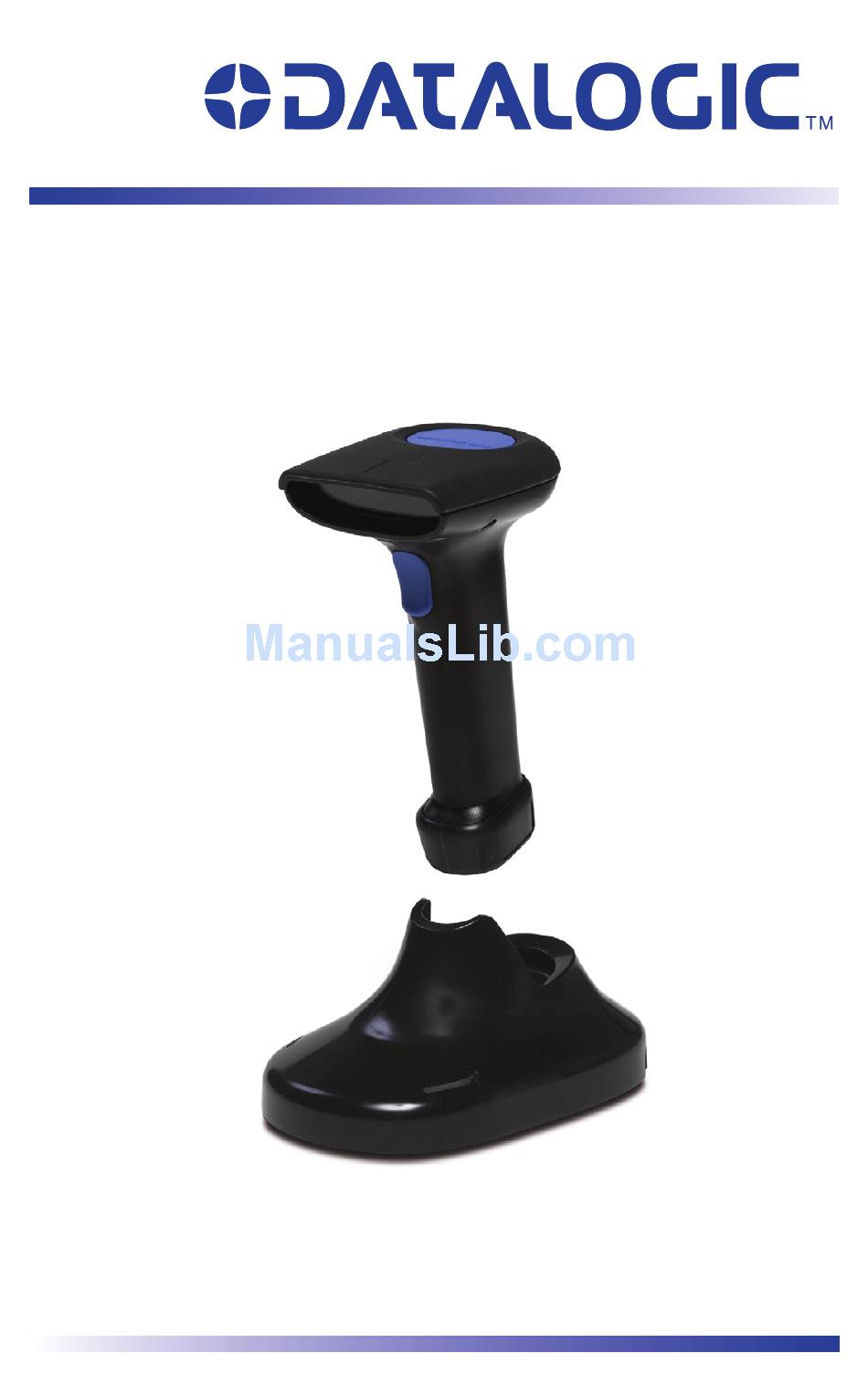

- Page 1 ® QuickScan QS6500BT Handheld Bar Code Scanner Quick Reference Guide...
- Page 2 Datalogic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page. Disclaimer...
- Page 3 Product, you will be deemed to have accepted the terms and conditions of this Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
- Page 4 Agreement or the granted licenses, but instead may elect to notify End User that End User is deemed to have ordered and accepted a license for each breaching use. End User shall pay Datalogic the applicable list price for such licenses as of the date of such breach.
- Page 5 Datalogic Scanning, Inc., Legal Department, 111 SW Fifth Ave. Suite 4100, Portland, OR 97204-3644. In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify the Datalogic Prod-...
- Page 6 Notices to Datalogic shall be sent to the attention of Contract Administration, Datalogic Scanning, Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by Datalogic in writing.
-
Page 7: Installation
Installation ® The QuickScan QS6500BT linear imager is easy to install and use. The following figure shows the steps to perform an installa- tion. Turn off the host computer before connection. Consult the host terminal’s manual if necessary. Base Station Power Cable Routing... - Page 8 8. Place the linear imager in the Base Station and verify the charge LED is flashing. After five minutes, the scanner will have sufficient charge to begin reading labels. A full charge will take 2.5 hours. 9. Press and hold the link button on the bottom of the Base Station for three seconds.
-
Page 9: Battery Warnings And Cautions
Battery Warnings and Cautions Do not discharge the battery using any device except for the linear imager. When the battery is used in devices other than the linear imager, it may damage the battery or reduce its life expectancy. If the device causes an abnormal current to flow, it may cause the battery to become hot, explode or ignite and WARNING cause serious injury. - Page 10 Always charge the battery at 32°–113°F (0°–45°C) tempera- ture range. Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. CAUTION The use of any other power supplies can damage the linear imager and void your warranty.
-
Page 11: Power Supply
Power Supply Models require either a Listed class II or class III with a Limited Power Source (LPS). For the safety certification to be valid, class III input power sources must be IEC/EN60950-1 (EN 60335- series, EN 60065 or relevant) approved. Input: 100 - 240 VAC Output: 9 - 12 VDC Max. -
Page 12: How To Scan
How to Scan The figure below shows the right and wrong ways to scan a bar code. 1. The linear imager must be pointed at a slight angle to the bar code so that the light reflected off the bar code can be “seen” by the linear imager. -
Page 13: Troubleshooting
Troubleshooting If the linear imager is not operating properly, the following checks should be performed: 1. The linear imager uses an external power supply and the external power supply has failed, the linear imager will not operate. Exchange the power supply with a known good power supply and retest the linear imager. -
Page 14: Compliance Statement
If the linear imager still does not function properly, contact your local supplier or Datalogic Customer Support Services. Compliance Statement This device complies with Part 15 rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference; and 2. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Datalogic hereby declares that the Equipment specified below has been tested and found compliant to the following Directives and Standards: Directives: EMC 89/336/EEC Low Voltage 73/23/EEC R&TTE 1999/5/EC Standards: EN300 328:2001 - Radio EN55022:2003 - Generic Emission... - Page 16 Telephone: (305) 591-3222 Fax: 49 (0) 61 51/93 58 58 Fax: (305) 591-3007 India Singapore Datalogic Scanning India Datalogic Scanning Singapore PTE LTD Mulund (West) Singapore Mumbai 400 080 Telephone: (65) 6435-1311 Telephone: 91- 22 - 64504739 Fax: (65) 6226-1242 www.scanning.datalogic.com...
