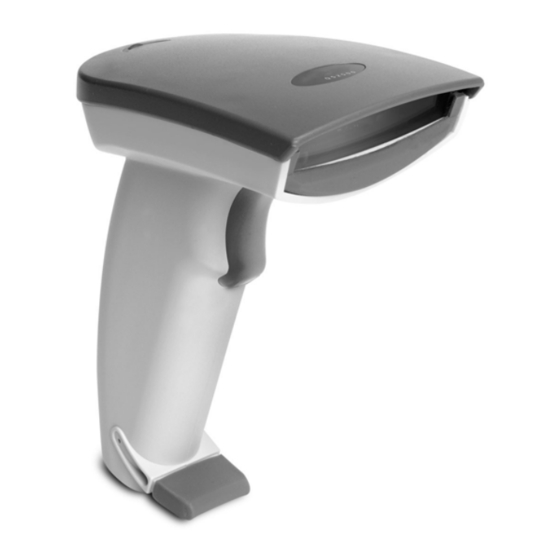

QuickScan
QS2500
Handheld Bar Code Scanner
Product Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic QuickScan QS2500

Summary of Contents for Datalogic QuickScan QS2500

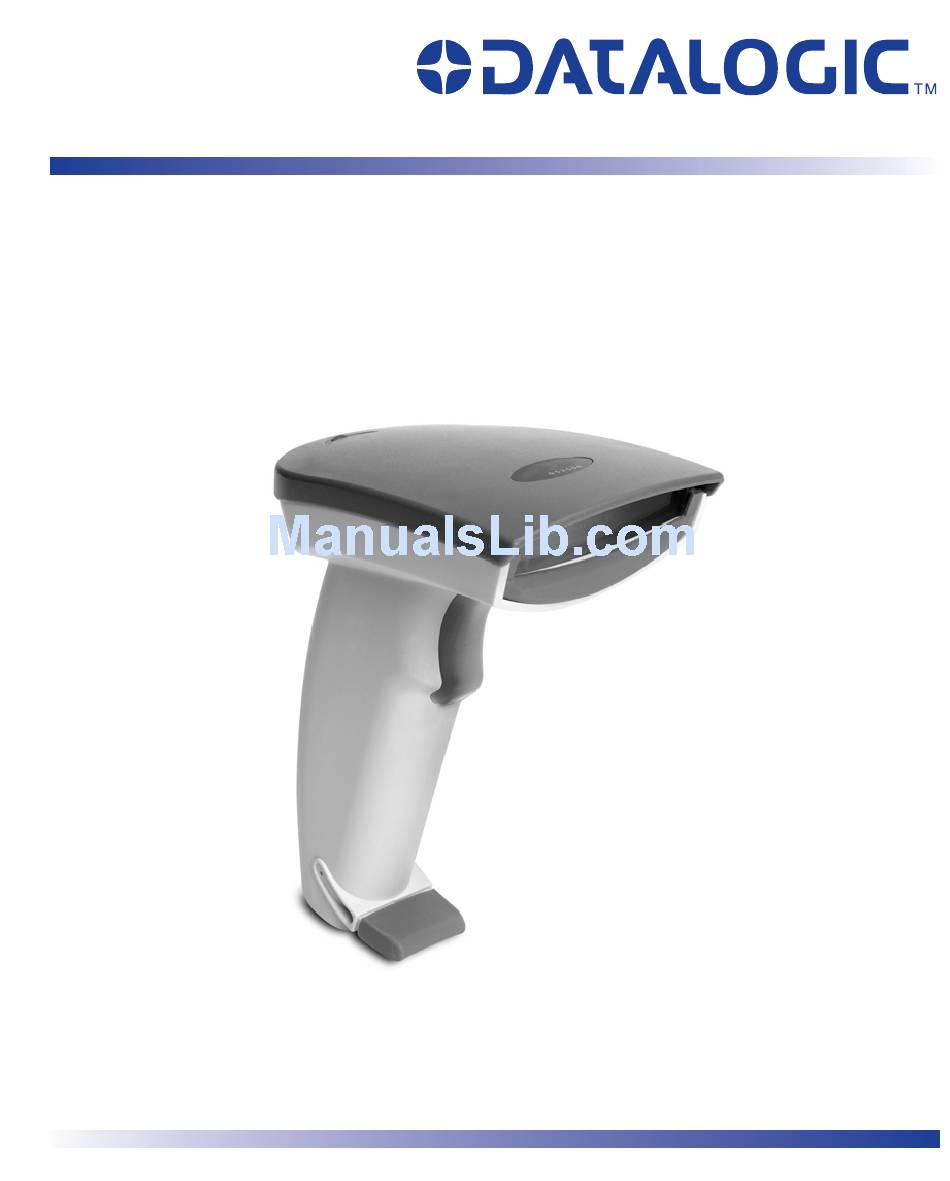

  • Page 1 ® QuickScan QS2500 Handheld Bar Code Scanner Product Reference Guide...
  • Page 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. and the Datalogic logo is a trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade names referred to herein are property of their respective owners.

  • Page 3: Table Of Contents

    Table of Contents Installation ..................1 Keyboard Wedge ..................1 Wand Emulation ..................1 RS-232 ...................... 1 USB ......................2 IBM ......................2 Programming the QS2500 ..............3 Resetting the QS2500 .................. 4 Interfaces ................... 4 Keyboard Wedge ..................4 Wand Emulation ..................
  • Page 4 Standard 2 of 5 ..................54 Code 16K ....................56 PDF417 ....................57 Italian PharmaCode ...................58 RSS Expanded ..................59 RSS Limited ....................60 RSS-14 ....................61 Appendix - Default Settings ..............62 Appendix B - Bar Code Samples ............63 Appendix C - ASCII Codes ..............66 Appendix D - Parameter Setting List ............68 Appendix E - Alphanumeric Characters ..........69 QS2500...

  • Page 5: Installation

    Installation Complete the following steps for the appropriate interface. Keyboard Wedge 1. Turn off the terminal or computer. 2. Disconnect the keyboard cable from the back of the terminal or computer. 3. Connect the QS2500 to the terminal or computer using the appro- priate interface cable.

  • Page 6: Usb

    1. Plug the USB cable into the terminal or computer. If the QS2500 does not operate, turn off the terminal or computer immediately and check all connections. If necessary, go through the above steps again. NOTE 1. Turn off the terminal or computer. 2.

  • Page 7: Programming The Qs2500

    Programming the QS2500 To program the QS2500, you must scan a series of programming bar codes in the correct order. The inside back cover of this manual contains a table of alphanumeric bar codes needed to program the various options. To program each option: 1.

  • Page 8: Resetting The Qs2500

    Resetting the QS2500 To return all QS2500 option settings to the factory defaults, scan the fol- lowing two bar codes, in the order shown: Start Program Default Value Initialization Interfaces The QS2500 supports Keyboard Wedge, RS-232, Wand Emulation, IBM and USB interfaces. The correct interface cable is included for the scanner interface type you ordered.
  • Page 9 Start Program Alphanumeric Option Bar Code Option Entry IBM AT, PS/2 Keyboard Type Reserved 01 - 06 Belgium Keyboard Layout Danish France Germany Italian Portuguese Spanish Swedish Switzerland Latin American Japan 0–8 (0 = high clock 00–08 Keyboard Speed rate; 8 = low clock rate) Exit When this option is enabled, the QS2500 outputs bar code...
  • Page 10 If your application accepts only keypad numeric code, use Numeric Key: setting to make the QS2500 output code as numeric-keypad presses when it reads digits. If you use setting , the scanner will send the three digit ACSCII number for all data using the Alt and numeric keypad key- codes.
  • Page 11 Start Program Alphanumeric Option Bar Code Option Entry Disable Function Key Enable Alphabetic key Numeric Key Numeric keypad only Alt+Keypad Caps lock Caps Lock No caps lock Disable Power-On Simulation Enable 0–99 (msec.) 00–99 Intercharacter Delay 0–99 (10 msec.) 00–99 Block Transmission Delay Exit...

  • Page 12: Wand Emulation

    Wand Emulation Support for wand emulation is available only with the keyboard wedge interface. Use the bar codes below to enable and config- ure wand emulation. NOTES Start Program Alphanumeric Option Bar Code Option Entry Keyboard Wedge Interface selection Wand Emulation Bar high/Space Bar/Space Polarity Bar low/Space...
  • Page 13 Alphanumeric Option Bar Code Option Entry 15 (Default) 00–99 (x 10 pixels) 00–99 Margin Delay (pixels) 30 (default) 00–99 (x 10 msec.) Transmit Delay 00–99 (Milliseconds) Exit Product Reference Guide...
  • Page 14 RS-232 Alphanumeric Option Bar Code Option Entry 300 Baud Baud Rate 600 Baud 1200 Baud 2400 Baud 4800 Baud 9600 Baud 19200 Baud 38400 Baud None Parity Even 8 bits Data Bit 7 bits 1 bit Stop Bit 2 bits Exit CTS = Clear To Send (Hardware Signal) RTS = Request To Send (Hardware Signal)

  • Page 15: Rs-232 Advanced Features

    The QS2500 will assert RTS high to signal the scanner that data will be sent immediately after RTS is asserted. When connecting to a Datalogic scanner aux. port, additional program- ming is required to enable transmission of code IDs for all sym- bologies to be scanned.

  • Page 16: Rs-232 Advanced Features - Continued

    QS2500 waits for handshaking acknowledgment from the host computer. Start Program Alphanumeric Option Bar Code Option Entry None Flow Control RTS/CTS Xon/Xoff ACK/NAK Datalogic Aux. Port Mode B 0–99 (msec.) 00–99 Intercharacter Delay 0–99 (10 msec.) 00–99 Block Transmission Delay 0–99 (100 msec.) 00–99...

  • Page 17: Ibm Interface (46Xx/Usb)

    Interface (46XX/USB) The next few pages contain the programming labels for configuring the IBM interface to match your interface configuration and symbology spe- cific requirements. Start Program Alphanumeric Option Bar Code Option Entry IBM 46xx port 17 IBM 46xx port 5B IBM 46xx port 9B Exit These bar codes to select the IBM USB interface.

  • Page 18: Ibm Options

    IBM Options IBM 46xx Code 39 Conversion This feature enables/disables the scanner’s ability to set the symbology identifier for the specified symbology to Code 39 before sending the label data to an IBM host. This applies to: Code 128, Code 93 and Codabar for IBM Port 5B;...

  • Page 19: Ibm Host Commands

    Start Program Alphanumeric Option Bar Code Option Entry Disable Enable IBM 46xx Code 39 Conversion Table-top Handheld IBM USB Device Type 0x00–0xF6 Max. Host Transmit Message Length Exit IBM Host Commands Specifies whether the scanner will process or ignore IBM host commands. Start Program Alphanumeric Option Bar Code...

  • Page 20: Scanning

    Scanning Scanning Mode The trigger button must be pressed to activate scanning. Good-read off: The light source of the QS2500 stops scanning when there is a successful read or no code is decoded after the standby duration has elapsed. The trigger button acts as a switch. Pressing the button acti- Momentary: vates scanning and releasing the button stops scanning.

  • Page 21: Double Confirm

    Double Confirm If this option is enabled, the QS2500 will require a several successful decodings to confirm the bar code data. Larger settings will make misreads less likely. If a double confirm is set, the multifield scan function will be disabled.
  • Page 22 Global minimum and maximum Global Minimum/Maximum Code Length: length can be set to qualify data entry. The length is defined as the actual bar code data length to be sent. Labels with length exceeding these limits will be rejected. Make sure that the minimum-length setting is no greater than the maximum-length setting;...
  • Page 23 With this option enabled, the QS2500 will scan Inverted Image Scan: black/white bar codes with a white/black background. This operation enables an external device to control scanning CTS Trigger: by applying an external trigger signal to the CTS input. When active, this signal causes scanning to begin as the QS2500’s trigger is depressed.

  • Page 24: Beep/Tone/Led Settings

    Beep/Tone/LED Settings After power-on, the QS2500 will generate an alert signal to Power-On Alert: indicate a successful self-test. After each successful bar code reading, the LED above the LED Control: QS2500 will light up. After each successful bar code reading, the QS2500 will Beep Control: beep.
  • Page 25 Start Program Alphanumeric Option Bar Code Option Entry Disable Power-On Alert Enable Disable LED Indication Enable Disable Beeper Indication Enable 0–07 00–07 Beep Loudness 0–99 (100Hz) 00–99 Beep-Tone Frequency 0–99 (10 msec.) 00–99 Beep-Tone Duration Disable Beep/Lamp Option 1: Enable Beep &...

  • Page 26: Label Editing (Includes Prefix/Suffix)

    Label Editing (includes Prefix/Suffix) Up to 22 ASCII characters may be sent before data. Prefix Characters: Prefix Data Suffix Up to 22 ASCII characters may be sent after data. Suffix Characters: These characters are affixed to the data Preamble/Postamble Characters: automatically when each bar code is decoded.
  • Page 27 4. Scan the Store Settings bar code on the inside back cover. 5. Repeat the same procedure for the G2 characters. 6. Scan the Exit bar code. 7. Insert the data group 1–4 position. (page Start Program Alphanumeric Option Bar Code Option Entry None...
  • Page 28 Alphanumeric Option Bar Code Option Entry None Insert G2 Characters Setting 1–22 characters 00–ff ASCII code None Insert G3 Characters Setting 1–22 characters 00–ff ASCII code None Insert G4 Characters Setting 1–22 characters 00–ff ASCII code Exit The preamble will be appended before the code Preamble Transmission: data.
  • Page 29 Start Program Alphanumeric Option Bar Code Option Entry Disable Preamble Transmission Enable Disable Postamble Transmission Enable 0–63 (0 = no insertion) 00–63 Insert Data Group 1 Position 1–22 characters 00–ff ASCII code 0–63 (0 = no insertion) Insert Data Group 2 00–63 Position 0–63...
  • Page 30 This function is used to show unknown bar code Code Name Transmission: symbologies that include all readable symbologies of the QS2500. The code name will be transmitted before the bar code data to identify the symbology. You can set the alpha characters to be displayed as either Case Conversion: uppercase or lowercase.

  • Page 31: Symbology Settings

    Symbology Settings UPC-A Format: Read: Leading Zero Data Digits (11 Digits) Check Digit With this option enabled, the QS2500 will trans- Checksum Transmission: mit the checksum. The leading or ending digits of bar code data Truncate Leading/Ending: characters can be truncated. The QS2500 will beep instead of reading anything when the truncate value is more than the bar code data digits or the truncate leading value overlaps the truncate ending value.
  • Page 32 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable Disable Checksum Transmission Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <A>* code Code ID Setting 0–44 00–44 Insertion Group Selection None Supplement Digits 2 digits...

  • Page 33: Upc-E

    UPC-E Read: Format: Leading Zero Data Digits (6 Digits) Check Digits When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as UPC-A. See page Truncate Leading/Ending: Same as UPC-A. See page Code Id Setting: Same as UPC-A. See page Insertion Group Selection: Format: Supplement Digits:...
  • Page 34 Start Program Alphanumeric Option Bar Code Option Entry Disable Enable Read Disable Enable Checksum Verification Disable Enable Checksum Transmission 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ffH ASCII code 00–ff <E>* Code ID Setting 0–44 00–44 Insertion Group Selection None 2 digits Supplement Digits...
  • Page 35 EAN-13 Format Read: Data Digits (12 Digits) Check Digits When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as UPC-A. See page Truncate Leading/Ending: Same as UPC-A. See page Code ID Setting: Same as UPC-A. See page Insertion Group Selection: Format: Supplement Digits:...
  • Page 36 Alphanumeric Option Bar Code Option Entry Disable Checksum Transmission Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ffH ASCII code 00–ff <F>* Code ID Setting 0–44 00–44 Insertion Group Selection None Supplement Digits 2 digits 5 digits UCC/EAN 128 Auto Detection Disable ISBN/ISSN Conversion...

  • Page 37: Ean-8

    EAN-8 Format: Read: Data Digits (7 Digits) Check Digits When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as UPC-A. See page Truncate Leading/Ending: Same as UPC-A. See page Code ID Setting: Same as UPC-A. See page Insertion Group Selection: Format Supplement Digits:...
  • Page 38 Alphanumeric Option Bar Code Option Entry Disable Checksum Verification Enable Disable Checksum Transmission Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending Two characters 00–ff <FF>* 00–ff ASCII Code ID Setting code 0–44 00–44 Insertion Group Selection None Supplement Digits 2 digits 5 digits UCC/EAN 128...

  • Page 39: Code 39

    Code 39 Format: Read: Start “*” Data Digits (Variable) Checksum (Optional) End “*” The checksum is optional and presented as the sum Checksum Verification: mod 43 of the numerical value of the data digits. When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum.
  • Page 40 This function allows several symbols to be concatenated and be Append: treated as a single entry. The QS2500 will not transmit the embedded appending code (for Code-39, a space). If the append function is enabled and other symbols are read again with the appended code, then the codes are transmitted without the code ID, preamble, or prefix.

  • Page 41: Interleaved 2 Of 5

    Alphanumeric Option Bar Code Option Entry 0–44 00–44 Insertion Group Selection Standard ASCII Full ASCII Format Disable Enable Append Disable Enable Start/End Transmission Exit Interleaved 2 of 5 Format: Read: Data Digits (Variable) Checksum (Optional) The checksum is presented as the sum mod 10 of Checksum Verification: the numerical values of all data digits.
  • Page 42 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable Disable Checksum Transmission Enable Use Global Max. Max.Code Length 2–64 02–64 (even values only) Use Global Min. Min. Code Length 2–64 02–64 (even values only) 0–15 00–15 Truncate Leading...

  • Page 43: Industrial 2 Of 5

    Industrial 2 of 5 Format: Read: Data Digits (Variable) Checksum (Optional) Same as Code 39. See page Maximum/Minimum Code Length: Same as UPC-A. See page Truncate Leading/Ending: Same as UPC-A. See page Code ID Setting: Same as UPC-A. See page Insertion Group Selection: Start Program Alphanumeric...

  • Page 44: Matrix 2 Of 5

    Alphanumeric Option Bar Code Option Entry 00–ff ASCII 00–ff <i>* code Code ID Setting 0–44 00–44 Insertion Group Selection Exit Matrix 2 of 5 Format: Read: Data Digits (Variable) Checksum (Optional) The checksum is presented as the sum mod 10 of Checksum Verification: the numerical values of all data digits.
  • Page 45 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable Disable Checksum Transmission Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff...

  • Page 46: Codabar

    Codabar Format: Read: Start Data Digits (Variable) Checksum (Optional) The checksum is presented as the sum mod 16 of Checksum Verification: the numerical values of all data digits. When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as Code 39.
  • Page 47 Alphanumeric Option Bar Code Option Entry Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <%>* code Code ID Setting 0–44 00–44 Insertion Group Selection ABCD/ABCD...

  • Page 48: Code 128

    Code 128 Format: Read: Data Digits (Variable) Checksum (Optional) The checksum is presented as the sum mod 103 of Checksum Verification: all data digits. When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as Code 39. See page Maximum/Minimum Code Length: Same as UPC-A.
  • Page 49 • Append label data with Concatenation Code <GS> (1Dhex):<]C1> <Label data 1> <GS> <Label data 2><Checksum> Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable Disable Checksum Transmission Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min.

  • Page 50: Code 93

    Alphanumeric Option Bar Code Option Entry Disable Append Enable 00–ff ASCII 00–ff <#>* code UCC/EAN-128ID Setting 00–ff ASCII 00–ff code Concatenation Code Exit Code 93 Format: Read: Data Digits (Variable) Checksum1 (Optional) Checksum1 (Optional) The checksum is presented as the sum mod 47 of Checksum Verification: the numerical values of all data digits.
  • Page 51 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable (two digits) Disable Checksum Transmission Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending...

  • Page 52: Code 11

    Code 11 Format: Read: Data Digits Checksum1 Checksum1 (Variable) (Optional) (Optional) The checksum is presented as the sum mod 11 of all Checksum Verification: data digits. When this option is enabled, the QS2500 will Checksum Transmission: transmit one-digit or two-digit checksums, depending upon the setting for checksum verification.

  • Page 53: Msi/Plessey

    Alphanumeric Option Bar Code Option Entry Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <O>* code Code ID Setting 0–44 00–44 Insertion Group Selection Exit MSI/Plessey Format: Read: Data Digits (Variable) Checksum1 (Optional) Checksum2 (Optional) The MSI/Plessey code has one or two optional...
  • Page 54 Same as UPC-A. See page Insertion Group Selection: Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Mod 10 Mod 10/10 Mod 11/10 Disable Checksum Transmission Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min.

  • Page 55: Uk/Plessey

    Alphanumeric Option Bar Code Option Entry 00–ff ASCII 00–ff <@>* code Code ID Setting 0–44 00–44 Insertion Group Selection Exit UK/Plessey Format: Read: Data Digits (Variable) Checksum1+2 (Optional) The UK/Plessey code has one or two optional Checksum Verification: checksum digits. The checksums are calculated as the sum mod 10 or 11 of the data digits.
  • Page 56 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Disable Checksum Verification Enable Disable Checksum Transmission Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff...

  • Page 57: Telepen

    Telepen Format: Read: Data Digits Checksum1 (Optional) The checksum is presented as the sum mod 10 or Checksum Verification: 11 of the data digits. When this option is enabled, the QS2500 will Checksum Transmission: transmit the checksum. Same as Code 39. See page Maximum/Minimum Code Length: Same as UPC-A.

  • Page 58: Standard 2 Of 5

    Alphanumeric Option Bar Code Option Entry Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <S>* code Code ID Setting 0–44 00–44 Insertion Group Selection Numeric only Format Full ASCII only Exit Standard 2 of 5 Format...
  • Page 59 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <i> code Code ID Setting 0–44 00–44...

  • Page 60: Code 16K

    Code 16K Same as UPC-A. See page Truncate Leading/Ending: Same as UPC-A. See page Code ID Setting: Same as UPC-A. See page Insertion Group Selection: Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending...

  • Page 61: Pdf417

    PDF417 Same as UPC-A. See page Truncate leading/ending: Same as UPC-A. See page Code ID Setting: Same as UPC-A. See page Insertion Group Selection: Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff...

  • Page 62: Italian Pharmacode

    Italian PharmaCode Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <p> code Code ID Setting 0–44 00–44 Insertion Group Selection Disable Leading “A” Enable Exit QS2500...

  • Page 63: Rss Expanded

    RSS Expanded Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <RX>...

  • Page 64: Rss Limited

    RSS Limited Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable Use Global Max. Max. Code Length 1–64 01–64 Use Global Min. Min. Code Length 1–64 01–64 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <RL>...

  • Page 65: Rss-14

    RSS-14 Start Program Alphanumeric Option Bar Code Option Entry Disable Read Enable 0–15 00–15 Truncate Leading 0–15 00–15 Truncate Ending 00–ff ASCII 00–ff <R4> code Code ID Setting 0–44 00–44 Insertion Group Selection Disable UCC/EAN 128 Emulation Enable Exit Product Reference Guide...

  • Page 66: Appendix - Default Settings

    Appendix - Default Settings Checksum Checksum Read Code Code Type Verification Transmission Enable Enable Enable UPC-A UPC-E EAN-13 EAN-8 Code 39 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 Codabar Code 128 Code 93 & Code 11 One digit MSI/Plessey One digit...

  • Page 67: Appendix B - Bar Code Samples

    Appendix B - Bar Code Samples UPC-A 2 3 4 5 6 7 8 9 0 1 UPC-E 1 2 3 4 5 6 EAN-13 1 2 3 4 5 6 7 8 9 0 1 2 8 EAN-8 1 2 3 4 5 6 7 0 Code 39 1 2 3 4 5 6 7 Interleaved 2 of 5...
  • Page 68 Matrix 2 of 5 456353663 Codabar A 1 1 2 + B Code 128 A 1 2 3 4 5 B c d Code 93 B 6 7 8 9 0 B c d Code 11 654215 MSI/Plessey UK/Plessey Standard 2 of 5 6 7 8 9 0 1 2 3 Code 16K 12345678901...
  • Page 69 PDF417 549875623 Italian PharmaCode RSS Expanded 0100123456789050 RSS Limited 0112345678901231 RSS-14 0100123456789050 Product Reference Guide...

  • Page 70: Appendix C - Ascii Codes

    Appendix C - ASCII Codes Example: ASCII “CR” = “0D” Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ = for keyboard wedge only QS2500...
  • Page 71 Example: ASCII “A” = “41” “ & ‘ < > Product Reference Guide...

  • Page 72: Appendix D - Parameter Setting List

    Appendix D - Parameter Setting List Start Program Standard Parameter Setting List If you wish to display the current configuration of your QS2500 over the host terminal/computer, scan the Bar Code standard parameter setting list bar code. System Parameter Setting List If you wish to display the product information and revision number for your QS2500 over the host terminal/computer, scan the System parameter set- ting list bar code.

  • Page 73: Appendix E - Alphanumeric Characters

    Appendix E - Alphanumeric Characters Store Settings Exit Product Reference Guide...
  • Page 74 NOTES QS2500...
  • Page 76 Telephone: (305) 591-3222 Fax: [33].01.64 46.72.44 Fax: (305) 591-3007 Germany Spain and Portugal Datalogic Scanning GmbH Datalogic Scanning Sarl Sucursal en Darmstadt, Germany España Telephone: 49 (0) 61 51/93 58-0 Madrid, Spain Fax: 49 (0) 61 51/93 58 58 Telephone: 34 91 746 28 60...
