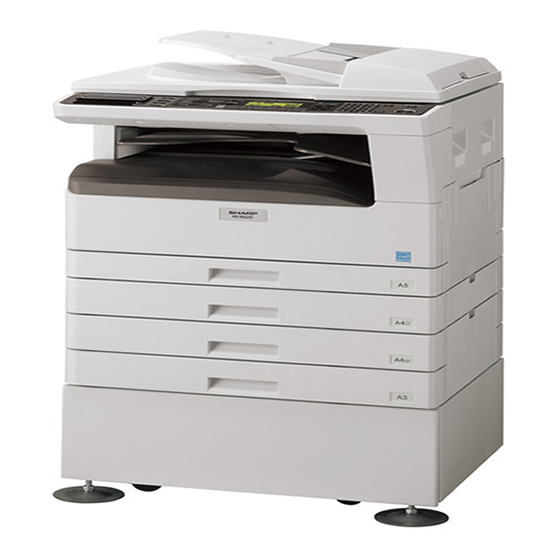

MX-M200D
DIGITAL MULTIFUNCTIONAL
SYSTEM
OPERATION MANUAL
(for general information and copier)
PART 1: GENERAL INFORMATION
• BEFORE USING

THE PRODUCT

• TROUBLESHOOTING
AND MAINTENANCE

• PERIPHERAL DEVICES

AND SUPPLIES
PART 2: COPIER OPERATION
• COPY FUNCTIONS
• CONVENIENT COPY
FUNCTIONS
• APPENDIX
Be sure to become thoroughly familiar with this manual to
gain the maximum benefit from the product.
Before installing this product, be sure to read the
cautions and installation requirements sections.
Be sure to keep all operation manuals handy for reference
including this manual, the "Operation manual (for general
information and copier)" and operation manuals for any
optional equipment which has been installed.
MODEL
Page
12
24
40
45
64
73
