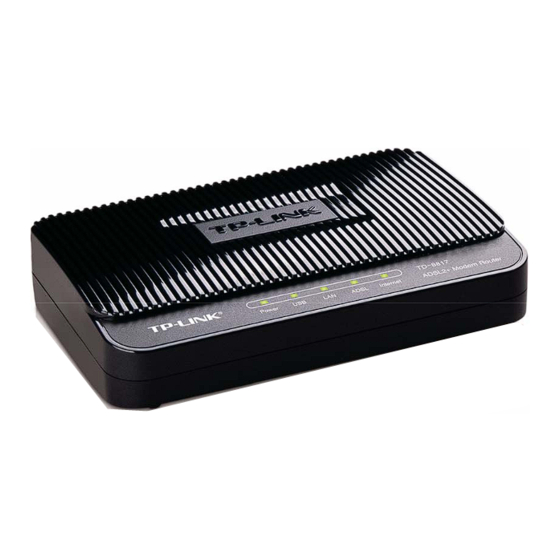

TP-Link TD-8817 User Manual

Adsl2+ modem router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

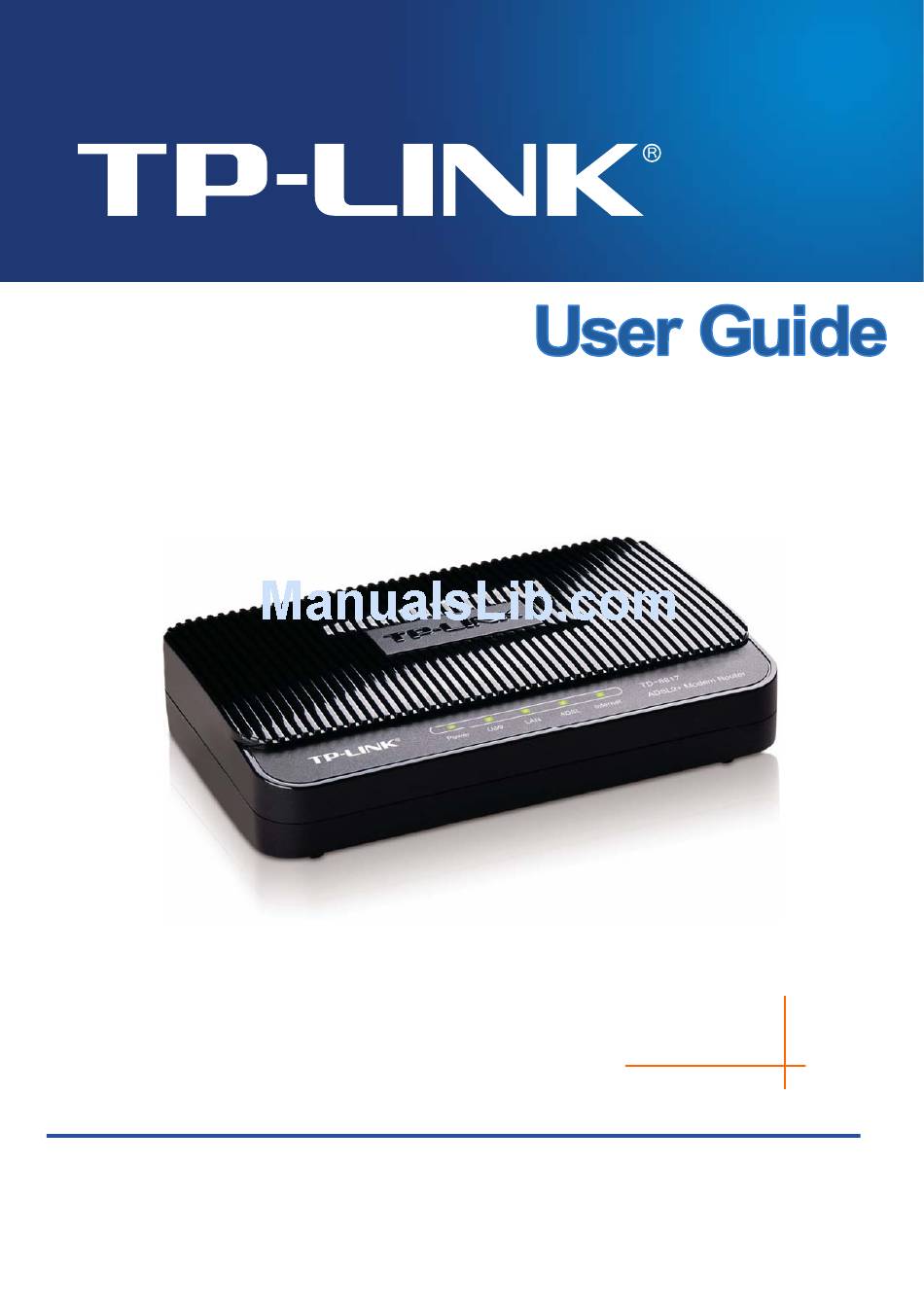

TD-8817
ADSL2+ Modem Router
Rev: 1.0.5
1910010325

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-8817

Summary of Contents for TP-Link TD-8817

  • Page 1 TD-8817 ADSL2+ Modem Router Rev: 1.0.5 1910010325...
  • Page 2 COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Product Overview ...................... 2 Main Features ......................2 Conventions ......................3 Chapter 2. Hardware Installation ................. 4 The Front Panel ......................4 The Back Panel......................5 Installation Environment .................... 5 Hardware installation procedures................
  • Page 5 4.5.6 CWMP ..........................48 Maintenance......................48 4.6.1 Administration.........................49 4.6.2 Time Zone ........................49 4.6.3 Firmware.........................51 4.6.4 System Restart.......................53 4.6.5 Diagnostic........................53 Help......................... 54 Appendix A: Specification..................55...

  • Page 6: Package Contents

    ADSL2+ Modem Router User Guide Package Contents The following items should be found in your package: One TD-8817 ADSL2+ Modem Router One Power Adapter for TD-8817 ADSL2+ Modem Router Quick Installation Guide One RJ45 cable One USB cable Two RJ11 cables...

  • Page 7: Chapter 1. Introduction

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet network. TD-8817 connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.

  • Page 8: Conventions

    Supports firmware upgrade and Web management. 1.3 Conventions The Router or device mentioned in this User Guide stands for TD-8817 without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation.

  • Page 9: Chapter 2. Hardware Installation

    TD-8817 ADSL2+ Modem Router User Guide Chapter 2. Hardware Installation 2.1 The Front Panel Figure 2-1 The LEDs are located on the front panel, they indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation: Status Indication Power is on.

  • Page 10: The Back Panel

    TD-8817 ADSL2+ Modem Router User Guide 2.2 The Back Panel Figure 2-2 ON/OFF: The switch for the power. POWER: The Power plug is where you will connect the power adapter. RESET: There are two ways to reset the Router's factory defaults.
  • Page 11 TD-8817 ADSL2+ Modem Router User Guide Figure 2-3...

  • Page 12: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 Configure PC After you directly connect your PC to the TD-8817 or connect your adapter to a Hub/Switch which has connected to the Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 13 TD-8817 ADSL2+ Modem Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 14 TD-8817 ADSL2+ Modem Router User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen above.

  • Page 15: Usb Configuration

    CD into your CD-ROM drive. The autorun.exe will automatically run and click Browse CD to read the files on the CD. Click the file TD-8817>USB Driver and select the USB driver type according to the operating system of your computer to start installation.
  • Page 16 TD-8817 ADSL2+ Modem Router User Guide Figure 3-7 Step 3: You will see Figure 3-8 as follow, please wait a moment. Figure 3-8 Step 4: After that, you will see Figure 3-9. Click Finish to complete the installation.

  • Page 17: Login

    TD-8817 ADSL2+ Modem Router User Guide Figure 3-9 Note: All of the above settings are under windows XP. If you want to pull out the USB device you must disconnect the network of USB first. In the Vista operating system, maybe the “Unknown Device” screen will pop up when you insert the USB cable of the Router to a computer, please just unplug the USB cable and try again.
  • Page 18 TD-8817 ADSL2+ Modem Router User Guide Figure 3-10 Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see Figure 3-11. Click the NEXT button. Figure 3-11 Step 2: Configure the time for the Router, and then click the NEXT button.
  • Page 19 TD-8817 ADSL2+ Modem Router User Guide Figure 3-13 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI and Connection Type. Then click NEXT. Figure 3-14 Step 5: Click NEXT to finish the Quick Start. Figure 3-15...

  • Page 20: Chapter 4. Software Configuration

    TD-8817 ADSL2+ Modem Router User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.

  • Page 21: System Log

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-2 4.1.2 System Log Choose “Status→System Log” menu, and you will be able to query the logs of the Router.

  • Page 22: Statistics

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-3 The Router can keep logs of all traffic. You can query the logs to find what happened to the Router. Click the CLEAR LOG button to clear the logs. Click the SAVE LOG button to save the logs.
  • Page 23 TD-8817 ADSL2+ Modem Router User Guide Figure 4-4 Interface: You can select Ethernet and ADSL to view the corresponding network traffic over different ports. Select Ethernet, and you will see the statistics table as below. Statistics Table: Transmit Frames The frames transmitted over the Ethernet port.

  • Page 24: Quick Start

    TD-8817 ADSL2+ Modem Router User Guide Statistics Table: Transmit total PDUs The total PDUs transmitted over the ADSL port. Transmit The total errors occurred over the ADSL port when data Statistics Transmit total Error Counts is being transmitted. The total PDUs transmitted over the ADSL port.
  • Page 25 TD-8817 ADSL2+ Modem Router User Guide Figure 4-6 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 26 TD-8817 ADSL2+ Modem Router User Guide • VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by your ISP.
  • Page 27 TD-8817 ADSL2+ Modem Router User Guide RIP2 format, the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast format. • Direction: Select this option to specify the RIP direction. None is for disabling the RIP function. Both means the ADSL Router will periodically send routing information and accept routing information, and then incorporate them into routing table.
  • Page 28 TD-8817 ADSL2+ Modem Router User Guide Figure 4-9 Service name: Specify a name for the PPPoE/PPPoA connection for recognition. Username: Enter your username for your PPPoE/PPPoA connection to identify and verify your account to the ISP. Password: Enter your password for your PPPoE/PPPoA connection.

  • Page 29: Lan

    TD-8817 ADSL2+ Modem Router User Guide given IP address provided by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and Gateway IP address. Default Route: You should select Yes to configure the PVC as the default gateway to internet from this device.
  • Page 30 TD-8817 ADSL2+ Modem Router User Guide Figure 4-11 Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed.
  • Page 31 TD-8817 ADSL2+ Modem Router User Guide The Router will work as a DHCP Server, it becomes the default gateway for DHCP client connected to it. DHCP stands for Dynamic Host Control Protocol. The DHCP Server gives out IP addresses when a device is booting up and request an IP address to be logged on to the network.
  • Page 32 TD-8817 ADSL2+ Modem Router User Guide Router will work as a DHCP Relay. A DHCP relay is a computer that forwards DHCP data between computers that request IP addresses and the DHCP server that assigns the addresses. Each of the device's interfaces can be configured as a DHCP relay. If it is enabled, the DHCP requests from local PCs will forward to the DHCP server runs on WAN side.

  • Page 33: Advanced Setup

    TD-8817 ADSL2+ Modem Router User Guide 4.4 Advanced Setup Choose “Advanced Setup”, you can see the next submenus: Figure 4-14 Click any of them, and you will be able to configure the corresponding function. 4.4.1 Firewall Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure 4-15).

  • Page 34: Nat

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-16 Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-17). Figure 4-17 Destination IP Address: This parameter specifies the IP network address of the final destination.
  • Page 35 TD-8817 ADSL2+ Modem Router User Guide Figure 4-18 Virtual Circuit: Enter Virtual Circuit Index that you plan to setup for the NAT function. NAT Status: This field shows the current status of the NAT function for the current VC. You can go to the previous screen (shown in Figure 4-6) to activate the function.
  • Page 36 TD-8817 ADSL2+ Modem Router User Guide Server in the next screen. The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
  • Page 37 TD-8817 ADSL2+ Modem Router User Guide 4.4.3.3. IP Address Mapping Choose “Advanced Setup→NAT”, select Multiple in Number of IPs. Click IP Address Mapping, then you can configure the Address Mapping Rule in Figure 4-22. The IP Address Mapping is for those VCs that configured with multiple IPs.

  • Page 38: Qos

    TD-8817 ADSL2+ Modem Router User Guide To add a mapping rule: Step 1: Select the “Virtual Circuit” and Multiple for the “Number of IPs”. Then select the tab IP Address Mapping (shown in Figure 4-21). Note: IP Address Mapping is only available for VCs with Multiple IPs.
  • Page 39 TD-8817 ADSL2+ Modem Router User Guide Figure 4-23 QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and DiffServ). Summary: Click the button to view the configurations of QoS. Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take the corresponding action to deal with it.

  • Page 40: Vlan

    TD-8817 ADSL2+ Modem Router User Guide application. • Vlan ID Range: Enter the Vlan range, then the rule will be effective to the selected Vlans. • IPP/DS Field: Select the type of the action to assign the priority. When you select IPP/TOS, you can assign the priority via IP information. IP QoS function is intended to deliver guaranteed as well as differentiated Internet services by giving network resource and usage control to the Network operator.
  • Page 41 TD-8817 ADSL2+ Modem Router User Guide Figure 4-24 Assign VLAN PVID for each Interface Click Assign VLAN PVID for each Interface in Figure 4-24, you can assign the PVID for each interface in the next screen (shown in Figure 4-25).

  • Page 42: Adsl

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-26 VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum. VLAN ID: This indicates the VLAN group. ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.

  • Page 43: Access Management

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-27 ADSL Mode: Select the ADSL operation mode which your ADSL connection uses. ADSL Type: Select the ADSL operation type which your ADSL connection uses. 4.5 Access Management Choose “Access Management”, you can see the next submenus: Figure 4-28 Click any of them, and you will be able to configure the corresponding function.

  • Page 44: Filter

    TD-8817 ADSL2+ Modem Router User Guide access to the Router. If Deactivated, all IP addresses can access to the Router. ACL Rule Index: Select the ACL rule index for the entry. Active: Enable the ACL rule. Secure IP Address: Select the IP addresses which are permitted to access to the Router remotely.
  • Page 45 TD-8817 ADSL2+ Modem Router User Guide Figure 4-30 Filter Type Selection: Select the filter type for the configuration below. IP/MAC Filter Set Index: Select the Set index for the IP Filter entry. This index can match with six IP / MAC Filter Rule Indexes.
  • Page 46 TD-8817 ADSL2+ Modem Router User Guide Incoming means that IP traffic which is coming into the router, and the Outgoing means that IP traffic which is going out the router. IP/MAC Filter Rule Index: Select the Rule index for the IP Filter entry.
  • Page 47 TD-8817 ADSL2+ Modem Router User Guide Note: If you want to make the rule take effect, please select Yes to active the rule. Step 3: Enter the “Source IP Address”, “Destination IP Address”, “Subnet Mask” and “Port Number” in the corresponding field.
  • Page 48 TD-8817 ADSL2+ Modem Router User Guide 4.5.2.2. MAC Filter Select IP/Mac Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-31), then you can configure the filter rules based on MAC address. Figure 4-31 Rule Type: Select MAC for the MAC Filter rule.
  • Page 49 TD-8817 ADSL2+ Modem Router User Guide , Then you can configure the specific rule for the example. Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then select the Interface “PVC0”, and select the Direction “Outgoing” for the first rule.
  • Page 50 TD-8817 ADSL2+ Modem Router User Guide Figure 4-32 Filter Type Selection: Select the Application Filter for the next configuration. Application Filter: Activate or deactivate the function. ICQ & MSN & YMSG & Real Audio/Video: Select Allow or Deny for these applications. If you select Allow, the Router will accept the application;...

  • Page 51: Snmp

    TD-8817 ADSL2+ Modem Router User Guide Filter Type Selection: Select the URL Filter for the next configuration. Active: Select “Yes” to make the rule to take effect. URL Index: Select the index for the URL Filter entry. URL: Enter the URL for this URL Filter.

  • Page 52: Ddns

    TD-8817 ADSL2+ Modem Router User Guide use. UPnP broadcasts are only allowed on the LAN. Figure 4-35 UPnP: Activate or Deactivate the UPnP function. Only when the function is activated, can the UPnP take effect. Auto-Configure: If you activate the function, then the UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions.

  • Page 53: Cwmp

    TD-8817 ADSL2+ Modem Router User Guide Wildcard support: Select the option to use Wildcard function 4.5.6 CWMP Choose “Access Management→CWMP”, you can configure the CWMP function in the screen (shown in Figure 4-37). The router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server).

  • Page 54: Administration

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-38 Click any of them, and you will be able to configure the corresponding function. 4.6.1 Administration Choose “Maintenance→Administration”, you can set new password for admin in the screen (shown in Figure 4-39).
  • Page 55 TD-8817 ADSL2+ Modem Router User Guide Figure 4-40 Note: The ADSL Router built-in some NTP Servers, when the Router connects to the Internet, the Router will get the system time automatically from the NTP Server. You can also configure the NTP Server address manually, and then the Router will get the time from the specific Server firstly.

  • Page 56: Firmware

    TD-8817 ADSL2+ Modem Router User Guide Figure 4-42 4.6.3 Firmware Choose “Maintenance→Firmware”, you can upgrade the firmware of the Router in the screen (shown in Figure 4-43). Make sure the firmware or romfile you want to use is on the local hard drive of the computer.
  • Page 57 TD-8817 ADSL2+ Modem Router User Guide the router is not experiencing difficulties, there is no need to download a more recent firmware version, unless the version has a new feature that you want to use. When you upgrade the router's firmware, you may lose its current configurations, so please back up the router’s current settings before you upgrade its firmware.

  • Page 58: System Restart

    TD-8817 ADSL2+ Modem Router User Guide To restore the Router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path in “New Romfile Location” field. Step 2: Click the UPGRADE button to complete.

  • Page 59: Help

    TD-8817 ADSL2+ Modem Router User Guide 4.7 Help Choose “Help”, you can view the help information for configuration of any function. Figure 4-48 Note: Click the tab, and you will be able to get the corresponding information.

  • Page 60: Appendix A: Specification

    TD-8817 ADSL2+ Modem Router User Guide Appendix A: Specification General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5 Standards and Protocols IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA , PPPoE, SNTP, HTTP, DHCP, ICMP, NAT,CWMP Safety & Emission FCC、CE 1 10/100M Auto-Negotiation RJ45 port（Auto MDI/MDIX)
