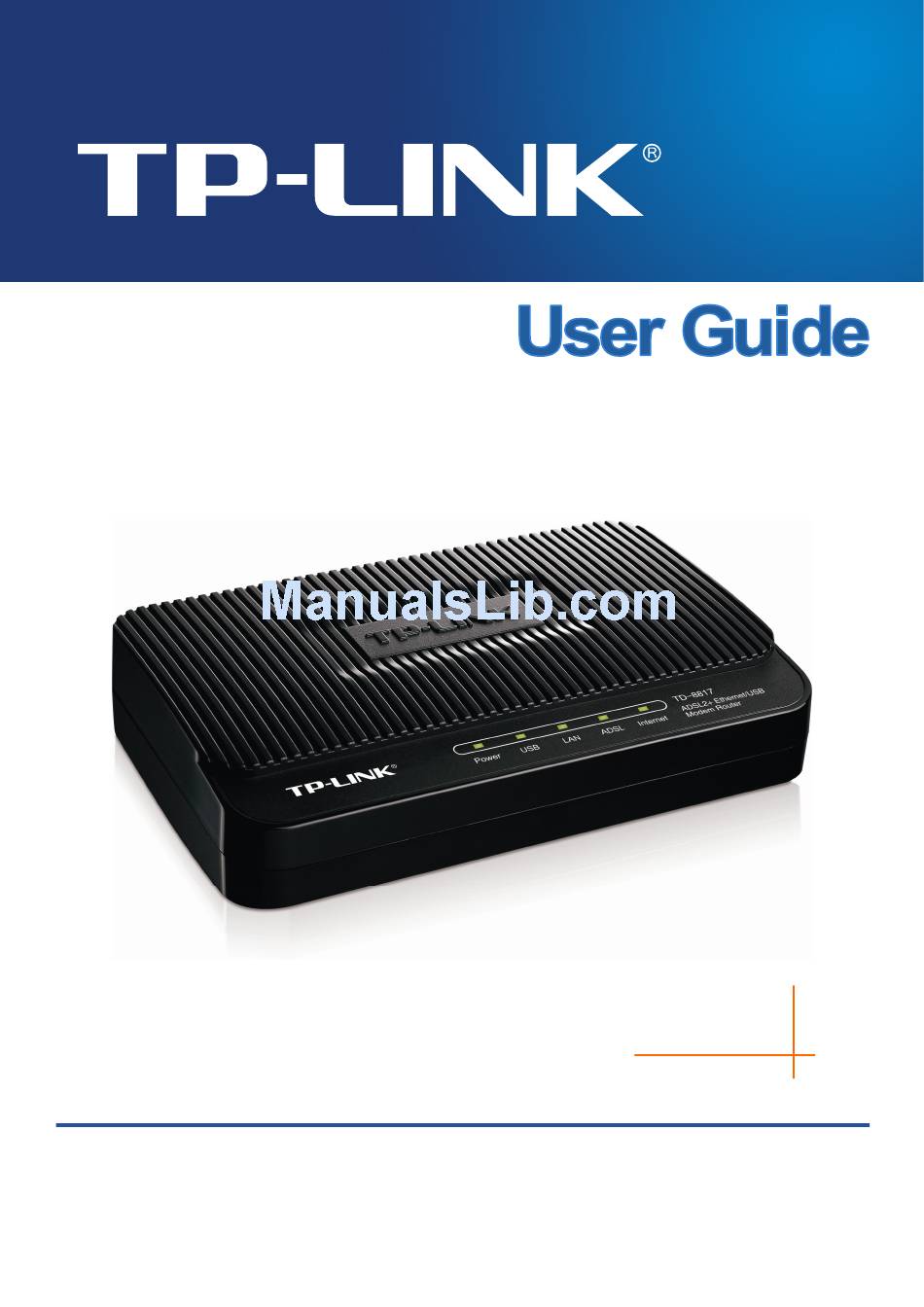

TD-8817
ADSL2+ Ethernet/USB Modem Router
Rev: 3.1.1
1910011677

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-8817

Summary of Contents for TP-Link TD-8817

  • Page 1 TD-8817 ADSL2+ Ethernet/USB Modem Router Rev: 3.1.1 1910011677...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Safety Information

    Safety Information When product has power button, the power button is one of the way to shut off the product;  when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. Don’t disassemble the product, or make repairs yourself.

  • Page 5: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: ADSL2+ Ethernet/USB Modem Router Model No.: TD-8817 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 6: Table Of Contents

    CONTENTS Chapter 1. Introduction ..................1     1.1   Product Overview ...................... 1   1.2   Main Features ......................1   1.3   Conventions ......................2   Chapter 2. Hardware Installation ................. 3     2.1   The Front Panel ......................3   2.2  ...
  • Page 7 4.5.6   CWMP ..........................51   4.6   Maintenance......................51   4.6.1   Administration.........................52   4.6.2   Time Zone ........................52   4.6.3   Firmware.........................54   4.6.4   SysRestart........................56   4.6.5   Diagnostics........................56   4.7   Help......................... 56   Appendix A: Specifications................... 58  ...

  • Page 8: Chapter 1. Introduction

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet network. TD-8817 connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.

  • Page 9: Conventions

    Supports firmware upgrade and Web management. 1.3 Conventions The Router or device mentioned in this User Guide stands for TD-8817 without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation.

  • Page 10: Chapter 2. Hardware Installation

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Chapter 2. Hardware Installation 2.1 The Front Panel Figure 2-1 The LEDs are located on the front panel, they indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation:...

  • Page 11: The Back Panel

    Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard.  The modem router can be placed on a shelf or desktop. Generally, TD-8817 is placed on a horizontal surface. The device also can be mounted on the wall as shown in Figure 2-3.

  • Page 12: Hardware Installation Procedures

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 2-3  Note: The diameter of the screw, 4mm<D<7.5mm, and the distance of two screws is 111.5mm. The screw that project from the wall need around 4mm based, and the length of the screw need to be at least 20mm to withstand the weight of the product.
  • Page 13 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 2-4...

  • Page 14: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 TCP/IP Configuration The default IP address of the TD-8817 ADSL2+ Ethernet/USB Modem Router is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.

  • Page 15: Usb Configuration

    CD into your CD-ROM drive. The autorun.exe will automatically run and click Browse CD to read the files on the CD. Click the file TD-8817>USB Driver and select the USB driver type according to the operating system of your computer to start installation.

  • Page 16: Login

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 3-4 Step 4: After that, you will see Figure 3-5. Click Finish to complete the installation. Figure 3-5  Note: All of the above settings are under windows XP. If you want to pull out the USB device you must disconnect the network of USB first.
  • Page 17 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Start your web browser and type the default address http://tplinkmodem.net or private IP address 192.168.1.1 of your modem router in the address field. After that, you will see the screen shown below, enter the default User Name admin and the default Password admin, and then click Login to access to the Quick Start screen.
  • Page 18 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 3-8 Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for example here), and then click the NEXT button. Figure 3-9 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI...
  • Page 19 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 3-10 Step 5: Click NEXT to finish the Quick Start. Figure 3-11...

  • Page 20: Chapter 4. Software Configuration

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.

  • Page 21: System Log

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-2 4.1.2 System Log Choose “Status→System Log” menu, and you will be able to query the logs of the Router.

  • Page 22: Statistics

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-3 The modem router can keep logs of all traffic. You can query the logs to find what happened to the modem router. Click the CLEAR LOG button to clear the logs.
  • Page 23 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Interface: You can select Ethernet and ADSL to view the corresponding network traffic over different ports.  Select Ethernet, and you will see the statistics table as below. Statistics Table: Transmit Frames The frames transmitted over the Ethernet port.

  • Page 24: Quick Start

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Statistics The total errors occurred over the ADSL port when data is Receive total Error Counts being received. 4.2 Quick Start Please refer to Login. 4.3 Interface Setup Choose “Interface Setup”, you can see the next submenus: Internet , LAN and 6RD.
  • Page 25 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-6  ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 26 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by your ISP.
  • Page 27 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide gateway to Internet from this device.  TCP MTU Option: Enter the TCP MTU as your desire. The default value is 1500.  IPv4 Address: If you select IPv4 as IP version, you should configure the following.
  • Page 28 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Note: Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x), such as 192.168.1.100. The modem router will not accept the IP address if it is not in this format.
  • Page 29 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide is no traffic (or Idle) for a pre-specified period of time), the connection will tear down automatically. And once there is traffic send or receive, the connection will be automatically  Default Route: You should select Yes to configure the PVC as the default gateway to Internet from this device.
  • Page 30 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-11  IP Common Option: Configure the IP common option here.  Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it default.  Bridge Interface: Activate the option, the modem router can also work in Bridge mode.
  • Page 31 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-12  Note: Each IP address entered in the fields must be in the appropriate IPv6 form, which is eight IP octets separated by a colon (x:x:x:x:x:x:x:x). The modem router will not accept the IP address if it is not in this format.
  • Page 32 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-13  Service name: Specify a name for the PPPoA/PPPoE connection for recognition.  Username: Enter your username for your PPPoA/PPPoE connection to identify and verify your account to the ISP. Password: Enter your password for your PPPoA/PPPoE connection.

  • Page 33: Lan

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  MLD Proxy: The MLD (Multicast Listener Discovery Protocol) Proxy function is disabled by default. If you want to enable the function, please click Enable.  Dual Stack Lite: Enable the Dual Stack Lite (D-S Lite) function if you need. It is disabled by default.
  • Page 34 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-15  Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed.
  • Page 35 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide means the ADSL modem router will only send but will not accept RIP packet.  Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group.

  • Page 36: 6Rd

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  DNS Relay: If you want to disable this feature, you just need to set both Primary and secondary DNS IP to 0.0.0.0. If you want to use DNS relay, you can setup DNS server IP to 192.168.1.1 on their Computer.
  • Page 37 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-18  6RD Enable: Select this option to Enable/Disable the 6RD.  6RD IPv6 Prefix: The prefix of the 6RD IPv6 tunnel.  IPv4 Mask Length: The length of the selected WAN connection’s IPv4 mask.

  • Page 38: Advanced Setup

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.4 Advanced Setup Choose “Advanced Setup”, you can see the next submenus: Figure 4-19 Click any of them, and you will be able to configure the corresponding function. 4.4.1 Firewall Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure 4-20).

  • Page 39: Nat

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-22). Figure 4-22  Destination IP Address: This para meter specif ies the IP network address of the final destination.
  • Page 40 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-23  Virtual Circuit: Enter Virtual Circuit Index that you plan to setup for the NAT function.  NAT Status: This field shows the current status of the NAT function for the current VC. You can go to the previous screen (shown in Figure 4-6) to activate the function.
  • Page 41 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.4.3.2. Virtual Server Choose “Advanced Setup→NAT→Virtual Server” in Figure 4-23, you can configure the Virtual Server in the next screen. The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
  • Page 42 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Step 3: Select the application you want from drop-down list, then the protocol and port number will be added to the corresponding field automatically, you only need to configure the IP address for the virtual server; If the application list does not contain the service that you want, please configure the Port number, IP Address and Protocol manually.

  • Page 43: Qos

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Rule Type: There are four types, one-to-one, Many-to-One, Many-to-Many Overload and Many-to-Many No-overload.  Local Start & End IP: Enter the local IP Address you plan to mapped to. Local Start IP is the starting local IP address and Local End IP is the ending local IP address.
  • Page 44 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-28  QoS: Select this option to Activate/Deactivate the IP QoS on different types. Summary: Click the button to view the configurations of QoS.   Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take the corresponding action to deal with it.
  • Page 45 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Vlan ID Range: Enter the Vlan range, then the rule will be effective to the selected Vlans.  IPP/DS Field: Select the type of the action to assign the priority. When you select IPP/TOS, you can assign the priority via IP information. IP QoS function is intended to deliver guaranteed as well as differentiated Internet services by giving network resource and usage control to the Network operator.

  • Page 46: Vlan

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Active: Activate the rule. The rule can take effect only when it is activated.  Destination IPv6: Enter the IP information about the Destination host for the rule.  Source IPv6: Enter the IP information about the Source host for the rule.
  • Page 47 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-31  VLAN Index: Select the VLAN index f or this VC. Yo u can specify 8 groups in maximum.  VLAN ID: This indicates the VLAN group.  ATM VCs: Select the ATM VCs as member s of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.

  • Page 48: Adsl

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-32  PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to untagged frames or priority tagged frames (frames with null (0) VID) received on this port.

  • Page 49: Acl

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-34 Click any of them, and you will be able to configure the corresponding function. 4.5.1 ACL Choose “Access Management→ACL”, you can see the next screen (shown in Figure 4-35). You can specify the client to access the ADSL modem router once setting his IP as a Secure IP Address through selected applications.
  • Page 50 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.5.2.1. IP Filter Select IP/MAC Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-36), then you can configure the filter rules based on IP address. The filtering includes Outgoing and Incoming, the detailed descriptions are provided below.
  • Page 51 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Note: Incoming means that IP traffic which is coming into the router, and the Outgoing means that IP traffic which is going out the router.  IP/MAC Filter Rule Index: Select the Rule index for the IP Filter entry.
  • Page 52 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Note: If you want to make the rule take effect, please select Yes to active the rule. Step 3: Enter the “Source IP Address”, “Destination IP Address”, “Subnet Mask” and “Port Number” in the corresponding field.
  • Page 53 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.5.2.2. MAC Filter Select IP/MAC Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-37), then you can configure the filter rules based on MAC address. Figure 4-37 ...
  • Page 54 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Select the “MAC” as the Rule Type on the Filter screen (show in Figure 4-37). , Then you can configure the specific rule for the example. Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then select the Interface “PVC0”, and select the Direction “Outgoing”...
  • Page 55 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-38  Filter Type Selection: Select the Application Filter for the next configuration.  Application Filter: Activate or deactivate the function.  ICQ & MSN & YMSG & Real Audio/Video: Select Allow or Deny for these applications. If you select Allow, the modem router will accept the application;...

  • Page 56: Snmp

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide  Filter Type Selection: Select the URL Filter for the next configuration.  Active: Select “Yes” to make the rule to take effect.  URL Index: Select the index for the URL Filter entry.

  • Page 57: Ddns

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide simple peer-to-peer network connectivity between devices. An UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.

  • Page 58: Cwmp

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.5.6 CWMP Choose “Access Management→CWMP”, you can configure the CWMP function in the screen (shown in Figure 4-43). The modem router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server).

  • Page 59: Administration

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.6.1 Administration Choose “Maintenance→Administration”, you can set new password for admin in the screen (shown in Figure 4-45). Figure 4-45  Note: There is only one account that can access Web-Management interface. The default account is "admin", and the password is "admin".
  • Page 60 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-46  Note: The ADSL modem router built-in some NTP Servers, when the modem router connects to the Internet, the modem router will get the system time automatically from the NTP Server. You can also configure the NTP Server address manually, and then the modem router will get the time from the specific Server firstly.

  • Page 61: Firmware

    Figure 4-49 To upgrade the modem router's firmware, follow these instructions below: Step 1: Download a more recent firmware upgrade file from the TP-LINK website (www.tp-link.com). Step 2: Type the path and file name of the update file into the “New Firmware Location” field. Or click the Browse button to locate the update file.
  • Page 62 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide When you upgrade the modem router 's firmware, you may lose its current configurations, so please back up the modem router’s current settings before you upgrade its firmware. Do not turn off the modem router or press the Reset button while the firmware is being upgraded.

  • Page 63: Sysrestart

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide 4.6.4 SysRestart Choose “Maintenance→SysRestart”, you can select to restart the device with current settings or restore to factory default settings in the screen (shown in Figure 4-52). Figure 4-52 4.6.5 Diagnostics Choose “Maintenance→Diagnostics”, you can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-53).
  • Page 64 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure 4-54  Note: Click the tab, and you will be able to get the corresponding information.

  • Page 65: Appendix A: Specifications

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Appendix A: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5 Standards and Protocols IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA , PPPoE, SNTP, HTTP, DHCP, ICMP, NAT,CWMP Safety & Emission FCC, CE 1 10/100M Auto-Negotiation RJ45 port（Auto MDI/MDIX)

  • Page 66: Appendix B: Configuring The Pc

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Appendix B: Configuring the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.
  • Page 67 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure B-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 68 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure B-3  Note: For Windows 98 OS or before, the PC and modem router may need to be restarted.  Setting IP address manually Select Use the following IP address radio button. And the following items available If the modem router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x...
  • Page 69 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Figure B-4 Now: Click OK to keep your settings.

  • Page 70: Appendix C: Troubleshooting

    TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Appendix C: Troubleshooting T1. How do I restore my modem router’s configuration to its factory default settings? With the modem router powered on, press and hold the RESET button on the rear panel for 8 to 10 seconds before releasing it.
  • Page 71 TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. For Windows 8 Move your mouse to the lower right corner and you will see Search icon in the Popups.
  • Page 72 Login. 5) Please feel free to contact our Technical Support if the problem still exists.  Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support .

  • Page 73: Appendix D: Technical Support

    Tel: NZ 0800 87 5465 (Toll Free) Service time: Monday to Friday, 09:00 to 18:00 AU 1300 87 5465 (Depending on 1300 policy.) *Except French Bank holidays E-mail: support.au@tp-link.com (Australia) Switzerland support.nz@tp-link.com (New Zealand) Tel: +41 (0) 848 800 998 (German Service)
