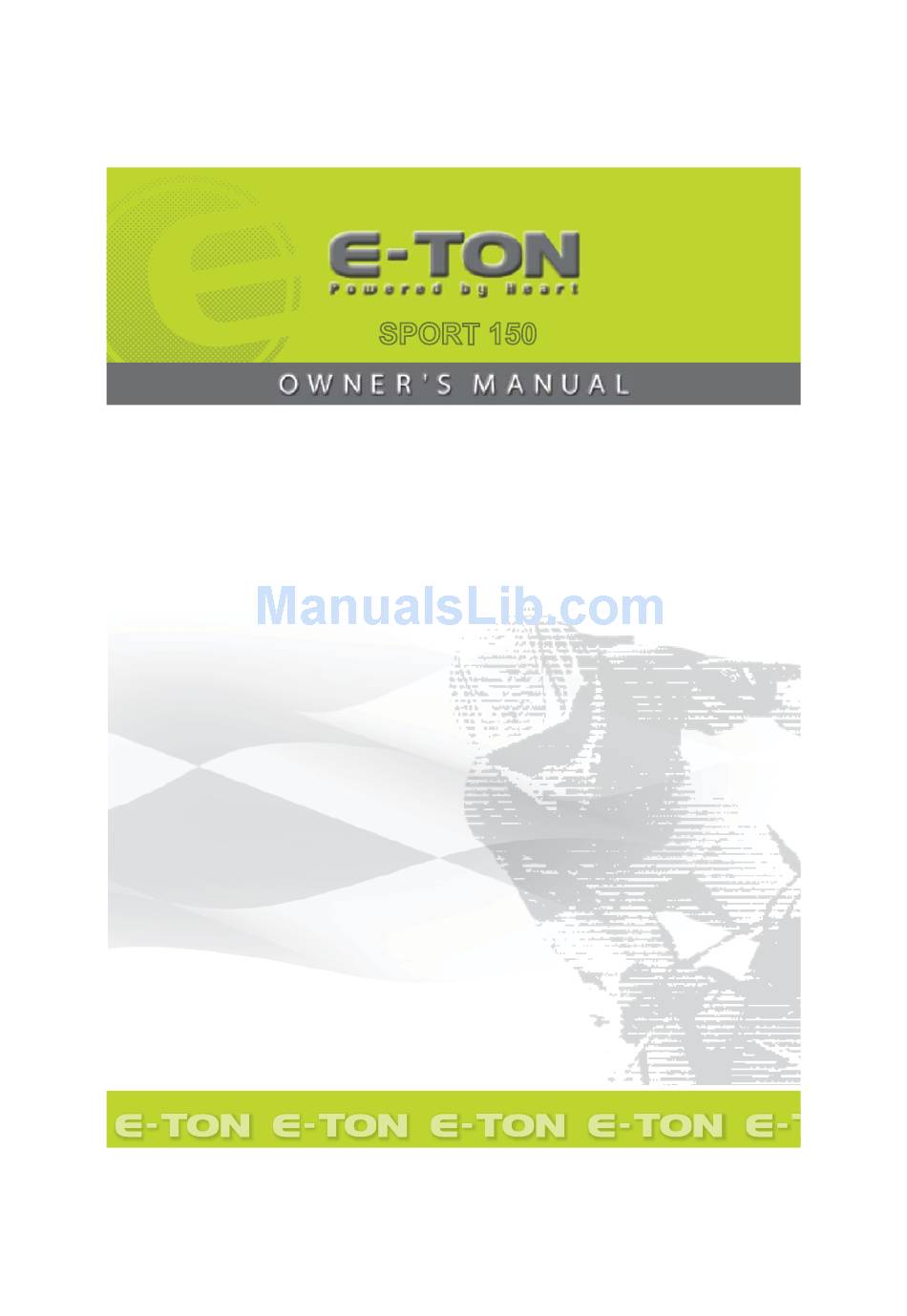

- Page 1 SPORT 150 Copyright ©2008-2009 ETON America, all rights reserved.
-
Page 2: Table Of Contents
1. CONTENTS 1. Contents ........................1 2. Control location ......................3 3. Before riding ........................4 4. Safe riding ........................4 5. Driving ........................... 5 6. Use genuine spare parts ....................5 7. Use of each component ....................6 Gauges .......................... 6 Operation of ignition switch .................... - Page 3 1. CONTENTS Checking for fuel leakage .................... 20 Checking the lubrication of body’s various mechanisms ..........20 Checking the spark plug ....................20 Checking the air cleaner ..................... 20 11. When there is an abnormal condition or a trouble ............21 Diagnosis when engine does not start ................
-
Page 4: Control Location
2. CONTROL LOCATION MODEL: XS150T-4 150cc Engine stop switch/Starter switch Fuses &C.D.I Front turn Battery signal light Fuel tank cap High& Low beam/Turn Front light/ signal/Horn switch Position light Seat lock Air Cleaner Side stand Kick starter pedal Storage box Tail light Helmet hook Oil level... -
Page 5: Before Riding
We recommend that after riding your new motorcycle for the first 300 kilometers, you should take your motorcycle to the authorized E-TON dealer for an initial inspection, and to have your motorcycle inspected periodically every 1000 kilometers thereafter. -
Page 6: Driving
Therefore, it is necessary to purchase “E-TON Genuine Spare Parts” from “E-TON Authorized Dealers” when replacing spare parts. If you buy cheap or fake substitute parts from the market, no guarantee can be provided either for the quality or durability. Also, it may result in unexpected troubles and lower the motorcycle’s performance. -
Page 7: Use Of Each Component
7. USE OF EACH COMPONENT (The following is E-TON 4 stroke air-cooling 150cc scooter’s basic operation, and they could vary from different individual models. Please consult the end of this manual.) GAUGES The panel figure for speedometer may vary from model to model, but the location usually are the same. -
Page 8: Operation Of Ignition Switch
OPERATION OF IGNITION SWITCH IGNITION SWITCH “ON” position: Engine can be started in this position. Ignition switch key can not be removed. “OFF” position: Engine is shut off and can not be started in this position. Ignition switch key can be removed. OPERATION OF STEERING HANDLE LOCK SWITCH “Steering handle lock”... - Page 9 Electric start button This is a starting motor button (switch) for engine starting. With the main switch “on”, press this button while holding the front or rear brake lever will start the engine. CAUTION: Release this button immediately after engine has been starter, and never press the button again to avoid damaging the engine.
-
Page 10: Seat Lock
SEAT LOCK y Unlock: Insert the ignition switch key and turn to left to Seat lock unlock. y Lock: Press the seat down and it will be locked automatically. After the seat catch has been locked, check to make sure it has locked properly by lightly lifting the seat. -
Page 11: Fuel Tank Cap
FUEL TANK CAP The fuel tank cap is behind the seat, near the rear carrier. 1. Insert the key into the fuel tank cap, and turn the fuel cap clockwise, then the cap can be removed. 2. Do not fill above the fuel upper limit when refueling. 3. -
Page 12: Important Points And Cautions For Starting Engine
8. IMPORTANT POINTS AND CAUTIONS FOR STARTING ENGINE CAUTION: Please check the oil and fuel levels and make sure they are adequate. To start the engine the main parking stand must be firmly on the ground and the brake is applied on the rear wheel to prevent the motorcycle from moving forward suddenly. -
Page 13: The Best Way To Drive Off
9. THE BEST WAY TO DRIVE OFF turn on the turn signal light before moving, and make sure no vehicle is coming from behind. Then, drive off. THE CONTROL OF THROTTLE VALVE HANDLE Acceleration: To increase speed. When riding on an inclined road, turn the throttle valve handle slowly to allow the engine to output its power. -
Page 14: Inspection And Maintenance Before Riding
Do the previous troubles still exist? CAUTION: If any problem found during routine inspection, correct the problem before using the motorcycle again, have your motorcycle checked and repaired by the “E-TON authorized dealer” if necessary. ENGINE OIL INSPECTION AND CHANGE INSPECTION: 1. -
Page 15: Fuel Inspection
OIL CHANGE: Change engine oil after the first 300km, and change the engine oil every 1000km thereafter. In order to maintain the engine’s maximum performance, check whether the engine oil is enough every 500km. Add oil to upper limit if the engine oil has been found to be low. -
Page 16: Inspection And Adjustment Of Brake Free Play
INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY INSPECTION: (Brake lever free play must be checked with the engine shut off.) Brake lever free play for front and rear wheels. If checking the hand-braking lever for front wheels, its free play (the stroke of hand-braking lever from no braking to initial braking) should be 10~20mm. -
Page 17: Disc Brakes Inspection ( Applicable For Model Equipped With Disc Brakes)
If so, bring your motorcycle to your authorized E-TON dealer for repairing or service. CAUTION: Please drive your motorcycle on a dry road... -
Page 18: Throttle Valve Handle Clearance Adjustment
INSPECTION AND MAINTENANCE OF BATTERY The motorcycle is equipped with a maintenance-free type battery, so it is unnecessary to check and add electrolyte. Have your motorcycle checked by an E-TON Authorized Dealer should any abnormality be found. Cleaning of battery terminals Remove the battery terminals and clean if there are dirt and corrosion on them. -
Page 19: Tire Inspection
Check steering handle if it is being pulled too tight by the brake cables. Take your motorcycle to an authorized E-TON Dealer for a check or adjustment if any abnormal conditions are found. Copyright ©2008-2009 ETON America, all rights reserved. -
Page 20: Checking And Changing Fuses
CHECKING AND CHANGING FUSES Turn off ignition switch, and check fuses if they are intact. Replace the blown fuse with a new one having the same specified amperage rating (10A 2/15A 2). Using a fuse of more than 10 or 15 amperes, a brass or iron wire to replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the circuit. -
Page 21: Checking For Fuel Leakage
CHECKING FOR FUEL LEAKAGE Check fuel tank, fuel cup, fuel hose, carburetor for leakage. CHECKING THE LUBRICATION OF BODY’S VARIOUS MECHANISMS Check the body’s pivot points if they have enough lubrication. (for example, the pivot points on the main stand, the side stand, and the brake lever CHECKING THE SPARK PLUG Remove the cap of spark plug cable (Remove the spark plug using the spark plug wrench in the tool kit.) -
Page 22: When There Is An Abnormal Condition Or A Trouble
Have your motorcycle checked by a authorized E-TON dealer immediately if there are no problems with the above items and engine still can not be started. 12. C.D.I. ELECTRICL IGNITION SYSTEM The charge and discharge principle of a condenser is adopted for the C.D.I system to supply electrical... -
Page 23: Cautions For Riding Motorcycle
15. CAUTIONS FOR RIDING MOTORCYCLE 1. Raise the motorcycle with the main stand, and sit on the seat. Push the motorcycle forwarding to raise the main parking stand. CAUTION: Never rotate the throttle valve handle at will to increase the engine RPM before driving off. 2. -
Page 24: Periodical Maintenance Schedule
The above maintenance schedule is established by taking the monthly 1000 kilometers as a reference which ever comes first. Have your motorcycle checked and adjusted periodically by your E-TON Authorized Dealer to maintain the motorcycle at the optimum condition. Code: I ~ Inspection, cleaning, and adjustment... -
Page 25: Specification
17. SPECIFICATION Model SPORT 150 Item Specification Length 1800 mm Width 695mm Height 1125mm Wheel base 1300mm Net Weight 106kg Type 4- stroke single cylinder engine Fuel Unleaded(OCTANE 90 OR HIGHER) Cooling type Forced air-cooled Displacement 149.6 c.c. Compression ratio 9.4:1... -
Page 26: Reporting Safety Defects
18. REPORTING SAFETY DEFECTS NHTSA Safety Notice If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying ETON America, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. -
Page 27: Warranty
19. WARRANTY ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY ETON America warrants all new ETON vehicles sold by authorized ETON Dealers to be free from defects in materials and workmanship, subject to the following exclusions and limitations. New vehicles sold by an authorized dealer to original retail consumers are covered by this policy for a period of six (6) months from the date of delivery. - Page 28 ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY This warranty is valid at any authorized ETON Dealer in the United States only. In the event you experience any problem obtaining prompt service, contact ETON America, customer service department for assistance. Always consult first with your selling dealer and or service personnel for assistance with any service work or repairs.
- Page 29 ETON America LLC SCOOTER/MOPED LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS ETON America LLC warrants each new scooter/moped vehicle that includes as standard equipment a taillight and a stoplight; a) Is designed, built and equipped so as to conform at the time of initial retail purchase with all applicable regulation of the United States Environmental Protection Agency (“US EPA”) and: b) Is free from defects in material and workmanship which would cause such Scooter/moped vehicle to fail to conform with applicable regulations of the US EPA, for a time period of two...
- Page 30 ETON America LLC SCOOTER/MOPED LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS 4) LIMITED LIABILITY. The liability of ETON America LLC under this Emission Control System Warranty is limited solely to the remedying of the defects in the materials or workmanship by any authorized ETON America LLC Scooter/moped vehicle dealer at its place of business during customary business hours.
-
Page 31: Electrical Diagram
20. Electrical Diagram Copyright ©2008-2009 ETON America, all rights reserved. - Page 32 H9900-FXA0-0000 Copyright ©2008-2009 ETON America, all rights reserved.
