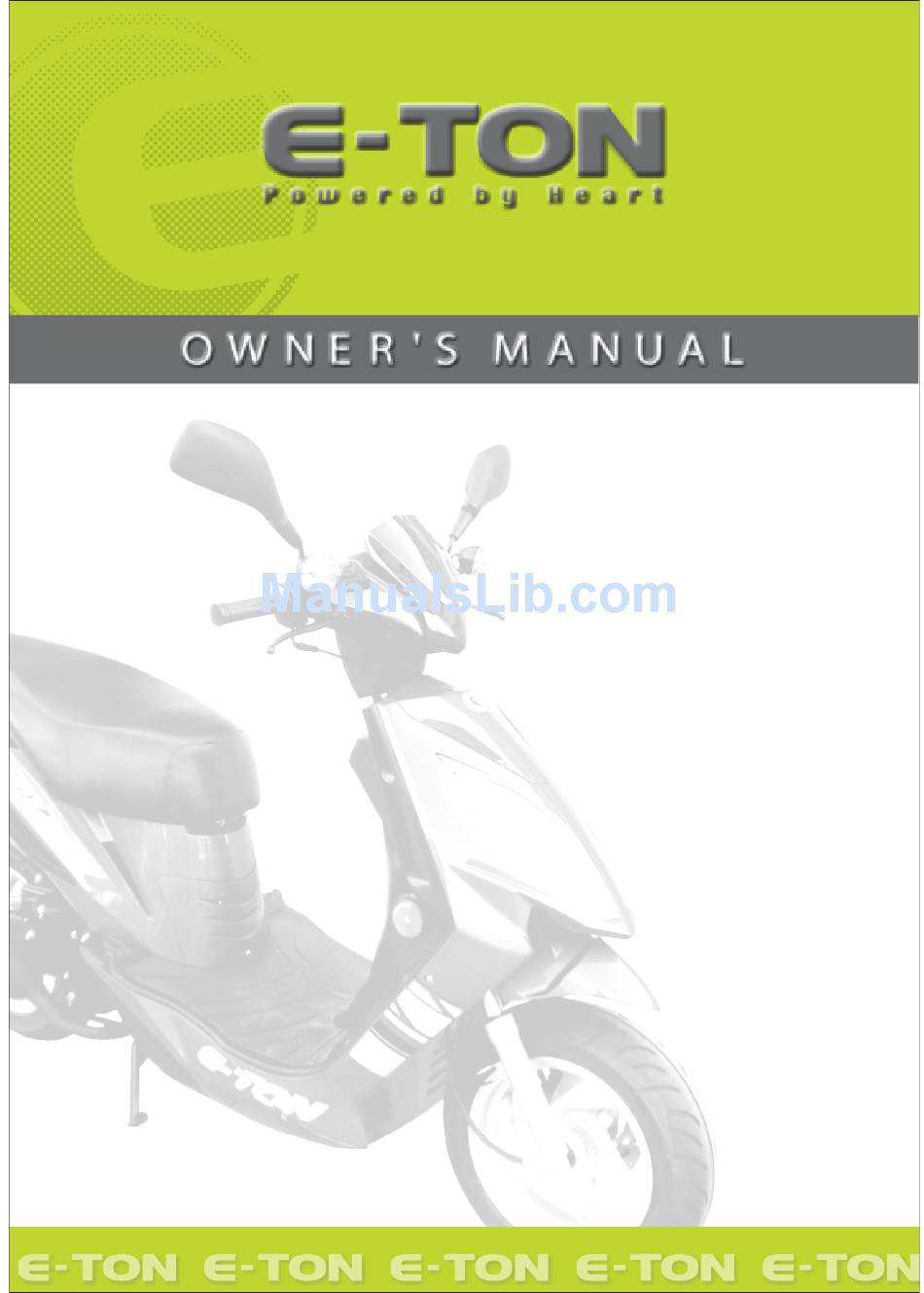

E-TON MATRIX 50 Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

MATRIX 50

Table of Contents

Summary of Contents for E-TON MATRIX 50

Page 2: Important Notices
Dear Customer, Thank you for choosing the ETON Beamer. This scooter was made in accordance with the international QS9000 standards and the directives of the European parliament and council. It conforms to all Federal DOT regulations for a class A moped. It was engineered and designed to provide a reliable form of economic transportation for your life style.
Page 3: Table Of Contents
Table of Contents Vehicle Identification Number Location Controls, Switches, and Feature Locations Control Feature Operations Engine Stop Switch Turn Signal Switch Horn Button Manual Choke Lever Headlight Control Switch Ignition Control Switch Instrument Panel Throttle Control Throttle Cable Adjustment Brake Systems Front &...
Page 4: Vehicle Identification Number Location
Vehicle Identification Numbers Eng. Number Eng. Number Your VIN Your VIN Vehicle Identification Number (VIN) is Engine serial number is located on the located on the frame behind the foot left-hand side of the engine on the guard and is covered by a small plastic crankcase housing.
Page 5: Control Feature Operations
Control feature operations Manual choke lever This choke is operated by the lever at the bottom of the left hand control switch. When first starting the engine,(cold start), place the lever in the full left position, (Choke closed or on) As the engine warms return the lever to the full right position.
Page 6: Ignition Control Switch
level in the fuel tank. When the needle Ignition Switch reaches the red zone on the gauge, you are running Iow on fuel and the tank should be Ignition Switch refilled. This gauge is controlled by a fuel level sending unit located inside the fuel tank. The center speedometer indicates the c u r r e n t s p e e d o f y o u r v e h i c l e .
Page 7: Throttle Cable Adjustment
Front and Rear Brakes To increase the throttle, twist the handle grip in a counter clockwise rotation. To decrease T h e v e h i c l e i s e q u i p p e d w i t h f r o n t throttle, twist the hand grip in a clockwise hydraulic disc brake and a rear hydraulic rotation or release your pressure and allow...
Page 8: Hydraulic Fluid Reservoir
Visually inspect the brake lines for any signs of Hydraulic Fluid Reservoir wear. Inspect the lines for leaks at all connections and look for wear along the entire line. Replace the line if any worn areas are found. The brake line is under great pressure when the brakes are applied and any worn spot could cause a rupture of the line.
Page 9: Purging The Brake Lines
Purging The Brake Lines For the hydraulic brake system to operate safely, the brake system must be purged of air in the lines and reservoir. To bleed the air will require two people to perform the following procedure. Place a drain pan under the brake caliper to catch the fluid.
Page 10: Fuel System
Fuel System Fuel Tank Replace the cap if damaged or if it will not seal to the tank. The fuel tank capacity is 5.5 liters, 1.5 gal. NEVER REFUEL YOUR VEHICLE when The fuel tank fill cap is located at the rear of the the engine is running or with a hot vehicle just behind the seat.
Page 11: Engine Oil
Engine Oil Your vehicle uses 2 cycle oil to lubricate the engine. The oil tank is located under the seat at the front of the unit. Oil is drawn from this tank by an oil injector pump when the engine is operating. Oil Indicator Light cover.
Page 12: Spark Plug
Spark Plug To clean the filter Replace the spark plug every 10,000 miles or if the plug should become damaged or fouled. We recommend that you use NGK - BPR7HS. Disconnect spark plug wire. Clean dirt from around spark plug base with brush or air.
Page 13: Cvt Air Filter (Transmission)
operations. Inspect and clean the filter e v e r y 3 0 0 0 m i l e s , m o r e f r e q u e n t l y i f operated in a dusty environment. To clean the filter, remove the two cover bolts and remove the filter.
Page 14: Break-In Procedure
Beamer Break-In Starting Procedure procedure The following procedure must be followed each time you start your Beamer. Your Beamer requires a break-In period just as with all other internal combustion engines. This Park the unit on a level surface. Insert the period allows the engine parts to seat and wear key into the ignition switch and turn to the properly without undue strain which can cause...
Page 15: Driving Your Scooter
Driving your scooter in slippery conditions such as on snow or ice covered roads. When going downhill, release the throttle grip Your Beamer was manufactured to meet all and use your brakes to control your speed. Federal D.O.T. regulations. State and local regulations govern the use of this class of After washing your vehicle your brake shoe vehicle.
Page 16: Specifications
Specifications Engine Type Two cycle air cooled oil injected Displacement 49.3cc 40.0 * 39.2mm Bore / Stroke Compression 6.8 1 3.7ps 7000rpm Power Transmission Type Automatic(C.V.T . V-Belt) Chassis Overall Length 1915mm / 75.4" 655mm / 25.8" Overall Width Overall High 1025mm / 40.4"...
Page 17: Maintenance Schedule
Maintenance Schedule Every Year Every 30 Days First week Notes Replace Fuel & Vent Fuel Lines Lines every 2 years Inspect as part Throttle Operation of pre-ride inspection Air Filter Fuel Filter Spark Plug I, L I, L Drive Chain Brake Shoes Inspect as part Brake System...
Page 19: Reporting Safety Defects
NHTSA Safety Notice If you believe that your vehicle has a defect which could cause crash, injury, or death, you should immediately contact the National Highway Traffic Safety Administration (NHTSA) in addition to notifying ETON America, LLC. If NHTSA receives similar complaints, it may open an investigation and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 20: Manufacturer's Warranty
ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY ETON America warrants all new ETON vehicles sold by authorized ETON Dealers to be free from defects in materials and workmanship, subject to the following exclusions and limitations. New vehicles sold by an authorized dealer to original retail consumers are covered by this policy for a period of six (6) months from the date of delivery.
Page 21 ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY This warranty is valid at any authorized ETON Dealer in the United States only. In the event you experience any problem obtaining prompt service, contact ETON America, customer service department for assistance. Always consult first with your selling dealer and or service personnel for assistance with any service work or repairs.
Page 22 ETON AMERICA, LLC. SCOOTER/MOPED LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS ETON America LLC warrants each new scooter/moped vehicle that includes as standard equipment a taillight and a stoplight; c) Is designed, built and equipped so as to conform at the time of initial retail purchase with all applicable regulation of the United States Environmental Protection Agency ("US EPA") and: d) Is free from defects in material and workmanship which would cause such Scooter/moped...
Page 23 ETON AMERICA, LLC. SCOOTER/MOPED LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS 7) LIMITATIONS. This Emission Control System Warranty shall not cover any of the following: a) Repairs or replacement required as a result of (i) accident, (ii) misuse or neglect, (iii) lack of reasonable and proper maintenance, (iv) repairs improperly performed or replacement improperly installed, (v) use of replacement parts or accessories not conforming to ETON America LLC specifications which adversely affect performance and/or durability, (vi)
