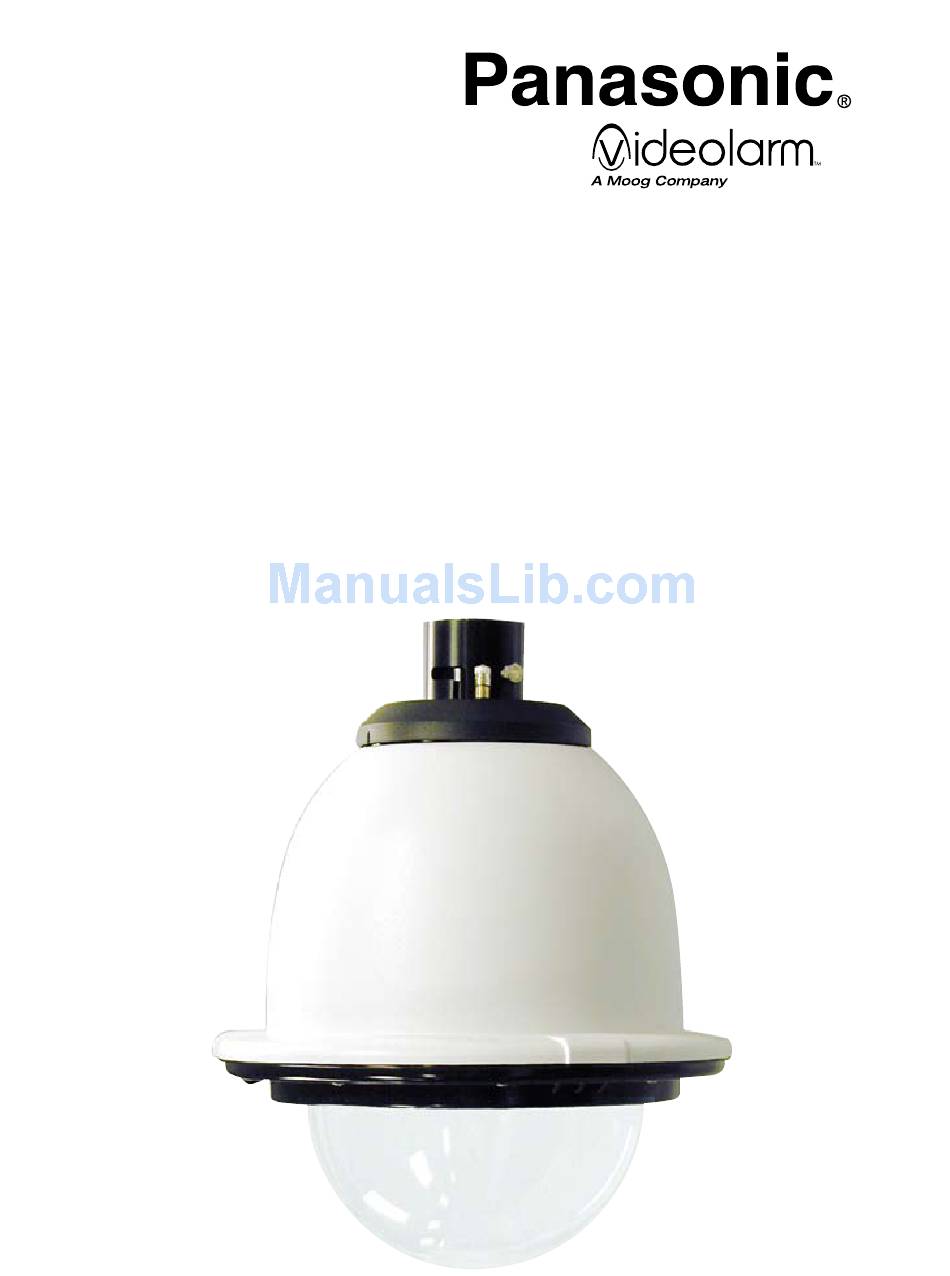

- Page 1 Manufactured for: PPFD9CN Before attempting to connect or operate this product, please read instructions completely. PRODUCT INSTRUCTIONS Installation and Operation Instructions for the following model: Outdoor Pressurized Dome Housing 81-IN3098R0...
- Page 2 SERVICE Ce symbole de point d'exclamation est prévu pour alerter l'utilisateur à la présence des instructions importantes dans For service on Panasonic/Videolarm equipment contact: la littérature accompagnant l'appareil. Panasonic Technical Center 54 West Gude Dr.
-
Page 3: Contents Of Box
Contents of Box Contents of Box Details (1) Spacer Packet ½” 1” 2” 25mm 200mm 50mm (4) 8 x 32 x 3/8" bolt (8) #8 Star Washers (4) Cable ties (1) 4 Pin Auxiliary Connector (1) 4 Pin Power Connector (1) Spacer Packet ½”... -
Page 4: Mounting Preparation
Mounting Preparation Wrap Teflon tape around the pipe threads Securely attach pendant pipe or the UNI-WMB1. Pull to ensure a tight seal. wiring through pipe and position grommet as shown. • Segura adjuntar colgante o de la tubería de UNI-WMB1. Tire de la •... - Page 5 Loop the lanyard over the set screw to Make the appropriate wiring connections temporarily hold housing. from the dome to the pendant. • Coloque el acollador sobre el tornillo de presión para • Hacer las conexiones de cableado de la cúpula de la celebrar temporalmente la cubierta.
- Page 6 Attach the unitized camera to the quick-release bracket. Secure the safety screw. Connect the power, network cables. Make sure all wiring is clear of the blowers and heater on the housing bracket. Use the cable tie provided to secure the wires and connectors. •...
- Page 7 NS-202 POE NS-202 POE Connect safety screw and complete wiring - Note POE Connect the quick-release bracket to the spacers requires connecting only RJ45 connector using the (4) 8x32x3/8’’ bolts and #8 star washers • Conecte el tornillo de la seguridad y el cableado completo - la nota •...
- Page 8 NS-202 NON POE NS-202 NON POE Power Port Connect the quick-release bracket to the spacers Connect Red & Black wires from power supply using the (4) 8x32x3/8’’ bolts and #8 star washers to NS-202 Power Port Note Polarity • Conecte el soporte de suelta rápida con los espaciadores usando (4) •...
- Page 9 Pressurizing Instructions Air Chuck Fitting Hose Air Chuck Regulator Tank Valve Nitrogen Tank Place the air chuck on the tank valve and When pressurizing unit be sure to set the begin filling until pressure relief valve opens. guage or regulator from 10-20psi (.7-1.4bar). •...
-
Page 10: Replacement Parts List
Replacement Parts List Part No. Description PPFD9CN RPPFDT02 Housing Top (Extended) RPVL1938 Removable Pendent Coupling RPVL1802 Plastic Rain Shroud RPVL1795 Tank Valve Gasket RP96RSORG11 Main O-Ring 9.25" RPPFDTR01 Trim Ring w/o Dome RCPFD7 Clear Dome with sealing O-Ring RCTPFD7 Tinted Dome with sealing O-Ring...
