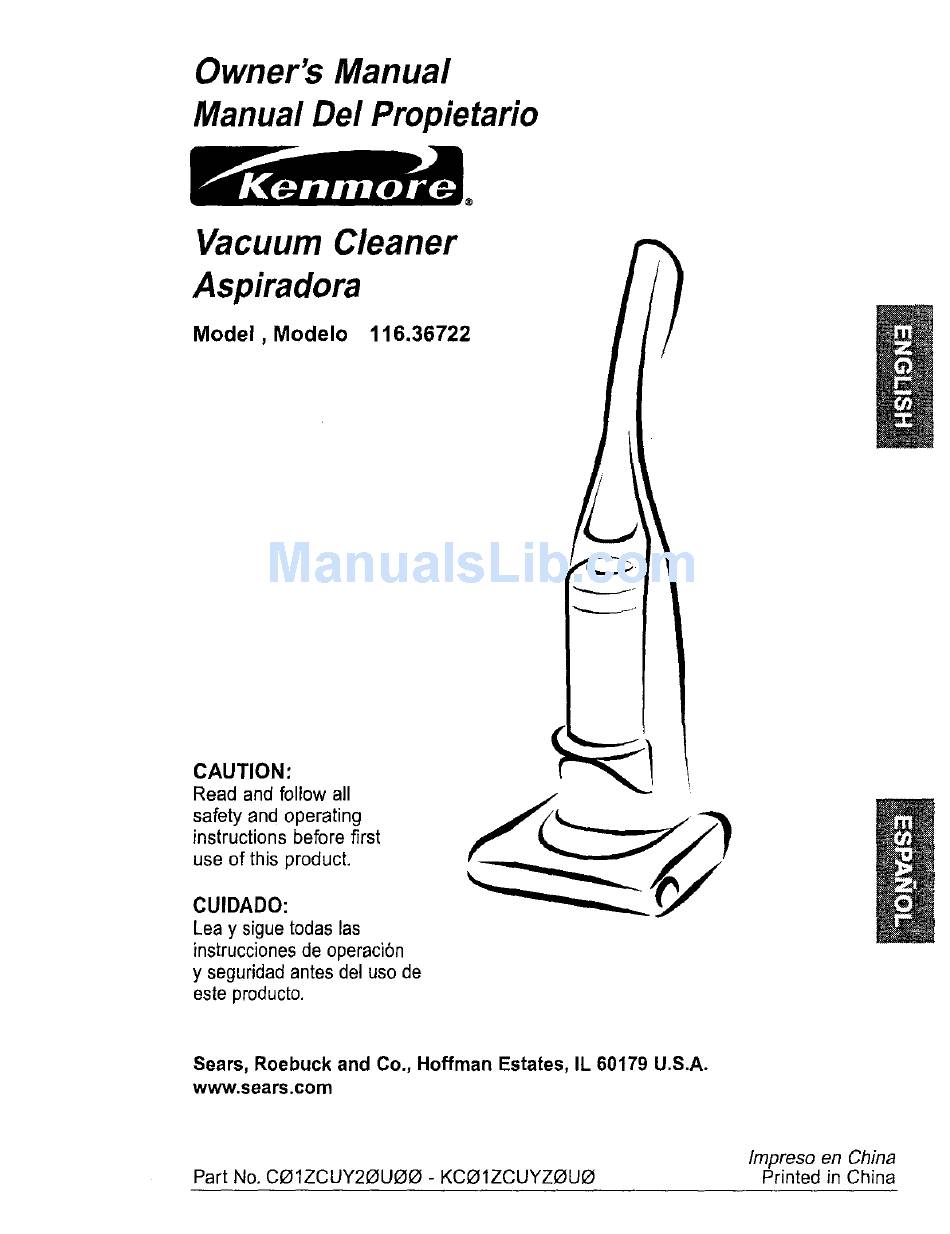

  • Page 1 Owner's Manual Manual Del Propietario Vacuum Cleaner Aspiradora Model, Modelo 116.36722 CAUTION: Read and follow all safety and operating instructions before first use of this product. CUIDADO: Lea y sigue todas las instrucciones de operaci6n y seguridadantes del uso de este producto.

  • Page 2: Table Of Contents

    Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner. Model No.
  • Page 3 Center or other Kenmore outlet for free repair. If this vacuum cleaner is used for other than private family purposes, applies for only 90 days from the date of purchase.
  • Page 4 Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a Sears Service Center.
  • Page 5 It is important t o knowyour vacuumcleaner's partsandfeaturesto assureitsproperandsafe use.Reviewthesebeforeusingyourvacuumcleaner. Object Style No. Exhaust Filter EF-2 DCF-1 Primary Filter Headlight Bulb Belt UB-1 Handle ---_ Dusting Brush Carry Handle Release Numbers Part No. Part No. in USA in Canada 20-86880 20-40320 20-82720 20-40319...
  • Page 6 Before assembling vacuum cleaner, check the PACKING LIST on the cover of the sep- arate Repair Parts List. Use this list to verify that you have received all the components of your new Kenmore vacuum cleaner. HANDLE Remove the screw located...

  • Page 7: Operating Instructions

    120 Volt outlet located near the floor. Note: To reduce the risk of electric shock, this vacuum cleaner has a polarized one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.

  • Page 8: On/Off Switch

    To start the vacuum cleaner, push the On/Off switch from the OFF position to the ON position. To stop the vacuum cleaner, push the On/Off switch to the OFF position. SUGGESTED PILE HEIGHT SETTINGS You may need to raise the height to make some jobs easier, such as scatter rugs and longer pile carpets.
  • Page 9 =teJr.® TO USE ATTACHMENTS Remove the lower end of the stretch hose from the vacuum cleaner by grasping the hose collar, twisting and pulling straight out. Hose The attachments hose. Tool...
  • Page 10 CLEANING AREA Between Furniture* Cushions* Drapes* For best cleaning results, keep the airflow passage clear. Occasionally, check each of the Use the areas indicated for clogs. Unplug the vacuum cleaner from the outlet before checking. Stairs Walls...

  • Page 11: Attachments

    MOTOR PROTECTION SYSTEM Thermal Protector This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner from overheating. prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically to allow the motor to cool in order to prevent possible damage to the vacuum cleaner.

  • Page 12: Vacuum Cleaner Care

    Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. CAUTION Do not use attachments wet. Attachments areas, such as under a refrigerator, should not be used on other surfaces until they are washed.

  • Page 13: Dust Bin Cleaning

    CAUTION Electrical Shock And Personal Hazard Always unplug power cord from electri- cal outlet before performing any service on vacuum cleaner. TO REMOVE DUST BIN Remove dust bin assembly from vacuum cleaner by lift- ing the release ]ever as shown.

  • Page 14: Primary Filter Replacement

    Pr/mary Filter Screen Dust Bin _..__ The Lid houses the filter. Primary Filter Filter traps dirt and debris that is picked up by the suction motor. Filter Screen The filter screen traps larger particles dirt and debris from reaching Dust Bin Captures dirt and debris picked up from...
  • Page 15 Check primary filter frequently and clean when dirty. Remove the dust bin assembly as outlined in the DUST BIN CLEANING section and empty contents of dust bin. Make sure dust bin is empty before filter is removed. Grasp filter screen, rotate counter-clockwise and lift out.

  • Page 16: Secondary Filter Cleaning

    The secondary filter screen protects motor. Always check filter screen when cleaning dust bin. If dirty or clogged, remove debris from filter screen. Secondary Filter_...
  • Page 17 IbWARNING Electrical Shock Hazard Unplug power cord from electrical let. Do not operate the vacuum cleaner without the primary or exhaust filters. Be sure the filters are properly installed to prevent motor failure and/or electri- cal shock. EXHAUST FILTER The exhaust filter must be replaced when dirty.
  • Page 18 Place vacuum cleaner the full upright posiiton. Turn the vacuum cleaner over so the agi- tator and base plate are facing upward. Tabs Locate the two latches ing tabs which secure To remove the base plate, press the two latches inward.
  • Page 19 TO CLEAN AGITATOR NOTE: In order to keep cleaning efficiency high and to prevent damage to your vacuum cleaner, the aqitator must be cleaned every time the belt is changed. The agitator must also be cleaned accord- ing to the following schedule: Vacuum Cleaner...
  • Page 20 To re-attach the base plate, insert the tabs into the slots along the front edge of the base. Place the vacuum cleaner in full upright position. Lower the base plate to its original position. Tabs As the base is lowered the inner areas will...
  • Page 21 Plug in the vacuum cleaner and turn it on, Stretch the hose to maximum length and then allow the hose to return to its storage length.
  • Page 22 Electrical Shock Or Personal Injury Hazard Disconnect electrical supply before ser- vicing or cleaning the vacuum cleaner. Failure to do so could result in electri- cal shock or personal injury from vacu- um cleaner suddenly starting. CAUTION Do not use a bulb rated over 13 V AC- 9W.

  • Page 23: Belt Changing And Agitator Cleaning

    WARNING Electrical Shock Or Personal Injury Hazard Disconnect electrical supply before ser- vicing or cleaning the vacuum Failure to do so could result in electri- cal shock or personal injury from vacu- um cleaner suddenly starting, TO CHECK AGITATOR Turn the vacuum cleaner over to check for worn brushes.

  • Page 24: Clog Removal

    2, New carpet fuzz clogged air path. Sound changes, solutions for minor performance in this owner's manual, should be performed or cleaning the vacuum cleaner. Failure shock or personal injury. 1. Plug in firmly,pushon/offswitchto on. 2. Reset circuit breaker or replace fuse.
  • Page 25 ii!ililili!ii:iliiii!i ''¸ For repair - in your home - of all major brand appliances, lawn and garden equipment, no matter who made it, no matter who sold itl _;i_i i _ For the replacement parts, accessories and owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances _!i]_] III i !!_i and items like garage door openers and water heaters.
