Summary of Contents for VTech DS8141

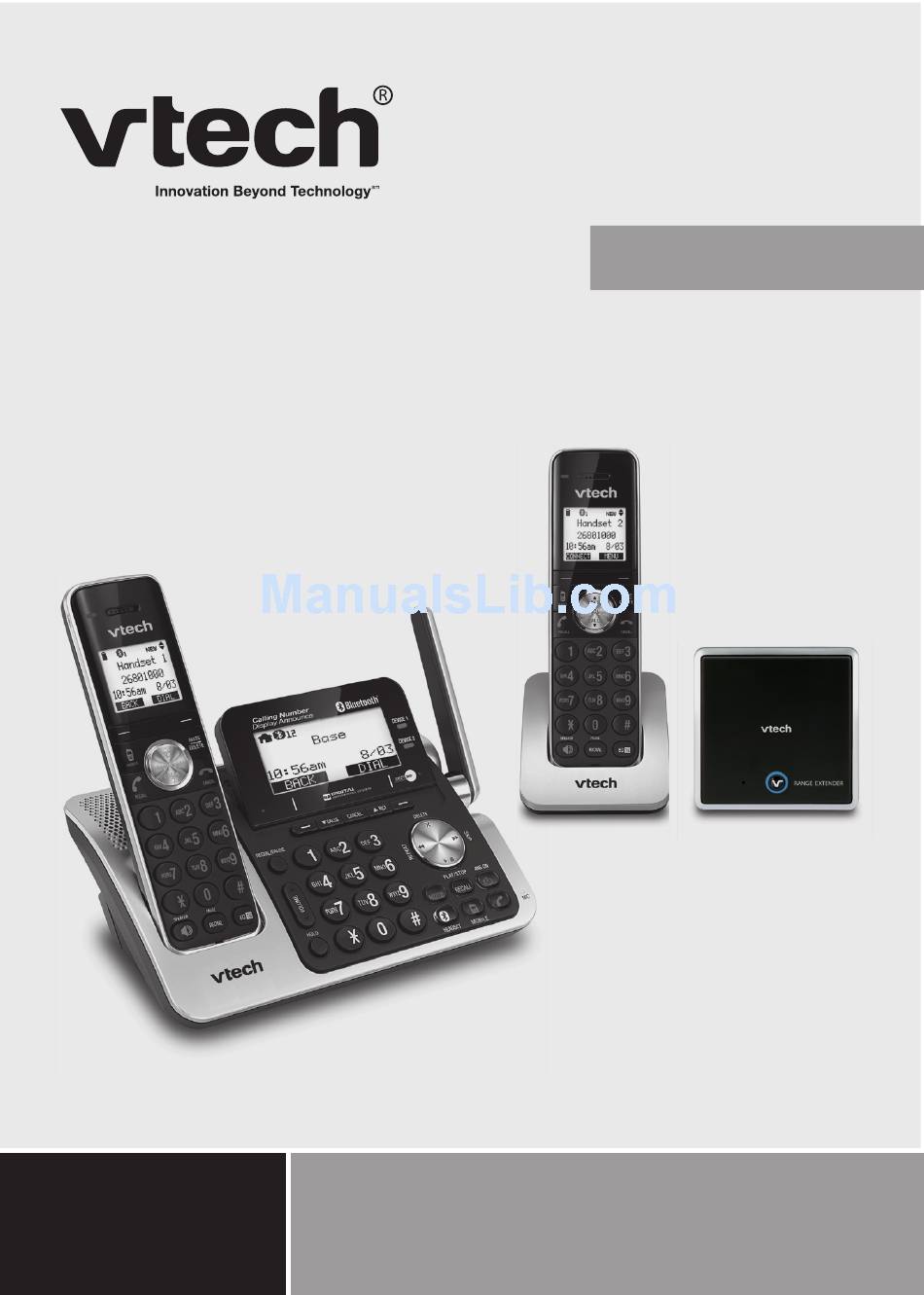

- Page 1 User’s manual Models: w w w.v tec h.c om / hk / tel DS8141/DS8141R-2...
-
Page 2: Table Of Contents
TABLE OF COnTEnTS IMPORTAnT SAFETY InSTRUCTIOnS........1 SET UP THE TELEPHOnE ............3 Package Contents ..................3 Location ....................3 Connect the Base Station ................. 4 Connect the Charger Base ............... 5 Connect the Range Extender ..............6 2.5.1 Location ..................6 2.5.2 Map The Telephone Base Coverage .......... - Page 3 USInG THE PHOnE ..............33 Make a Home Call .................. 33 5.1.1 Preparatory Dialing a Home Call..........33 5.1.2 Direct Dialing a Home Call ............33 Answer a Home Call ................33 End a Home Call ..................33 Transfer a Call ..................33 Call Waiting on the Home Line ...............
- Page 4 5.23.1 Access a Number in the Phonebook while on a Call ....41 5.23.2 Access a Number in the Call List while on a Call ....... 41 5.23.3 Access the Redial List while on a Call ........41 5.24 Redial ..................... 42 5.24.1 Review the Redial List ...............
- Page 5 Low Battery Tone ..................60 No Coverage Tone .................. 60 Display Alert .................... 61 8.5.1 Missed Call Indicator ..............61 8.5.2 No Line Indicator ................ 61 8.5.3 Download Fail ................62 Date and Time ..................62 8.6.1 Set the Date Format ..............63 8.6.2 Set the Time Format ..............
- Page 6 10.3 Intercom ....................80 10.3.1 Initiate an Intercom Call ............. 81 10.3.2 Answer an Intercom Call at the Destination Device ....81 10.3.3 Silence an Intercom Call ............81 10.3.4 Mute while on an Intercom Call ..........81 10.3.5 End an intercom Call at the Destination Handset ...... 82 10.3.6 End an Intercom Call at the Telephone Base ......
-
Page 7: Important Safety Instructions
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to VTech under the following conditions: •... - Page 8 DISPOSAL WARnInG When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC. All electrical and electronic products/battery should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
-
Page 9: Set Up The Telephone
1 Base unit • 1 AC power adaptor • 2 Telephone line cords • NiMH rechargeable battery pack (1 for DS8141, 2 for DS8141R-2) • Charger (1 for DS8141R-2) • Charger AC power adaptor (1 for DS8141R-2) • Range extender and power adaptor (1 for DS8141R-2) •... -
Page 10: Connect The Base Station
Connect the Base Station Mains power Telephone wall socket wall socket If you have ADSL Mains power high speed Internet cable service, an ADSL filter (not included) is required. Telephone line cord Insert the DC plug of the power adapter and the telephone line cord into the base station, as shown above. -
Page 11: Connect The Charger Base
Connect the Charger Base (only for model with additional handset) Mains power wall socket Mains power cable Plug the mains power cable into the charger base, plug the other end into the mains power wall socket and switch the power on. note Ensure power cord is fed through slot on the charger so unit sits flush with the desk. -
Page 12: Connect The Range Extender
Connect the Range Extender (only for model with range extender) 2.5.1 Location To get the best operating conditions for the Range Extender, it is important to place it correctly. Here are a few tips for placing the Range Extenders: • Place the Range Extender as high as possible, but at least 2 metres off the ground. -
Page 13: Install Your Range Extender
2.5.4 Install your Range Extender Plug the mains power cable into the Range Extender in its final location, plug the other end into the mains power wall socket and switch the power on. Or if you want to mount the Range Extender on a wall: Plug the mains power cable into the Range Extender, thread the cable through the locking slot and then bundle the power cable with a twist tie. -
Page 14: Install And Charge The Handset Batteries
Install and Charge the Handset Batteries Slide open the battery compartment cover. Place the supplied rechargeable battery in the battery compartment, with the battery connector plugged in, as shown. Slide the battery compartment cover back on until it clicks into place. Place the handset on the base to charge for at least 16 hours. -
Page 15: Installation Options
Installation Options Your telephone base is ready for tabletop use. If you want to mount your telephone on a wall, follow the steps below to connect the telephone base with a standard dual-stud telephone wall mounting plate. You may need a professional to install the wall mounting plate. - Page 16 3. Rotate the wall mount bracket down and push it into the telephone base until it clicks into place. 4. Plug the telephone line cord into the wall socket. Plug the power adaptor into a mains socket not controlled by a wall switch. Align the slots on the back of the telephone base with the studs of the wall mounting plate.
-
Page 17: Wall Mount To Tabletop Installation
2.7.2 Wall Mount to Tabletop Installation To change the telephone base from the wall mount position to tabletop position, follow the steps below. If the telephone line cord and power adaptor cord are bundled, untie them first. Push the telephone base up to remove it from wall. Unplug the telephone line cord (or DSL filter) from the wall. -
Page 18: Get To Know Your Phone
3. GET TO KnOW YOUR PHOnE Overview of the Handset RIGHT SOFT KEY Press to select a menu item displayed above the key. While in a menu: Press to select an item or save an entry or setting. MUTE/DELETE During a call: Press to mute the microphone. While predialling: Press to delete digits. - Page 19 DIR/UP/VOLUME+ Press to scroll up while in menus. During a call or message playback: Press to increase the listening volume. Press to show phonebook entries when the telephone is not in use. While entering names or numbers in the phonebook: Press to move the cursor to the left.
- Page 20 SPEAKER Press to make or answer a home or mobile call using the speakerphone. Press to turn on the handset speakerphone. Press again to resume normal handset use. HOME/RECALL (FLASH) Press to make or answer a home call. During a home call: Press to answer an incoming call when you hear a call waiting alert.
-
Page 21: Overview Of The Base Station
Overview of the Base Station DEVICE 1/DEVICE 2 LIGHTS ® On when the telephone base is paired and connected with a BLUETOOTH device. ® Flash alternately while pairing a BLUETOOTH device. REPEAT Press to repeat a message or press twice to play the previous message. DELETE Press to delete the message currently playing. - Page 22 AnSWER On Press to turn the answering system on or off. HOME/SPEAKER Press to make or answer a home call. Flashes quickly when there is an incoming home call. Flashes slowly when a home call is on hold. MOBILE Press to make or answer a mobile call. During a mobile call: Press to answer an incoming call when you hear a call waiting alert.
- Page 23 LEFT SOFT KEY While in a menu: Press to go back to previous menu. CID/DOWn Press to scroll down while in menus. Press to show the call list when the telephone is not in use. While entering names or numbers in the phonebook: Press to move the cursor to the left.
- Page 24 RECALL/FLASH During a home call: Press to answer an incoming call when you hear a call waiting alert. MUTE During a call: Press to mute the microphone. While the telephone base is ringing: Press to silence the ringer temporarily. VOLUME UP/DOWn Press to adjust the volume during message playback.
-
Page 25: Overview Of The Range Extender
Overview of the Range Extender Setup Button Combined with LED Indicator The SETUP button is used to initiate registration/deregistration process. The LED indicator is used to show the link or usage status of the Range Extender. Description Colour Pattern Powered off. Long Flash The Range Extender is not registered. -
Page 26: Handset Lcd Display Icons And Symbols
Handset LCD Display Icons and Symbols The screen display gives you information on the current status of the telephone. MUTE AnS On On steadily when the home line is in use or there is an incoming home call. On steadily when a mobile line is in use or there is an incoming mobile call. -
Page 27: Menu Structure
Menu Structure In idle mode, press MENU to enter the menu. Refer to the following table for the menu structure. Key Press MENU Main Menu PLAY MESSAGES AnSWERInG SYS PHOnEBOOK Sub menu X new messages Review Review answering sys phonebook list Y old messages Under a selected Under a... - Page 28 HS SETTInGS Info Services DISPLAY ALERTS C.W. On C.W. Off TIME FORMAT Chk Call Wait DATE FORMAT Call Return AUTO ANSWER CF Imm. On REGISTER CF Imm. Off RENAME HANDSET Chk CF Imm. AUTO ANSWER REGISTER RENAME HANDSET KEY TONE FLASH TIME ANNC CALLER ID POWER OUTAGE...
-
Page 29: Text And Digit Entry Table
Text and Digit Entry Table The following table shows you where each letter and punctuation character can be found. Respective character table will be used when corresponding menu language is selected. This will be helpful when storing a name in the contacts or renaming your handset. -
Page 30: Bluetooth
BLUETOOTH ® Introducing BLUETOOTH ® ® Your new telephone system with BLUETOOTH wireless technology has the following features: ® • Pair up to 4 BLUETOOTH enabled devices (mobile phones or headsets) with the telephone base. • Connect a maximum of 2 mobile phones to make and receive mobile calls. Only one mobile phone can be active on a call at a time. -
Page 31: Bluetooth ® Setup
BLUETOOTH Setup ® ® To use a BLUETOOTH enabled mobile phone with your telephone, you must first pair ® and connect your BLUETOOTH mobile phone with the telephone base. All handsets can be used to make or answer calls on the mobile phone line. ®... -
Page 32: Add A Headset
noteS The pairing process may take up to one minute. If the pairing process fails, try again. If you put the handset back in the telephone base or charger while pairing, the process is cancelled and the handset returns to idle mode. If a device fails to connect, the handset displays Mobile Phone A is added to device list, and then displays Pls use mobile to connect to base. -
Page 33: Auto Connection
10. When a device is successfully connected, the handset displays Headset A is added and connected to base and the corresponding status icon ( 1 or 2 ). You hear a confirmation tone. The corresponding light on the telephone base (DEVICE 1 or DEVICE 2) turns on. -
Page 34: Review The Active Device List
4.3.6 Review the Active Device List Press MENU on the handset when it is not in use. Press to highlight Bluetooth, then press SELECT. to highlight Device list, then press SELECT. Press 4.3.7 Connect/disconnect an Active Device While in the active devices menu, you may connect or disconnect your active device. Press MENU on the handset when it is not in use. -
Page 35: Rename A Device
4.3.9 Rename a Device You can change the name of a paired device on the paired devices list. Press MENU on the handset when it is not in use. Press to highlight Bluetooth, then press SELECT. Press to highlight Device list, then press SELECT. Press to highlight a device when necessary, then press OPTION. -
Page 36: Download Phonebook
4.3.11 Download Phonebook You can download up to 4 mobile phone phonebooks to your telephone system via ® BLUETOOTH wireless technology. Each downloaded phonebook can store up to 1,500 entries with up to 30 digits for each phone number and 15 characters for each name. -
Page 37: Interruption To Phonebook Download
noteS With certain mobile phones, downloading from the SIM card is not supported. If this is the case, try transferring the contacts from your SIM card to your mobile phone memory first, then download from your mobile phone memory. For more information on how to transfer contacts from your SIM card to your mobile phone memory, see your mobile phone’s User Guide. -
Page 38: View The Phonebook Download Information
4.3.13 View the Phonebook Download Information Press MENU on the telephone base in idle mode to enter the main menu. Press to highlight Phonebook, then press SELECT. Press to choose the desired downloaded phonebook, then press OPTION. Press to highlight Last update, then press SELECT. The telephone base displays Mobile phone A Last update: MM/DD/YY Total #XXXX. -
Page 39: Using The Phone
USInG THE PHOnE Make a Home Call 5.1.1 Preparatory Dialing a Home Call Enter the telephone number, then press on the handset, or press on the telephone base. 5.1.2 Direct Dialing a Home Call Press on the handset, or press on the telephone base, then enter the telephone number. -
Page 40: Call Waiting On The Home Line
3. You cannot answer a home call using your connected mobile phone. ® 4. If you are on a call using a BLUETOOTH headset, and you lose the ® BLUETOOTH connection or the battery becomes depleted, the call is lost. ®... -
Page 41: Call Waiting On The Mobile Line
noteS You can also use your mobile phone to answer the call. If you answer with your mobile phone, it disconnects from the telephone base. If you do not want to answer the call, press REJECT. The screen displays Call rejected and then returns to the idle mode. When you try to make a mobile call but your mobile phone is not connected to the base, the handset displays no mobile is ready for connection and the telephone base displays Mobile phone not connected. -
Page 42: End The Mobile Call
5.10.2 End the Mobile Call Press on the handset. The home line is still on hold. The telephone base and all other handsets all handsets and the telephone base display Home call on hold. Press on the telephone base. The home line is still on hold. All handsets display Home call on hold. -
Page 43: Conference Calls
If you are on a call using the mobile line, you cannot join the call using your paired mobile phone. However, you can join the call using another DS8141/DS8141R-2 device. Your mobile phone is being used for the phone call so only features that are... -
Page 44: Handsfree
5.13 Handsfree Using a handset: During a call, press on the handset to switch between the speakerphone and normal handset use. Using the telephone base: The speakerphone is the only audio option for the telephone base. Press to place, answer, and to end calls from the telephone base. 5.14 Earpiece / Handsfree Volume While on a call, you can adjust the listening volume on the handset or telephone... -
Page 45: Auto Answer
5.16 Auto Answer As long as you have Auto answer set to On you can answer a call by lifting the handset off the base. If you have switched Auto off, you will need to press on the handset as well. 5.17 Lock Keypad Lock the keypad to prevent accidental dialling while carrying the handset around. -
Page 46: Hold
5.21 Hold You can place any call on hold. You hear an alert tone at the telephone base if you have not taken the call off of hold after 14 minutes. You hear another alert tone at the telephone base 30 seconds later. At 15 minutes on hold, the call on hold automatically disconnects. -
Page 47: Chain Dialling
5.23 Chain Dialling Use this feature to initiate a dialling sequence from numbers stored in the phonebook, call list or redial list while you are on a call. Chain dialling can be useful if you wish to access other numbers (such as bank account numbers or access codes) from the phonebook, call list or redial list. -
Page 48: Redial
5.24 Redial The telephone base and each handset store the last 10 dialed numbers (up to 30 digits each) in the redial list. The redial entries of each handset and the telephone base are independent. 5.24.1 Review the Redial List Press on the handset, or press (REDIAL/PAUSE) on the telephone... -
Page 49: Save A Redial Entry To The Phonebook
5.24.3 Save a Redial Entry to the Phonebook Press on the handset, or press (REDIAL/PAUSE) on the telephone base in idle mode. Press on the handset, or press (REDIAL/ PAUSE) on the telephone base repeatedly to browse until the desired number displays. -
Page 50: Delete A Redial Entry
5.24.4 Delete a Redial Entry Press on the handset, or press (REDIAL/PAUSE) on the telephone base when the handset is not in use. Press on the handset, or press (REDIAL/ PAUSE) on the telephone base repeatedly to browse until the desired number displays. -
Page 51: Power Fail Back-Up
5.26 Power Fail Back-Up The Power Fail back-up system lets you make calls during a mains power interruption with your cordless phone. During a mains power interruption you can supply the power stored in your handset battery to the base unit, so you can make calls even when the power is out. -
Page 52: Make A Call Using Power Fail Back-Up Mode
5.26.2 Make a Call Using Power Fail Back-Up Mode If there is only one handset registered to the base: 1. Once the handset is placed onto the main base unit, enter the telephone number, and then press . The speakerphone will be turned on automatically and call is made. -
Page 53: Phonebook
PHOnEBOOK The home phonebook stores up to 200 entries with up to 30 digits for each phone number and 15 characters for each name. Each of the downloaded phonebooks stores up to 1,500 entries with up to 30 digits for each phone number and 15 characters for each name. -
Page 54: Add A Predialled Telephone Number To The Phonebook
7. Press on the handset, or press on the telephone base to select one of the following types: Home Mobile Work Other 8. Press NEXT. The screen displays EnTER nAME. 9. Use the dialling keys to enter the name. Press on the handset or on the telephone base to erase a character. -
Page 55: View The Phonebook
View the Phonebook Entries are sorted alphabetically. To view the phonebook: Using a handset or telephone base: Press on the handset or on the telephone base in idle mode. Press on the handset, or on the telephone base to highlight a phonebook, then press VIEW. Press on the handset, or on the telephone base... -
Page 56: 3-Character Alphabetical Search
3-character Alphabetical Search You can use the enhanced 3-character search to find your contacts quickly and efficiently. To start the search: Follow the steps in View the phonebook above to enter the phonebook. When an entry appears, use the dialling keys to enter the letters associated with the name. -
Page 57: Edit A Phonebook Entry
6.5.2 Edit a Phonebook Entry You can edit any phonebook entry. However, be aware that if you download a phonebook from a mobile phone again, the phonebook is erased and replaced with the current mobile phone phonebook. If you have edited the downloaded entries on the telephone, those changes are lost. -
Page 58: Delete A Phonebook Entry
6.5.4 Delete a Phonebook Entry To delete an entry: Search for the desired entry in the phonebook. When the desired entry appears, press on the handset or on the telephone base. The screen displays Delete contact? and the name of the entry. Press YES to confirm. -
Page 59: View The Speed Dial Phonebook
6.6.2 View the Speed Dial Phonebook Press MENU in idle mode. Press on the handset, or on the telephone base to highlight Phonebook, then press SELECT. Press on the handset, or on the telephone base to highlight Speed dial, then press VIEW. Press on the handset, or on the telephone base to... -
Page 60: Delete A Speed Dial Entry
6.6.5 Delete a Speed Dial Entry Press MENU in idle mode. Press on the handset, or on the telephone base to highlight Phonebook and then press SELECT. Press on the handset, or on the telephone base to highlight Speed dial, then press VIEW. Press on the handset, or on the telephone base to... -
Page 61: Network Service
nETWORK SERVICE Calling number Display If you have subscribed to Calling Number Display service, you will be able to see your caller’s number on your handset display (provided it is not blocked) prior to answering the call. If your caller’s name is stored in the phonebook and a number match is found, you will see the caller’s name on the display instead. -
Page 62: Dial A Call List Entry
7.1.2 Dial a Call List Entry Search for the desired entry in the call list. When the desired entry is displayed and is in the correct format for dialling, press on the handset or on the telephone base to use the home line. Press on the handset or on the telephone base to use the mobile line. -
Page 63: Delete A Single Entry In The Call List
noteS If the name received from the telephone service provider is in all capital letters, the first letter of every word remains a capital letter. However, the next letter after the prefix “Mac”, “Mc”, or “O’”, is kept as a capital letter. For example, the “D” in “MacDonald”... - Page 64 To reset the voicemail indicator: Press MENU in idle mode to enter the main menu. Press on the handset, or on the telephone base to highlight Settings, then press SELECT. Press on the handset, or on the telephone base to highlight Display alerts, then press SELECT.
-
Page 65: Phone Settings
PHOnE SETTInGS Ringer Volume You can select the ringer volume for the incoming home and mobile calls. VOLUME p / Press q on the telephone base to set the ringer volume while the telephone base is in idle mode to set the ringer volume for all lines. Press SET to confirm and you hear a confirmation tone. -
Page 66: Ringer Tone
Ringer Tone You can select the ringer tones for the incoming home and mobile calls. Press MENU in idle mode to enter the main menu. Press on the handset, or press on the telephone base to highlight Ringers, then press SELECT. Press on the handset, or press on the telephone base... -
Page 67: Display Alert
Display Alert In the display alerts menu, you can change and edit the settings for the display of alerts on the idle screen. 8.5.1 Missed Call Indicator When there are missed calls that have not been reviewed in the call list, the handsets show XX Missed calls. -
Page 68: Download Fail
5. Press on the handset, or press on the telephone base to highlight no line, then press SELECT. 6. Press on the handset, or press on the telephone base to choose On or Off, then press SET to save. When you choose Off, the handset displays If the line is not connected, an alert will not appear. -
Page 69: Set The Date Format
8.6.1 Set the Date Format Press MENU in idle mode to enter the main menu. Press on the handset, or press on the telephone base to highlight Settings, then press SELECT. Press on the handset, or press on the telephone base to highlight Date format, then press SELECT. -
Page 70: Auto Answer
8. If you set the Time format to be 12-Hour, press on the handset, or press on the telephone base to highlight AM or PM, or press 2 for AM or 7 for PM. Press SET to save. You hear a confirmation tone. note The setting sequence of Step 3 and Step 4 will reply on the date format you set. -
Page 71: Key Tone
Key Tone The handset is set to beep with each key press. If you turn off the key tone, there are no beeps when you press keys. To change the setting: Press MENU in idle mode to enter the main menu. on the handset, or press on the telephone base to scroll to Settings, then press SELECT. -
Page 72: Voice Announce Caller Id
8.11 Voice Announce Caller ID The Voice Announce Caller ID feature lets you know who’s calling without having to look at the display. When you have an incoming call, the handset and/or base speaks “Call from...” and the name of the caller based on the phonebook or calling number display information. -
Page 73: Reset
8. It takes at least 2 rings for the phone to receive calling number display information and announce it. If the phone is answered before the end of the second ring, the phone won’t have time to announce the calling number display information. 9. -
Page 74: Answering Machine
AnSWERInG MACHInE The answering system can record and store up to 99 messages. Each message can be up to 3 minutes in length depending on the message length set. The total storage capacity for the outgoing message, messages and memos is approximately 30 minutes. -
Page 75: Outgoing Message
3. If the answering system is off, you may press on the telephone base to turn on the answering system during an incoming call. The answering system answers the call immediately if there is remaining time. Outgoing Message An outgoing message is the greeting callers hear when calls are answered by the answering system. -
Page 76: Delete Your Outgoing Message
9.2.3 Delete your Outgoing Message Press MENU in idle mode to enter the main menu. Press on the handset, or press on the telephone base to scroll to Answering sys, then press SELECT. Press SELECT again to select Outgoing msg. The screen displays OUTGOInG MSG. - Page 77 Options during playback: VOLUME p / Press q to adjust the speaker volume. Press or SKIP to skip to the next message. Press or REPEAT to repeat the message currently playing. Press or REPEAT twice to listen to the previous message. Press to delete the current message.
-
Page 78: Delete All Old Messages
Press to pause the playback and show the calling number display information. >Press , DIAL or to use the home line, or press to use the mobile line to call back the caller. >Press or BACK to restart the playback. If you do not call back within 10 seconds, message playback restarts. -
Page 79: Record And Play Memos
Record and Play Memos Memos are messages you record as reminders for yourself or others using the same answering system. You can record your own memos using a system handset or the base. Play and delete them the same way as incoming messages. To record a memo: Press MENU on the handset in idle mode to enter the main menu. -
Page 80: Number Of Ringers
number of Ringers When the answering system is turned on, it answers all incoming home calls after the number of rings set. You can choose from 2, 3, 4, 5, or 6 rings; or time saver. With time saver selected, the answering system answers after 2 rings when you have new messages, and after 4 rings when you have no new messages. -
Page 81: Message Alert Tone
5. Use the dialling keys (0-9) to enter a 2-digit number from 00-99. Press on handset, or on the telephone base to erase a digit. Press and hold on the handset or on the telephone base to erase all digits. Press on the handset, or press on the telephone base... -
Page 82: Recording Time
9.11 Recording Time You can set the recording time limit for each incoming message. To change the setting: Press MENU in idle mode to enter the main menu. Press on the handset, or press on the telephone base to highlight Answering sys, then press SELECT. Press on the handset, or press on the telephone base... -
Page 83: Using The Answering System And Voicemail Together
9.12.1 Using the Answering System and Voicemail Together You can also use your telephone answering system and voicemail together by setting your built-in answering system to answer before voicemail answers as described below. To learn how to program yourvoicemai I settings, contact your telephone service provider. -
Page 84: Call Intercept
9.12.5 Call Intercept When a caller is leaving a message on your answering system, you can stop recording and talk to the caller by pressing on the handset, or pressing on the telephone base. 9.13 Remote Access You can access the answering system remotely by dialling your home telephone number from any touch-tone telephone. - Page 85 noteS If you do not press any keys after you enterthe remote access code, all new messages play. If there are no new messages, all old messages play. Once the new messages have played, the telephone announces the help menu options.
-
Page 86: Additional Handsets
10. ADDITIOnAL HAnDSETS (OnLY FOR DS8141R-2) 10.1 Transfer a Call While on an outside call, you can transfer the call from one device to another. Press OPTION, then press SELECT to highlight Transfer. Your handset or the telephone base displays TRAnSFER TO: and a list of registered devices. -
Page 87: Initiate An Intercom Call
10.3.1 Initiate an Intercom Call Using a handset: Press MENU on the handset in idle mode. Press to highlight Intercom, then press SELECT. • Your handset displays InTERCOM and a list of devices. >Press to highlight a destination device and then press SELECT. Your handset displays Calling HAnDSET X, Calling BASE 0 or Calling all devices. -
Page 88: End An Intercom Call At The Destination Handset
10.3.5 End an Intercom Call at the Destination Handset Press , END or place either handset back in the telephone base or charger. Both screens display Intercom ended. 10.3.6 End an Intercom Call at the Telephone Base Press END or . -
Page 89: Call Transfer Using Intercom
10.5 Call Transfer Using Intercom Use the intercom feature to transfer an outside call to another system handset or the telephone base. 10.5.1 Transfer an Outside Call Using a handset: When on an outside call, press OPTION. Press to highlight Intercom, then press SELECT. Your handset displays InTERCOM plus a list of devices. - Page 90 Using the telephone base: When on an outside call, press OPTION. Press to highlight Intercom, then press SELECT. Your screen displays InTERCOM plus a list of handsets. >Press to highlight a destination handset or All handsets and then press SELECT. >Press 1-4 for handset 1-4.
-
Page 91: Registration
10.6 Registration Your handset and telephone base is pre-registered. If for some reason, the handset is not registered to the telephone base, Put handset on BASE to register will be displayed on the handset screen, register your handset according to the following procedure. -
Page 92: Deregister Handsets
noteS Additional handsets are assigned numbers in the sequential order they are registered. You cannot register a handset if any other system handset is in use. If you try to register more than 4 handsets to the telephone base, the telephone base shows Registration slots are full and sounds 2 beeps. -
Page 93: Range Extender
11. RAnGE EXTEnDER (FOR MODELS WITH RAnGE EXTEnDERS) The Range Extender lets you extend the coverage area of your telephone system in all directions, including up and down. When registered to the telephone base, the Range Extender’s coverage area overlaps the coverage area of the telephone base, the telephone base can hand-off calls to the Range Extender as the user moves from one coverage area to another. -
Page 94: System Expansion
This range extender doubles the effective transmission distance between the base unit and the cordless handset. Place your VTech Range Extender(s) in different places at your home or business, and enjoy talking further away from the base than ever before. -
Page 95: Default Settings
MELODY 6 EXT RInG VOLUME VOLUME 5 EARPIECE VOLUME VOLUME 5 HAnDSFREE VOLUME VOLUME 5 HAnDSET nAME VTech 1 (Depend on no. of Hand set) KEY TOnE LOW BATTERY BEEP nO COVERAGE AUTO AnSWER DATE FORMAT DD-MM-YY TIME FORMAT 12HR... -
Page 96: Troubleshooting
13. TROUBLESHOOTInG If you have difficulty with your phone, please try the suggestion listed below. Problem Solutions My telephone does • Make sure the batteries are installed and charged not work at all. correctly. For optimum daily performance, return the handset to the telephone base after use. - Page 97 There is • The handset may be out of range. Move it closer to the interference telephone base. during a telephone • If you subscribe to high-speed Internet service (digital conversation. subscriber line - DSL) through your telephone line, you My calls fade out must install a DSL filter between the telephone base when I am using...
- Page 98 PBX systems. Technical Support For technical support, please call VTech Technical Inquiry Hotline 852-2667 7433. Please read out the serial number of this telephone to Technical Center. The serial number can be found in the battery compartment after having the batteries removed.
-
Page 99: Technical Specifications
14. TECHnICAL SPECIFICATIOnS BASIC InFORMATIOn Dimensions Handset: width / depth / height = 47.50 X 24.40 X 170.19 mm Base: width / depth / height = 200.08 X 135.00 X 92.86 mm Repeater: width / depth / height = 115.33 X 50.65 X 115.73 mm Charger: width / depth / height = 75.00 X 85.24 X 60.28 mm Weight Handset: 131.8g... -
Page 100: Care And Maintenance Instructions
15. CARE AnD MAInTEnAnCE InSTRUCTIOnS Take care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. - Page 101 Suite 1601, Lever Tech Centre, 69-71 King Yip Street, Kwun Tong, Kowloon, Hong Kong. Customer Service Hotline: (852) 2666 5558 Technical Inquiry Hotline: (852) 2667 7433 VTECH TELECOMMUnICATIOnS LTD. A member of THE VTECH GROUP OF COMPAnIES. © 2012 VTech Telecommunications Ltd. All Rights Reserved.
