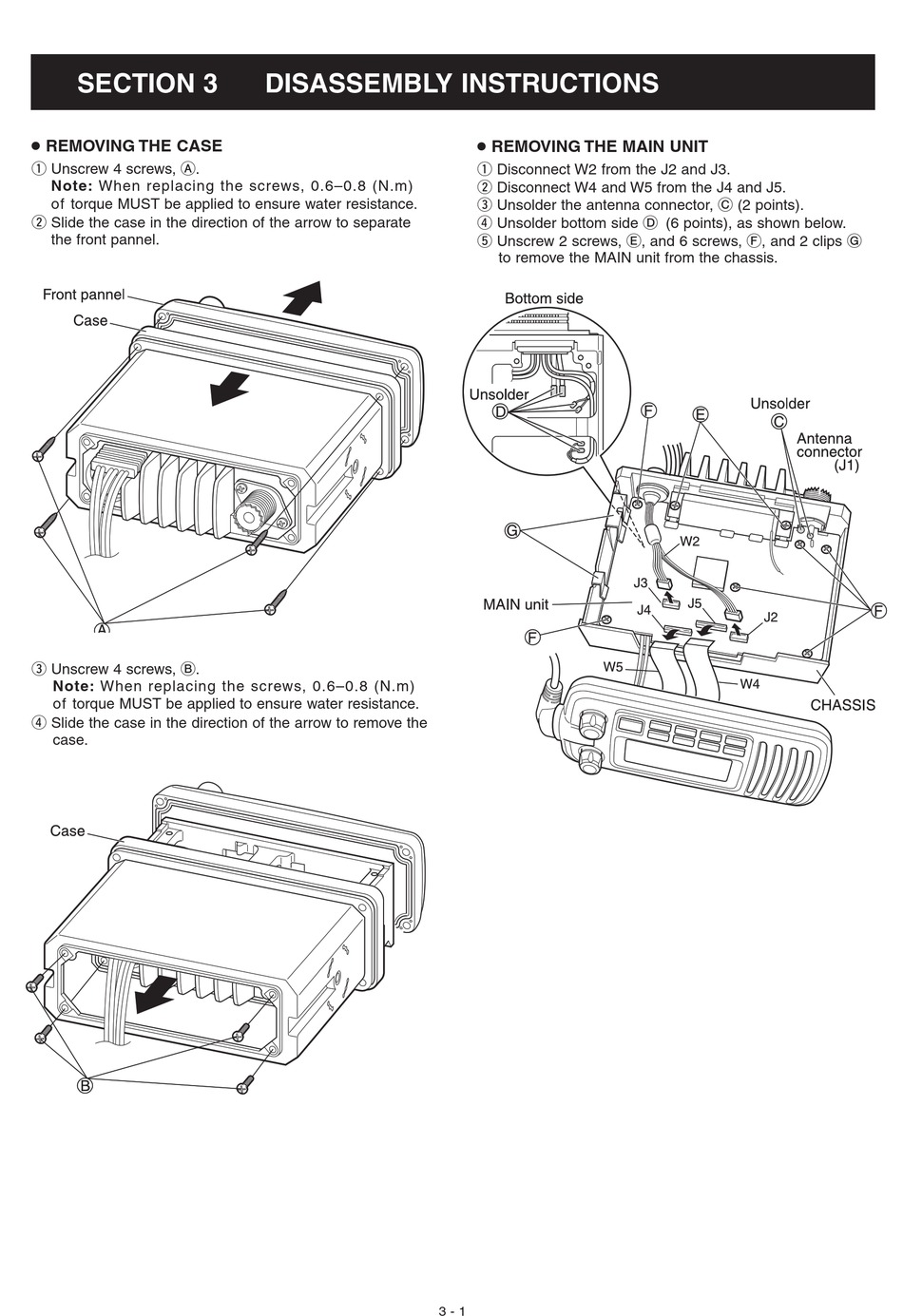

SECTION 3
•
REMOVING THE CASE
1 Unscrew 4 screws, A.
Note: When replacing the screws, 0.6–0.8 (N.m)
of torque MUST be applied to ensure water resistance.
2 Slide the case in the direction of the arrow to separate
the front pannel.
3 Unscrew 4 screws, B.
Note: When replacing the screws, 0.6–0.8 (N.m)
of torque MUST be applied to ensure water resistance.
4 Slide the case in the direction of the arrow to remove the
case.
DISASSEMBLY INSTRUCTIONS
•
REMOVING THE MAIN UNIT
1 Disconnect W2 from the J2 and J3.
2 Disconnect W4 and W5 from the J4 and J5.
3 Unsolder the antenna connector, C (2 points).
4 Unsolder bottom side D (6 points), as shown below.
5 Unscrew 2 screws, E, and 6 screws, F, and 2 clips G
to remove the MAIN unit from the chassis.
3 - 1
