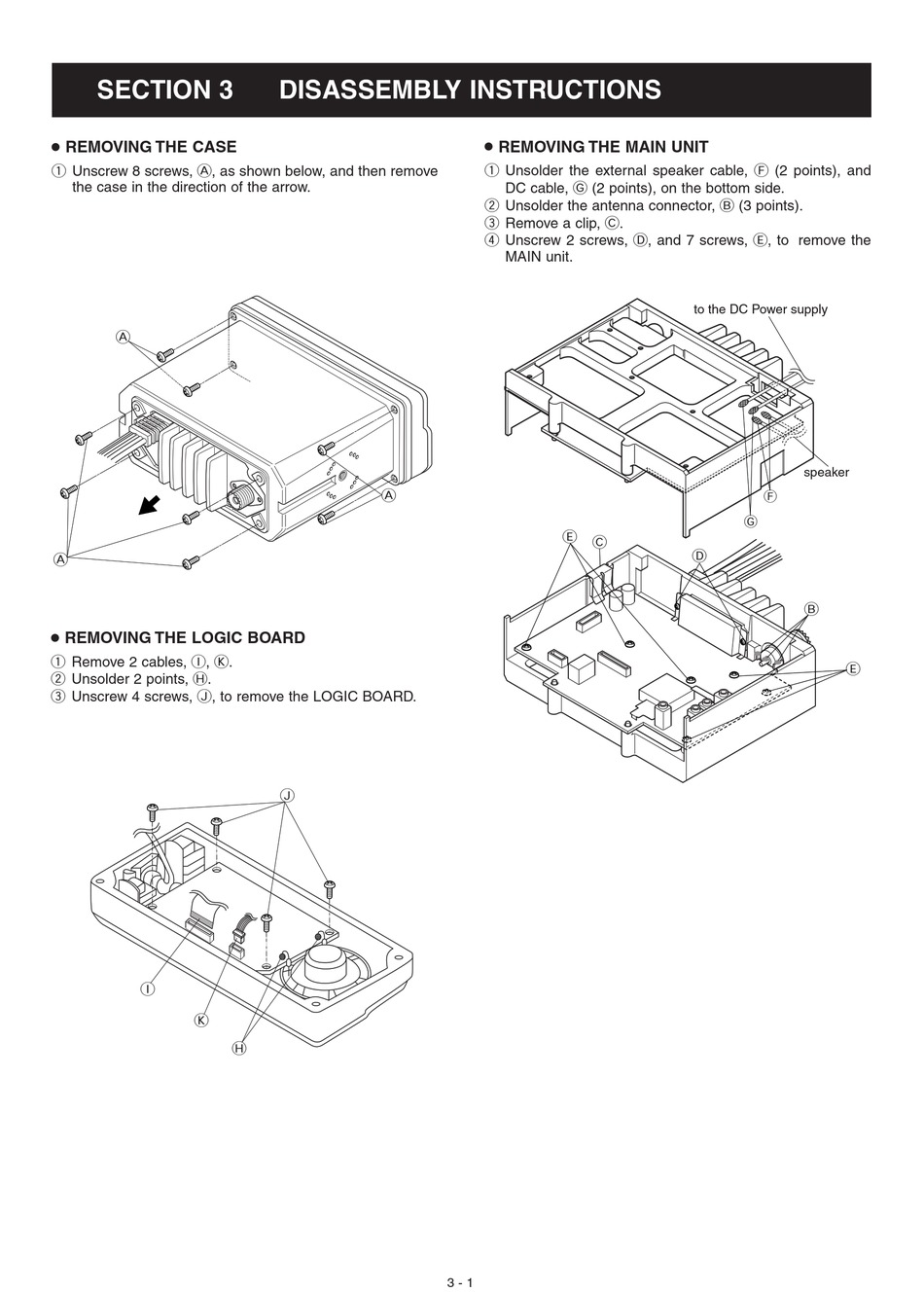

SECTION 3
•
REMOVING THE CASE
1 Unscrew 8 screws, A, as shown below, and then remove
the case in the direction of the arrow.
A
A
•
REMOVING THE LOGIC BOARD
1 Remove 2 cables, I, K.
2 Unsolder 2 points, H.
3 Unscrew 4 screws, J, to remove the LOGIC BOARD.
I
K
DISASSEMBLY INSTRUCTIONS
A
J
H
•
REMOVING THE MAIN UNIT
1 Unsolder the external speaker cable, F (2 points), and
DC cable, G (2 points), on the bottom side.
2 Unsolder the antenna connector, B (3 points).
3 Remove a clip, C.
4 Unscrew 2 screws, D, and 7 screws, E, to remove the
MAIN unit.
E
C
3 - 1
to the DC Power supply
speaker
F
G
D
B
E
