ANT500 Manual
6/10/99
1:10 PM
Page 1
I N D O O R
Low Profile
™
TV Antenna

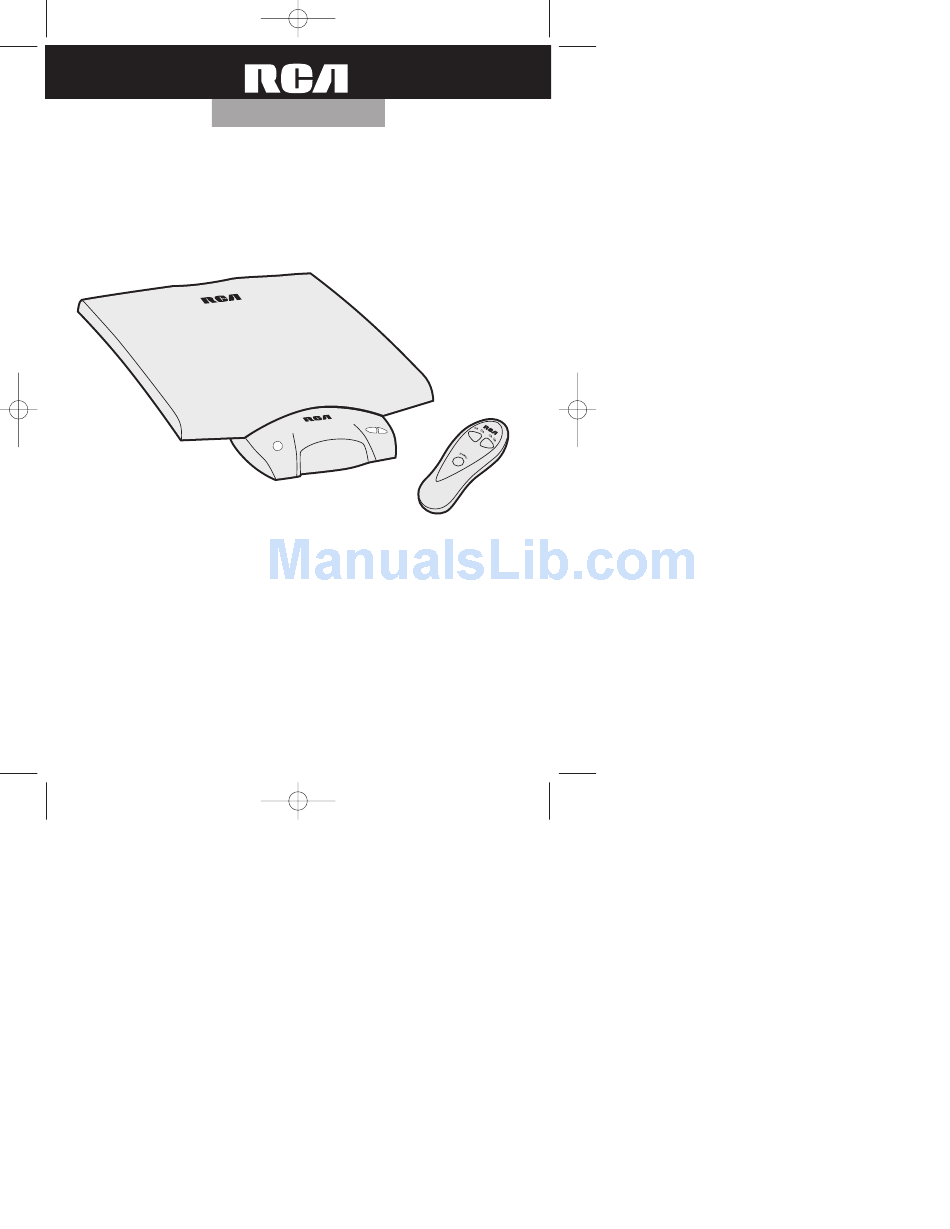

Thank you for choosing the RCA Low Profile Antenna with
Amplifier and Narrow Band Tuning. This antenna combines high
performance with unique design to provide excellent TV reception.
Before attempting to use your antenna, please remove all parts
from the box and read the instructions carefully.
ANT500
Five Year Limited Warranty
Advertisement
Related Manuals for RCA ANT500
Summary of Contents for RCA ANT500
- Page 1 Low Profile ™ TV Antenna Thank you for choosing the RCA Low Profile Antenna with Amplifier and Narrow Band Tuning. This antenna combines high performance with unique design to provide excellent TV reception. Before attempting to use your antenna, please remove all parts from the box and read the instructions carefully.
- Page 2 ANT500 Manual 6/10/99 1:07 PM Page 2 Contents Antenna Element Amplifier/Tuner 12Vdc, 500mA Remote Control Power Adapter (2) 6ft. Short Coaxial Cable Inline “F” Coaxial Cables with 90º Connector Connector Coupler 2 “AAA” Batteries (Included)
-
Page 3: Important Safeguards
ANT500 Manual 6/10/99 1:07 PM Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 4: Installation
ANT500 Manual 6/10/99 1:07 PM Page 4 Installation Wall Mounting and Operating Instructions The antenna is designed to be mounted on a wall in a discreet, out of sight location. For example, it may be hidden behind furniture. The antenna will perform better if located as high as possible, and away from power outlets and wires inside the wall. - Page 5 ANT500 Manual 6/10/99 1:07 PM Page 5 Installation For Installation of Amplifier/Tuner Separated from Antenna Element 1. Locate the Antenna Element. Connect the right angle end of the Short Coaxial Cable to the connector on the bottom of the Antenna Element.
- Page 6 ANT500 Manual 6/10/99 1:07 PM Page 6 For Installation of Combined Element and Amplifier/Tuner The Antenna Element and Amplifier/Tuner can be used as a combined unit for positioning on flat surfaces like the top of a TV cabinet. To avoid blocking the broadcast signal, do not place the unit beneath the TV or any other electronic component.
- Page 7 Remote Control Using an RCA Universal Remote Control If you have an RCA Universal Remote Control, the Amplifier/Tuner can be operated by using VCR code 020. If the remote has an AUX key, the code can be programmed under that key by following the instructions that came with the remote control.
- Page 8 ANT500 Manual 6/10/99 1:07 PM Page 8 ALSO AVAILABLE: Cable TV & Satellite Surge Suppressors SCTV90 O N LY FEATURES: 9 5* •6 Outlets •640 joules •Cable/TV Satellite Protection •Phone/Modem/Fax Line Protection •Flat Profile Plug •Diagnostic Indicator Lights •Noise Reduction •Accommodates AC Adapter...
- Page 9 ANT500 Manual 6/10/99 1:07 PM Page 9...
- Page 10 ANT500 Manual 6/10/99 1:07 PM Page 10 ANT500 Purchase Registration Card Please complete and return this Purchase Registration Card right away. This information will help us get to know and service our customers better. Mrs. Ms. Name: ______________________________ Address: ________________________________________________ _______________________________________________________ 3.Date of Purchase/Receipt as Gift:________ 4.
-
Page 11: Five Year Warranty
ANT500 Manual 6/10/99 1:07 PM Page 11 Five Year Warranty Thomson Consumer Electronics, Inc. warrants that for 5 years from date of pur- chase this product will be free from defects in material and workmanship. If the item is defective within that period, return it at your expense to the dealer from whom it was purchased together with proof of purchase for replacement.
