5.9 Memory Expansion Board

1024 MB (1.0 GB), 333 MHz
512 MB, 333 MHz
256 MB, 333 MHz
1. Prepare the notebook for disassembly. Refer to Section 5.3.
2. Release the keyboard (Section 5.8).
3. Spread the retaining tabs 1 that secure the memory
expansion board to the socket. The free end of the board rises.
4. Pull the board away from the socket at a 45-degree angle 2.

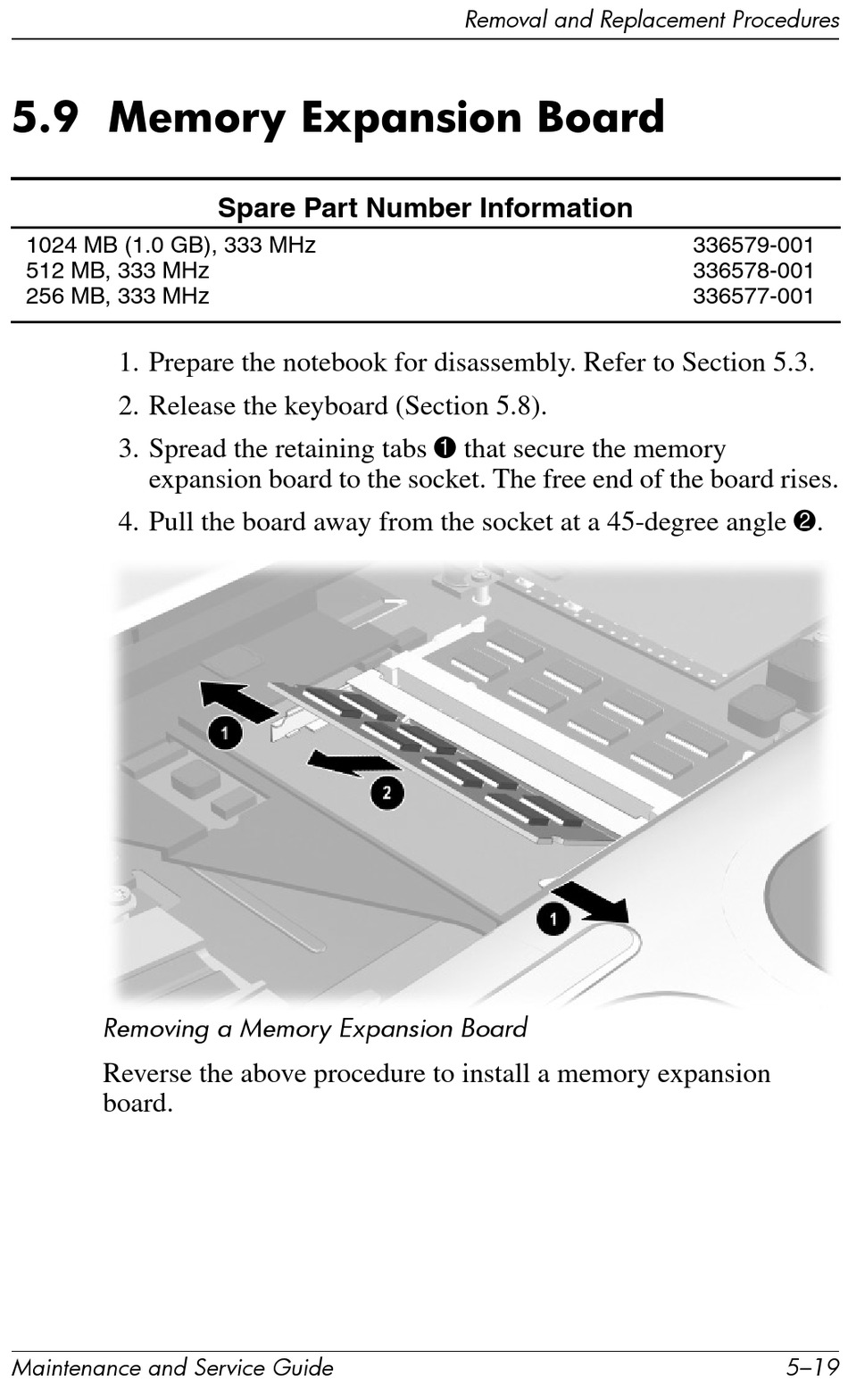

Removing a Memory Expansion Board
Reverse the above procedure to install a memory expansion
board.
Maintenance and Service Guide
Spare Part Number Information
Removal and Replacement Procedures
336579-001
336578-001
336577-001
5–19
