B. Vent Kits Components
Direct Vent Flex Liner Kits (see Figure 14.4)
LINK-DV30B: Masonry 3 inch fl ex liner kit. Expands to 30
feet. Includes: two liners, termination cap and fl ashing.
LINK-DV4-30B: Masonry 3 inch fl ex liner kit. Expands to 30
feet and 4 feet respectively. Includes: two liners, termination
cap and fl ashing.
LINKSQC-DV30, LINKSQB-DV30: Masonry 3 inch fl ex liner
kit. Expands to 30 feet. Includes: two liners, termination
cap and fl ashing.
LINKSQC-DV4-30, LINKSQB-DV4-30: Masonry 3 inch
fl ex liner kit. Expands to 30 feet and 4 feet respectively.
Includes: two liners, termination cap and fl ashing.
LINK-DV30B
LINK-DV4-30B

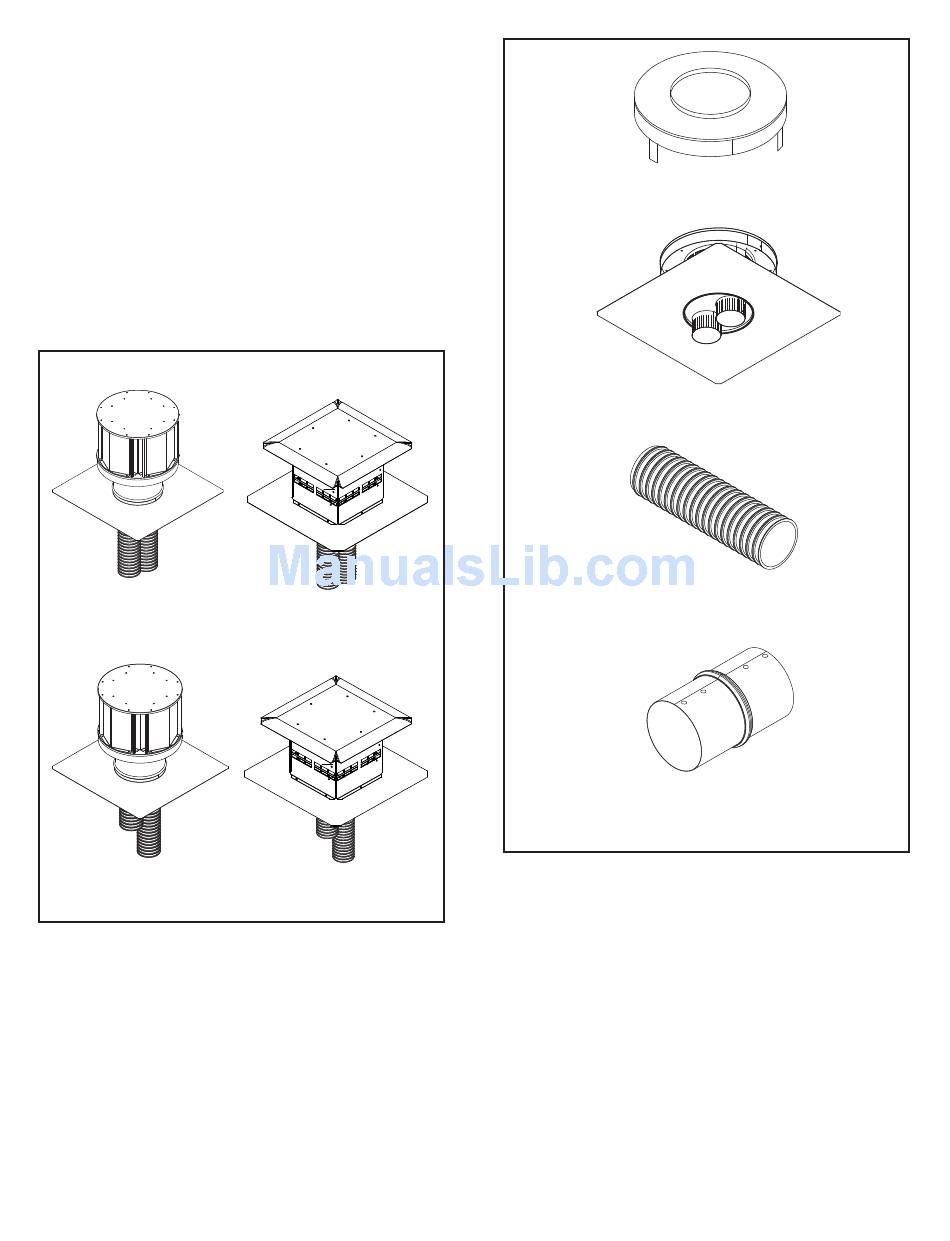

Figure 14.4 Direct Vent Flex Liner Kits
Direct Vent Flex Liner Accessory Kits (see Figure 14.5)
LINK-ZC-ADPB: Zero clearance chimney adapter
DV-46DVA-GK: Adapter kit - It is permissible to use DV-
46DVA-GK to connect collinear fl ex vent to SL-D vent pipe
to extend the run.
FLEX3-30: One 3 inch fl exible liner expands to 30 feet.
FLEX-CNCT: Connector kit - 3 inch liner to 3 inch liner,
one connector per kit.
LINKSQC-DV30 (COPPER)
LINKSQB-DV30 (BLACK)
LINKSQC-DV4-30 (COPPER)
LINKSQB-DV4-30 (BLACK)
Quadra-Fire • QFI30FB-C, QFI35FB-C • 2221-901 Rev. S • 2/15
LINK-ZC-ADPB
DV-46DVA-GK
FLEX3-30
FLEX-CNCT
Figure 14.5 Direct Vent Flex Liner Accessory Kits
