D. Placing, Securing and Leveling the
Appliance
WARNING! Risk of Explosion/Combustion Fumes!
Connect vent sections per installation instructions.
• The 3 foot section of stainless steel fl exible pipe MUST
be attached directly to the exhaust collar on the collar
slide plate.
• Connect exhaust vent pipe ONLY to exhaust starting
collar and termination cap center collar.
• Connect inlet air vent ONLY to inlet air collar on
appliance and either the termination cap inlet air collar
OR terminate within chimney.
• DO NOT allow vent to sag below connection point to
appliance.
• Remove rear leveling legs from shipping position and
relocate to one of the positions shown in Figure 8.3.
Remove both screws that secure the leveling leg to the
side of the appliance. Turn the leveling leg around so
that the foot is facing out and downward. Line up the
two holes on the leg with the holes on the appliance and
secure with screws. See Figure 8.3.
• Front leveling legs are shipped with surround and may
be installed in one of two locations. See Figure 8.3.
• Install insert (without surround attached) into existing
fi replace while pulling collar slide plate forward.
• Install gas line into hole provided on side.
• Secure collar slide plate to appliance by placing locking
handle into position with locking tabs (see Figure 8.1)
and secure with #8 screw.
• Level the appliance from side to side and front to back.
Adjust leveling bolts to desired vertical position so
appliance is level. Use the leveling bolts included with
the manual bag.
• A minimum 1/2 inch gap from the bottom of the appliance
to a metal surface is recommended for optimal fan
performance. See Figure 5.1.
• Position any excess fl exible vent pipe back up into
chimney without sagging. Twist and push flex vent
together to shorten.
• Attach surround. Follow instructions for surround
installation included with the front.
• Push insert into the opening so that it tightly overlaps the
fi replace opening.
WARNING! Risk of Fire! Only an approved Hearth &
Home Technologies surround may be used to cover inte-
gral grills on solid fuel burning fi replaces. No other com-
ponents such as shrouds, sheetmetal plates, etc., may be
used to seal off vents.
WARNING! Risk of Explosion! Failure to position the
parts in accordance with these diagrams or failure to use
only parts specifi cally approved with this appliance may
result in property damage or personal injury.
Quadra-Fire • QFI30FB-C, QFI35FB-C • 2221-901 Rev. S • 2/15

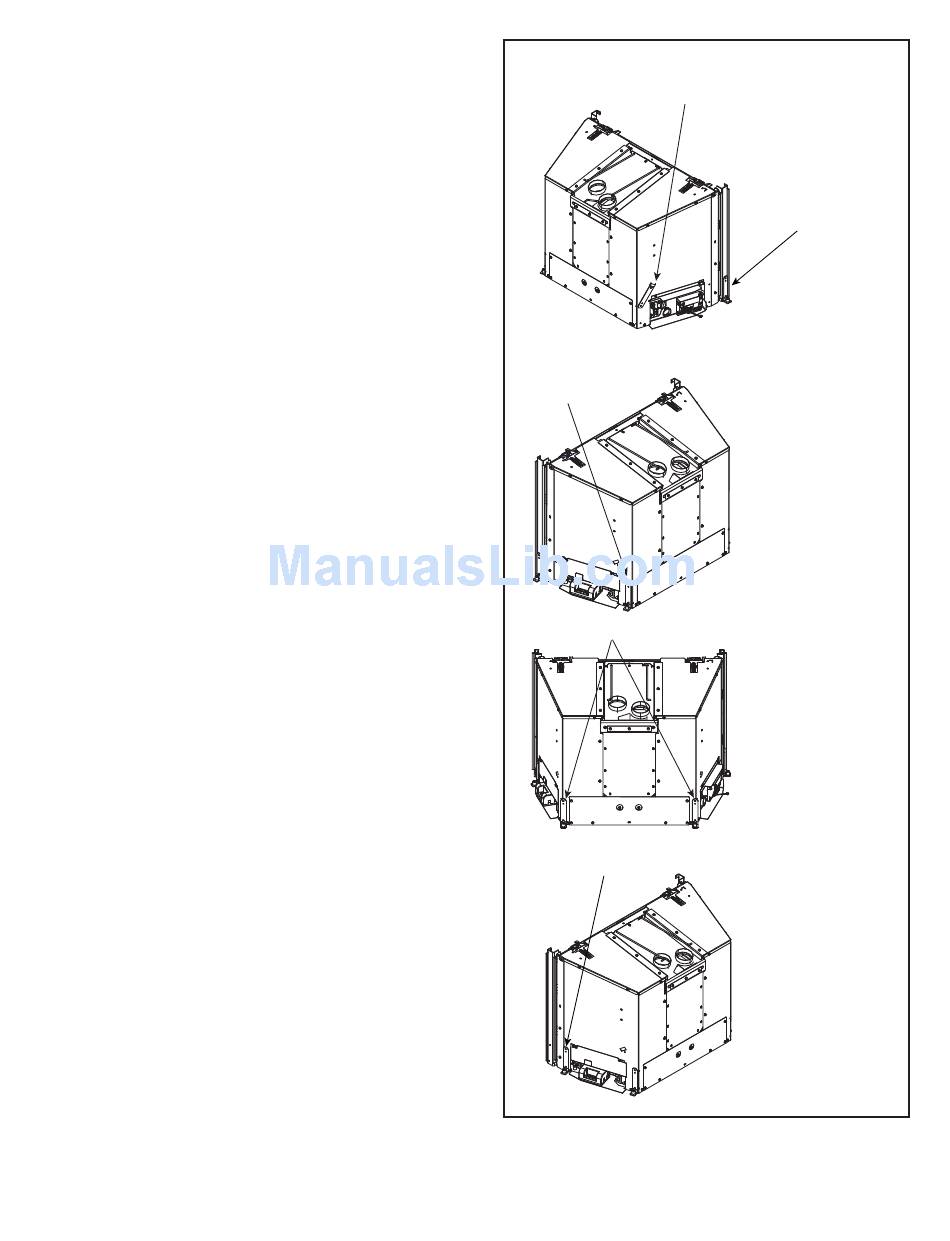

REAR LEVELING LEGS
SHIPPED IN THIS
POSITION
REAR LEVELING LEGS MAY BE RELOCATED
TO LOCATION A OR LOCATION B
LOCATION A
LOCATION B
FRONT LEVELING LEGS MAY BE
MOVED TO THIS LOCATION
Figure 8.3
THE FRONT LEVELING
LEGS ARE SHIPPED
WITH THE SURROUND.
THEY SHOULD BE
INSTALLED AS SHOWN.
25
