Reference Materials
A. Vent Components
Direct Vent Flex Liner Kits (see Figure 12.1)
LINK-DV30B: Masonry 3 in. flex liner kit. Expands to 30
feet. Includes: two liners, termination cap and flashing.
LINK-DV4-30B: Masonry 3 in. flex liner kit. Expands to 30
feet and 4 feet respectively. Includes: two liners, termination
cap and flashing.
LINKSQC-DV30, LINKSQB-DV30: Masonry 3 in. flex liner
kit. Expands to 30 feet. Includes: two liners, termination
cap and flashing.
LINKSQC-DV4-30, LINKSQB-DV4-30: Masonry 3 in.
flex liner kit. Expands to 30 feet and 4 feet respectively.
Includes: two liners, termination cap and flashing.
LINK-DV30B
LINK-DV4-30B

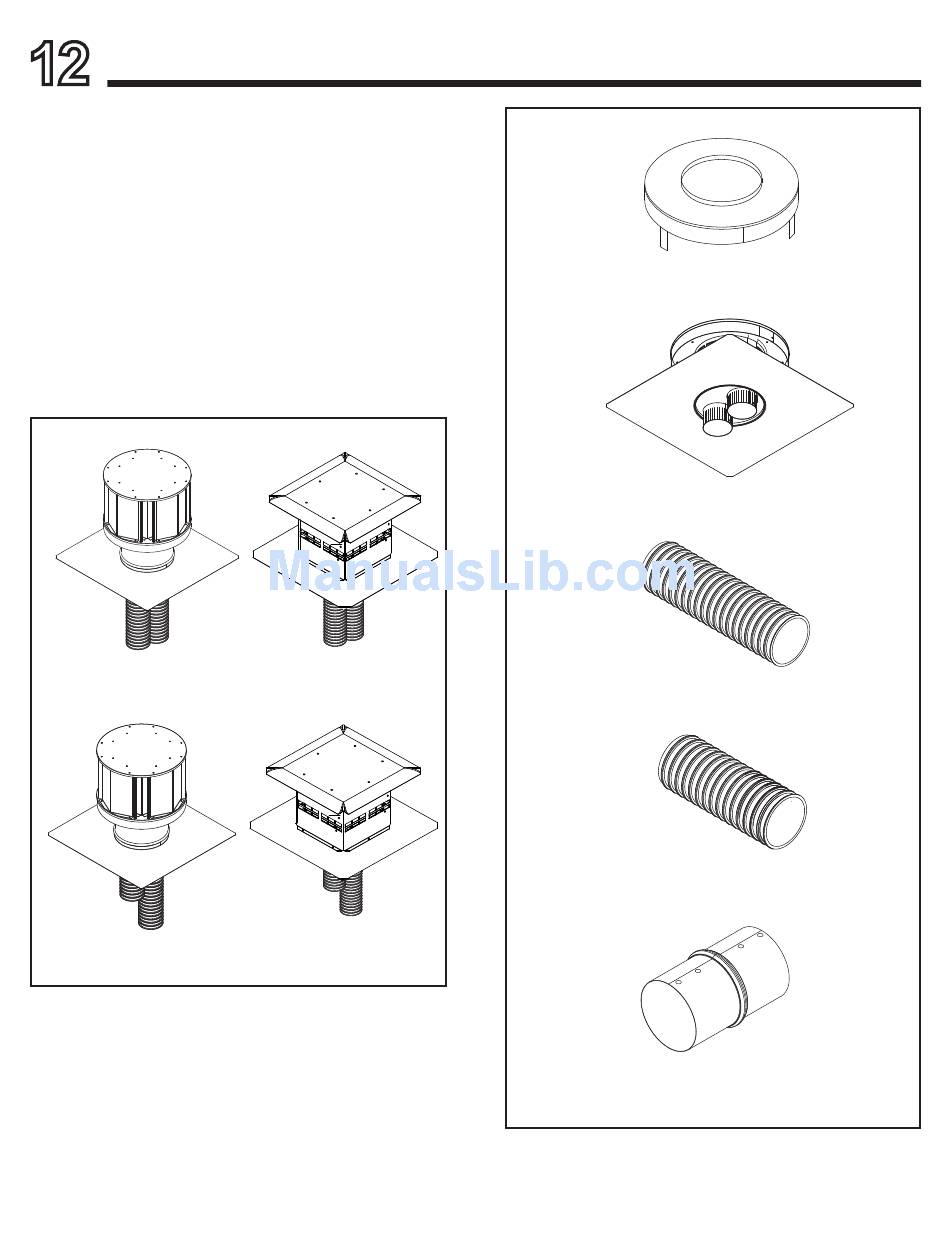

Figure 12.1 Direct Vent Flex Liner Kits
Direct Vent Flex Liner Accessory Kits. See Figure 12.2.
LINK-ZC-ADPB: Zero clearance chimney adapter
DV-46DVA-GK: Adapter kit - It is permissible to use DV-
46DVA-GK to connect colinear flex vent to SLP vent pipe
to extend the run.
FLEX3-30: One 3 in. flexible liner expands to 30 feet.
FLEX-CNCT: Connector kit - 3 in. liner to 3 in. liner, one
connector per kit.
LINKSQC-DV30 (COPPER)
LINKSQB-DV30 (BLACK)
LINKSQC-DV4-30 (COPPER)
LINKSQB-DV4-30 (BLACK)
Quadra-Fire • QFI30FB-IFT, QFI35FB-IFT Installation Manual • 2555-980 Rev. C • 9/18
LINK-ZC-ADPB
Stainless Steel Liner
(Included with Appliance)
FLEX-CNCT
Figure 12.2 Direct Vent Flex Liner Accessory Kits
DV-46DVA-GK
FLEX3-30
