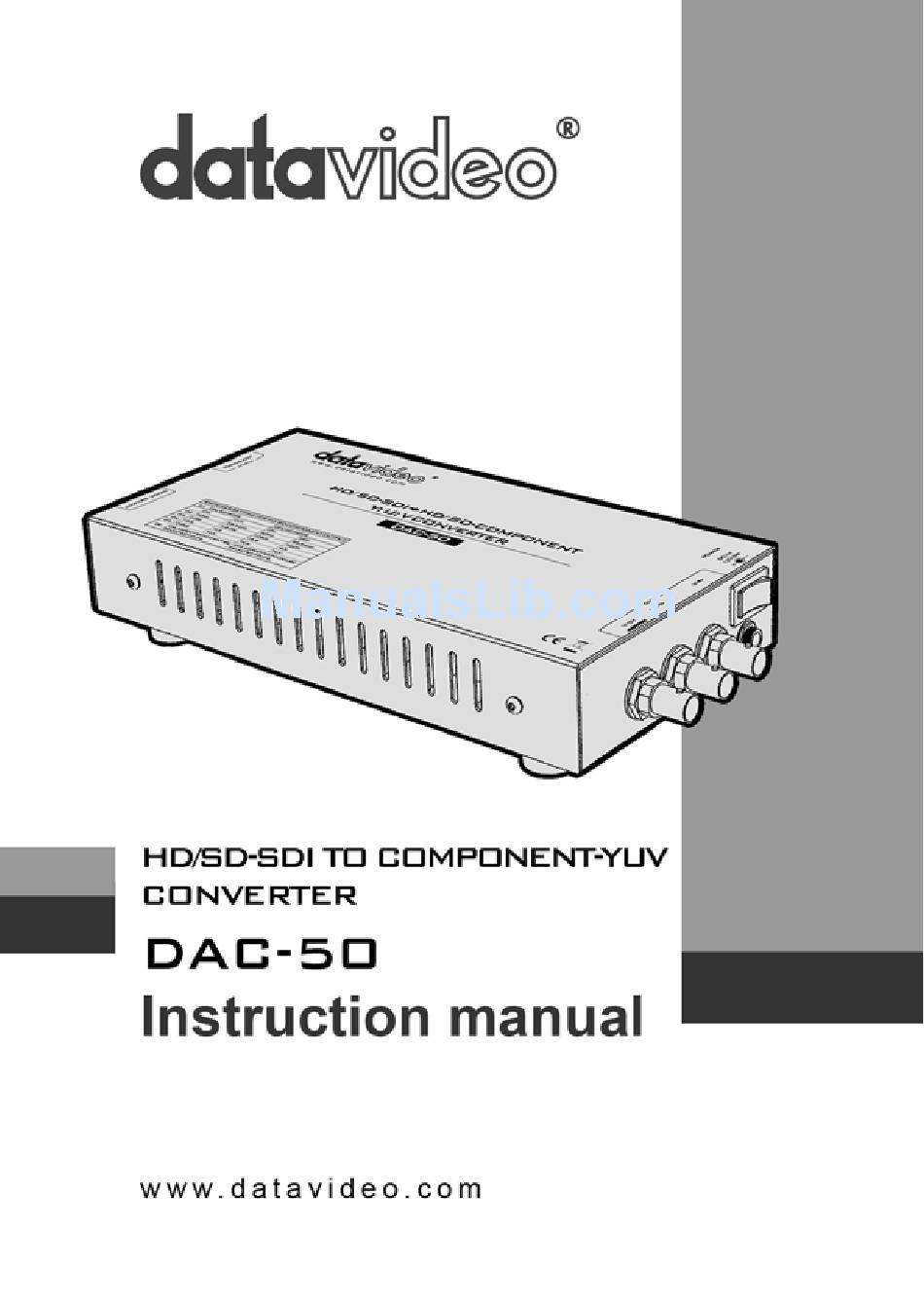

Datavideo DAC-50 Instruction Manual

Hd/sd-sdi to component-yuv converter
Hide thumbs Also See for DAC-50:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Datavideo DAC-50

Summary of Contents for Datavideo DAC-50

  • Page 2: Table Of Contents

    Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual.

  • Page 3: Warnings And Precautions

    AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

  • Page 4: Disposal

    This symbol on the product indicates that it should not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling Waste Electrical Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office.

  • Page 5: Warranty

    • Your statutory rights are not affected.   Two Year Warranty All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the standard Warranty, providing the product is registered with Datavideo within 30 days of purchase. For information on how to register please visit www.datavideo.com...

  • Page 6: Packing List

    Switching Adaptor 12V / 0.5A DAC-50 Instruction Manual Introduction The Datavideo DAC-50 is standalone SDI or HD-SDI to YUV or HD- YUV video converter. The format of the component output is chosen based on the supplied SDI input and a combination of Mini switch choices.

  • Page 7: Connections & Controls

    Connections & Controls Front Panel HD/SD - SDI Input 4:2:2 SDI Video data supports SMPTE 292M standard at 1.5G Mbps. SDI delivers professional level video signals over long distances when using the correct cabling and repeaters. Mini Switch Uses the mini switch to select the required output format.

  • Page 8: Rear Panel

    Rear Panel DC In Socket Connects the supplied 12V 0.5A PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to this socket. Power Switch Switches the power On / Off. HD/SD YUV HD/SD YUV component analogue output connectors Alternatively the Y BNC connector can be used as a...

  • Page 9: Up Conversion

    Up Conversion SDI Input YUV Output MINI Switch Setup (D6 OFF) 480i 720/59.94p 16:9 480i 720/59.94p 480i 720/50p 16:9 480i 720/50p 480i 1080/59.94i 16:9 480i 1080/59.94i 480i 1080/50i 16:9 480i 1080/50i SDI Input YUV Output MINI Switch Setup (D6 OFF) 576i 720/59.94p 16:9...

  • Page 10: Down Conversion

    Up Conversion continued SDI Input YUV Output MINI Switch Setup (D6 OFF) 720/59.94p 1080/59.94i 16:9 16:9 720/59.94p 1080/59.94i 16:9 720/59.94p 1080/50i 16:9 16:9 720/59.94p 1080/50i 16:9 SDI Input YUV Output MINI Switch Setup (D6 OFF) 720/50p 1080/59.94i 16:9 16:9 720/50p 1080/59.94i 16:9 720/50p...
  • Page 11 Down Conversion continued SDI Input YUV Output MINI Switch Setup (D6 OFF) 720/50p 480i 16:9 16:9 , 0 IRE 720/50p 16:9 4:3 , 0 IRE 720/50p 576i 16:9 16:9 720/50p 576i 16:9 SDI Input CVBS Output MINI Switch Setup (D6 OFF) 720/50p 480i 16:9...
  • Page 12 Down Conversion continued SDI Input YUV Output MINI Switch Setup (D6 OFF) 720/50p 480i 16:9 16:9 , 7.5 IRE 720/50p 16:9 4:3 , 7.5 IRE SDI Input CVBS Output MINI Switch Setup (D6 OFF) 720/50p 480i 16:9 16:9 , 7.5 IRE 720/50p 16:9 4:3 , 7.5 IRE...
  • Page 13 Down Conversion continued SDI Input YUV Output MINI Switch Setup (D6 OFF) 1080/59.94i 480i 16:9 16:9 , 0 IRE 1080/59.94i 16:9 4:3 , 0 IRE 1080/59.94i 576i 16:9 16:9 1080/59.94i 576i 16:9 SDI Input CVBS Output MINI Switch Setup (D6 OFF) 1080/59.94i 480i 16:9...
  • Page 14 Down Conversion continued SDI Input YUV Output MINI Switch Setup (D6 OFF) 1080/59.94i 480i 16:9 16:9 ,7.5 IRE 1080/59.94i 16:9 4:3 , 7.5 IRE SDI Input CVBS Output MINI Switch Setup (D6 OFF) 1080/59.94i 480i 16:9 16:9 , 7.5 IRE 1080/59.94i 16:9 4:3 , .5 IRE...

  • Page 15: Standard / Format Conversion

    Standard / Format Conversion SDI Input YUV Output MINI Switch Setup (D6 OFF) 480i 480i 16:9 , 0 IRE 480i 16:9 4:3 , 0 IRE 480i 576i 16:9 480i 576i 16:9 SDI Input CVBS Output MINI Switch Setup (D6 OFF) 480i 480i 16:9 , 0 IRE...
  • Page 16 Standard / Format Conversion SDI Input YUV Output MINI Switch Setup (D6 OFF) 480i 480i 16:9 , 7.5 IRE 480i 16:9 4:3 , 7.5 IRE SDI Input CVBS Output MINI Switch Setup (D6 OFF) 480i 480i 16:9 , 7.5 IRE 480i 16:9 4:3 , 7.5 IRE...
  • Page 17 Standard / Format Conversion SDI Input YUV Output MINI Switch Setup (D6 OFF) 720/59.94p 720/59.94p 16:9 720/59.94p 720/50p 16:9 16:9 720/59.94p 720/50p 16:9 720/50p 720/59.94p 16:9 16:9 720/50p 720/59.94p 16:9 720/50p 720/50p 16:9 1080/59.94i 1080/59.94i 16:9 1080/59.94i 1080/50i 16:9 16:9 1080/59.94i 1080/50i 16:9...

  • Page 18: Specifications

    Specifications • 1x HD/SD-SDI input Input 4:2:2 SDI Video data supports SMPTE 292M Interface standard at 1.5G Mbps. • 1 X CVBS, BNC connector 75Ohms Output Interface • 1 X YUV, 3 x BNC connectors, 75Ohms • Bandwidth 30MHz < +/- 3dB HD-YUV •...
  • Page 19 Notes...
