VGA/DVI//HDMI Convert SDI OUT Converter
DAC-60
Quick Start Guide
www.datavideo-tek.com

Advertisement

Table of Contents
loading

Related Manuals for Datavideo DAC-60

Summary of Contents for Datavideo DAC-60

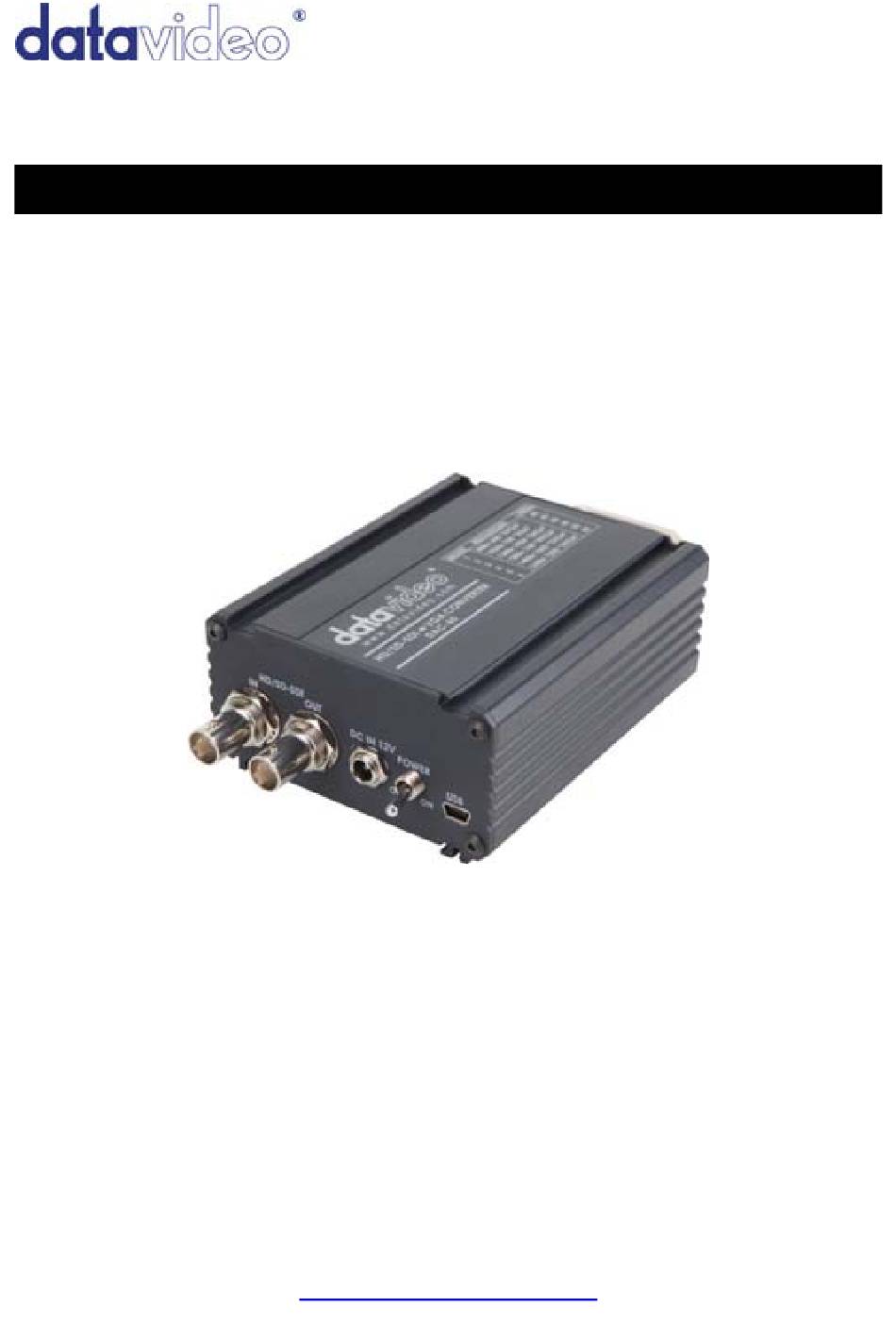

  • Page 1 VGA/DVI//HDMI Convert SDI OUT Converter DAC-60 Quick Start Guide www.datavideo-tek.com...

  • Page 2: Table Of Contents

    What’s in the box? ............4 Introduction..............4 Features ..............4 Functions ..............5 Front Panel .............. 5 Rear Panel............... 6 DAC-60 installation............7 LED Indicate ..............8 Firmware Upgrade............9 Adjust Proc Amp............11 Dimension..............12 Specification .............. 13...

  • Page 3: Warnings And Precautions

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
  • Page 4 spill liquid of any kind onto or into this unit. 12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty.

  • Page 5: What's In The Box

    Introduction Datavideo is proud to introduce the cost-effective HD/SD-SDI to VGA converter, the revolutionary DAC-60. The introduction of the DAC-60 has demonstrated a convenient way to convert the mainstream High Definition and Standard Definition SDI in broadcast industry to VGA...

  • Page 6: Functions

    Functions Front Panel HD/SD - SDI IN / OUT HD - SDI input and pass-through output connectors. Power Switch Switches the power On / Off. DC In Socket Connect the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.

  • Page 7: Rear Panel

    Rear Panel VGA Output From your VGA Display Device plug into these ports The LEDs is indicate VGA output format Mode Select Switch VGA Output Format...

  • Page 8: Dac-60 Installation

    DAC-60 installation 1. Disconnect +12DC adaptor to converter. 2. Connect Video Source (SDI) to the BNC Connector. 3. Connect VGA equipment to the VGA connector 4. Connect SDI equipment to the BNC Connector. 5. Connect the +12DC adaptor to the converter.

  • Page 9: Led Indicate

    LED Indicate DAC-60 can choose one of six standard output resolutions by pull MODE Button. LED Indicate Resolution ●○○ 800x600 60Hz ○○○ ○●○ 1024x768 60Hz ○○○ ○○● 1280x1024 60Hz ○○○ ○○○ 1366x768 60Hz ●○○ ○○○ 1400x1050 60Hz ○●○ ○○○ 1600x1200 60Hz ○○●...

  • Page 10: Firmware Upgrade

    Firmware Upgrade Firmware is upgradable in the field using the integrated USB port Step 1- open upload firmware program tools.exe, connect box to PC by USB cable and turn off power Step 2 - turn on power...
  • Page 11 Step 3 - turn off than turn on power and select firmware Step 4 - push start button to update the firmware Step 5 - close upload firmware program tools...

  • Page 12: Adjust Proc Amp

    Adjust Proc Amp Adjustment the Brightness, Contrast, Hue and Saturation port Overview Application 1. Indicated the Input Format 2. Indicated the Box Firmware Version 3. Brightness, Contrast, Hue and Saturation Adjustment Notice 1: The box need connect to PC by USB cable at first. Notice 2: When the application is opened, the first of Priority is PC.

  • Page 13: Dimension

    Dimension...

  • Page 14: Specification

    Specification SD - 720 x 480 i / 720 x 576 i HD - 1280 x 720 50p/60p/59.94p Support Video 1920 x 1080 50i/60i/59.94i Resolution 1920 x 1080 24p/25p/30p 3G - 1920 x 1080 50p/60p/59.94p SD-SDI (SMPTE 259M) HD-SDI (SMPTE 292M) SDI Format 3G-SDI (SMPTE 494M/495M) 800 x 600 60Hz...

  • Page 15: Service & Support

    It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
