5. Securely anchor machine to the fl oor.
A.
Securely anchor machine to the fl oor using the anchor holes provided in each machine.
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs tensil capacity (3/8" grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in
contact with surface using fl at washers.
6. Verify proper operation.
7. Removing weight plates.
A.

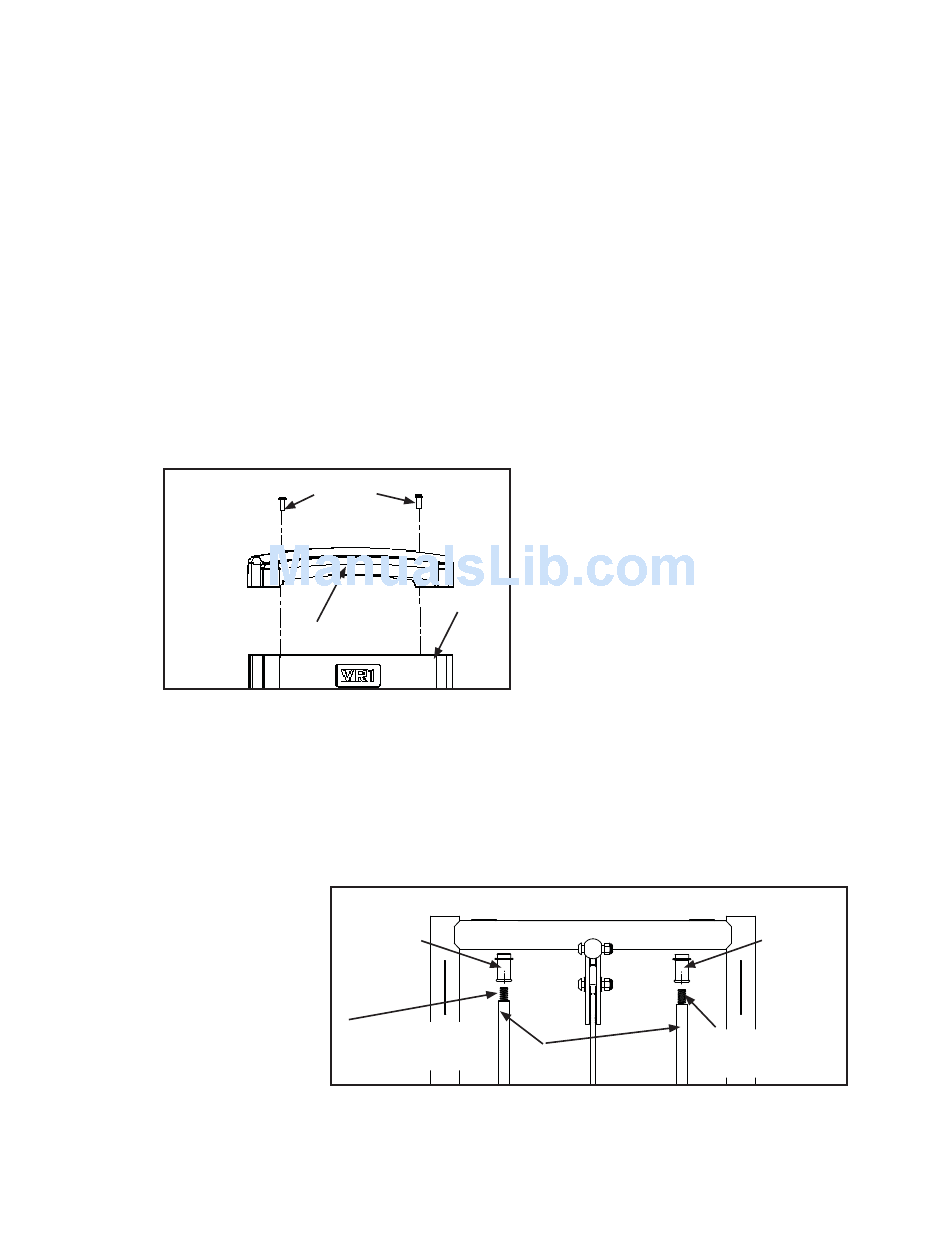

Using a 7/32" Allen wrench, remove the two Button Head Socket Cap Screws (BHSCS) securing the top
cap to the frame. See Figure 1.
Figure 1
B.
Remove top cap and BHSCS and set aside.
C.
Carefully lift shroud up and out of machine.
D.
Slide spring loaded guide rod cap down guide rod until cap is clear of frame.
spring loaded.
E.
Slowly release grasp
of guide rod cap.
See Figure 2. NOTE:
Guide rod cap
contains a
compression spring
that will fl y if grasp is
not released slowly.
Assembly
Page 4-2
Cybex VR1 13170 Glute Owner's Manual
BHSCS
Shroud
Top Cap
Guide
Rod Cap
Compression
Spring
Figure 2
Guide
Rods
NOTE: Guide rod cap is
Guide
Rod Cap
Compression
Spring
