www.reebokfitness.com
Model No. RBEX14110.2
Serial No.
Write the serial number in the
space above for reference.
Serial Number
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-877-994-4999
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.reebokservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Decal
USERʼS MANUAL
Advertisement
Table of Contents
Related Manuals for Reebok Paceline RX 5.0
Summary of Contents for Reebok Paceline RX 5.0

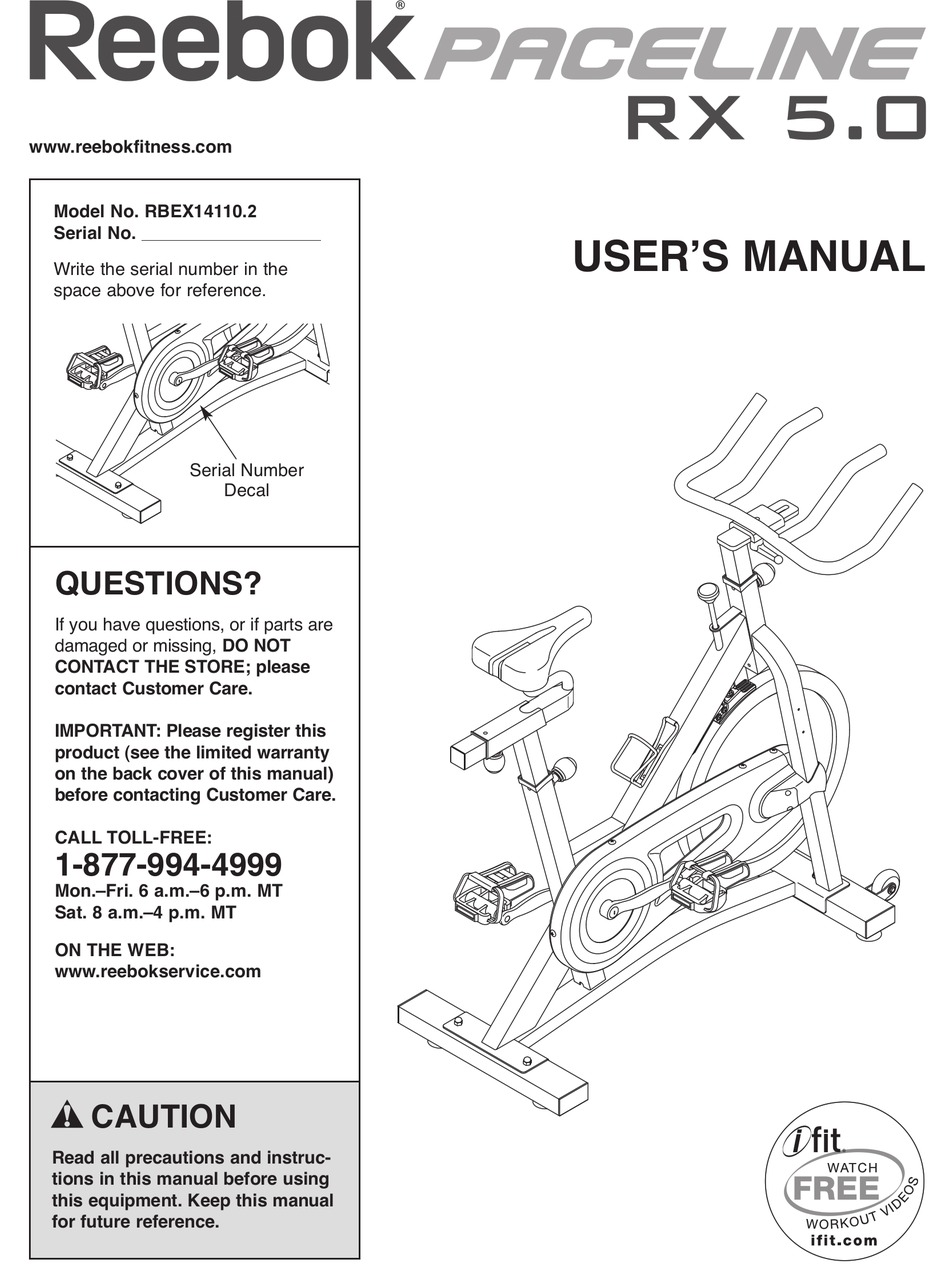

- Page 1 www.reebokfitness.com USERʼS MANUAL Model No. RBEX14110.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is manufactured and distributed under license from Reebok International. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new REEBOK PACELINE after reading this manual, please see the front cover ® RX 5.0 exercise bike. Cycling is an effective exercise of this manual. To help us assist you, note the product... -
Page 5: Assembly
ASSEMBLY To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480. Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips screwdriver... - Page 6 3. Identify the Right Pedal (60), which is marked with an “R.” Using an adjustable wrench, firmly tighten the Right Pedal (60) clockwise into the Right Crank Arm (42). Tighten the Left Pedal (35) counterclockwise into the Left Crank Arm (36). 4.
- Page 7 6. Orient the Seat Post (27) as shown. Locate the Adjustment Knob (3) on the rear of the Frame (1). Loosen the Adjustment Knob and pull it outward. Then, insert the Seat Post (27) into the Frame. Move the Seat Post (27) upward or downward to the desired position, release the Adjustment Knob (3) into an adjustment hole in the Seat Post, and then tighten the Adjustment Knob.
-
Page 8: How To Use The Exercise Bike
HOW TO USE THE EXERCISE BIKE HOW TO ADJUST THE ANGLE OF THE SEAT HOW TO ADJUST THE HORIZONTAL POSITION OF THE HANDLEBAR You can adjust the angle of the seat to the position that is most comfortable. You can also slide your seat To adjust the horizon- forward or backward to increase your comfort or to tal position of the... - Page 9 HOW TO ADJUST THE PEDAL STRAPS HOW TO LEVEL THE EXERCISE BIKE To tighten the pedal straps (see the drawing on page If the exercise bike rocks slightly on your floor during 4), simply pull the ends of the pedal straps. To loosen use, turn one or both of the leveling feet on the front the pedal straps, press and hold the tabs on the buck- or rear stabilizer (see the drawing on page 4) until the...
-
Page 10: Part List
PART LIST Model No. RBEX14110.2 R1110A Key No. Qty. Description Key No. Qty. Description Frame Flywheel Sleeve Crank Cap Adjustment Knob Left Pedal/Strap M8 x 40mm Socket Bolt Left Crank Arm M8 Nut Large Pulley Water Bottle Holder Outer Shield M5 x 12mm Socket Screw Drive Belt Resistance Knob... -
Page 11: Exploded Drawing
EXPLODED DRAWING Model No. RBEX14110.2 R1110A... -
Page 12: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
