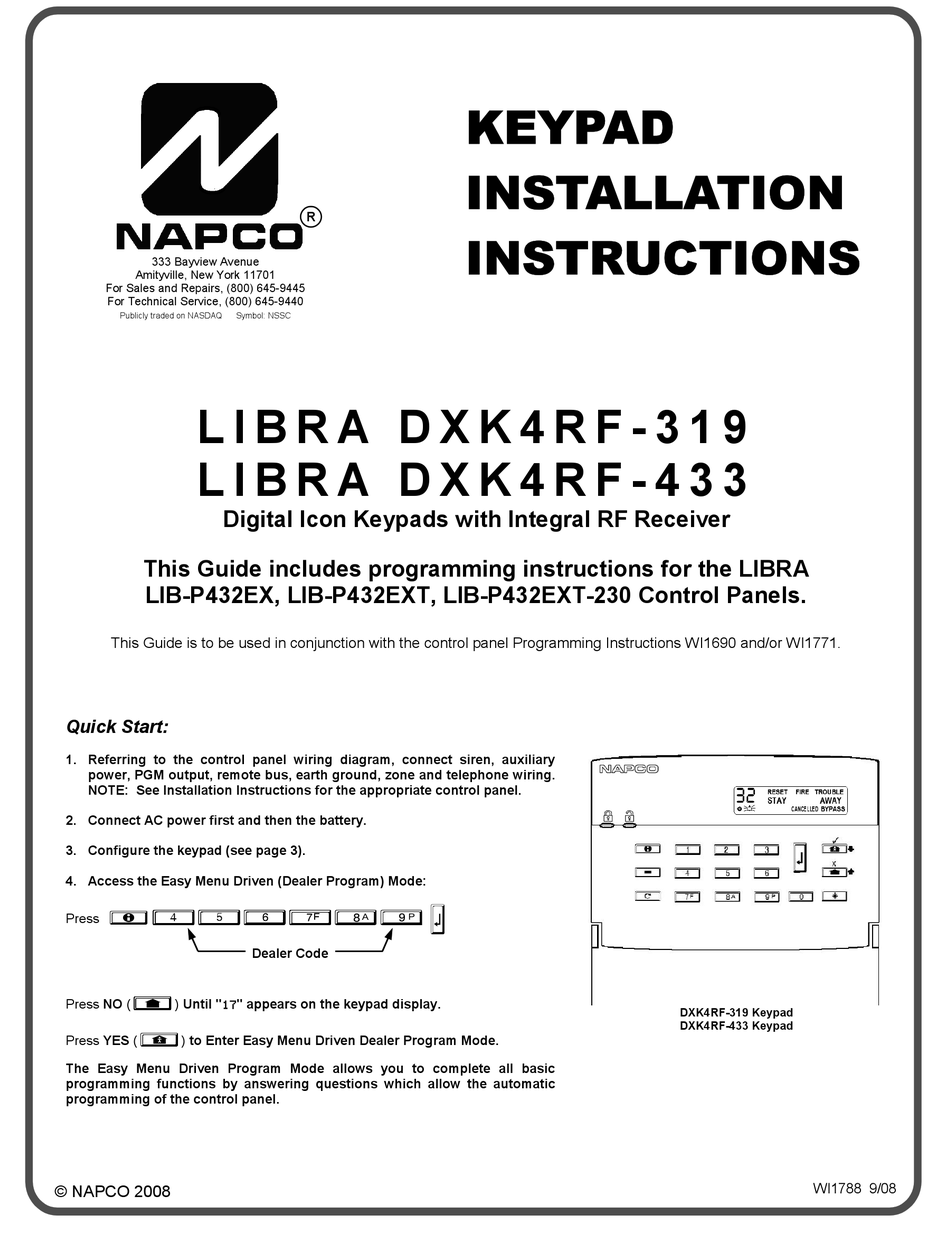

333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
Publicly traded on NASDAQ
L I B R A D X K 4 R F - 3 1 9
L I B R A D X K 4 R F - 4 3 3
Digital Icon Keypads with Integral RF Receiver
This Guide includes programming instructions for the LIBRA
LIB-P432EX, LIB-P432EXT, LIB-P432EXT-230 Control Panels.
This Guide is to be used in conjunction with the control panel Programming Instructions WI1690 and/or WI1771.
Quick Start:
1. Referring to the control panel wiring diagram, connect siren, auxiliary
power, PGM output, remote bus, earth ground, zone and telephone wiring.
NOTE: See Installation Instructions for the appropriate control panel.
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 3).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press w456789
Press NO (q) Until "17" appears on the keypad display.
Press YES (p) to Enter Easy Menu Driven Dealer Program Mode.
The Easy Menu Driven Program Mode allows you to complete all basic
programming functions by answering questions which allow the automatic
programming of the control panel.
© NAPCO 2008
R
Symbol: NSSC
Dealer Code
KEYPAD
INSTALLATION
INSTRUCTIONS
u
DXK4RF-319 Keypad
DXK4RF-433 Keypad
WI1788 9/08
1
Advertisement
Related Manuals for NAPCO LIBRA DXK4RF-319
Summary of Contents for NAPCO LIBRA DXK4RF-319
- Page 1 Press YES (p) to Enter Easy Menu Driven Dealer Program Mode. The Easy Menu Driven Program Mode allows you to complete all basic programming functions by answering questions which allow the automatic programming of the control panel. WI1788 9/08 © NAPCO 2008...
- Page 2 Dimensions: 5 7/8" x 4 3/8" x 1" (WxHxD) ORDERING INFORMATION Note: Any of the following Napco wireless transmitters may be used with the LIBRA-RECV Series Receivers. Bat- teries are included with all transmitters. LIBRA-TRANS433 - Window/Door Sensor. This supervised, two-point transmitter provides an internal magnetic reed switch and/or terminals for two external normally-closed devices, or one external normally-open device.
- Page 3 INSTALLATION Designing the System A keypad should be located near each exit/entry door. However, give careful consideration to the location of the key- pad, since it has a receiver built inside it. Regardless of where the control panel is mounted, the keypad should be centrally located within the premises, that is, equally distant from all transmitters.
- Page 4 Keypads are configured by the proper selection of jumpers. Refer to the label on the keypad circuit board for jumper locations and a summary of settings. The keypad may be configured to disable touchpad backlight and entry sounder. KEYPAD OPTION JUMPERS A: DISABLE PUSHBUTTON BACKLIGHT Cut Jumper A to disable touchpad pushbutton back-lighting.
- Page 5 Quick Method (Using the GEM-DXK1 keypad) If a receiver is already installed in the panel, Napco Transmitter wireless points can be programmed automatically ("enrolled"). Note: (1) The transmitter point will be enrolled only if the signal strength is 3 or greater. (2) Enroll a sin- gle-point device by merely powering it up.
- Page 6 WIRELESS SIGNAL STRENGTH Signal Power Beeps 8-10 3. Restore the wireless point (close the loop). When restored, the keypad will beep once regardless of signal strength. Note: With the LIBRA-DXK4RF series keypads, signal strength is not displayed but is annunciated by beeps as per the above table.
- Page 7 EASY PROGRAM MODE OVERVIEW (Using a LIBRA-DXK4RF Series Keypad) ENTERING THE EASY KEYPAD PROGRAM MODE 1 Enter the Dealer Security Code (default = 456789) for a new panel or enter your custom Dealer Program Code if programmed and press 2 Press NO (" "...
- Page 8 GEM-DXK4RF Keypad Easy Program Driven Menu Enter the Default Dealer Program Code ("456789") for a new panel or enter your custom Dealer Program Code if programmed. Press , followed by PRIOR ("X" or ) repeatedly until "17" is displayed (you can scroll back by pressing ).
- Page 9 Interior Zones (Appears for New Panel Only) Directly enter the zone numbers which are to be used as Interior Zones. Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. Use number buttons through . NOTE: Press the button for a zero.
- Page 10 Sensor Watch Zones (New Program Only) • Enter the zone numbers of zones to be Sensor Watch zones. • Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. (Direct Entry) • Press to save and then repeat for any additional zone(s), press NEXT ("r" or ) to proceed.
- Page 11 Number of Keypads Directly enter the total number of Keypads to be installed. Valid entries are from 01 to 07. Directly enter the number of keypads, including leading zeros. Use number buttons through (Direct Entry) NOTE: Press for a zero. Press to save.
- Page 12 Quick Enroll Method 4. Install the transmitter battery. The keypad will beep 3 times If a receiver is already installed in the panel, Napco transmitter to indicate that three points have been programmed. wireless points can be programmed automatically (“enrolled”) using the following procedure.
- Page 13 KEYFOB ZONE ASSIGNMENT: Keyfobs can also be assigned to zones to allow multiple wireless panic buttons on one alarm system, each reporting to a central station, a pager or having a description on the keypad that describes the person holding the keyfob, the location where the person holding the keyfob is stationed, or the special purpose of the keyfob button being depressed.
- Page 14 ZONE DESCRIPTIONS: GEM-DXK3 or GEM-DXRP3 cannot be used to enter Zone Descriptions. To enter Zone Descriptions, you must use the GEM-DXK1 or GEM-DXRP1 keypad or the Napco Quickloader Software. DATE ENTRY: GEM-DXK3 or GEM-DXRP3 cannot be used to enter the date. To enter Date, you must use the GEM-DXK1 or GEM-DXRP1 keypad (Version 5 or later) or the Napco Quickloader Software.
-
Page 15: Keypad Programming Overview
DIRECT ADDRESS PROGRAM MODE This is an extension of the Dealer Program Mode. This method of programming is used in conjunction with the Keypad Programming Worksheets contained in the control panel programming guide. Refer to these worksheets to identify the 4- digit location (address) of the feature to be programmed. - Page 16 This page left blank intentionally...
-
Page 17: Mounting Template
MOUNTING TEMPLATE 2 3/8” 4 3/8” TAMPER (DO ANTENNA KEYPAD BUS HOLE WIRES NOT CUT OR DRILL WALL) - Page 18 NOTES...
-
Page 19: Napco Limited Warranty
In no event shall NAPCO be liable for an amount in months following the date of manufacture. NAPCO will, excess of NAPCO's original selling price of the product,... - Page 20 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 Internet: http://www.napcosecurity.com Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2008...
