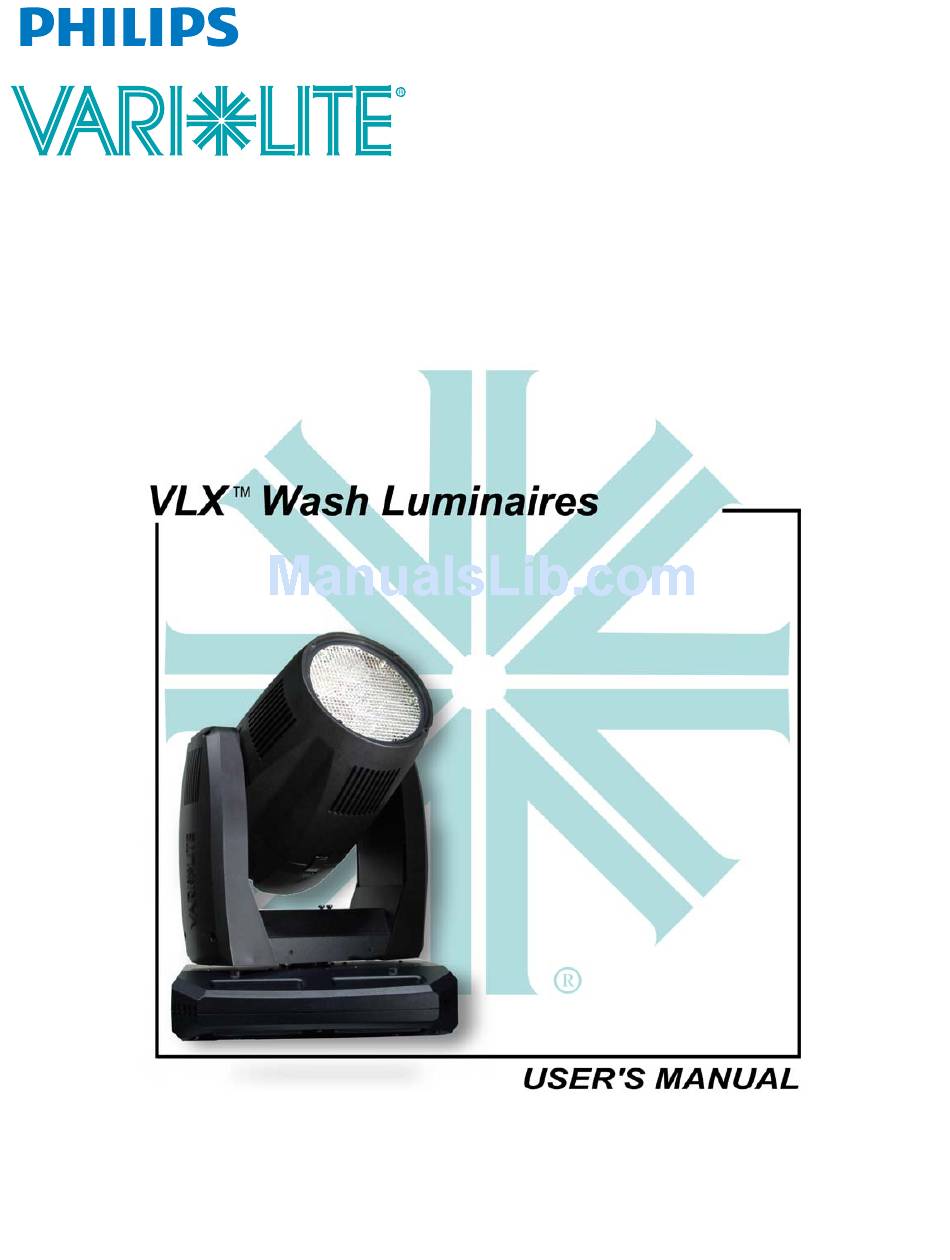

Philips VLX User Manual

Wash luminaries
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Philips VLX

Summary of Contents for Philips VLX

  • Page 2 Vari-Lite assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. All information and graphics are property of Vari-Lite, a Philips group company, 10911 Petal Street Dallas, Texas 75238 USA.
  • Page 3 Once you obtain the RMA, pack the unit in a secure shipping container or in its original packing box. Go to the Vari-Lite web site www.vari-lite.com, click on the Support link, and download the RMA form. Put the completed RMA form in shipping container along with a copy of your invoice (if available).
  • Page 4 Vari-Lite system, service, and safety guidelines, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his/her own expense.

  • Page 5: Safety Notice

    FOUND BELOW. WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST FIRE 1. VARI❋LITE® luminaires have been designed for use with specific lamp types. The VLX™ Wash Luminaire uses special LED devices. Installing another type of light sources may be hazardous. 2. Luminaires may be mounted on any type of surface as long as mounting instructions are followed.
  • Page 6 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE® luminaires use a lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 OREWORD Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.
  • Page 8 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI❋LITE®-Scheinwerfer verwenden die Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare...
  • Page 9 OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
  • Page 10 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI❋LITE® utilisent une lampe qui produit des rayons UV. NE PAS fixer son regard sur la lampe.
  • Page 11 OREWORD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto. Los símbolos de seguridad usados en este manual son los siguientes: CUIDADO, indica posibles daños al producto.
  • Page 12 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI❋LITE® usan un tipo de lámpara que produce radiación UV. NO mire directamente a la lámpara.
  • Page 13 OREWORD 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)
  • Page 14 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...

  • Page 15: Table Of Contents

    ABLE OF ONTENTS Table of Contents Introduction About This Manual ........................1 Additional Documentation......................1 Text Conventions ........................2 Customer Service ........................2 Chapter 1. Description Features Standard Features ........................4 Components Included Items........................... 5 Replacement Items/Accessories....................5 Luminaire Overview ......................... 6 Chapter 2.
  • Page 16 Special Cleaning and Care Instructions .................. 54 Front Lens Removal and Cleaning..................55 Beam Spreader Removal for Fixed Beam Applications ............59 Appendix B. Technical Specifications VLX™ Wash Luminaire ......................63 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...

  • Page 17: About This Manual

    Note: Performing maintenance procedures may void the product warranty. Refer to the Vari-Lite Limited Warranty card included in the product shipping package for more information. Note: The VLX™ Wash Luminaire requires very little routine maintenance, but has special cleaning instructions unlike other fixtures. Please refer to “Special Cleaning and Care Instructions”...

  • Page 18: Text Conventions

    Customer Service Our Goal At Vari-Lite, we are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer. Whether your needs are telephone troubleshooting assistance, product training or technical service, our full-time staff of experienced professionals are on-hand to provide support.

  • Page 19: Chapter 1. Description

    HAPTER Description This chapter contains descriptions of luminaire features and components, along with a list of accessories that are available. • Features • Components 02.96 90.000 1 0 07 Au gu st 200 9 (Pr elimina ry)

  • Page 20: Features

    ’ UMINAIRE ANUAL Features Standard Features All VLX™ Wash Luminaires have the following standard features: • Seven, 90-watt RGBW CBM380 LED chipsets.* Each chip set contains high density red, green, blue, and white LED emitters. • Manufacturer rated life (LED chip sets), in excess of 50,000 hours (L10-70%).

  • Page 21: Components

    *Unit supplied with AC input connector only. Users will need to supply and build an AC input cable using this connector. Figure 1-1: VLX™ Wash Luminaire Packing List Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from your Authorized VARI❋LITE®...

  • Page 22: Luminaire Overview

    Lock Disengage To unlock pan or tilt (allow free movement). Figure 1-2: VLX™ Wash Luminaire External Components and Controls 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 23 DMX Input Connection to DMX Controls DMX Through AC Power Input Passes DMX to Other Luminaires 100 - 240VAC 50/60Hz Figure 1-3: VLX™ Wash Luminaire External Components and Controls 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)
  • Page 24 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Notes 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...

  • Page 25: Chapter 2. Installation

    HAPTER Installation This chapter contains instructions for installation of the luminaire. It includes connecting power and data, along with instructions for powering up the luminaire for the first time and addressing it within your system. • Power and Data Cabling Requirements •...

  • Page 26: Power And Data Cabling Requirements

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Power and Data Cabling Requirements AC Power WARNING: DO NOT connect to three-phase Delta service in countries with 240 volt power. WARNING: DO NOT connect or disconnect energized power cable at fixture (under load). Turn off circuit breaker (or completely de-energize circuit) before connecting or disconnecting power cable at fixture.

  • Page 27: Current Vs. Voltage

    ABLING EQUIREMENTS Current vs. Voltage The following tables provide the luminaire’s current draw at specific voltages. Table 2-1: VLX Wash Luminaire - Current vs. Voltage* Voltage (VAC) @ 60Hz Current (A) *Currents given are worst case with all motors sequencing.

  • Page 28: Data Cables

    ANUAL Data Cables The VLX™ Wash Luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality cable to ensure a reliable DMX512 system.

  • Page 29: Recommended Cable Types/Manufacturers

    5-pin, male XLR connector. • Two 1/4W 5% 120 ohm resistors. Note: A male termination connector is also available as an accessory from Vari-Lite. See “Replacement Items/Accessories” on page 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)

  • Page 30: Installation Procedures

    Installation Procedures Hanging the Luminaire The VLX™ Wash Luminaire can be hung horizontally or vertically from any structure designed to work with the type of load created by this moving luminaire. Two mounting bracket assemblies (provided) are used to attach truss hooks or other mounting hardware as required. Many compatible truss hooks are available from different manufacturers for your particular needs.
  • Page 31 NSTALLATION NSTALLATION ROCEDURES Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are locked securely. (Always face brackets in same direction as shown.) WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed on the luminaire.
  • Page 32 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g.

  • Page 33: Floor Mounting The Luminaire

    NSTALLATION NSTALLATION ROCEDURES Floor Mounting the Luminaire The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation, provided that the mounting surface is flat and sturdy. Also, the area around the luminaire must be free of debris and moisture. Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link.

  • Page 34: Powering Up

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Powering Up Power Up and Configuration Procedure When AC power is initially applied, the luminaire immediately begins a calibration sequence that steps it through pan and tilt movements. The beam mechanism also moves through a full range of motion.

  • Page 35: Addressing

    NSTALLATION DDRESSING Addressing Program Starting Address The address setting for DMX console controlled systems is entered using the Menu Display (refer to “Menu Operation” on page 42). The luminaire retains the DMX address even when power is removed. Note: Refer to your console operating instructions for specific information regarding its addressing requirements.
  • Page 36 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Notes 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...

  • Page 37: Chapter 3. Operation

    HAPTER Operation This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. • DMX Operation • DMX Mapping • Luminaire Timing • Updating Software 02.96 90.000 1 0 07 Au gu st 200 9 (Pr elimina ry)

  • Page 38: Dmx Operation

    Allows for luminaire timing of color mixing. Profile should default to DMX 255 for smoothest console fade times. VLX™ Wash Luminaire mapping continued on the next page. 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 39 : DMX O PERATION PERATION Table 3-1: VLX™ Wash Luminaire Mapping Mode 1 Beam Time 0 - 255 0 - 100% Allows for luminaire timing of zoom. Pro- file should default to DMX 255 for smooth- est console fade times.

  • Page 40: Control Channel Functions

    ANUAL Control Channel Functions Used to set different modes, parameters, and functions of the VLX™ Wash Luminaire. Set control channel value for desired action. Hold value for at least 3 seconds. Set control channel value to 0 without any scaling. Discrete values must be used; not manual controls such as faders or encoders (see chart below for values).

  • Page 41: Dmx Mapping

    : DMX M PERATION APPING DMX Mapping Color & Intensity Control The luminaire’s color system is composed of a color mixing seven 90-watt RGBW LEDs. The following sections describe these components. Color Mixing All color mixing is accomplished via the luminaire’s seven 90-watt RGBW LEDs using 16-bit control. Table 3-3: DMX Map for Color Mixing - Red LEDs DMX Channel % Value...

  • Page 42: Led Intensity Control

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL LED Intensity Control Provides 16-bit control of LED intensity settings. Table 3-7: DMX Map for LED Intensity DMX Channel % Value DMX Value Action 1 (High Byte) 0 - 100 0 - 65535...

  • Page 43: Beam Control

    : DMX M PERATION APPING Beam Control Strobe Table 3-9: DMX Map for Strobe DMX Channel % Value DMX Value Action 0 - 100 Open Closed Slow Random 8-10 Medium Random 11-12 Fast Random 13 - 255 (fastest) Strobe Range Beam Spreader Table 3-10: DMX Map for Beam Spreader DMX Channel...

  • Page 44: Luminaire Movement

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Luminaire Movement Luminaire Pan 16-bit control of luminaire pan operation. Table 3-13: DMX Map for Luminaire Pan Operation DMX Channel % Value DMX Value Action 3 (High Byte) 0 - 100...

  • Page 45: Luminaire Timing

    The timing channel data should change as a snap. A zero value will give the fastest move, however, without any smoothing this can appear "steppy" in console timed moves. Note: Some parameters have been excluded from the timing channels. Table 3-15: VLX Channel Function / Timing Channel Relationship Timing Channel Channel Function...
  • Page 46 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Note: The particular storing syntax for your console, as well as instructions on how to write part cues, can be found in the operation manual for that console. To use these channels, you must: Step 1.
  • Page 47 PERATION UMINAIRE IMING Timing channels can be set in either % or 0-255 (DMX) modes, with the following values assigned: Timing Channels Map Table 3-16: % Value = Seconds Full Speed 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)
  • Page 48 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 10.2 10.4 10.6 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 49 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)
  • Page 50 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 51 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)
  • Page 52 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 53 PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds Follows Cue Data 02.96 90.000 1 0 07 Au gu st 2009 (Pre limina ry)

  • Page 54: Updating Software

    The USB VLDownloader program and current .bin files are available from the Product Downloads page at www.vari-lite.com. Instructions for installing the USB VLDownloader program on your PC are also available on the Product Downloads page. Use the USB VLDownloader program to transfer updated versions of the luminaire operating software (.bin files) from your PC to the luminaires.

  • Page 55: Transferring Software From Luminaire To Luminaire

    (on PC) Device Connection Status and USB Downloader Controls Click to download specific software version to connected luminaire(s) Click logo to go to Vari-Lite web site (internet connection required) Download History Will show current progress of download Figure 3-1: VL Download Program Window Transferring Software From Luminaire to Luminaire It is possible to transfer specific software versions between luminaires.
  • Page 56 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL A termination connector is used in this process. Refer to page 13 for more information regarding the construction of this connector. Master luminaire containing Luminaire 1 Luminaire 2 software version to download...

  • Page 57: Chapter 4. Menu System

    HAPTER Menu System This chapter contains instructions for operating the luminaire using the Menu Display feature. • Menu Operation • Menu Functions 02.96 90.000 1 0 07 Au gu st 200 9 (Pr elimina ry)

  • Page 58: Menu Operation

    (Power On, Transmitting DMX, Receiving DMX, Error in Luminaire Operation) LCD Display - Displays all Data and Luminaire Settings Arrow Keys (Left/Right/Up/Down) POWER Enter Button ENTER ERROR Escape (ESC) Figure 4-2: VLX Menu Control 07 Au gu st 2009 (Pre limina ry) 02 .9 690.00 01 0...
  • Page 59 YSTEM PERATION Table 1-1: Menu Control Buttons Button Description Action Up Arrow Menu Navigation / Data Selection Down Arrow Menu Navigation / Data Selection Right Arrow Menu Navigation / Data Selection Left Arrow Menu Navigation / Data Selection Enter Button To Select or Change a Setting or Data Value ENTER Used to Access Main Menu Parameters, Exit, or...

  • Page 60: Default State

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL To enter the menu system, first press [ESC]. The functions displayed will be 1st level functions. Scroll through the 1st level functions by pressing [Up] / [Down] arrows. Once the desired function appears in the display, press [Enter].

  • Page 61: Menu Functions

    Note: Test Mode is disabled if Inv Tilt DMX present. Note: For the latest version of this manual and luminaire software, please visit the Vari-Lite web site www.vari-lite.com and click on the "Product Downloads" link on the VLX™ Wash Luminaire Products information page.

  • Page 62: Menu System Function Chart

    VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Menu System Function Chart The following is a detailed look at the internal menu system. Table 4-1: VLX Wash Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Address...
  • Page 63 YSTEM UNCTIONS Table 4-1: VLX Wash Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Fixture Status Status/Error Display Scrolls error messages or displays OK Re Cal Recalibrate fixture OK? Asks (confirms) to execute recalibration of fixture...

  • Page 64: Menu Function Definitions

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Menu Function Definitions For easy reference, each possible menu item is listed alphabetically in the first column by its display abbreviation. The second column follows with a definition of the abbreviation and then a third column provides an explanation of its purpose and function.
  • Page 65 YSTEM UNCTIONS Table 4-2: Menu Function Definitions (Continued) Display Definition Purpose Inv Pan Invert Pan Reverses pan action for special focus requirements. Inv Tilt Invert Tilt Reverses tilt action for special focus requirements. LED Cor- LED Calibra- Sets LEDs to factory calibration level. rection tion Level LED Setup...
  • Page 66 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Table 4-2: Menu Function Definitions (Continued) Display Definition Purpose Test Test Accesses diagnostic tests for internal mechanisms or assemblies. Tilt Tilt Specifies tilt function for manual control (Manual) or testing (Test).

  • Page 67: Appendix A. Troubleshooting And Maintenance

    PPENDIX Troubleshooting and Maintenance This appendix provides instructions for troubleshooting and routine maintenance which may be necessary during the life of the luminaire. • Troubleshooting • Routine Maintenance WARNING: All routine maintenance procedures are to be performed with power completely removed from the luminaire.

  • Page 68: Troubleshooting

    ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display cycles through any applicable error message(s) until the end of the list is reached. To review the error messages again, re-access them using the Status function.

  • Page 69: Troubleshooting Guide

    ROUBLESHOOTING AND AINTENANCE Troubleshooting Guide If a problem is suspected, first try recalibrating the luminaire to prompt an error message. The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING: All service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized VARI❋LITE Dealer or Service Center.

  • Page 70: Routine Maintenance

    Repeat the cleaning with isopropyl alcohol to eliminate streaks and soap residue. WARNING: Under no circumstances should ammonia-based cleaners, acetone, or other harsh solvents be used on or near the VLX™ Wash Luminaire. These types of cleaners or solvents can permanently damage the optics or housings of the fixture.

  • Page 71: Front Lens Removal And Cleaning

    (one on each side of cover) Upper Enclosure Figure A-1: VLX™ Wash Luminaire Step 3. Remove front head cover by unlatching both head cover latches. Please note that one side of front cover is secured by a safety tether. Locate clip attached to luminaire and unclip tether.
  • Page 72 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Step 4. Gently slide front head cover over optic assembly and set aside. Step 5. Remove protective EMI shields from around optics assembly as shown in Figure A-2 follows: WARNING: On one EMI shield, it is imperative to identify the ambient temperature sensor that protrudes through the EMI protective shield (it is on the opposite side where the front cover safety tether connects.
  • Page 73 ROUBLESHOOTING AND AINTENANCE 6-32 x 1/4" PPB Screws (x3) Front Lens Ring Zoom Slide Standoffs (x3) Front Lens Compression Springs (x3) Optics Ring Plate Optics (CPC) Lenses Figure A-3: Front Lens Removal Note: Before proceeding, please note orientation of both front lens ring and front lens assembly. They must be mounted in their original orientation/position for the front head cover to reinstall properly.
  • Page 74 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Step 8. Once cleaning is complete, reassemble by performing Steps 6 through 2 in reverse order. Be sure to orient front lens as shown in Figure A-4. WARNING: Front Lens Assembly must be mounted in orientation show. If installed incorrectly, luminaire performance will be affected.

  • Page 75: Beam Spreader Removal For Fixed Beam Applications

    (one on each side of cover) Upper Enclosure Figure A-5: VLX™ Wash Luminaire Step 3. Remove front head cover by unlatching both head cover latches. Please note that one side of front cover is secured by a safety tether. Locate clip attached to luminaire and unclip tether.
  • Page 76 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL Step 5. Remove protective EMI shields from around optics assembly as shown in Figure A-2 follows: WARNING: On one EMI shield, it is imperative to identify the ambient temperature sensor that protrudes through the EMI protective shield (it is on the opposite side where the front cover safety tether connects.
  • Page 77 ROUBLESHOOTING AND AINTENANCE Step 6. At head assembly, as shown in Figure A-3, remove front lens assembly as follows: 6-32 x 1/4" PPB Screws (x3) Front Lens Ring Zoom Slide Standoffs (x3) Front Lens Compression Springs (x3) Optics Ring Plate Figure A-7: Front Lens Removal a.
  • Page 78 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL 6-32 x 1/4" PPB Screws (x3) Optics Ring Plate Compression Springs (x3) Optics (CPC) Lenses (x7) Optics Assembly Posts (x3) Figure A-8: Fixed Beam Application Assembly a. As shown in Figure A-8, slide compression springs over optics assembly posts.

  • Page 79: Appendix B. Technical Specifications

    PPENDIX Technical Specifications VLX™ Wash Luminaire PROGRAMMABLE FUNCTIONS Color Mixing System Seven x 90 watt RGBW CBM380 LED chipsets*. * Each chipset contains high density red, green, blue, and white LED emitters. Zoom Optics Patented optical zoom system with continuously variable field angle from approximately 23°...
  • Page 80 ❋ VARI LITE® - VLX™ W ’ UMINAIRE ANUAL PHOTOMETRIC Zoom LED Mode Field Angle Lumens Narrow RGBW 12244 9272 22.9 Wide RGBW 10857 8523 57.8 Without Lens Array RGBW 13922 8866 21.9 OPERATIONAL Power Requirements Standard AC power distribution from 100-240 VAC, 50/60 Hz. The fixture requires up to 9 A depending on the AC supply voltage.
  • Page 82 Vari-Lite 10911 Petal Street Dallas, Texas 75238 USA 1-877-VARI-LITE ❋ 1-214-647-7880 www.vari-lite.com. ©2009 Vari-Lite, a Philips group company. All Rights Reserved.
