Kenmore 721.86002 Installation Instructions Manual

Kenmore 721.86002 Installation Instructions Manual

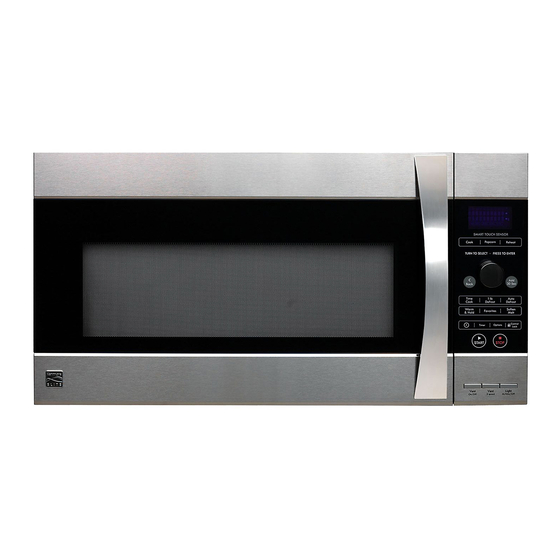

Microwave hood combination
Hide thumbs Also See for 721.86002:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual
Models/Modelos
721.86002
721.86003
721.86009
Read and save these

installation instructions.

Lea y guarde estas
instrucciones de
instalación
Part No. MFL57652403
INSTALLATION INSTRUCTIONS
INSTRUCCIONES DE INSTALACIÓN
Microwave Hood Combination
Combinación Microondas Campana
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A
www.sears.com.

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 721.86002

Summary of Contents for Kenmore 721.86002

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS Models/Modelos 721.86002 INSTRUCCIONES DE INSTALACIÓN 721.86003 721.86009 Microwave Hood Combination Read and save these installation instructions. Combinación Microondas Campana Lea y guarde estas instrucciones de instalación Part No. MFL57652403 Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A...

  • Page 2: Your Safety First

    YOUR SAFETY FIRST BEFORE YOU START • Proper installation is the installer's responsibility! – Read the entire manual before you begin. – The model number label is located on the oven front. See Figure 1. – Mounting plate is located on back side of microwave oven. See Figure 2. BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS: Model and Serial Number Plate...

  • Page 3: To Excessive Microwave Energy

    YOUR SAFETY FIRST • THIS APPLIANCE MUST BE GROUNDED! – If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
  • Page 4 YOUR SAFETY FIRST • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. – Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath. –...

  • Page 5: Parts, Tools, Materials

    PARTS, TOOLS, MATERIALS THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and (for roof vented or wall vented installation) One dark-colored mounting screw (to hold the power cord) One power cord clamp bushing (for the cord hole in a metal upper cabinet) Four 1/4"...
  • Page 6 PARTS, TOOLS, MATERIALS YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION: Carton or other heavy material for covering the counter top. Clear Tape Stud Finder or Thin Nail (for taping the templates to the wall) Keyhole Saw (for the power cord hole) Saber Saw (for cutting vent holes for roof or wall vending) Electric drill...

  • Page 7: Electrical Connections

    STEP 1: PREPARE THE ELECTRICAL CONNECTIONS WARNING AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4 Detail. Upper Cabinet NOTE: The outlet should be on a circuit dedicated to the microwave oven 120V, 60Hz., AC only, with a 20ampere fused electrical supply.
  • Page 8 STEP 2: PREPARE THE VENTING SYSYTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 9. WARNING - FIRE HAZARD THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways: Roof Venting If your oven is located on an outside wall near the roof, as in Figure 6 (3-1/4"...

  • Page 9: Step 2: Prepare The Venting System

    STEP 2: PREPARE THE VENTING SYSTEM STANDARD FITTINGS NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper sticking. DUCT LENGTH The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not exceed the equivalent of 140 feet.

  • Page 10: Step 3: Prepare The Venting Blower

    STEP 3: PREPARE THE VENTING BLOWER Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to adjust the blower if you want wall vented or roof vented installation. WARNING ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT. •...

  • Page 11: Wall Vented Installation

    STEP 3: PREPARE THE VENTING BLOWER WALL VENTED INSTALLATION: back plate blower unit 1. Remove blower unit mounting screw(s) and blower plate screw(s). Remove the blower plate from blower plate mounting screw(s) cabinet. See Figure 12. (option) 2. Carefully lift the blower unit out of the microwave oven.

  • Page 12: Roof Vented Installation

    STEP 3: PREPARE THE VENTING BLOWER ROOF VENTED INSTALLATION: blower plate 1. Remove blower unit mounting screw(s) and blower mounting screw(s) (option) plate screw(s). Remove the blower plate from cabinet. See Figure 18. 2. Carefully lift the blower unit out of the microwave oven.

  • Page 13: Step 4: Prepare The Wall And Upper Cabinet For Installation

    STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION MEASURE AND TACK / TAPE UP THE TEMPLATE 1. Using a plumb line and (metal) measuring tape, find and mark the vertical center line V on the back wall, as in Figure 22. 2.
  • Page 14 STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION DRILL THE HOLES IN THE WALL AND UPPER CABINET. WARNING BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL. Electrical wires could be concealed behind the wall covering and if the drill hits them you could get an electric shock.
  • Page 15 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL 3/16"Hole on Studs THE OVEN MUST BE CONNECTED 5/8"Hole on Drywall Only TO AT LEAST ONE WALL STUD. Minimum 66" From the Floor For Wall- 1. Draw a vertical line on the wall at the center of the Vented Only 30"...
  • Page 16 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL TO PREPARE THE REAR WALL CUTOUT OPENING AND EXHAUST ADAPTOR/MOUNTING PLATE FOR WALL VENTING AND ROOF VENTING: • Make the box cutout for the rear wall duct. – 1 piece mounting plate: Using a pencil, put dots through slots F and G, and through holes H and I.

  • Page 17: Step 6: Attach The Oven To The Wall

    STEP 6: ATTACH THE OVEN TO THE WALL WARNING You will need two people to lift this power cord microwave. Failure to use more than one person could result in personal injury. power cord hole 1. Carefully lift microwave oven and hang it on support tabs (See Figure 26) at the bottom of the mounting plate.
  • Page 18 STEP 6: ATTACH THE OVEN TO THE WALL 5. Roof vented installation: See Figure 32. Install ductwork through the vent opening in the damper upper cabinet. Complete the venting system through the roof according to the method needed. See “PREPARE THE VENTING SYSTEM,” STEP 2 on the page 8.
  • Page 19 MEMO...
  • Page 20 Printed in Korea...
