4 Replacement Procedures
Error! No text of specified style in document. Error! No text of
specified style in document.
4.23
LCD Module
Removing the LCD Module
Remove the LCD module according to the following procedures and Figures 4.35, 4.36, 4.37 and
4.38.
1. Remove the two M2.5x5 screws securing the LCD module to the LCD cover assembly.
M2.5×5*2

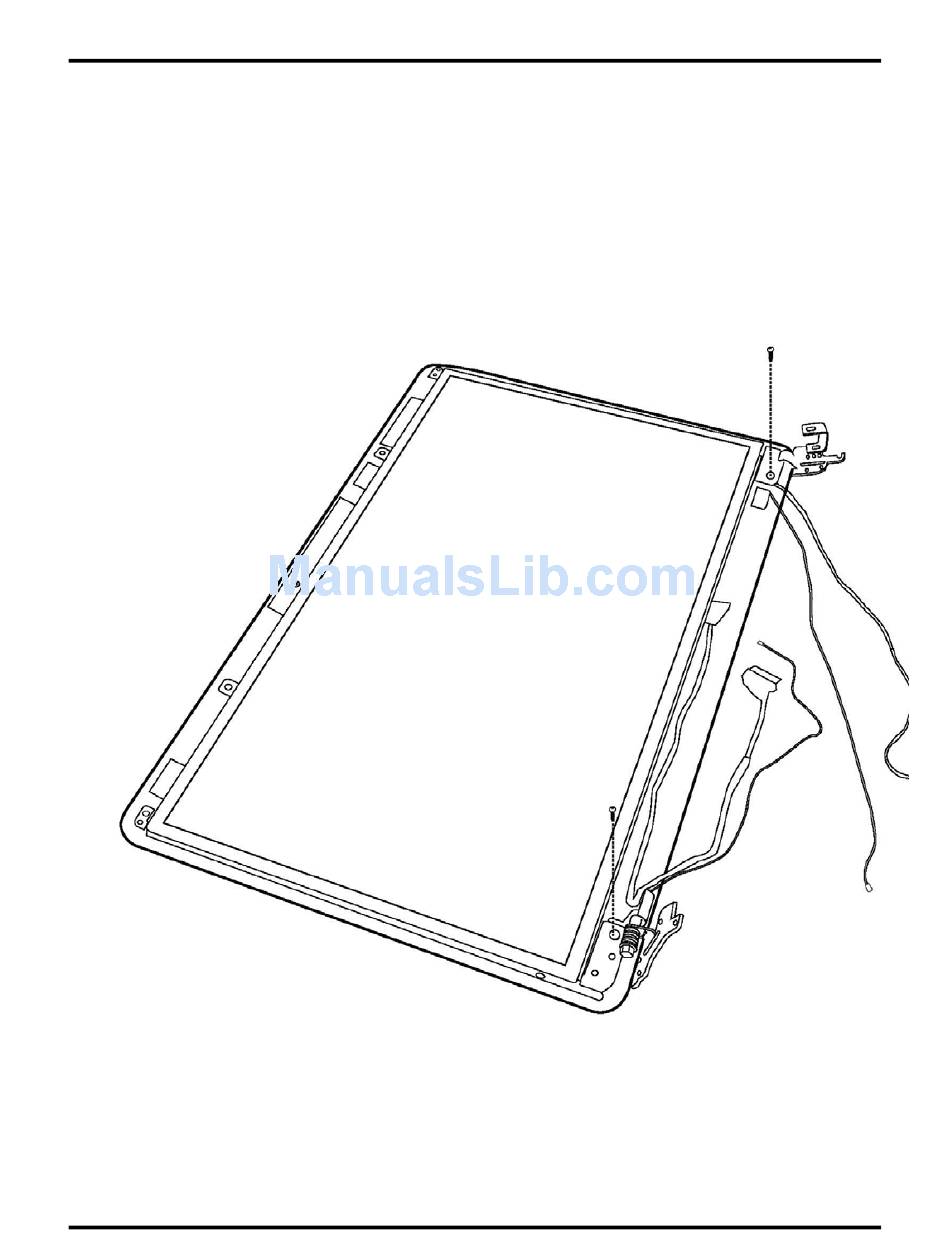

Figure 4.35 Removing the LCD Module from the LCD cover assembly
[CONFIDENTIAL]
Satellite P770/P775 Series Maintenance Manual
