Replacement Procedures
4.7

TV Card

Removing the TV Card

Remove the TV card according to the following procedures and Figure 4.12.
1. Disconnect the antenna cable from the TV card.
2. Remove the one M2x5 screw securing the TV card, the TV card pops up automatically.
3. Remove the TV card at an angle of 45 degree.

Installing the TV Card

Install the TV Card according to the following procedures.
1. Insert the TV card into the connector on the motherboard at an angle of 45 degree.
2. Press the TV card down and secure it with one M2x5 screw.
3. Connect the antenna cable to the TV card
Satellite P770/P775 Series Maintenance Manual [CONFIDENTIAL]
M2×5*1

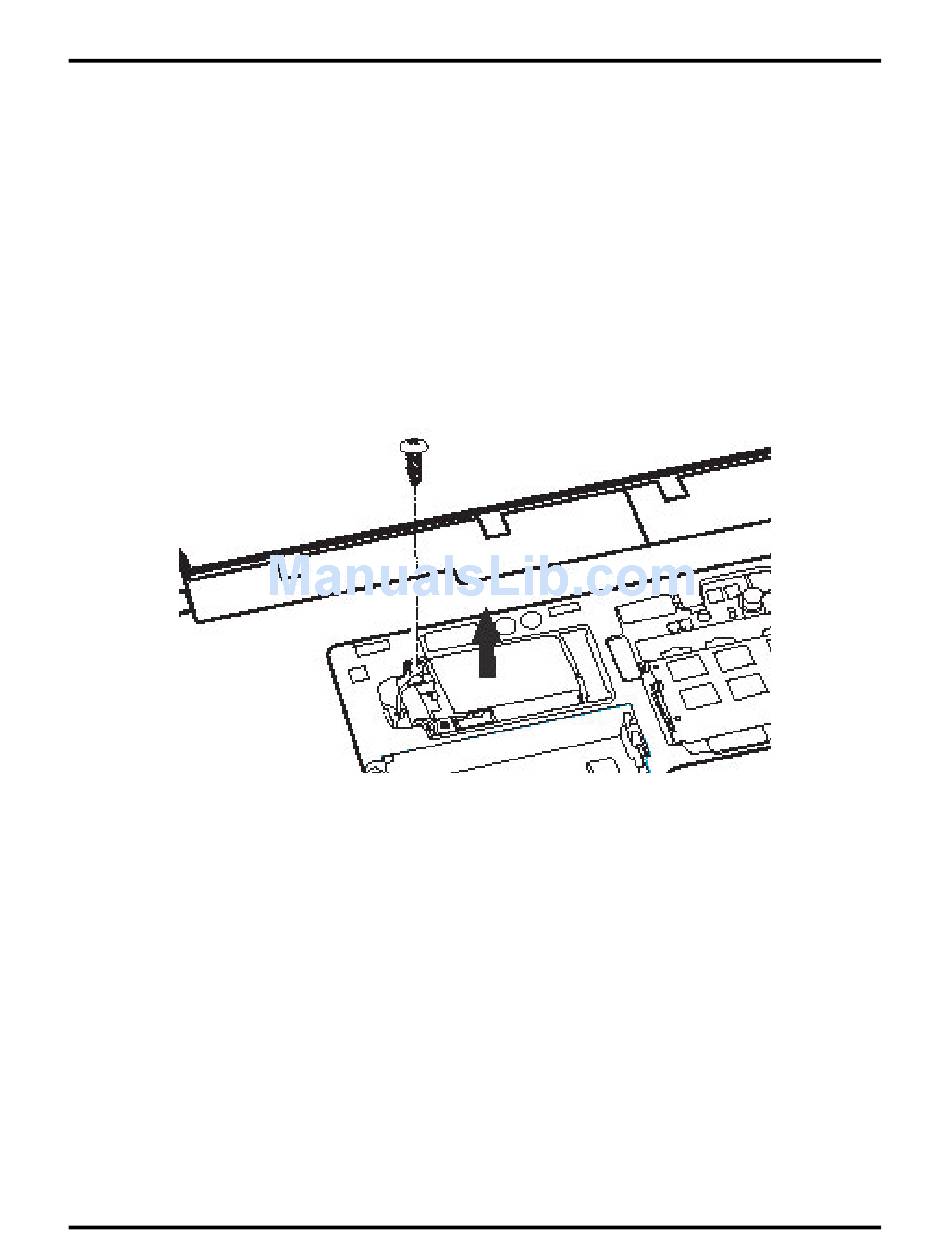

Figure 4.12 Removing the TV card
