Removing the DIMM air baffle

48
System x3650 M2 Type 7947: Installation and User's Guide
Downloaded from www.Manualslib.com
When you work with some optional devices, you must first remove the DIMM air
baffle to access certain components or connectors on the system board. The

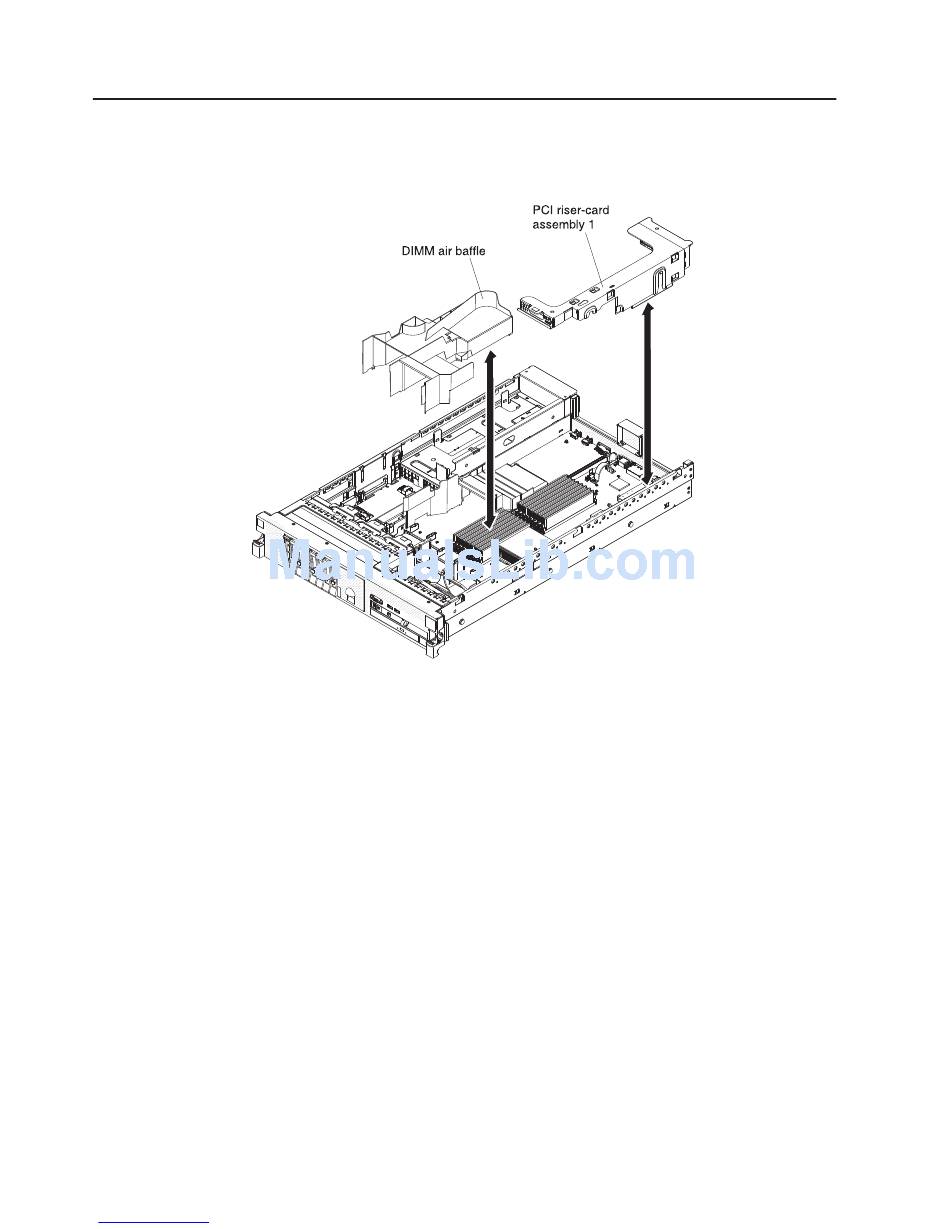

following illustration shows how to remove the DIMM air baffle.
To remove the DIMM air baffle, complete the following steps:
1. Read the safety information that begins on page vii and "Installation guidelines"
on page 36.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see "Turning off the server" on page 21).
3. Remove the cover (see "Removing the cover" on page 43).
4. Remove PCI riser-card assembly 1, if needed (see "Removing a PCI riser-card
assembly" on page 44).
5. Place your fingers under the front and back of the top of the air baffle; then, lift
the air baffle out of the server.
Attention: For proper cooling and airflow, replace all air baffles before you
turn on the server. Operating the server with any air baffle removed might
damage server components.
