Q U I C K R E F E R E N C E
This Quick Reference contains supply loading and general care and
maintenance procedures for the Monarch® 9906 printer. For more
detailed information, refer to the Operator's Handbook available on our
Web site (www.monarch.com). For information about creating formats,
configuring the printer, or programming the printer, refer to the
Programmer's Manual on our Web site.
Review the safety information in the Regulatory Compliance document
included with your printer. Information in this document supercedes
information in previous versions. Check our Web site for the latest
documentation and release information.
The Monarch® 9906 printer uses the Monarch® 9825® driver.
Note:

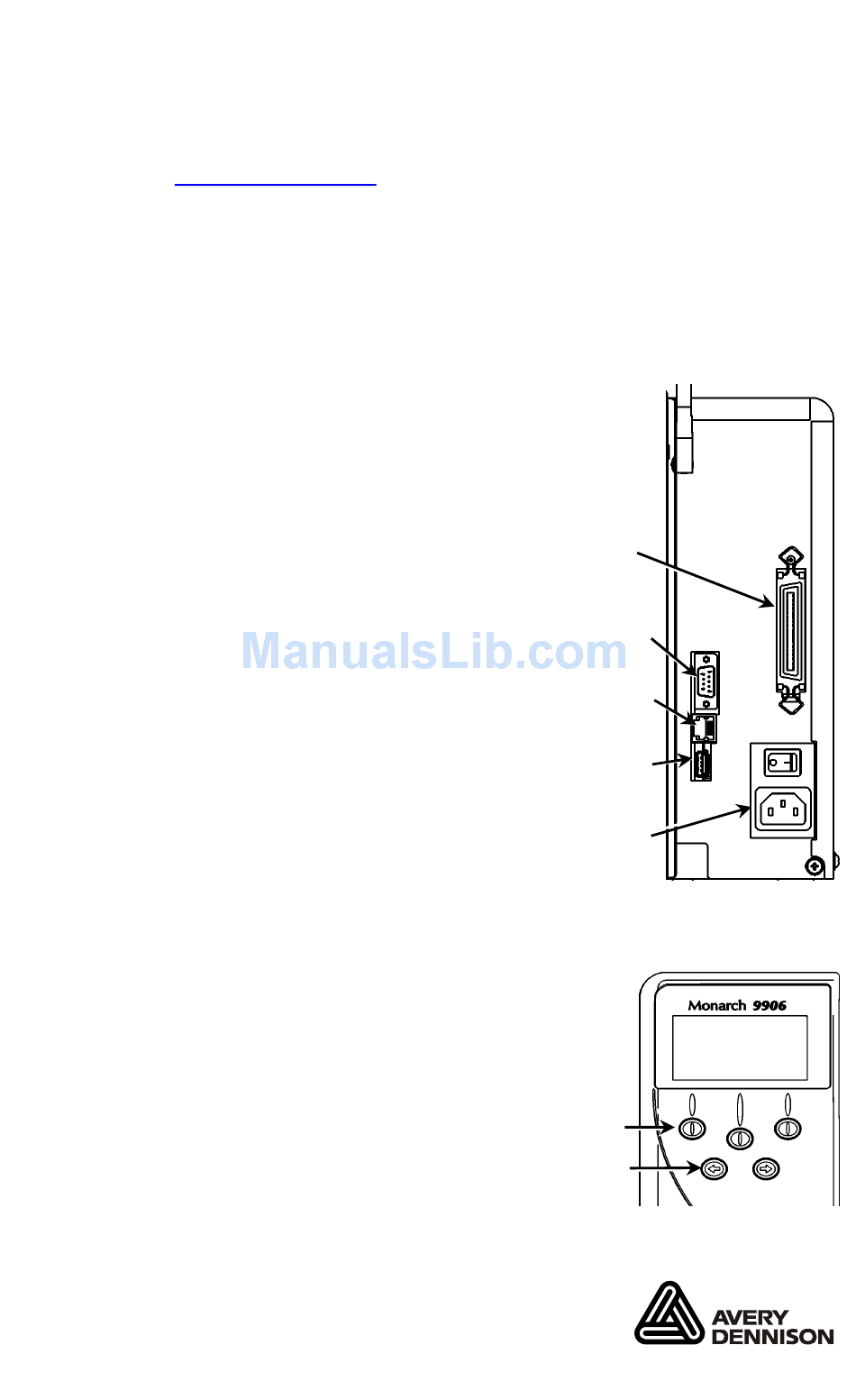

C o n n e c t i n g t h e C a b l e s
The power supply automatically switches between
115V and 230V.
Plug the power cable into the socket
1.
and the other end into a grounded
electrical outlet.
Connect the communications cable
2.
into the appropriate port.
Turn on the printer. Press ( I ) to turn
3.
on and ( O ) to turn off the printer.
U s i n g t h e C o n t r o l P a n e l
The control panel consists of a four-line
LCD display, three function buttons, and
two navigation buttons. The function of
each button varies depending on the
task. The LCD display:
Indicates power when text or other
information is shown
Indicates conditions
requiring immediate attention (low battery,
faults, errors) using a red background
Shows menu prompts, printer
settings, function button assignments,
values, etc.
Monarch is a trademark of Avery
Dennison Retail Information Services LLC. Avery
Dennison is a trademark of Avery Dennison Corp.
TC9906NAQR Rev. BETA 7/1/10
Parallel Port
(optional)
Serial Port
Host USB
Device USB
Power Cable
Connection
Function
Buttons
Navigation
Buttons
2010 Avery Dennison Corp. All rights reserved.
MPCL
Online
FEED
TLabel
MENU

Advertisement

loading

Related Manuals for Monarch Monarch 9906

Summary of Contents for Monarch Monarch 9906

  • Page 1 FEED TLabel MENU values, etc. Function Buttons Navigation Buttons Monarch is a trademark of Avery Dennison Retail Information Services LLC. Avery Dennison is a trademark of Avery Dennison Corp. TC9906NAQR Rev. BETA 7/1/10 2010 Avery Dennison Corp. All rights reserved.
  • Page 2 L o a d i n g L a b e l s o r T a g s Open the cover. Unlock the printhead by turning the retaining latch. Printhead Tab Retaining Latch Lift the printhead assembly using the printhead tab until the assembly locks into place.
  • Page 3 Push down on the supply lever to unlock the supply guide. Lay the label strip across the supply guide so that a few inches extend past the front of the printer. Tuck the supply under the nibs and in between the die cut sensor. Adjust the supply guide so that it barely touches the supply.
  • Page 4 Close the printhead by pressing down on the thumb well until you hear it click into place. Close the printer’s cover. Press Feed. L oa d in g La be l s f o r t h e O pt io na l Pe e l M od e Remove the labels from the first 10 inches of the liner.
  • Page 5 A d j u s t i n g t h e P r i n t h e a d P r e s s u r e D i a l s You may need to adjust the printhead pressure dials based on the width and type of your supply.
  • Page 6 Carefully feed the ribbon under both ribbon rollers and printhead. Thumb well Make sure the ribbon is straight and centered throughout the path. Tape the ribbon to the take-up core. Rotate the take-up core until the leader is past the printhead. Remove any slack in the ribbon by turning the take-up reel clockwise.
  • Page 7 Let the printer dry, then reload supplies. Close the exit cover. Close the printhead assembly and the printer’s cover. Turn on the printer. Press Feed. T r o u b l e s h o o t i n g This section lists common problems and their solutions.
  • Page 8 Common Errors Error Description/Action Name must be 1 to 8 characters inside quotes. 005 Inva lid supply width. Invalid code page selection. Data length is too long. Format referenced by batch not in memory. Invalid character following {. Field separator was not found. Printer memory is full.
