Page 1

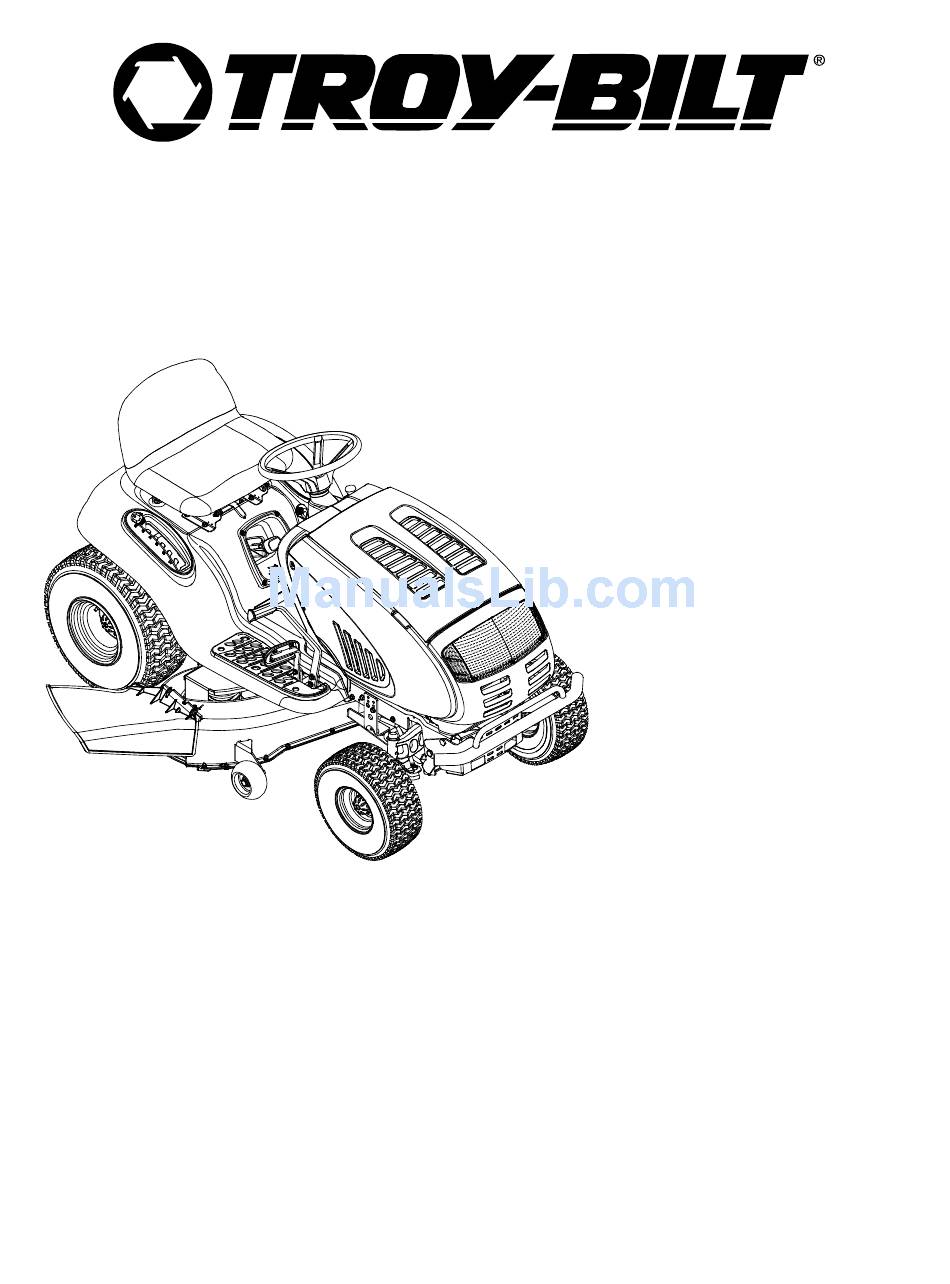

Operator’s Manual Pedal Drive Garden Tractor Models V809H Y809P IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
Page 2
SECTION 12: MODELS V809H & Y809P PARTS LIST (for choke)
Page 3
Muffler, Twin Inlet (Model Y809P) 783-1121 Engine Heat Shield (Model Y809P) 721-0377 Exhaust Gasket (Model Y809P) 712-3086 Flange Nut, M8 x 1.25-6 (Model Y809P) NOTE: Engine accessory parts are applicable to both model V809H and Y809P except where otherwise noted.
Page 15
Models V809H & Y809P REF. PART DESCRIPTION 783-0653D Steering Support Bracket 754-0476 PTO Belt (Model V809H) 754-0475 PTO Belt (Model Y809P) 717-1709 Electric PTO Clutch 783-1003 Electric Clutch Anti-rotation Bracket 710-0859 Hex Cap Screw, 3/8-16 x 2.5 710-1238 Hex Head Washer Screw, 5/16-18 x .875...
Page 19
Model Y809P REF. PART DESCRIPTION 710-0167 Carriage Screw, 1/4-20 x .5 710-0347 Hex Cap Screw, 3/8-16 x 1.75 710-0514 Hex Cap Screw, 3/8-16 x 1.0 710-0528 Hex Cap Screw, 5/16-18 x 1.25 710-0599 Self Tapping Screw,1/4-20 x .5 710-1260A Self Tapping Screw, 5/16-18 x .75 712-0291 Center Lock Nut, 1/4-20 712-0417A...
