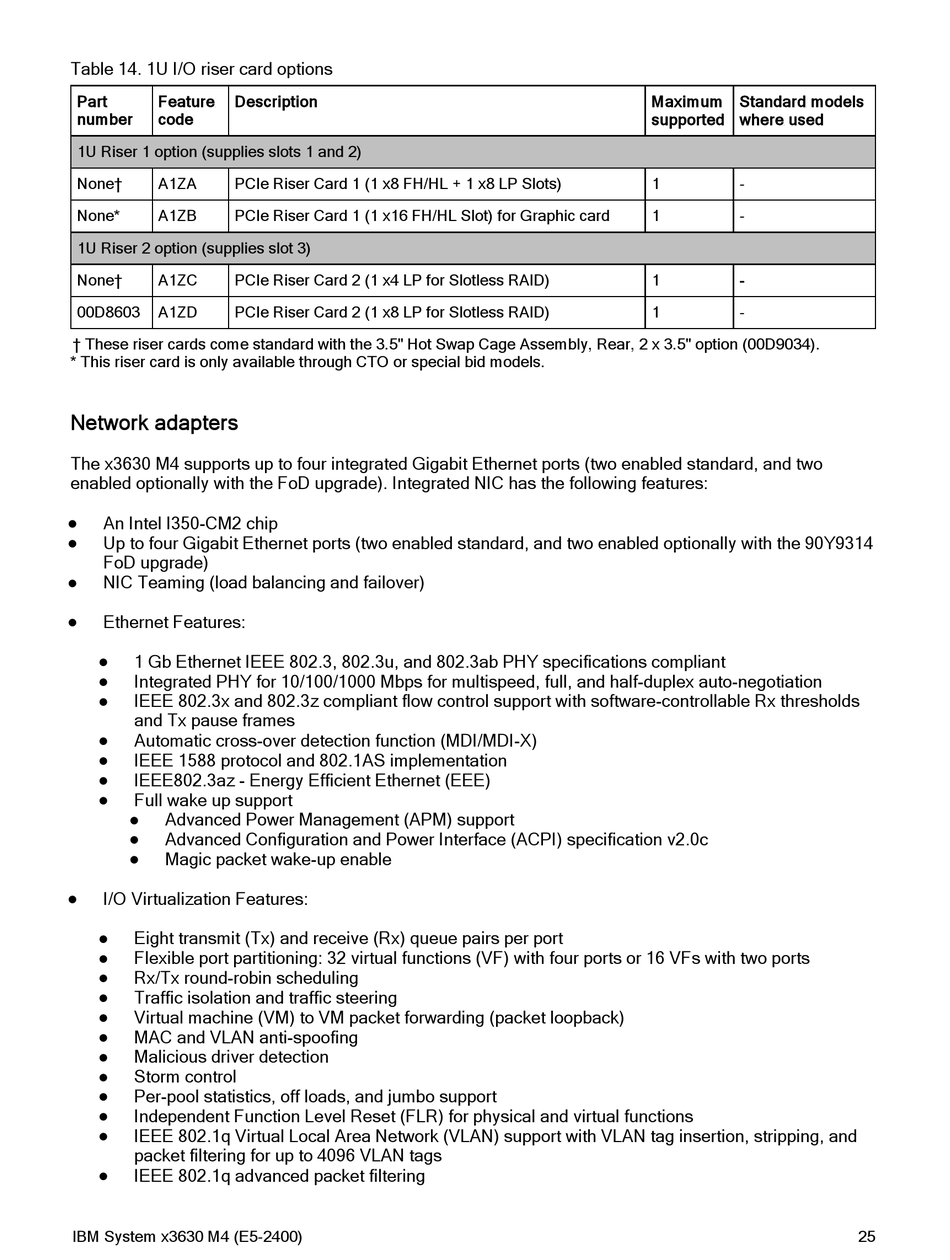

Table 14. 1U I/O riser card options
Part Feature Description
number code
1U Riser 1 option (supplies slots 1 and 2)
None† A1ZA PCIe Riser Card 1 (1 x8 FH/HL + 1 x8 LP Slots)
None* A1ZB PCIe Riser Card 1 (1 x16 FH/HL Slot) for Graphic card
1U Riser 2 option (supplies slot 3)
None† A1ZC PCIe Riser Card 2 (1 x4 LP for Slotless RAID)
00D8603 A1ZD PCIe Riser Card 2 (1 x8 LP for Slotless RAID)
† These riser cards come standard with the 3.5" Hot Swap Cage Assembly, Rear, 2 x 3.5" option (00D9034).
* This riser card is only available through CTO or special bid models.

Network adapters

The x3630 M4 supports up to four integrated Gigabit Ethernet ports (two enabled standard, and two
enabled optionally with the FoD upgrade). Integrated NIC has the following features:
An Intel I350-CM2 chip

Up to four Gigabit Ethernet ports (two enabled standard, and two enabled optionally with the 90Y9314

FoD upgrade)
NIC Teaming (load balancing and failover)

Ethernet Features:

1 Gb Ethernet IEEE 802.3, 802.3u, and 802.3ab PHY specifications compliant

Integrated PHY for 10/100/1000 Mbps for multispeed, full, and half-duplex auto-negotiation

IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds

and Tx pause frames
Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

IEEE802.3az - Energy Efficient Ethernet (EEE)

Full wake up support

Advanced Power Management (APM) support

Advanced Configuration and Power Interface (ACPI) specification v2.0c

Magic packet wake-up enable

I/O Virtualization Features:

Eight transmit (Tx) and receive (Rx) queue pairs per port

Flexible port partitioning: 32 virtual functions (VF) with four ports or 16 VFs with two ports

Rx/Tx round-robin scheduling

Traffic isolation and traffic steering

Virtual machine (VM) to VM packet forwarding (packet loopback)

MAC and VLAN anti-spoofing

Malicious driver detection

Storm control

Per-pool statistics, off loads, and jumbo support

Independent Function Level Reset (FLR) for physical and virtual functions

IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping, and

packet filtering for up to 4096 VLAN tags
IEEE 802.1q advanced packet filtering

