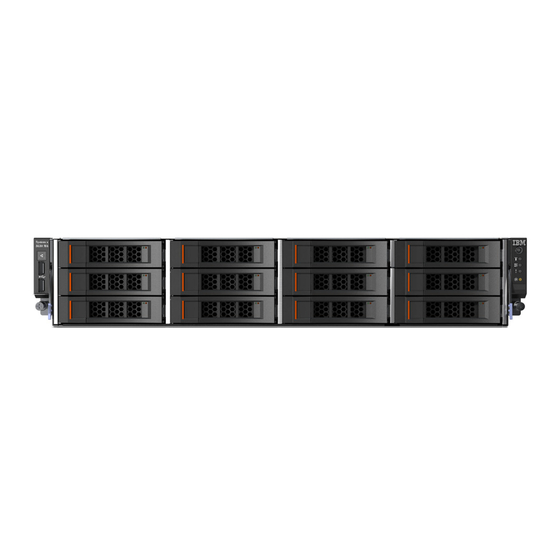

IBM X3630 M4 Manual

Hot-swap rear hdd drive cage option
Hide thumbs Also See for X3630 M4:

Advertisement

Quick Links

Systems X3630 M4 Hot-Swap Rear HDD Drive Cage Option
See the server documentation for detailed instructions for installing this option in the server.
LED signal cable
SATA signal cables
Power cable
The option kit contains the following items:
v One 3.5 inch hard disk drive cage
v One 3.5 SAS/SATA backplane
v One LED signal cable
v Two SATA signal cables
v One power cable
v One 1U PCI riser-card assembly 1
v One 1U PCI riser-card assembly 2
v IBM warranty information document
v Important notices document
v This document
To install the optional rear hot-swap SAS/SATA hard disk drive cage, complete the following steps:
1. See the server Problem Determination and Service Guide for installation guidelines and additional safety
information.
2. If the server is operating, turn off the server and peripheral devices and disconnect the power cords
and all external cables.
3. Remove the cover, using the instructions in your server documentation.
4. If a drive filler cage is installed in the chassis, loosen the screw that secures the drive filler cage to
the chassis; then, rotate the drive filler clockwise and remove the drive filler out of the bay from the
server. Go to step 8.
3.5-inch
SAS/SATA
backplane
3.5-inch
hard disk
drive cage
1U PCI riser-card
assembly 1
1U PCI riser-card
assembly 2

Advertisement

loading

Summary of Contents for IBM X3630 M4

  • Page 1 Systems X3630 M4 Hot-Swap Rear HDD Drive Cage Option See the server documentation for detailed instructions for installing this option in the server. LED signal cable 3.5-inch SAS/SATA backplane SATA signal cables 3.5-inch 1U PCI riser-card hard disk assembly 1...
  • Page 2 Note: If 2U PCI riser-card assemblies are installed in the server, go to step 5. 5. If 2U PCI riser-card assembly are installed in the server, remove all 2U PCI riser-card assembly and adapters, using the instructions in your server documentation. 6.
  • Page 3 Release latch 11. Close the latches on the chassis. 12. Remove the power cable that currently connects the hot-swap hard disk drive backplane in the server to the power-paddle card. Power cable Cable tie...
  • Page 4 13. Connect the LED signal, SATA signal and power cables to the hot-swap backplane used for the rear hard disk drive cage. They can all be found from the option package. LED signal SATA 0 connector connector SATA 1 connector Power connector 14.
  • Page 5 LED signal cable (from option package) Hot-swap backplane Cable tie signal cable (I C cable) Rear hard disk drive detect pin 18. Connect the other end of the SATA signal and power cables to the power paddle card and hot-swap hard disk drive backplane in the server.
  • Page 6 Power cable SATA signal cable 0 Cable tie SATA signal cable 1 SATA 1 SATA 0 Note: Make sure the cables are routed in the proper locations without blocking the airflow. It is recommended to press all the cables downwards to make the cable routing easier. Secure the cables with any cable retention clips.
  • Page 7 First Edition (May 2012) Printed in USA IBM is a trademark of the IBM Corporation in the United States, other countries, or both. © Copyright IBM Corporation 2012. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
