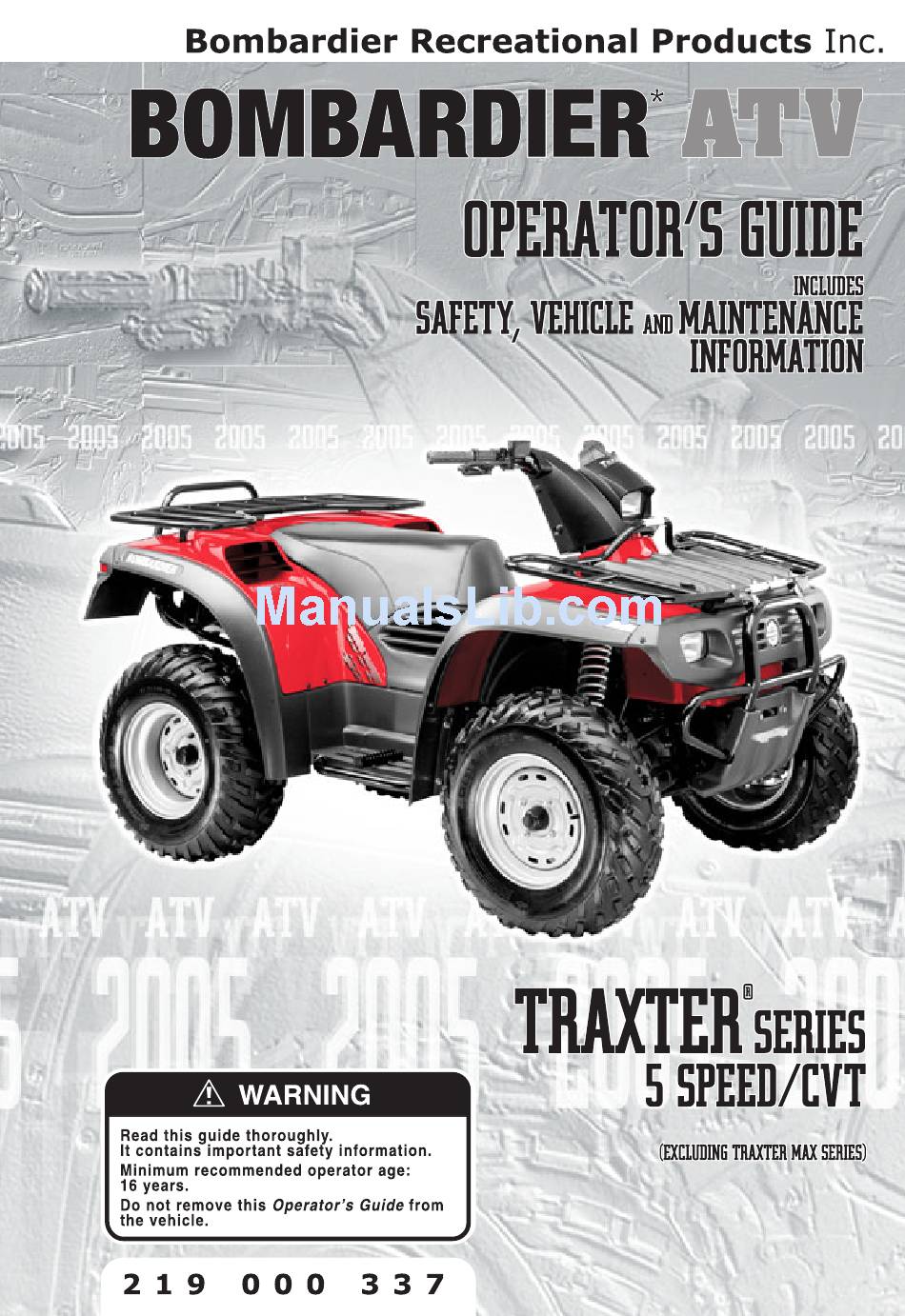

  • Page 2 Traxter ® Rotax ® Printed in Canada. (vmo2005-005 AP) ®™Trademarks of Bombardier Recreational Products Inc. or its affiliates. ©2004 Bombardier Recreational Products Inc. All rights reserved. * Bombardier and the sprocket design are trademarks of Bombardier Inc., used under license.
  • Page 3 SAE U.S. equiva- experience problems which cannot be lent in parenthesis. Where precise ac- resolved by an authorized Bombardier curacy is not required, some conver- ATV dealer. sions are rounded off for easier use.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death. NOTICE................. 5 INTRODUCTION ..
  • Page 5 3) Rear Brake Lever............. . 71 4) Brake Lever Lock ..
  • Page 6 SPECIFICATIONS ..............135 INTERNATIONAL SYSTEM METRIC INFORMATION ......145 WARRANTY BRP LIMITED WARRANTY NORTH AMERICA: 2005 BOMBARDIER † ATV 148 †...

  • Page 7: Notice

    NOTICE This Operator's Guide has been pre- pared to acquaint the owner/operator of a new vehicle with the various ve- hicle controls, maintenance and safe operating instructions. It is indispens- able for the proper use of the product. This Operator's Guide uses the follow- ing symbols.

  • Page 8: Introduction

    INTRODUCTION Your dealer should have provided you The contents of this Operator's Guide with some basic information on the provide riding information which has particular controls and features of been proven reliable by other users. your new vehicle. Please take the They are not intended as a definitive time to study this Operator's Guide means of avoiding accidents.

  • Page 9: Safety Information

    SAFETY INFORMATION ____________ ____________ SAFETY INFORMATION...

  • Page 10: Special Safety Messages

    Beginners should receive nance procedures and schedules training from a certified instructor. described in this Operator's Guide. Contact an authorized Bombardier Always keep both hands on the ATV dealer to find out about avail- handlebars and both feet on the...
  • Page 11 Never operate this vehicle on hills Always use proper procedures if too steep for the vehicle or for your you stall or roll backwards when abilities. Practice on smaller hills climbing a hill. To avoid stalling, before attempting larger hills. use proper gear and maintain a steady speed when climbing a hill.
  • Page 12 Never modify this vehicle through improper installation or use of ac- cessories. Only use BRP's ap- proved accessories. Do not install passenger seat or use the racks to carry a passenger. Never exceed the stated load limits for this vehicle including operator, all other loads and added acces- sories.

  • Page 13: Operation Warnings

    BRP. They should then regularly practice the skills learned in the course and the operating techniques described in this Operator's Guide. For more information about the training course, contact an authorized Bombardier ATV dealer or call BRP at 1 (819) 566-3366. ____________ ___________ SAFETY INFORMATION...
  • Page 14 WARNING V00A01Q POTENTIAL HAZARD Failure to follow the age recommendations for this vehicle. WHAT CAN HAPPEN A lack of respect for this age recommendation can lead to severe injury or death of the child. Even though a child may be within the age group for which this vehicle is recommended, he may not have the skills, abilities, or judgment needed to operate this vehicle safely and may be involved in a serious accident.
  • Page 15 WARNING V00A02Q POTENTIAL HAZARD Carrying a passenger on this vehicle. WHAT CAN HAPPEN Greatly reduces your ability to balance and control this vehicle. Could cause an accident, resulting in harm to you and/or your passenger. HOW TO AVOID THE HAZARD Never carry passenger.
  • Page 16 WARNING V00A03Q POTENTIAL HAZARD Operating this vehicle on paved surfaces. WHAT CAN HAPPEN The ATV's tires are designed for off-road use only, not for use on pavement. Paved surfaces may seriously affect handling and control of this vehicle, and may cause the vehicle to go out of control. HOW TO AVOID THE HAZARD Never operate this vehicle on any paved surfaces, including sidewalks, driveways, parking lots and streets.
  • Page 17 WARNING V00A04Q POTENTIAL HAZARD Operating this vehicle on public streets, roads or highways. WHAT CAN HAPPEN You can collide with another vehicle. HOW TO AVOID THE HAZARD Never operate this vehicle on any public street, road or highway, even a dirt or gravel one.
  • Page 18 WARNING V00A06Q POTENTIAL HAZARD Riding this vehicle without wearing an approved helmet, eye protection and protective clothing. WHAT CAN HAPPEN The following items concern all ATV's operator: – riding without an approved helmet increases the chances of a severe head injury or death in the event of an accident –...
  • Page 19 WARNING V00A07Q POTENTIAL HAZARD Riding this vehicle after consuming alcohol or drugs. WHAT CAN HAPPEN Could seriously affect your judgment. Could cause you to react more slowly. Could affect your balance and perception. Could result in an accident or death. HOW TO AVOID THE HAZARD Never consume alcohol or drugs before or while riding this vehicle.
  • Page 20 WARNING V00A08Q POTENTIAL HAZARD Operating this vehicle at excessive speeds. WHAT CAN HAPPEN Increases your chances of losing control of the vehicle, which can result in an accident. HOW TO AVOID THE HAZARD Always travel at a speed which is proper for the terrain, visibility and op- erating conditions, and your experience.
  • Page 21 WARNING V00A09Q POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of an accident, including an overturn. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps. Do not try to show off. ____________ ___________ SAFETY INFORMATION...
  • Page 22 WARNING POTENTIAL HAZARD Failure to inspect the vehicle before operating. Failure to properly maintain the vehicle. WHAT CAN HAPPEN Increases the possibility of an accident or equipment damage. HOW TO AVOID THE HAZARD Always inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition.
  • Page 23 WARNING V00A0BQ POTENTIAL HAZARD Removing hands from handlebar or feet from the footrests during opera- tion. WHAT CAN HAPPEN Removing even one hand or foot can reduce your ability to control the vehicle or could cause you to lose your balance and fall off the vehicle. If you remove a foot from the footrests, your foot or leg may come into contact with the rear wheels, which could injure you or cause an accident.
  • Page 24 WARNING V00A0CQ POTENTIAL HAZARD Failure to use extra care when operating this vehicle on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the vehicle overturning or loss of control. HOW TO AVOID THE HAZARD Go slowly and be extra careful when operating on unfamiliar terrain.
  • Page 25 WARNING V00A0DQ POTENTIAL HAZARD Failure to use extra care when operating on excessively rough, slippery or loose terrain. WHAT CAN HAPPEN Could cause loss of traction or vehicle control, which could result in an accident, including an overturn. HOW TO AVOID THE HAZARD Do not operate on excessively rough, slippery or loose terrain until you have learned and practiced the skills necessary to control this vehicle on such terrain.
  • Page 26 WARNING V00A0EQ POTENTIAL HAZARD Turning improperly. WHAT CAN HAPPEN Vehicle could go out of control, causing a collision or overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for turning as described further in this Operator's Guide. Practice turning at low speeds before attempting to turn at faster speeds.
  • Page 27 WARNING V00A0QQ POTENTIAL HAZARD Operating on excessively steep hills. WHAT CAN HAPPEN The vehicle can overturn more easily on extremely steep hills than on level surfaces or small hills. HOW TO AVOID THE HAZARD Never operate this vehicle on hills too steep for the vehicle or for your abil- ities.
  • Page 28 WARNING V00A0FQ POTENTIAL HAZARD Climbing hills improperly. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for climbing hills as described further in this Operator's Guide. Always check the terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose surfaces.
  • Page 29 WARNING V00A0GQ POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills as described further in this Operator's Guide. NOTE: A special technique is required when brak- ing as you go down a hill.
  • Page 30 WARNING V00A0HQ POTENTIAL HAZARD Improperly crossing hills or turning on hills. WHAT CAN HAPPEN Could cause loss of control or cause vehicle to overturn. HOW TO AVOID THE HAZARD Never attempt to turn the vehicle around on any hill until you have mas- tered the turning technique as described further in this Operator's Guide on level ground.
  • Page 31 WARNING V00A0IQ POTENTIAL HAZARD Stalling, rolling backwards or improperly dismounting while climbing a hill. WHAT CAN HAPPEN Could result in vehicle overturning. HOW TO AVOID THE HAZARD Use proper gear and maintain steady speed when climbing a hill. If you lose all forward speed: Keep your weight uphill.
  • Page 32 WARNING V00A0JQ POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the vehicle to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles. Never attempt to ride over large obstacles, such as large rocks or fallen trees.
  • Page 33 WARNING V00A0KQ POTENTIAL HAZARD Skidding or sliding improperly. WHAT CAN HAPPEN You may lose control of this vehicle. You may also regain traction unexpectedly, which may cause the vehicle to overturn. HOW TO AVOID THE HAZARD Learn to safely control skidding or sliding by practicing at low speeds and on level smooth terrain.
  • Page 34 WARNING V00A0LQ POTENTIAL HAZARD Operating this vehicle through deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could lead to an accident. HOW TO AVOID THE HAZARD Never operate this vehicle in fast flowing water or in water deeper than that specified further in this Operator's Guide.
  • Page 35 WARNING V00A0MQ POTENTIAL HAZARD Improperly operating in reverse. WHAT CAN HAPPEN You could hit an obstacle or person behind the vehicle, resulting in serious injury. HOW TO AVOID THE HAZARD When you select reverse gear, make sure there are no obstacles or people behind the vehicle.
  • Page 36 WARNING V00A0OQ POTENTIAL HAZARD Operating this vehicle with improper tires, or with improper or uneven tire pressure. WHAT CAN HAPPEN Use of improper tires on this vehicle, or operation of this vehicle with im- proper or uneven tire pressure, may cause loss of control, and increases the risk of an accident.
  • Page 37 All parts and accessories added to this vehicle should be approved by BRP and should be installed and used according to instructions. If you have questions, consult an authorized Bombardier ATV dealer. Do not install passenger seat or use the racks to carry a passenger.
  • Page 38 WARNING V00A0PQ POTENTIAL HAZARD Overloading this vehicle or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this vehicle including operator and passenger, as well as other loads and added accessories.
  • Page 39 WARNING V03M01Q POTENTIAL HAZARD Transporting inflammable or dangerous material can lead to explosions. WHAT CAN HAPPEN This can cause serious injury or death. HOW TO AVOID THE HAZARD Never transport inflammable or dangerous material. While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death.

  • Page 40: Safety Warning

    SAFETY WARNING To fully appreciate the pleasures and excitement of riding this vehicle, there are some basic rules and tips that you should follow. Some may be new to you while others may be common sense or obvious. Irrespective, we ask that you take a few minutes to read this Operator's Guide completely before you operate this vehicle.

  • Page 41: Pre-Operation Check

    Correct any problem you may have d) Check location of controls and en- found before riding. See an autho- sure they work properly. rized Bombardier ATV dealer as nec- e) Verify if steering operates freely. essary. f) Activate throttle control lever sev- eral times to ensure it operates freely.

  • Page 42: Clothing

    Clothing Actual weather conditions should help you decide how to dress. However, it is important that the operator always wear the appropriate protective clothing and apparel, including an approved helmet, eye protection, boots, gloves, long sleeved shirt and pants. This type of clothing will provide you protection from some of the minor hazards you may encounter en route.

  • Page 43: Carrying Loads

    Your vehicle can help you perform a number of different LIGHT tasks ranging from snow removal to pulling wood or carrying cargo. A variety of accessories are available from your authorized Bombardier ATV dealer. However, always re- spect the load and capacities of the vehicle. Overloading of the vehicle can over- stress the components and cause failure.

  • Page 44: Environment

    Always keep a safe distance from other riders. Your judgment of speed, ter- rain conditions, weather, mechanical condition of your vehicle and the "trust in judgment" you have in others around you will help you make a better choice of appropriate safe distance.

  • Page 45: General Operating And Safety Precautions

    An operator who takes a vehicle off-road should always exercise the utmost care in selecting the safest path and keeping close watch on the terrain ahead of him. On no account should the vehicle be operated by anyone who is not completely familiar with the driving instructions applicable to the vehicle, nor should it be operated on steep or treacherous terrain.

  • Page 46: Side Hilling

    Side Hilling Whenever possible, such operation should be avoided. If necessary, do so with extreme caution. Side hilling on steep inclines could result in rollover. In addi- tion, slippery or unfirm surfaces could result in uncontrollable side sliding. Do not attempt to turn the vehicle downhill with the slide. Avoid all objects or de- pressions that will intensify the raising of one side of the vehicle higher than the other, thus causing rollover.
  • Page 47 V00A0UL Even though there is an adequate suspensions system on this vehicle there are "washboard" or rough terrain conditions that will make you feel uncomfortable and even cause back injury. "Posting" or riding in a crouched position will often be required. Slow down and allow your flexed legs to absorb impact. This vehicle is not designed for riding on roads or highways.
  • Page 48 V00A0VL Water will affect the braking ability of your vehicle. Make sure you dry the brakes by applying them several times after the vehicle leaves the water. Mud or marsh lands may be encountered near water. Be prepared for sudden "holes"...
  • Page 49 When riding in sand dunes it is advisable to equip the vehicle with an antenna type safety flag. This will help make your location more visible to others over the next sand dune . Proceed carefully should you see another safety flag ahead. Since the antenna type safety flag can snag and rebound on your body if caught, do not use it in areas where there are low hanging branches or obstacles.
  • Page 50 Uphill Keep your body weight forward towards the top of the hill. Keep your feet on the footpegs and shift into low gear then accelerate and when necessary, change gear quickly as you climb. Do not over-speed since this may cause the front of the vehicle to lift from the ground and fall back on you.
  • Page 51 Downhill Keep your body weight rearwards. Apply the brake gradually to prevent skidding. Do not "coast" down the slope using solely engine compression or in neutral gear. V00A0YL ____________ ___________ SAFETY INFORMATION...
  • Page 52 Side hilling This is one of the most risky types of riding since it may drastically change the balance of the vehicle. It should be avoided wherever possible. If it is necessary to do so however, it is important that you ALWAYS keep your body weight on the upside of the slope...

  • Page 53: Routine Maintenance

    Part of your responsibility towards safety is to respect the contents of this Op- erator's Guide. It provides valuable advice on how to properly take care of your vehicle. If further assistance is required your authorized Bombardier ATV dealer is always willing to help.

  • Page 54: Hang Tag

    The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, please contact an authorized Bombardier ATV dealer for replacements. Any person who rides this vehicle should read and understand this information before riding.

  • Page 55: Location Of The Important Labels

    LOCATION OF THE IMPORTANT LABELS The following labels are on your vehicle. If missing or damaged, they can be replaced free of charge. See an authorized Bombardier ATV dealer. NOTE: The following illustrations used in this Operator's Guide are a general representation only.
  • Page 56 Traxter XL V03M0QL ___________ ___________ SAFETY INFORMATION...
  • Page 57 Traxter CVT V04A1AL ____________ ___________ SAFETY INFORMATION...
  • Page 58 Label 1 Label 4 V00M04Y Label 5 V00M05Y V01M01Z Label 6 Label 2 V00M06Y V01M02Z Label 3 V01M09Z ___________ ___________ SAFETY INFORMATION...
  • Page 59 Label 7 Label 8 V01M04Z TRAXTER SERIES EXCEPT XL MODELS Label 9 V00M07Y TRAXTER SERIES EXCEPT XL MODELS V01M07Z TRAXTER SERIES EXCEPT XL MODELS Label 10 V01M03Z V00M08Y TRAXTER SERIES EXCEPT XL MODELS TRAXTER XL ____________ ___________ SAFETY INFORMATION...
  • Page 60 Label 11 Label 14 V03M0JY V04M08Y TRAXTER XL TRAXTER CVT Label 15 Label 12 V03M0KY TRAXTER XL V03M0HY Label 16 TRAXTER XL Label 13 V03M0LY TRAXTER XL V03M0IY TRAXTER XL ___________ ___________ SAFETY INFORMATION...
  • Page 61 Label 17 V00M0AY ALL MODELS EXCEPT THOSE SOLD IN CANADA AND IN USA Label 18 4982 497.70cc V00M09Y TRAXTER SERIES EXCEPT CVT MODELS 4983 498.0cc V03M0MY TRAXTER CVT ____________ ___________ SAFETY INFORMATION...

  • Page 62: Vehicle Information

    VEHICLE INFORMATION _____________________...

  • Page 63: How To Identify Your Atv

    These numbers are required by the authorized Bombardier ATV dealer to complete war- ranty claims properly. No warranty will be allowed by BRP if the engine identifica- tion number (EIN) or vehicle identification number (VIN) is removed or mutilated in any way.
  • Page 64 Traxter 5 SPEED except XL models V01A5YL TYPICAL 1. EIN (Engine Identification Number) 2. VIN (Vehicle Identification Number) 3. Model _____________________...

  • Page 65: Compliance Label

    Traxter XL V03M0SL TYPICAL 1. EIN (Engine Identification Number) 2. VIN (Vehicle Identification Number) 3. Model Compliance Label This label indicates vehicle's conformity in many countries. LABEL LOCATION Traxter 5 SPEED Under seat, on the RH upper bar of frame. Under seat, on the LH upper bar of frame.

  • Page 66: Emission Requirements

    EMISSION REQUIREMENTS The California Air Resources Board (CARB) requires that your ATV comply with applicable exhaust emissions standards during its useful life, when operated and maintained according to the instructions supplied. A noncompliance Red Label (as well as a Green Label) is obtained annually during California Vehicle registration.

  • Page 67: Controls/Instruments/Equipment

    CONTROLS/INSTRUMENTS/EQUIPMENT NOTE: Some controls/instruments/equipment are optional on some models. Traxter CVT V04A1GL ______________________...
  • Page 68 6 28 V04A1IL _____________________...
  • Page 69 Traxter 5 SPEED V01A61L ______________________...
  • Page 70 17 14 V01A62L _____________________...
  • Page 71 V03A0JL ______________________...

  • Page 72: Throttle Lever

    While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death. 2) Front Brake Lever NOTE: This section gives basic func- tions of the various controls of your All Models ATV.

  • Page 73: Brake Lever Lock

    NOTE: Using the rear brake will have WARNING also an effect on front wheels because Make sure brake lever lock is fully they are interconnected through the disengaged before operating the drive train. As on other wheeled vehi- ATV. cles, the vehicle weight is transferred to the front wheels when braking.
  • Page 74 Traxter 5 SPEED Located on the left side of steering column. A 5-position lever: P, R, N, H and L. To change the transmission position, completely stop vehicle then move lever to the desired position while pulling lever upward. Do not force lever.

  • Page 75: Multi-Function Switch

    Headlamp Switch WARNING Located on the top of multi-function Before moving vehicle in reverse, switch. Place headlamp switch to LO ensure the path behind is clear of for the low beam and taillight. Place obstacles or bystanders. Remain headlamp switch to HI for the high seated.
  • Page 76 Engine Stop Switch Located at the middle of multi-function switch. The engine will turn over but will not start if the engine stop switch is turned to OFF position. V04A1LZ 1. Start button To start engine, place the engine stop switch to RUN.
  • Page 77 V04I0FY V01I1UY CHOKE LEVER IN THE FULL CHOKE 1. Gear shift button POSITION 2. Press here to upshift 3. Press here to downshift The other positions between OFF and FULL position, will be use depending The lower the gear, the slower the ve- on the engine temperature.
  • Page 78 V01G18Y V01A63Y 1. Manual/autoshift selector 1. Start/stop switch 2. Gear shift button To start engine, press and hold the The autoshift mode activates a change switch. Release immediately after en- of gear in accordance with the engine gine is started. RPM and throttle opening.

  • Page 79: Indicator Lights Cluster

    See an autho- The speedometer is located at the rized Bombardier ATV dealer as soon middle of cluster and it is backlit when as possible. the ignition switch is turned ON (ei- ther position).
  • Page 80 Turn the ignition switch to the OFF po- It can be used to establish a fuel tank sition. range or distance between 2 way points for distance. Insert a little flat screwdriver into the slot at the bottom of the speedome- Push and HOLD display selection but- ter.

  • Page 81: Ignition Switch

    Oil Pressure (RED) •Traxter CVT: When this indicator lamp is ON, it indicates a low oil pressure condition of the engine. CAUTION: If the light does not turn off right after engine starting, stop engine. Check engine oil level and refill if necessary.

  • Page 82: Choke Knob Lever

    Traxter 5 SPEED Auto Shut-Down If for some reason, the engine is not started within approximately 6 min- utes, the MPEM (Multi-Purpose Elec- tronic Module) will shut down to cut all electrical system functions. Simply turn the key to OFF then to ON to re- gain normal use.

  • Page 83: Fuel Gauge

    WARNING Always stop engine before refu- eling. Open cap slowly. If a dif- ferential pressure condition is no- ticed (whistling sound heard when loosening fuel tank cap) have ve- hicle inspected and/or repaired before further operation. Fuel is flammable and explosive. Never use an open flame to check fuel level.

  • Page 84: Rear Brake Pedal

    RES (RESERVE) When fuel is exhausted in the fuel tank when in the ON position, an emergency supply of fuel is available by turning the knob to RES. The re- serve contains approximately 20% of the fuel tank capacity for a Traxter CVT and 30% for a Traxter 5 SPEED.

  • Page 85: Footpeg

    V01L07Y V01A6DY TYPICAL 1. Removing cover 1. Rewind starter handle 2. Tool box 17) Footpeg WARNING Located on footrest. Use this area to When engine is running, always keep your feet stable. engage the PARK position on the transmission lever before opening cover.

  • Page 86: Seat Latch

    – fuse 30 A (1) Seat Removal – fuse 20 A (1) Traxter Series except XL Models – fuse 15 A (1). Pull latch upward while gently lifting rear of seat. Continue lifting move- 20) Seat Latch ment until you can release the front Located underneath rear end of seat.

  • Page 87: Cargo Racks

    22) Air Duct Traxter 5 SPEED Place seat to allow the insertion of Traxter Series except XL Models the U-shaped bracket over the rollers. Located on rear fenders. They force Gently slide the brackets over rollers the flow of air to cool radiator and sup- then lower seat.

  • Page 88: 12-Volt Power Outlet

    Pull the protector cap to give access to the radiator cap. When finished, prop- erly reinstall radiator cap then protec- tor cap. WARNING In order to avoid potential burns, do not remove the radiator cap if the engine is hot. V03C02Y 1.

  • Page 89: Fuses

    Refer to ATV Winch Operator's Man- at the rear of vehicle. See an autho- ual for more informations concerning rized Bombardier ATV dealer for more the instructions for use the winch details. safely.

  • Page 90: Cargo Box Gate

    V03L05Y CLOSING PROCEDURE 1. Raise gate 2. Lower gate V03L0MY 32) Lateral Compartment 31) Cargo Box Gate XL Models XL Models The lateral compartments are located Located at the rear end of cargo box. on both side of vehicle. These com- partments are equipped with a drain To open gate, unlatch and lift up gate plug.

  • Page 91: Liquids

    LIQUIDS While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death. NOTE: This section specifies the rec- Fuel Level ommended liquids and procedures to WARNING check their levels. Refer to MAINTE- NANCE for procedures to replace the Always stop engine before refu- liquids.
  • Page 92 °C °F °F engine and transmission. For im- prove overall performance and wear protection use Bombardier synthetic oil (P/N 293 600 039). This is a special synthetic oil formulated for clutch type gearbox. Traxter 5 SPEED CAUTION: Use of synthetic or...

  • Page 93: Engine Coolant

    1. Remove the dipstick and wipe Cooling system must filled clean. with Bombardier premixed coolant 2. Reinstall dipstick. The dipstick (P/N 219 700 362) or with distilled must be insert properly and com- water and antifreeze solution (50% pletely.

  • Page 94: Brake Fluid

    NOTE: A cooling system that fre- quently requires coolant is the indica- V04C05Y tion of leaks or engine problems. See an authorized Bombardier ATV dealer. Traxter 5 SPEED Coolant Replacement Refer to MAINTENANCE section. Brake Fluid Recommended Fluid Always use brake fluid meeting the specification DOT 4 only.
  • Page 95 NOTE: A low level may indicate leaks or worn brake pads. See an autho- rized Bombardier ATV dealer. Front Brake Fluid Reservoir Turn steering in the straight-ahead po- sition to ensure reservoir is level. Check the brake fluid level; the reser- voir is full when the fluid reaches of the top of window.

  • Page 96: Battery

    Battery This vehicle is equipped with an elec- trolyte type battery that requires a min- imum of maintenance. Electrolyte Level Place the vehicle on a level surface. Check electrolyte level by the rear left inner fender. Use a flashlight if neces- sary.

  • Page 97: Break-In Period

    Bombardier ATV dealer. This inspec- break-in period. tion will give you the opportunity to discuss the unanswered questions you may have encountered during the first hours of operation.

  • Page 98: Pre-Operation Check

    PRE-OPERATION CHECK • If you are pulling a trailer or other WARNING equipment, ensure it respects the The pre-operation check is very tongue capacity and towing capac- important prior to operating the ity. Ensure trailer is properly se- vehicle. Always check the proper cured to hitch.

  • Page 99: Operating Instructions

    On Traxter 5 SPEED , when the temperature is below - 15°C (5°F), the primer kit (P/N 703 500 045) instal- lation is recommended. See an autho- rized Bombardier ATV dealer. Press the start/stop switch or the start button and hold until engine starts. ______________________...

  • Page 100: Warm Engine Starting

    CAUTION: Do not hold start/stop switch or start button more than 30 seconds. A rest period should be observed between the crank- ing cycles to let starter cool down. Pay attention to battery; do not dis- charge it. NOTE: The throttle can be use to help starting the engine faster.

  • Page 101: Stopping The Engine

    Follow the same procedure as start- Press the start/stop switch or push the ing procedures above except use the engine stop switch in OFF position. rewind starter to start instead. Turn key in ignition switch to OFF. Grasp manual starter handle firmly Remove key from ignition switch.

  • Page 102: Winch Operation (If So Equipped)

    Dumping the Cargo Box Manual/Autoshift Selector Traxter 5 SPEED except XL models XL models Select a level ground to dump the load of cargo box. WARNING Do not attempt to dump or unload the vehicle on an inclined surface. Apply parking brake and place the transmission lever on PARK position.

  • Page 103: Special Procedures

    ON after starting en- gine continues to flood, see an autho- gine, stop engine and see an autho- rized Bombardier ATV dealer. rized Bombardier ATV dealer as soon as possible. Engine Overheat If engine overheats and indicator light...

  • Page 104: Post-Operation Care

    Metal- WARNING lic parts lubrication is highly recom- mended. Use BOMBARDIER LUBE The exhaust pipe can be very hot. (P/N 293 600 016). This must be per- Wear gloves and/or allow exhaust formed at the end of each operating pipe to cool.

  • Page 105: Storage And Preseason Preparation

    See an authorized Bombardier ATV dealer for proper procedures. When using your ATV after storage, a preparation is required. See an autho- rized Bombardier ATV dealer for proper procedures. V01E05Y 1. Use screwdriver as a handgrip 2. Pull to downshift 3.

  • Page 106: Cargo And Transportation

    CARGO AND TRANSPORTATION While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death. Cargo Traxter CVT TOTAL LOAD ALLOWED: WARNING 220 kg (485 lb) The vehicle handling, stability and (includes driver, all other loads braking distance are affected when and added accessories)

  • Page 107: Hauling A Trailer

    Transportation Traxter 5 SPEED except XL Models When transporting a vehicle, secure vehicle to trailer or in pickup box with TOTAL LOAD ALLOWED: suitable tie-downs. Using ordinary 220 kg (485 lb) ropes is not recommended. (includes driver, all other loads and added accessories) WARNING 80 kg (175 lb)
  • Page 108 XL Models Front Location V00A15Y TYPICAL Rear Location Traxter Series except XL Models V03L0GY WARNING Do not tow this vehicle behind a car or other vehicle. Use a trailer. V01A3MY _____________________...

  • Page 109: Maintenance Information

    MAINTENANCE INFORMATION _____________________...

  • Page 110: Maintenance Chart

    MAINTENANCE CHART The maintenance is very important; if you are not familiar with safe service prac- tices and adjustment procedures, see your authorized Bombardier ATV dealer. I: Inspect, verify, clean, adjust, lubricate or replace if EVERY Initial in- necessary spection...
  • Page 111 I: Inspect, verify, clean, adjust, lubricate or replace if EVERY Initial in- necessary spection To be C: Clean 10 h or performed 100 h or 200 h or 30 days L: Lubricate 25 h or 50 h or 1 year or 2 years or or 250 km 625 km...
  • Page 112 Cargo box gate latches Customer Vehicle cleaning and protection Customer (1) To be performed by an authorized Bombardier ATV dealer. The initial maintenance is very im- portant and must not be neglected. (2) Pre-ride inspection item. (3) Every 100 hours, check coolant strength.

  • Page 113: Maintenance

    MAINTENANCE While reading this Operator’s Guide, remember that: WARNING Indicates a potential hazard that, if not avoided, could result in serious in- jury or death. WARNING WARNING The engine oil can be very hot. Unless otherwise specified, engine Wait until engine oil is warm. should not be running for all mainte- nance procedures.
  • Page 114 Be sure that the old filter O-ring is removed. CAUTION: Only use Bombardier high pressure filter or suitable equivalent. The Bombardier filter is specifically designed for this en- gine. This filter does not operate at the same pressure as other brands. V04C08Y...
  • Page 115 Remove oil strainer cover and oil col- Coolant Replacement lector, located near drain plug, then clean oil strainer. WARNING In order to avoid potential burns, do not remove the radiator cap or loosen the engine drain plug if the engine is hot. Turn the radiator cap counterclockwise and remove it.
  • Page 116 V01C3SZ TRAXTER 5 SPEED — UNDER ENGINE 1. Cooling drain plug Unscrew the bleeding screw on the top of thermostat housing. Drain the system completely and rein- V03C03Y stall the drain plug. TRAXTER 5 SPEED Pinch hose between radiator and ther- mostat housing with a large hose Fill the radiator until the coolant comes pincher (P/N 529 032 500).
  • Page 117 WARNING Never run engine in an enclosed area. Never perform this opera- tion immediately after the engine has been run because exhaust sys- tem is very hot. Make sure that there are no combustible materi- als in the area. Wear eye protec- tion and gloves.

  • Page 118: Carburetor

    A HIGH PRESSURE WASHER. Properly reinstall access plug and seat. XL Models To reach the radiator, lift cargo box. Carburetor See an authorized Bombardier ATV dealer each year to verify and clean the fuel system. Air Intake System Air Filter Cleaning/Draining Periodically inspect air filter box drain tube for liquid or deposits.

  • Page 119: Electrical

    If liquid/deposits are found, squeeze and remove the clamp. Pull drain tube out and empty it. CAUTION: Do not start engine when liquid/deposits are found in the drain tube. When liquid/deposits are found, the air filter must be inspected/dried/re- placed depending on its condition. Remove air filter as explained below.

  • Page 120: Fuses

    Battery Remove corrosion from battery cable terminals and battery posts using a firm wire brush. Battery top should be WARNING cleaned by soft brush and any grease- Never charge a battery while in- cutting soap or baking soda solution. stalled in vehicle. Refilling Removal Place battery on a level surface.
  • Page 121 On Traxter CVT , the fuse holder is lo- cated at the rear of the vehicle, on left side, under rear fender. V00G01Y TRAXTER CVT 1. Spare 2. Spare V04G1KY 3. Accessories (power outlet and auxiliary supply) TRAXTER CVT 4. Fan 1.
  • Page 122 To remove fuse from holder, remove the fuse holder cover then pull fuse out. Check if filament is melted. V04G02Y Rotate the bulb socket counterclock- wise then remove headlamp. A15E0KY TYPICAL 1. Fuse 2. Check if melted Bulb Replacement WARNING Always turn the ignition switch OFF before replacing a defective bulb.
  • Page 123 Indicator Light Traxter 5 SPEED If one LED is burnt in the indicator light cluster, see an authorized Bombardier ATV dealer for replacement of the light cluster. Speedometer The speedometer is lighted with LEDs. If one LED burns, replace the speedometer.

  • Page 124: Drive Train

    Push and pull the wheels from the Front Propeller Shaft upper edge to feel the play. See an Check the front propeller shaft boots authorized Bombardier ATV dealer if for cracks, tears or other damages. there is any play. See an authorized Bombardier ATV dealer if any damage is detected.

  • Page 125: Tire Pressure

    Tire Pressure Do not make a tire rotation. The front and rear tires have a different size. WARNING The tires are directional and their ro- tation must be kept in a specific direc- Tire pressure greatly affects vehi- tion for proper operation. cle handling and stability.

  • Page 126: Steering System

    Steering System Throttle Cable Lubrication The throttle cable must be lubricated with silicone lubricant (P/N 293 600 041) or an equivalent. WARNING Always use a silicone-based lubri- cant. Using another lubricant (like a water-based lubricant) could V07I0GY cause the throttle lever/cable stick- 1.

  • Page 127: Suspension

    V01I1VY 1. Throttle lever A. 3 to 6 mm (1/8 to 7/32 in) With the transmission lever on PARK V07I0IY position, start the engine. Check if Remove the carburetor side cover. the throttle cable is adjusted correctly by turning handlebar fully right then Insert the needle of spray can in the fully left.
  • Page 128 Check A-arms for cracks, bending or condition. other damages. See an authorized Bombardier ATV dealer as necessary. Swing Arm Check swing arm for distortion, cracks or bending. See an authorized Bom- bardier ATV dealer if any problem is de- tected.

  • Page 129: Brake

    (P/N 293 600 041) or an equiv- adjustment is necessary. See an au- alent, then press the brake pedal to thorized Bombardier ATV dealer. The move the brake cable. Repeat this second system is hydraulic and re- procedure until the silicone lubricant quires no adjustment.
  • Page 130 Latch Lift up cargo box and check latches Check latch condition. See an autho- mechanism and pins for wear. rized Bombardier ATV dealer for parts Check gate latches condition. replacement if damaged. See an authorized Bombardier ATV Vehicle Cleaning and Protection dealer for parts replacement if dam- aged.

  • Page 131: Troubleshooting

    Check that ignition switch and/or engine stop switch(es) is/are at the ON position. – Start engine with spark plug(s) grounded to engine away from spark plug holes. If no spark appears, replace spark plug(s). – If trouble persists, contact an authorized Bombardier ATV dealer. _____________________...
  • Page 132 Contact an authorized Bombardier ATV dealer. 4. Engine is overheating. – Check ENGINE OVERHEAT in SPECIAL PROCEDURES. – If overheating persists, contact an authorized Bombardier ATV dealer. 5. Air filter box plugged or dirty. – Check air filter and clean if necessary. –...
  • Page 133 Check the position of the air intake tube, reinstall properly if necessary. 4. CVT dirty or wear. – Contact an authorized Bombardier ATV dealer. Engine indicator light irregularly flashes at idle speed 1. Engine idle is set too low. –...
  • Page 134 Contact an authorized Bombardier ATV dealer. 2. TPS sensor is defect. – Check TPS connector on carburetor. – If the connection is good, contact an authorized Bombardier ATV dealer. 3. Engine. – Contact an authorized Bombardier ATV dealer. Cargo box does not latch properly 1.

  • Page 135: Specifications

    SPECIFICATIONS Traxter CVT VEHICLE MODEL 650 XT ENGINE Bombardier-Rotax , 4-stroke. Over Head ® Type Camshaft (OHC) , liquid cooled. Number of cylinder Single cylinder Number of valves 4 valves with hydraulic lifters (no adjustment) 498 cc Displacement 644 cc (39.3 cu. in) (30.4 cu.
  • Page 136 Traxter CVT VEHICLE MODEL 650 XT ELECTRICAL Make Denso Magneto generator Type 400 W @ 6000 RPM Ignition type CDI (Capacitor Discharge Ignition) Ignition timing Not adjustable Engine RPM limiter 7400 RPM (any gear in forward) Vehicle speed limiter 15 km/h (9 MPH) in reverse...
  • Page 137 Traxter CVT VEHICLE MODEL 650 XT DRIVE TRAIN Shaft driven/single auto-lock differential Front differential (shear pump) Rear axle Shaft driven/solid axle SUSPENSION Independent suspension — single A-arm, Type 2 shock absorbers (oil) Front Travel 178 mm (7 in) Rigid swing-arm,...
  • Page 138 Traxter CVT VEHICLE MODEL 650 XT LOADING CAPACITY Front rack 40 kg (90 lb) (includes front storage tray) Rear rack (includes tongue load) 80 kg (175 lb) Total vehicle load allowed (includes operator, all other loads and added 220 kg (485 lb)
  • Page 139 VEHICLE MODEL 650 XT LIQUIDS SAE 10W40, 4-stroke mineral-based. API Oil type classification SG, SH or SJ or Bombardier (engine and transmission) synthetic oil. Refer to OIL VISCOSITY CHART for other grade Ethylene-glycol/water mix (50% coolant, 50% distilled water). Use Bombardier premixed...
  • Page 140 Traxter 5 SPEED VEHICLE MODEL Standard ENGINE Bombardier-Rotax ® , 4-stroke. Longitudinal Type mount, liquid cooled, OHV. Number of cylinder Single cylinder Number of valves 2 valves with hydraulic lifters (no adjustment) Displacement 498 cc (30.4 cu. in) Bore Standard 89 mm (3.5 in)
  • Page 141 Traxter 5 SPEED VEHICLE MODEL Standard ELECTRICAL Make Denso Magneto generator Type 400 W @ 6000 RPM Ignition type IDI (Inductive Discharge Ignition) Ignition timing Not adjustable Engine RPM limiter 7700 RPM (any gear in forward) Vehicle speed limiter 15 km/h (9 MPH) in reverse Make Spark plug Type...
  • Page 142 Traxter 5 SPEED VEHICLE MODEL Standard DRIVE TRAIN Shaft driven/single auto-lock differential Front differential (shear pump) Rear axle Shaft driven/solid axle SUSPENSION Independent suspension — single A-arm, Type 2 shock absorbers (oil) Front Travel 178 mm (7 in) Rigid swing-arm, Type 2 shock absorbers (oil) Rear...
  • Page 143 Traxter 5 SPEED VEHICLE MODEL Standard LOADING CAPACITY Front rack 40 kg (90 lb) (includes front storage tray) Rear rack (includes tongue load) 80 kg (175 lb) N.A. N.A. 273 kg (601 lb) Cargo box (includes tongue load) Lateral compartment N.A.
  • Page 144 Traxter 5 SPEED VEHICLE MODEL Standard LIQUIDS SAE 5W30, 4-stroke mineral-based. API classification SG, SH or SJ or Bombardier Oil type synthetic oil. Do not use other synthetic oil, (engine and transmission) synthetic blend oil or special additive . Refer...

  • Page 145: International System Metric Information

    INTERNATIONAL SYSTEM METRIC INFORMATION BASE UNITS DESCRIPTION UNIT SYMBOL length ..........meter ........ mass ..........kilogram ......force........... newton......liquid ..........liter ........temperature ........Celsius ......°C pressure ..........kilo pascal......torque ..........newton-meter ....land velocity ........kilometer per hour..... km/h navigation velocity ......

  • Page 146: Warranty

    WARRANTY _____________________...

  • Page 147: Brp Limited Warranty North America: 2005 Bombardier Atv

    ††† warranted separately by the tire and winch manufacturer. If such tire or winch are installed on your Bombardier ATV, please contact the manufacturer or ask your authorized Bombardier ATV dealer for warranty coverage and assistance. Warn Industries inc. (for the winches), Carlisle Tire &...
  • Page 148 3) CONDITIONS TO HAVE WARRANTY COVERAGE This warranty coverage is available only on 2005 Bombardier ATVs purchased as new and unused by its first owner from a Bombardier dealer authorized to distrib- ute Bombardier ATV products in the country in which the sale occurred (“Bom- bardier ATV dealer”), and then only after the BRP specified pre-delivery inspection...
  • Page 149 Bombardier ATV dealer and gives the coordinates of the new owner; or b) BRP or an authorized Bombardier ATV dealer receives a proof that the former owner agreed to the transfer of ownership, in addition to the coordinates of the new owner.
  • Page 150 VALCOURT, QC, J0E 2L0 WAUSAU WI 54401 Tel : (819) 566-3366 Tel : (715) 848-4957 * In the USA, products are distributed and serviced by Bombardier Motor Corpo- ration of Americ a. © 2004 Bombardier Recreational Products Inc. All rights reserved.

  • Page 151: Brp International Limited Warranty: 2005 Bombardier Atv

    3) CONDITIONS TO HAVE WARRANTY COVERAGE This warranty coverage is available only on 2005 Bombardier ATVs purchased as new and unused by its first owner from a Bombardier dealer authorized to distrib- ute Bombardier ATV products in the country in which the sale occurred (“Bom- bardier ATV distributor/dealer”...
  • Page 152 BRP’s obligations under this warranty are limited to, at its sole discretion, repair- ing parts found defective under normal use, maintenance and service, or replac- ing such parts with new genuine Bombardier parts without charge for parts and labor, at any authorized Bombardier ATV distributor/dealer.
  • Page 153 YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE, OR PROVINCE TO PROVINCE. Neither the distributor, any Bombardier ATV dealer nor any other person has been authorized to make any affirmation, representation or warranty regarding the product, other than those contained in this limited warranty, and if made, shall not be enforceable against BRP.
  • Page 154 PRODUCTS INC. BOMBARDIER ATV CUSTOMER ASSISTANCE CENTER VALCOURT, QC, J0E 2L0 Tel : (819) 566-3366 * In the USA, products are distributed and serviced by Bombardier Motor Corpo- ration of America. © 2004 Bombardier Recreational Products Inc. All rights reserved. †...

  • Page 155: Privacy Obligation/Disclaimer

    If you prefer not to have your name and address released, please let us know by writing to the address below. Bombardier Recreational Products Inc. Warranty Department 75 J.A. Bombardier Street Sherbrooke, Québec J1L 1W3...

  • Page 156: Change Of Address/Ownership

    STOLEN UNITS: If your personal ATV is stolen, you should notify BRP or an au- thorized Bombardier ATV dealer. We will ask you to provide your name, address, phone number, the vehicle identification number and the date it was stolen.
  • Page 157 AFFIX PROPER POSTAGE Bombardier Recreational Products Inc. WARRANTY DEPARTMENT 75, J.A. Bombardier Sherbrooke, QC Canada J1L 1W3 V00A2G _____________________...
  • Page 158 STOLEN UNITS: If your personal ATV is stolen, you should notify BRP or an au- thorized Bombardier ATV dealer. We will ask you to provide your name, address, phone number, the vehicle identification number and the date it was stolen.
  • Page 159 AFFIX PROPER POSTAGE Bombardier Recreational Products Inc. WARRANTY DEPARTMENT 75, J.A. Bombardier Sherbrooke, QC Canada J1L 1W3 V00A2G _____________________...
  • Page 160 ATV MODEL No. VEHICLE IDENTIFICATION NUMBER (V.I.N.) ENGINE IDENTIFICATION NUMBER (E.I.N.) Owner: NAME STREET CITY STATE/PROVINCE ZIP/POSTAL CODE Purchase Date YEAR MONTH Warranty Expiry Date YEAR MONTH To be completed by the dealer at the time of the sale. DEALER IMPRINT AREA V00A2IL Please verify with your dealer to ensure your vehicle has been registered with BRP.

This manual is also suitable for:

500Traxter cvt 650Traxter cvt 500Traxter cvt 650 x

Table of Contents
