SECTION 8

BOARD LAYOUTS

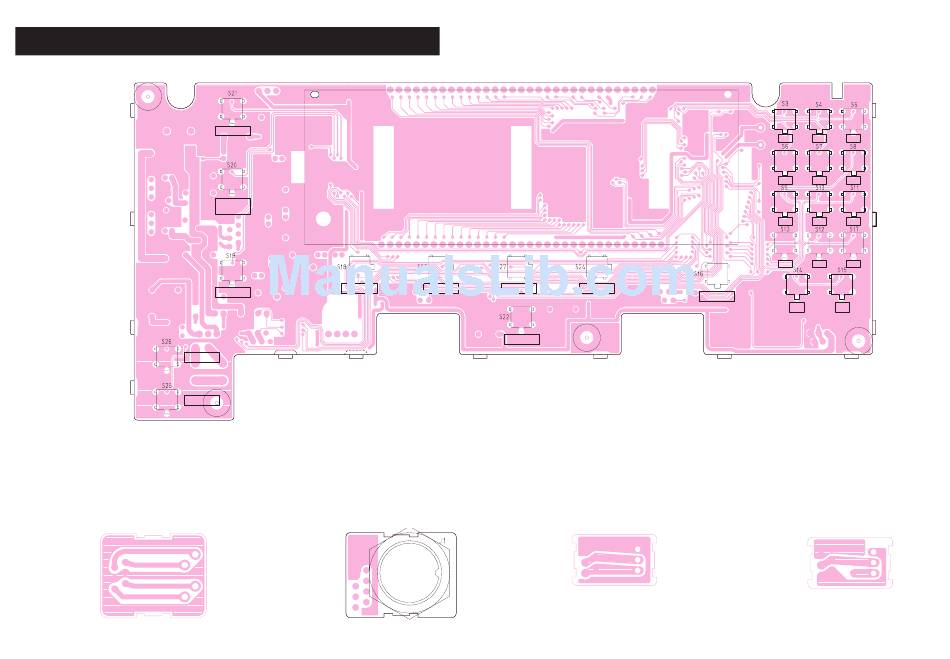

8-1 LOGIC UNIT

• TOP VIEW
SPEAKER
DIMMER

8-2 SENSOR1/2 BOARDS

• TOP VIEW
TX FREQ
2182kHz
/RESET
MODE
ALARM
Add "2000" to each indicated part number
NOTE:
on the unit for the actual number.

8-3 MIC BOARD

• TOP VIEW
Add "2300" to each indicated part number
NOTE:
on the unit for the actual number.
8 - 1
AGC NB SQL
TUNE
8-4 VR1 BOARD
• TOP VIEW
1 2 3
4 5 6
7 8 9
CE 0 -
FUNC
RX TX
8-5 VR2 BOARD
• TOP VIEW
