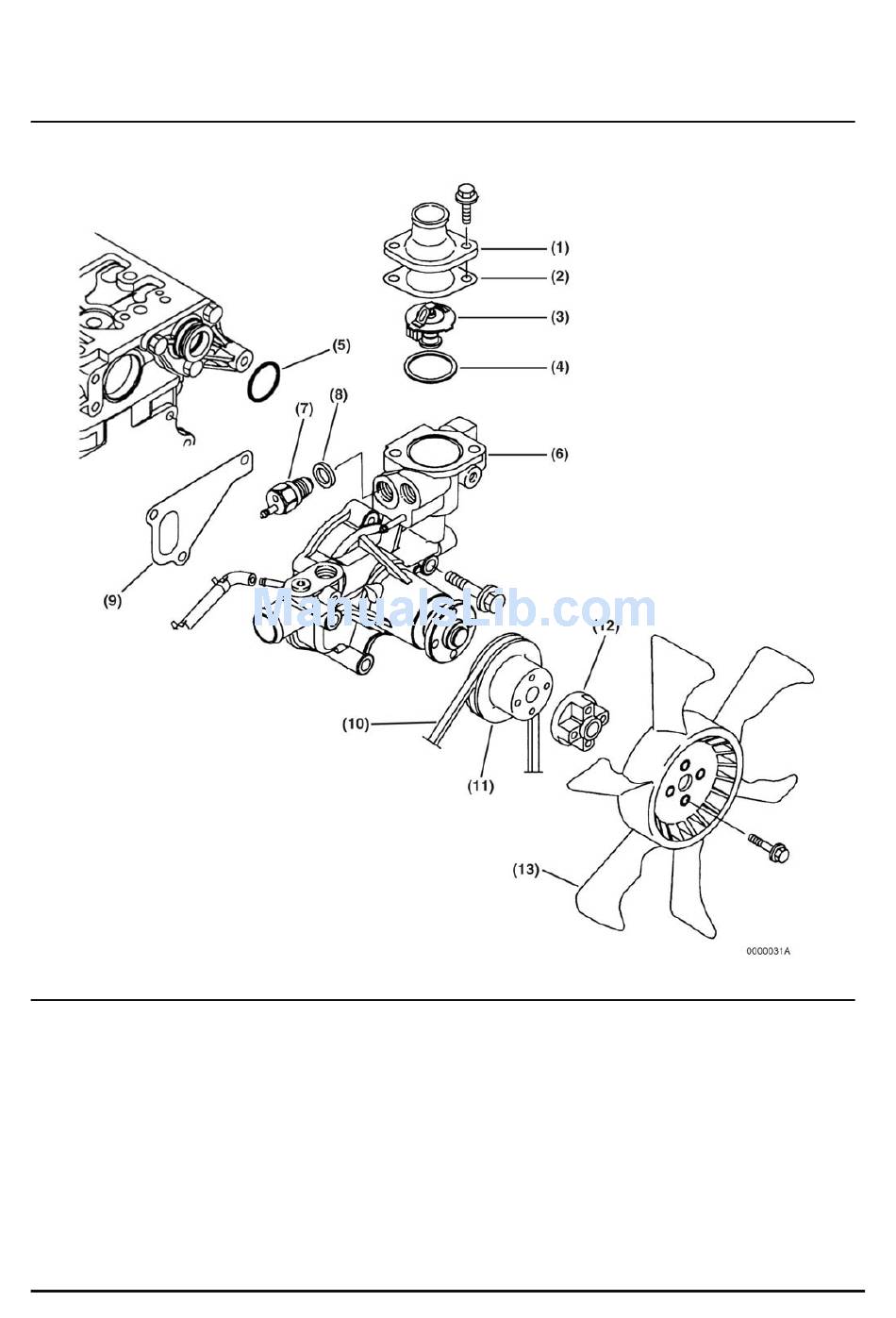

Engine Coolant Pump Components
Figure 8-2
(1) Thermostat Cover. (2) Thermostat Cover Gasket. (3) Thermostat. (4)Thermostat O-Ring. (5) Special O-Ring.
(6) Engine Coolant Pump. (7) Temperature Switch. (8) Gasket. (9) Engine Coolant Pump Gasket. (10) V-Belt.
(11) Engine Coolant Pump V-Pulley. (12) Spacer. (13) Engine Coolant Fan
4TNV98 & 4TNE98 Diesel Engine
