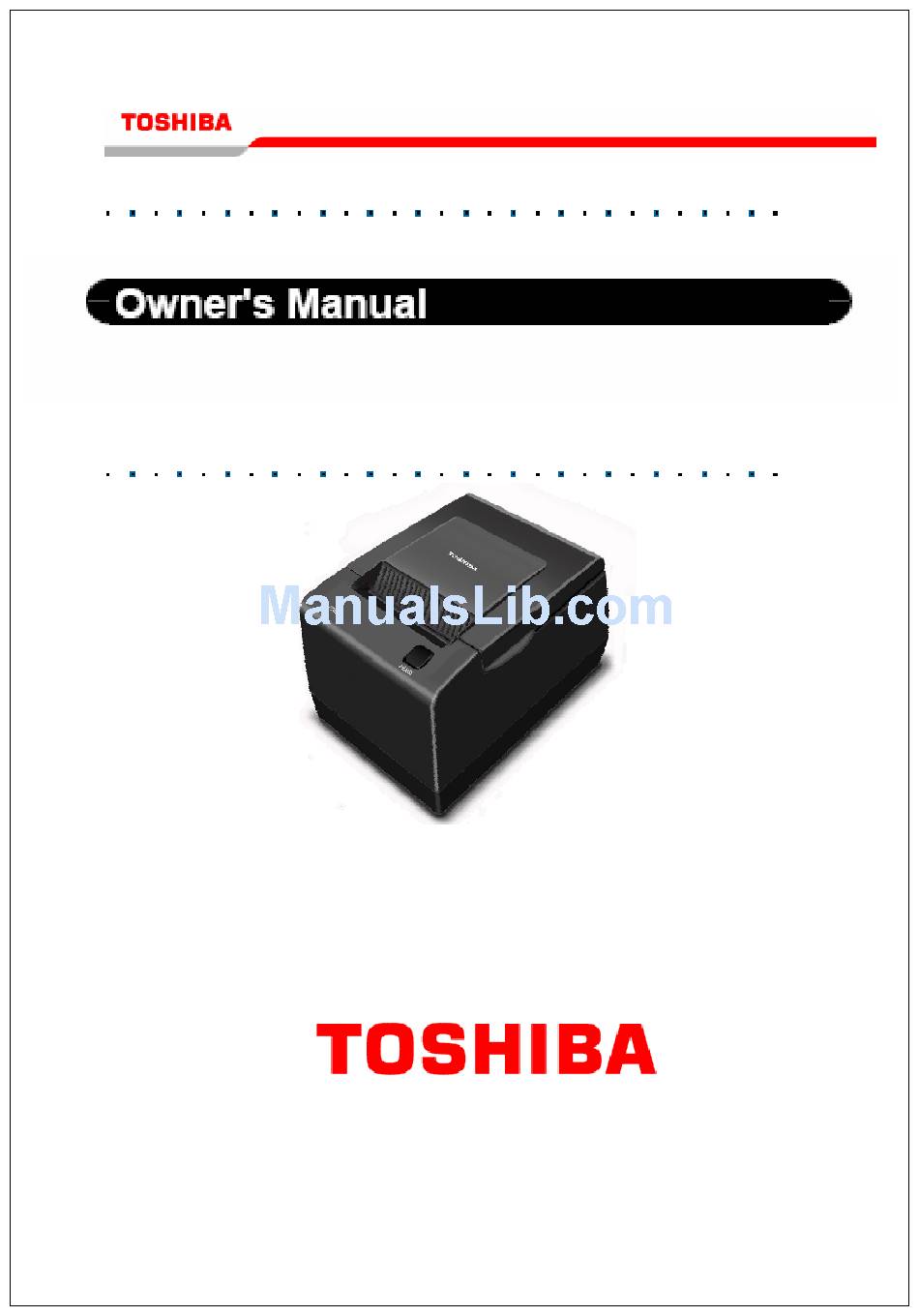

- Page 1 TOSHIBA TEC EUROPE Retail Information Systems TRST-A10 Version 1.2 Der schnellste Bondruck… … hat jetzt 2 Seiten TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 2007-03-14...
- Page 2 Changes or modifications not expressly approved by manufacture for compliance could void the user’s authority to operate the equipment. < For EU only > TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 2007-03-14...
- Page 3 EACH end of the cable. Use of a cable other than described here will require that you test this cable with the Toshiba TEC printer and your system for FCC and CE mark certification.
- Page 4 Abschirmleitung muß entweder mit dem Rahmens des Gerätes oder der Erde verbunden sein oder alternativ müssen alle Enden des Kabels geerdet werden. Falls das Verbindungskabel nicht in der hier beschrieben Art benutzt wird, muessen das Kabel und der Toshiba TEC Drucker auf die FCC und CE-Markierungs Befolgung überprüft werden.
- Page 5 Toshiba TEC immediately. The Toshiba TEC company is not responsible for any radio or television interference caused by unauthorized modification of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Toshiba TEC.
- Page 6 Ersatzes der anschließenden Kabel oder durch Anschluß von Geräten hervorgerufen wird, die nicht ausdrücklich von Toshiba TEC genehmigt wurden sind. Die Korrektur von Störungen, die durch solche unautorisierte Änderung, Ersatz oder Zubehör verursacht werden, liegt in der Verantwortlichkeit des Benutzers.
-
Page 7: Table Of Contents
7. TROUBLESHOOTING ......................32 CAUTION! 1. This manual may not be copied in while or in part without prior written permission of TOSHIBA TEC. 2. The contents of this manual may be changed without notification. 3. Please refer to your local Authorised Service representative with regard to any queries you may have in this manual. -
Page 9: Product Overview
Thank you for purchasing the TOSHIBA TRST-A10 Series Thermal Printer. This printer is a compact line thermal printer designed to be connected to a TOSHIBA POS terminal or used as a kitchen printer, etc. It prints both 80 mm-wide and 58 mm-wide receipts at the maximum print speed of 225mm/sec. -
Page 10: Specifications
-20°C to 60°C Storage humidity 10% to 90% RH (no condensation) Weight 1.7 Kg Dimension 145.5 mm (W) x 185.5 mm (D) x 141.0 mm (H) TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 10 of 32 2007-03-14... -
Page 11: Receipt Roll
Rubbing the paper hard with nail or hard object may discolour the paper. • The paper end should not be pasted to the core. For further information please contact your authorized TOSHIBA TEC representative or authorized paper manufacturer. TOSHIBA TEC Europe Retail Information Systems... -
Page 12: Appearance
When the power switch is turned on while the [FEED] button is pressed and held, the printer will perform a self test print TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 12 of 32 2007-03-14... - Page 13 NOTE: If other LED status except for the above occurs, turn the power off, and then on. If this does not restore the LEDs, contact your nearest TOSHIBA TEC representative for assistance. TOSHIBA TEC Europe Retail Information Systems...
-
Page 14: Connectors
A drawer cable which connects the printer to a drawer is connected to this connector. To this connector, a Toshiba drawer can be connected. Do not connect anything other than the connectable drawer. Note: For connectable drawers, refer to your nearest authorized TOSHIBA TEC representative. -
Page 15: Set Up Procedure
Serial interface Type • The TOSHIBA POS terminal to be connected must have a serial port. • To communicate with the TOSHIBA POS terminal, an RS-232C interface cable is required. RS-232C cable..9 pins USB Interface Type • The TOSHIBA POS terminal to be connected must have a USB port. - Page 16 RS-232C cable pin configuration TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 16 of 32 2007-03-14...
- Page 17 USB cable connector Parallel Interface Type (Option) IEEE 1284-B receptacle PIN No. Signal /STROBE PD1-8 /ACK BUSY PERROR SELECT /AUTOFD /INIT /FAULT /SELECTIN 19-30 15-18 N.C. 33-35 N.C. TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 17 of 32 2007-03-14...
-
Page 18: Setting Up The Printer
Connect the interface cable to the printer. Insert the power cord into the AC inlet. Connect the interface cable to a TOSHIBA POS terminal, and plug in the power cord to the AC outlet. If a drawer is desired to be connected, connect the drawer interface cable to the printer. -
Page 19: Installation Procedure
6. Do not connect the power cord to the AC outlet provided on the POS terminal such as ST- 5600, ST-5500, etc. CAUTION! 1. When separating the AC adapter, please contact your authorized TOSHIBA TEC representative. 2. The built-in AC adapter is exclusively for this printer. Do not use it for any other machines. -
Page 20: Connecting The Power Cord And Interface Cable
Serial interface: Secure the connector with the screws. USB interface: Securely insert the connector until a positive click is heard. [Serial Interface Connector] [USB Interface Connector] [Parallel Interface Connector] TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 20 of 32 2007-03-14... - Page 21 Connect the interface cable to the TOSHIBA POS terminal or Personal Computer, and then plug in the power cord to the AC outlet. Interface cable TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 21 of 32 2007-03-14...
-
Page 22: Connecting The Drawer
5.2 Connecting the Drawer Turn the printer power OFF. Connect the drawer cable to the drawer interface connector in the correct orientation. TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 22 of 32 2007-03-14... -
Page 23: Loading The Receipt Roll
C. Please do not operate out of range for safe operation. CAUTION! 1. Use only TOSHIBA TEC specified paper. Use of non-specified paper may shorten the print head life resulting in problems with print quality, cause a paper feed failure, or shorten the cutter life. - Page 24 5) Pull the receipt until it extends past the paper outlet for about 5 cm (3), and then close the printer cover by pressing it’s front centre gently until a positive lock is felt. Raised Print Cover edge Receipt Roll TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 24 of 32 2007-03-14...
-
Page 25: Self Test Print
> 4 Clicks Print Current Setting > 5 Clicks EEPROM to Default Setting > 6 Clicks Enter code then hold Button DOWN at least 1 second to validate TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 25 of 32 2007-03-14... - Page 26 When Rolling ASCII Print (Rcpt) is selected, test print will start. Press the Paper Feed Button to stop the test. Rolling ASCII Stop and exit test > Long Click Page number 00000008 !”#$%& !”#$%&’ “#$%&’( TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 26 of 32 2007-03-14...
- Page 27 Press the Paper Feed Button to start or stop the test. Press the Paper Feed Button to stop the test. H Print test Stop and exit test -> Long Click Page number 00000008 HHHHH HHHHH HHHHH TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 27 of 32 2007-03-14...
- Page 28 Press the Paper Feed Button to continue or stop the test. Duty Check Print Stop and exit test > Short Click Continue test > Long Click 00000008 TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 28 of 32 2007-03-14...
- Page 29 Boot Firmware Version : V00.02 Revision : 00 : DEEB Flash Firmware Version : V00.04 Revision : 01 : 6696 SBCS Version : V00.01 Revision : 01 TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 29 of 32 2007-03-14...
-
Page 30: General Maintenance
Wipe the covers with a soft dry cloth or soft cloth slightly moistened with mild detergent. After using detergent for cleaning, be sure to wipe it off with a slightly moistened cloth. TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10... -
Page 31: Removing Jammed Paper
Re-load the receipt roll. (Refer to Section 5.3 Loading the Receipt Roll.) After closing the printer cover, turn the power ON. The printer will initialise the auto cutter to restore the printer stand-by. TOSHIBA TEC Europe Retail Information Systems Owner's Manual TRST-A10 Page 31 of 32... -
Page 32: Troubleshooting
