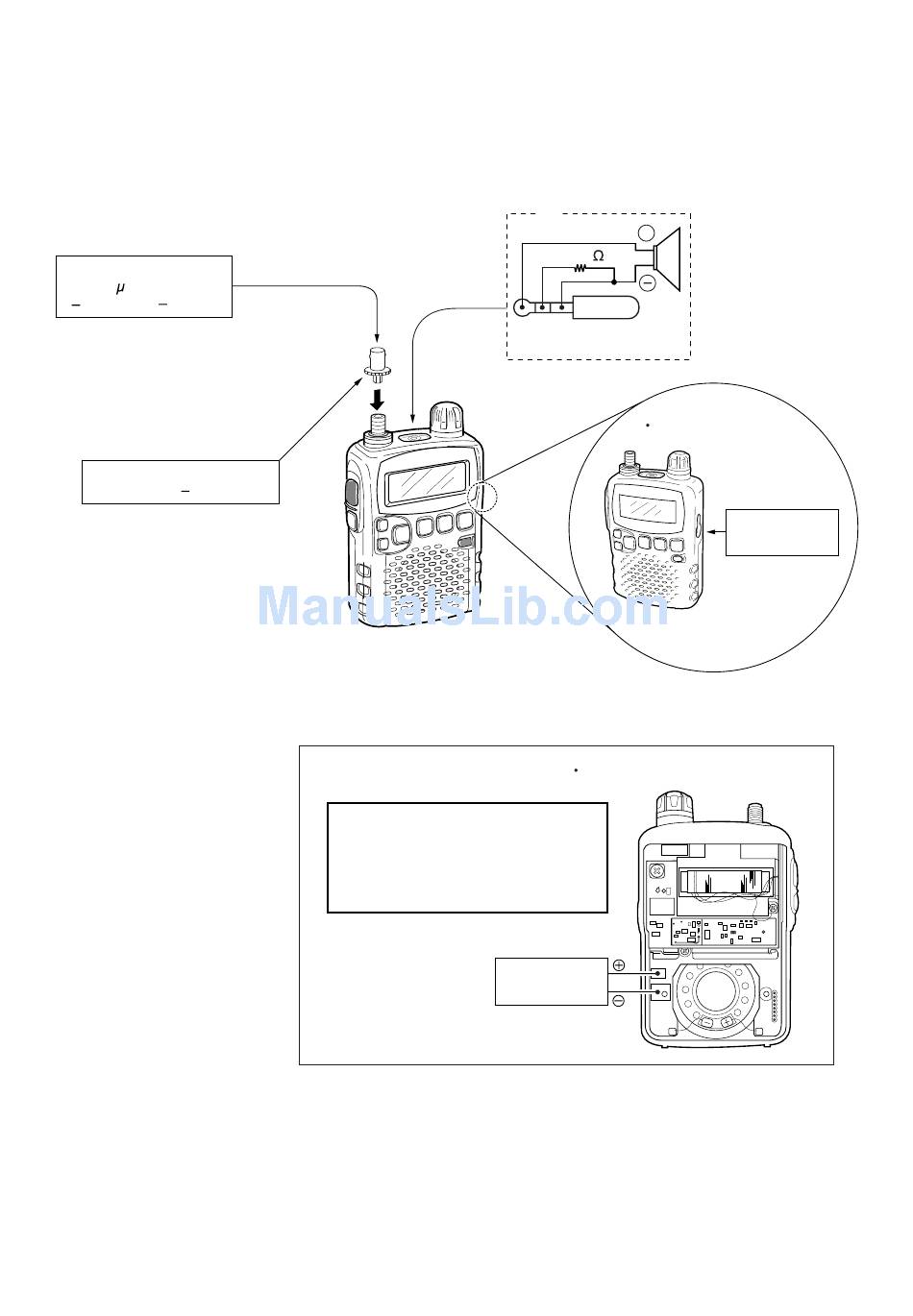

• CONNECTION
Standard signal generator
0.1 V to 32 mV
( 127 dBm to 17 dBm)
AD-92SMA
Optional SMA BNC adaptor
to the antenna connector
CAUTION!
DO NOT
input more than 3.0 V when
connect the power supply to the LOGIC
unit as shown right. Otherwise IC-R5 will
be damaged.
JIG
68 k
to [SP] jack
1/8" (3.5 mm)
3-conductor plug
Connecting the power supply directly
Power supply
3 V / 1 A
5 - 2
+
Using [DC 6V] jack
Power supply
6 V / 1 A
POWER SUPPLY CONNECTION
(IC-R5 has two pattern.)
