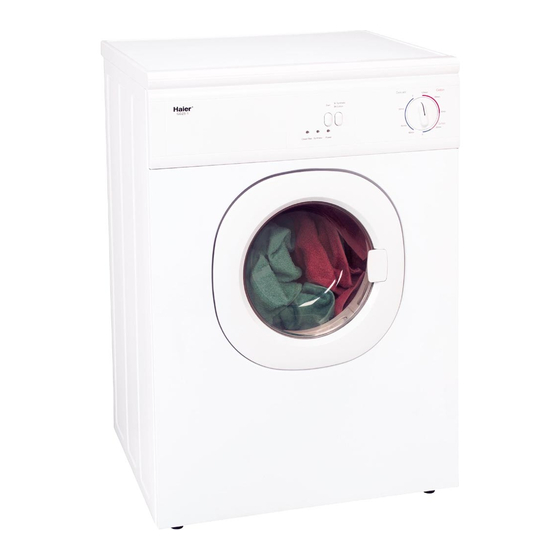

Haier GDZ5-1 Training And Operating Instructions

Compact dryer
Hide thumbs Also See for GDZ5-1:

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
HAIER
COMPACT DRYER
GDZ5-1
Training Presentation

Advertisement

loading

Related Manuals for Haier GDZ5-1

Summary of Contents for Haier GDZ5-1

  • Page 1 HAIER COMPACT DRYER GDZ5-1 Training Presentation...
  • Page 2 HAIER COMPACT DRYER GDZ5-1 11 lbs. Electric Dryer Stackable – Built in – Free Standing 4.13cu ft Stainless Steel Drum Dual Temperature Operation Dry Time Selector “Clean Filter” Indicator Lamp 208-220v Outdoor Venting Required...

  • Page 3: Warranty

    HAIER COMPACT DRYER GDZ5-1 WARRANTY year – all parts and labor year – all parts – 5 year – drive motor, timer and drum rust through – 10 year – cabinet rust through...
  • Page 4 HAIER COMPACT DRYER GDZ5-1 Stacked on top of XQG50-QF800 Front Loading Washer The dryer is mounted with a locking frame attached using the leveling legs. Push the dryer back then lift up to ‘unlock’ it from the washer...
  • Page 5 The dryer is mounted with a “Stacking Kit” attached using the original leveling legs Push the dryer back then lift up to ‘unlock’ it from the washer Leveling Legs are used to mount the Stacking Kit stacking kit...
  • Page 6 DUCTING Use only 4” diameter rigid or flexible metal duct and approved vent hood which has a swing out damper. This chart shows the maximum duct length when elbows are used.

  • Page 7: Control Panel

    CONTROL PANEL Timed Dry Only with a cool down period on all settings...
  • Page 8 CONTROL PANEL Temperature is selected using the Synthetic / Cotton switch Cotton – High Heat – Button Out Synthetic – Low Heat – Button In The Synthetic Light will be lit when the button is in the Synthetic setting...
  • Page 9 CONTROL PANEL Temperature Low Heat is automatically selected when the Delicate setting is selected on the timer...
  • Page 10 CONTROL PANEL Push to Start Switch Select timer setting then push to start the cycle Power light will be lit...
  • Page 11 CONTROL PANEL Clean Filter or No Heat light (may have either designation) This light automatically comes on in the last 8 to10 minutes of the drying cycle, depending on the selected cycle. This light will also be lit when the thermostat cycles to the open position.
  • Page 12 CONTROL PANEL Thermostat in CLOSED position (heat will be off– light will be OFF) Cool down contact in the timer...
  • Page 13 CONTROL PANEL Thermostat in OPEN position (heat will be off– light will be ON) Cool down contact in the timer...
  • Page 14 SCHEMATIC GDZ5-1 DRYER !! CAUTION !! Always remove power to the circuit before testing, troubleshooting or making repairs.
  • Page 15 CONTROL PANEL Removal / Service Screws Slide back Remove the top cover by removing 2 vertical screws holding the cover to the back panel then slide the cover back...
  • Page 16 CONTROL PANEL Removal / Service Remove 2 screws under top cover Slide Control Panel To Left to release the retaining clips along the lower edge of the control panel...
  • Page 17 CONTROL PANEL Timer Removal Timer Removal Pull knob off from front and remove 2 retaining screws...
  • Page 18 CONTROL PANEL Push Switch Service “WINGS” on each side must be folded back for removal...
  • Page 19 CONTROL PANEL Push Switch Service !! Service Tip !! Grasp the defective switch twist and remove Replace only the switch BODY from the replacement...

  • Page 20: Indicator Lamps

    CONTROL PANEL Indicator Lamps Indicator Lamp Removal Pull sleeve back then slide the lamp out of the lens mount...

  • Page 21: Power Relay

    CONTROL PANEL Power Relay Power Relay The control panel will need to be removed to change the power relay...

  • Page 22: Back View

    BACK VIEW Electrical Power Connection Data Tag Air duct for heater Access to Motor, Idler Pulley and Heater Electrical Connection Vent...
  • Page 23 HEATER / THERMOSTATS Remove the back plenum and access door to access the thermostats and heater. High Limit Thermostat Heating Element High Limit Safety...
  • Page 24 HEATER / THERMOSTATS High Limit Thermostat High Limit Safety Thermostat Heating Element...
  • Page 25 HEATER / THERMOSTATS Wiring routed through hole and has rubber grommet to seal and protect wiring Quick Disconnect for Heater...
  • Page 26 HEATER / THERMOSTATS Cycling Thermostat is located on the air duct next to the fan. Access through motor access cover.
  • Page 27 DRUM BELT / IDLER PULLY SERVICE The idler pulley is accessed through the rear access panel. The pulley is spring loaded. The spring is mounted in a slot in the base.
  • Page 28 DRUM BELT / IDLER PULLY SERVICE Belt Change Remove the top cover and back access panel Remove the screws holding the back to the side panel DO NOT Remove the bottom screws Remove the belt from the idler pulley...
  • Page 29 DRUM BELT / IDLER PULLY SERVICE Tilt back panel with drum attached outward 3 to 4 inches Front Back...
  • Page 30 DRUM BELT / IDLER PULLY SERVICE The belt can now be removed and replaced through the gap at the front of the drum. !! CAUTION !! Watch for sharp edges on cross braces Front Back...
  • Page 31 DRUM BELT / IDLER PULLY SERVICE When replacing the drum be certain the front lip of the drum rides inside of the front glides. Front Back...
  • Page 32 FRONT DRUM SUPPORT GLIDE REPLACEMENT To replace the front drum support glides, remove all screws holding the back panel in place Remove the belt from the idler pulley Disconnect the heater wiring connector...
  • Page 33 FRONT DRUM SUPPORT GLIDE REPLACEMENT The drum and back can now be lifted out as an assembly. !! NOTE !! The air plenum DOES NOT have to be removed for this procedure...
  • Page 34 FRONT DRUM SUPPORT GLIDE REPLACEMENT You now have easy access to the front glides, front plenum and other components.
  • Page 35 FRONT DRUM SUPPORT GLIDE REPLACEMENT The glides are easily removed with 2 screws. This also gives access to the felt seal.
  • Page 36 REAR DRUM BEARING REPLACEMENT Remove the back panel as shown in an earlier slide. Remove the rear air plenum exposing the heater and bearing.
  • Page 37 REAR DRUM BEARING REPLACEMENT Loosen the locking nut and remove the bearing retainer cap...
  • Page 38 REAR DRUM BEARING REPLACEMENT Replace the nut on the end of the shaft far enough to protect the threads then drive the shaft out of the bearing. Use a soft face hammer for this process...
  • Page 39 REAR DRUM BEARING REPLACEMENT The shaft and bearing are both replaceable and purchased separately...
  • Page 40 REAR DRUM BEARING REPLACMENT Install the new bearing using a nut and washer to pull the bearing into place. The bearing will bottom against a shoulder on the shaft.
  • Page 41 DOOR LATCH SWITCH REPLACEMENT The door latch switch can be serviced in many ways. The view below shows the switch with only the top removed.
  • Page 42 DOOR LATCH SWITCH REPLACEMENT The door latch is NORMALLY OPEN and closes when the door is closed The switch is held in place with a C shaped plastic retainer. Use care when snapping the switch out that you do not damage the retainer bracket.
  • Page 43 BLOWER AND MOTOR SERVICE The blower and motor is easiest serviced by removing the base pan of the dryer.
  • Page 44 BLOWER AND MOTOR SERVICE To access the motor and blower (easiest) 1 – Remove the belt from the idler pulley 2 - Lay the dryer on it’s left side 3 - Remove the screws from around the perimeter of the base pan Be careful as you remove the last screws.
  • Page 45 BLOWER AND MOTOR SERVICE The motor and blower can now be accessed for easy service...
  • Page 46 BLOWER AND MOTOR SERVICE Remove screws and cover for access to blower wheel Remove the cap screw to remove the blower wheel from the tapered shaft. Reattach firmly to prevent wheel from slipping on shaft.
  • Page 47 BLOWER AND MOTOR SERVICE !! NOTE !! To prevent lint build-up in the base be certain the metal edge of the blower cover is behind the plastic duct .
  • Page 48 BLOWER AND MOTOR SERVICE Motor is a single direction 230v capacitor start motor. Black to Red – Start Windings Black to Blue – Run Windings...
  • Page 49 BLOWER AND MOTOR SERVICE Motor quick disconnect Note bolt and nut holding idler in place Start Capacitor...
  • Page 50 THANK YOU www.haieramericasupport.com...
