Summary of Contents for Delta VFB080D4H1
-
Page 1: Table Of Contents

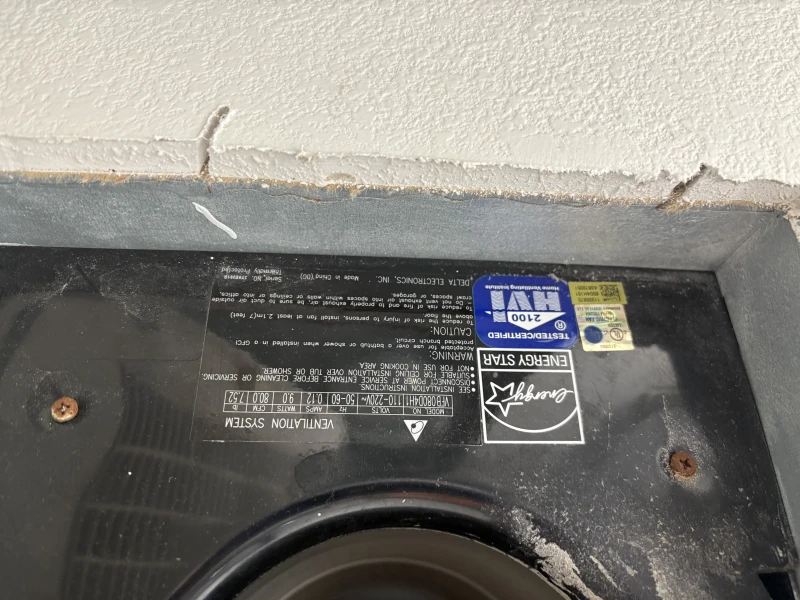

ITEM #809721 HUMIDITY SENSING BATH FAN MODEL VFB080D4H1 TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille Installation Humidity Sensing Fan Operation Care and Maintenance Troubleshooting... -
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION Fan Body Grille Suspension Bracket I Suspension Bracket II Suspension Bracket III Duct Connector HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( 4 x 25) Short Machine Screw (M4 x 12) Model: VFB080D4H1... -
Page 3: General Safety Information
Protection Association (NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers Cooking (ASHRAE) and local code authorities. floor Equipment 5. When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities. Fig. B Model: VFB080D4H1... -
Page 4: Preparation And Wiring Diagrams
10.25 in. 8.5 in. 9.68 in. 9.68 in. 7.98 in. WIRING DIAGRAM BLACK SWITCH BOX JUNCTION BOX WHITE GROUND BLACK ON/OFF SWITCH (bare) SWITCH BOX (purchase separately) WHITE POWER SWITCH GREEN WIRING POWER PLATE SWITCH 120 VAC LINE IN Model: VFB080D4H1... -
Page 5: Assembly Instructions - New Construction
Hardware Long wood screw 4. Secure the suspension brackets to the fan body using a short machine screw. Hardware Short machine screw Short Short machine screw machine screw Model: VFB080D4H1... -
Page 6: Assembly Instructions - Existing Construction
EXISTING CONSTRUCTION – ACCESSIBLE FROM ABOVE BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Remove existing fan. 2. Measure the opening to ensure it is large enough to accommodate the new fan body (10.25 in. x 10.25 in.). Model: VFB080D4H1... - Page 7 4. Wire connections are as follows: black to live switch wire, white to neutral, green to ground. 8. Turn on the power source. Check fan for any abnormal sound or vibration. Model: VFB080D4H1...
-
Page 8: Grille Installation
Blue LED Light Blue LED Light 2. Full Speed Mode: Cycle wall on/off switch. LED indicator light in fan will be AMBER. Amber LED Light Amber LED Light 3. Fan Off: Move wall on/off switch to “OFF” position. Model: VFB080D4H1... -
Page 9: Care And Maintenance
Vacuum cleaner 4. Dampen cloth with dust detergent and wipe the fan body . Then wipe dry with a clean cloth. 5. Replace grille back onto fan body 6. Turn on power source to operate fan again. Model: VFB080D4H1... -
Page 10: Troubleshooting
(approximately less than $10 per year). than 60% RH 2. Outdoor humidity is 2. Turn the fan off when not in use. back drafting to the 3. Indoor temperature level Model: VFB080D4H1... -
Page 11: Dimensions
DIMENSIONS PRODUCT SPECIFICATIONS SPECIFICATIONS Model No. VFB080D4H1 80 CFM Noise ≤ 0.3 Sones Voltage 110-220V Hertz 50-60Hz Power Consumption 9.0 W Duct diameter 4 in. Weight 7.52 lbs. Dimension Ceiling opening – length 10.25 in. Ceiling opening – width 10.25 in. -
Page 12: Warranty
6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
