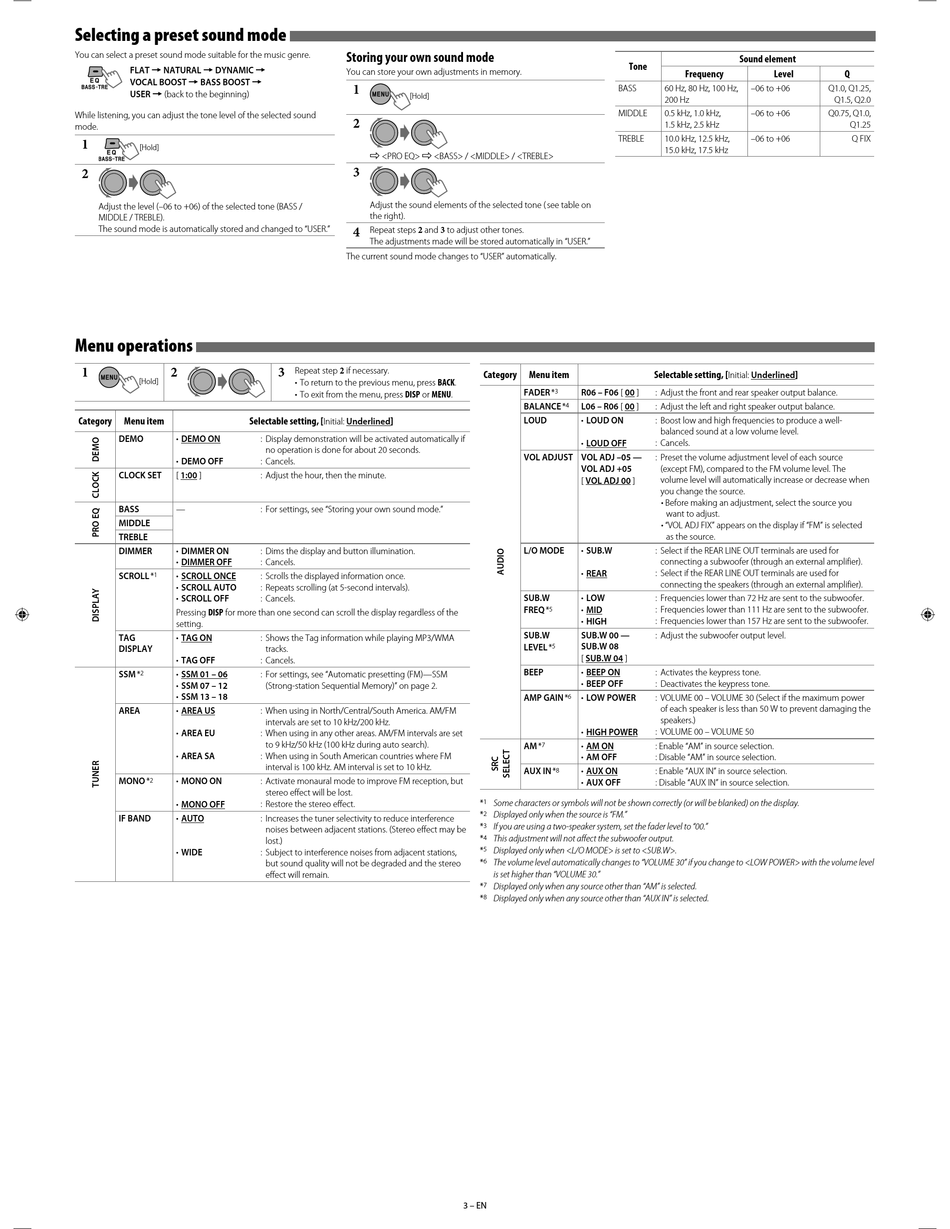

Selecting a preset sound mode
You can select a preset sound mode suitable for the music genre.
FLAT = NATURAL = DYNAMIC =
VOCAL BOOST = BASS BOOST =
USER = (back to the beginning)
While listening, you can adjust the tone level of the selected sound
mode.
1
[Hold]
2
Adjust the level (–06 to +06) of the selected tone (BASS /
MIDDLE / TREBLE).
The sound mode is automatically stored and changed to "USER."
Menu operations
1
2
[Hold]
Category
Menu item
DEMO
• DEMO ON
• DEMO OFF
CLOCK SET
[ 1:00 ]
BASS
—
MIDDLE
TREBLE
DIMMER
• DIMMER ON
• DIMMER OFF
SCROLL *
1
• SCROLL ONCE
• SCROLL AUTO
• SCROLL OFF
Pressing DISP for more than one second can scroll the display regardless of the
setting.
TAG
• TAG ON
DISPLAY
• TAG OFF
SSM *
2
• SSM 01 – 06
• SSM 07 – 12
• SSM 13 – 18
AREA
• AREA US
• AREA EU
• AREA SA
MONO *
2
• MONO ON
• MONO OFF
IF BAND
• AUTO
• WIDE
Storing your own sound mode
You can store your own adjustments in memory.
1
2
] <PRO EQ> ] <BASS> / <MIDDLE> / <TREBLE>
3
Adjust the sound elements of the selected tone ( see table on
the right).
4
Repeat steps 2 and 3 to adjust other tones.
The adjustments made will be stored automatically in "USER."
The current sound mode changes to "USER" automatically.
3
Repeat step 2 if necessary.
• To return to the previous menu, press BACK.
• To exit from the menu, press DISP or MENU.
Selectable setting, [
]
Initial: Underlined
: Display demonstration will be activated automatically if
no operation is done for about 20 seconds.
: Cancels.
: Adjust the hour, then the minute.
: For settings, see "Storing your own sound mode."
: Dims the display and button illumination.
: Cancels.
: Scrolls the displayed information once.
: Repeats scrolling (at 5-second intervals).
: Cancels.
: Shows the Tag information while playing MP3/WMA
tracks.
: Cancels.
: For settings, see "Automatic presetting (FM)—SSM
(Strong-station Sequential Memory)" on page 2.
: When using in North/Central/South America. AM/FM
intervals are set to 10 kHz/200 kHz.
: When using in any other areas. AM/FM intervals are set
to 9 kHz/50 kHz (100 kHz during auto search).
: When using in South American countries where FM
interval is 100 kHz. AM interval is set to 10 kHz.
: Activate monaural mode to improve FM reception, but
stereo effect will be lost.
: Restore the stereo effect.
: Increases the tuner selectivity to reduce interference
noises between adjacent stations. (Stereo effect may be
lost.)
: Subject to interference noises from adjacent stations,
but sound quality will not be degraded and the stereo
effect will remain.
[Hold]
Category
Menu item
FADER *
3
BALANCE *
4
LOUD
VOL ADJUST VOL ADJ –05 —
L/O MODE
SUB.W
FREQ *
5
SUB.W
LEVEL *
5
BEEP
AMP GAIN *
AM *
7
AUX IN *
8
*
1
Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*
2
Displayed only when the source is "FM."
*
3
If you are using a two-speaker system, set the fader level to "00."
*
4
This adjustment will not affect the subwoofer output.
*
5
Displayed only when <L/O MODE> is set to <SUB.W>.
*
6
The volume level automatically changes to "VOLUME 30" if you change to <LOW POWER> with the volume level
is set higher than "VOLUME 30."
*
7
Displayed only when any source other than "AM" is selected.
*
8
Displayed only when any source other than "AUX IN" is selected.
3 – EN
Tone
Frequency
BASS
60 Hz, 80 Hz, 100 Hz,
200 Hz
MIDDLE
0.5 kHz, 1.0 kHz,
1.5 kHz, 2.5 kHz
TREBLE
10.0 kHz, 12.5 kHz,
15.0 kHz, 17.5 kHz
Selectable setting, [
R06 – F06 [ 00 ]
: Adjust the front and rear speaker output balance.
L06 – R06 [ 00 ]
: Adjust the left and right speaker output balance.
• LOUD ON
: Boost low and high frequencies to produce a well-
balanced sound at a low volume level.
: Cancels.
• LOUD OFF
: Preset the volume adjustment level of each source
VOL ADJ +05
(except FM), compared to the FM volume level. The
volume level will automatically increase or decrease when
[ VOL ADJ 00 ]
you change the source.
• Before making an adjustment, select the source you
want to adjust.
• "VOL ADJ FIX" appears on the display if "FM" is selected
as the source.
• SUB.W
: Select if the REAR LINE OUT terminals are used for
connecting a subwoofer (through an external amplifier).
: Select if the REAR LINE OUT terminals are used for
• REAR
connecting the speakers (through an external amplifier).
• LOW
: Frequencies lower than 72 Hz are sent to the subwoofer.
• MID
: Frequencies lower than 111 Hz are sent to the subwoofer.
• HIGH
: Frequencies lower than 157 Hz are sent to the subwoofer.
SUB.W 00 —
: Adjust the subwoofer output level.
SUB.W 08
[ SUB.W 04 ]
• BEEP ON
: Activates the keypress tone.
• BEEP OFF
: Deactivates the keypress tone.
6
• LOW POWER
: VOLUME 00 – VOLUME 30 (Select if the maximum power
of each speaker is less than 50 W to prevent damaging the
speakers.)
: VOLUME 00 – VOLUME 50
• HIGH POWER
• AM ON
: Enable "AM" in source selection.
• AM OFF
: Disable "AM" in source selection.
• AUX ON
: Enable "AUX IN" in source selection.
• AUX OFF
: Disable "AUX IN" in source selection.
Sound element
Level
Q
–06 to +06
Q1.0, Q1.25,
Q1.5, Q2.0
–06 to +06
Q0.75, Q1.0,
Q1.25
–06 to +06
Q FIX
]
Initial: Underlined
