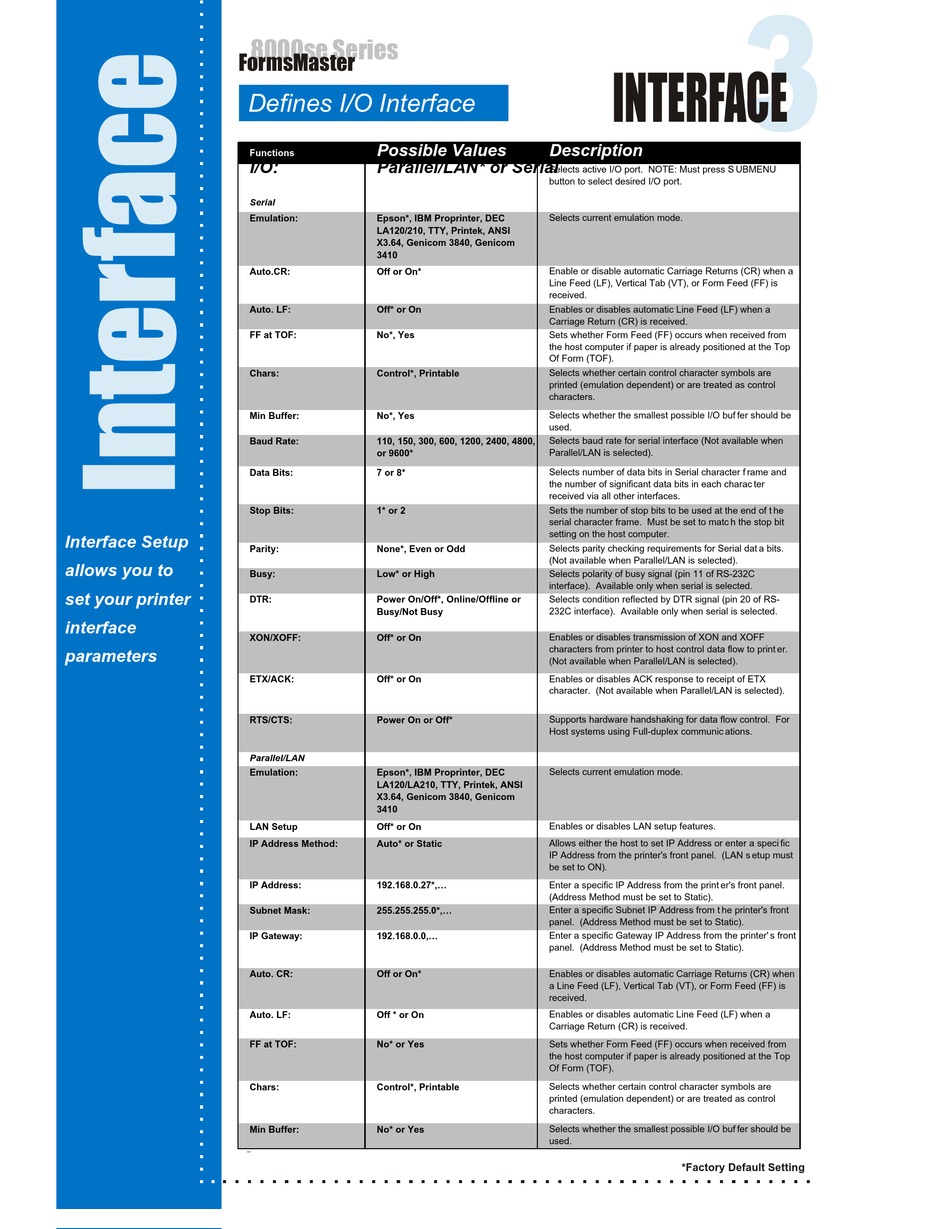

Interface Setup - Printek FormsMaster 8000se Setup Manual

FormsMaster

Interface Setup

allows you to
set your printer
interface
parameters
8000se Series
Defines I/O Interface
Possible Values
Functions
I/O: Parallel/LAN* or Serial
Serial
Emulation: Epson*, IBM Proprinter, DEC
LA120/210, TTY, Printek, ANSI
X3.64, Genicom 3840, Genicom
3410
Auto.CR: Off or On*
Auto. LF: Off* or On
FF at TOF: No*, Yes
Chars: Control*, Printable
Min Buffer: No*, Yes
Baud Rate: 110, 150, 300, 600, 1200, 2400, 4800,
or 9600*
Data Bits: 7 or 8*
Stop Bits: 1* or 2
Parity: None*, Even or Odd
Busy: Low* or High
DTR: Power On/Off*, Online/Offline or
Busy/Not Busy
XON/XOFF: Off* or On
ETX/ACK: Off* or On
RTS/CTS: Power On or Off*
Parallel/LAN
Emulation: Epson*, IBM Proprinter, DEC
LA120/LA210, TTY, Printek, ANSI
X3.64, Genicom 3840, Genicom
3410
LAN Setup Off* or On
IP Address Method: Auto* or Static
IP Address: 192.168.0.27*,...
Subnet Mask: 255.255.255.0*,...
IP Gateway: 192.168.0.0,...
Auto. CR: Off or On*
Auto. LF: Off * or On
FF at TOF: No* or Yes
Chars: Control*, Printable
Min Buffer: No* or Yes
INTERFACE
Description
Selects active I/O port. NOTE: Must press S UBMENU
button to select desired I/O port.
Selects current emulation mode.
Enable or disable automatic Carriage Returns (CR) when a
Line Feed (LF), Vertical Tab (VT), or Form Feed (FF) is
received.
Enables or disables automatic Line Feed (LF) when a
Carriage Return (CR) is received.
Sets whether Form Feed (FF) occurs when received from
the host computer if paper is already positioned at the Top
Of Form (TOF).
Selects whether certain control character symbols are
printed (emulation dependent) or are treated as control
characters.
Selects whether the smallest possible I/O buf fer should be
used.
Selects baud rate for serial interface (Not available when
Parallel/LAN is selected).
Selects number of data bits in Serial character f rame and
the number of significant data bits in each charac ter
received via all other interfaces.
Sets the number of stop bits to be used at the end of t he
serial character frame. Must be set to matc h the stop bit
setting on the host computer.
Selects parity checking requirements for Serial dat a bits.
(Not available when Parallel/LAN is selected).
Selects polarity of busy signal (pin 11 of RS-232C
interface). Available only when serial is selected.
Selects condition reflected by DTR signal (pin 20 of RS-
232C interface). Available only when serial is selected.
Enables or disables transmission of XON and XOFF
characters from printer to host control data flow to print er.
(Not available when Parallel/LAN is selected).
Enables or disables ACK response to receipt of ETX
character. (Not available when Parallel/LAN is selected).
Supports hardware handshaking for data flow control. For
Host systems using Full-duplex communic ations.
Selects current emulation mode.
Enables or disables LAN setup features.
Allows either the host to set IP Address or enter a speci fic
IP Address from the printer's front panel. (LAN s etup must
be set to ON).
Enter a specific IP Address from the print er's front panel.
(Address Method must be set to Static).
Enter a specific Subnet IP Address from t he printer's front
panel. (Address Method must be set to Static).
Enter a specific Gateway IP Address from the printer' s front
panel. (Address Method must be set to Static).
Enables or disables automatic Carriage Returns (CR) when
a Line Feed (LF), Vertical Tab (VT), or Form Feed (FF) is
received.
Enables or disables automatic Line Feed (LF) when a
Carriage Return (CR) is received.
Sets whether Form Feed (FF) occurs when received from
the host computer if paper is already positioned at the Top
Of Form (TOF).
Selects whether certain control character symbols are
printed (emulation dependent) or are treated as control
characters.
Selects whether the smallest possible I/O buf fer should be
used.
*Factory Default Setting
3
