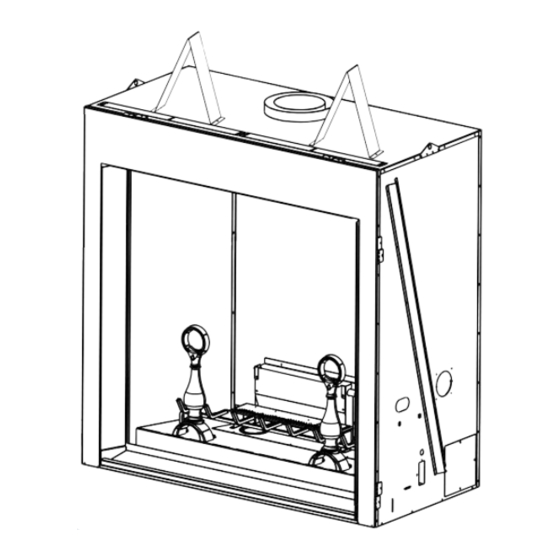

Napoleon The Dream BGD90NT Installation And Operation Instructions Manual
Natural gas; propane
Hide thumbs
Also See for The Dream BGD90NT:
- Installation and operation instructions manual (32 pages) ,
- Operating instructions manual (56 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22, ANSI Z21.50 FOR VENTED GAS FIREPLACES.
BGD90NT
NATURAL GAS
BGD90PT
PROPANE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING: If the information in these
instructions are not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
-
Installation
and
performed by a qualified installer, service
agency or the supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031
$10.00
OPERATION INSTRUCTIONS
service
must
be
www.napoleonfireplaces.com • ask@napoleon.on.ca
INSTALLATION AND
1
W415-0614_05.15.07
W415-0614_05.15.07
Advertisement
Table of Contents
Related Manuals for Napoleon The Dream BGD90NT
Summary of Contents for Napoleon The Dream BGD90NT
-
Page 1: Operation Instructions
If you cannot reach your gas supplier, call the fire department. Installation service must performed by a qualified installer, service agency or the supplier. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031 W415-0614_05.15.07 www.napoleonfireplaces.com • ask@napoleon.on.ca $10.00 W415-0614_05.15.07... -
Page 2: Table Of Contents
TABLE of CONTENTS PG2-5 INTRODUCTION 20-24 OPERATION / MAINTENANCE Warnings and Safety Precautions Fireplace Operation Warranty Hand Held Remote Operation Dimensions Temperature Display General Instructions Room Thermostat General Information SMART Thermostat Care of Glass & Plated Parts Flame Height Fan Shield VENTING Child Proof Function Vent lengths... -
Page 3: Warranty
After the fi rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses are not covered by this warranty. -
Page 4: General Instructions
FIGURE 1 6" Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and operat- GENERAL INSTRUCTIONS ing the fireplace. Never obstruct the front opening of the THIS GAS FIREPLACE SHOULD BE INSTALLED AND SER- fireplace. VICED BY A QUALIFIED INSTALLER to conform with local Objects placed in front of the fireplace must be kept a codes. -
Page 5: Care Of Glass & Plated Parts
Do not use abrasive cleaners to clean glass. Buff lightly with hearth products be installed a clean dry cloth. The glass is 3/16” tempered glass avail- able from your NAPOLEON® / Wolf Steel Ltd. dealer. DO and serviced by profession- NOT SUBSTITUTE MATERIALS. Clean the glass after the als who are certified in the fi... - Page 6 DEFINITIONS ELBOW VENT LENGTH VALUES for the following symbols used in the venting calculations feet inches and examples are: 1° 0.03 > - greater than 15° 0.45 > - equal to or greater than 30° 11.0 < - less than 45°...
-
Page 7: Horizontal Vent Run Plus Offset In Feet Ht
TOP EXIT / HORIZONTAL TERMINATION when (H ) > (V Example 3: Simple venting confi guration (only one 90° elbow) 90° FIGURE 6 See graph to determine the 90° required vertical rise V for the required horizontal run H FIGURE 8 = 4 ft = 1.5 ft = 4 + 1.5 = 5.5 ft... -
Page 8: T For The
TOP EXIT VERTICAL TERMINATION when (H ) < (V REQUIRED VERTI- CAL RISE IN FEET FIGURE 9 HORIZONTAL VENT RUN PLUS OFFSET IN FEET The shaded area within the lines represents acceptable values for H and V For vent confi gurations requiring more than zero 90° elbow (top exit) or one 90°... - Page 9 AIR TERMINAL INSTALLATIONS FIGURE 12 INSTALLATIONS CANADIAN U.S.A. 12 INCHES 12 INCHES Clearance above grade, veranda porch, deck or balcony. 12 INCHES 9 INCHES Clearance to windows or doors that open. 12 INCHES* 12 INCHES* Clearance to permanently closed windows. Vertical clearance to ventilated soffit located above the terminal within 18 INCHES** 18 INCHES**...
- Page 10 INSTALLATION WALL AND CEILING PROTECTION For optimum performance it is recommended that all VERTICAL INSTALLATION horizontal runs have a minimum of 1/4” rise per foot using fl exible venting. This application occurs For safe and proper operation of the fi replace, follow FIGURE 15 when venting through a the venting instructions exactly.
-
Page 11: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS Use only approved aluminum flexible liner kits 7. Using the 10” diameter fl exible aluminium liner, apply marked: sealant, slide a minimum of 2” over the fi replace combustion air collar and secure with 6 #8 screws. VERTICAL AIR TERMINAL INSTALLATION “Wolf Steel Approved Venting”... -
Page 12: Fireplace Vent Connection
This appliance is certifi ed to be installed in an aftermarket FIREPLACE VENT CONNECTION permanently located manufactured (mobile) home, where 1. Install the 8” diameter fl exible aluminium liner to the not prohibited by local codes. fi replace. Secure with 3 screws. Seal the joint and screw RESTRICTING VERTICAL VENTS holes using the high temperature sealant (W573-0007 not provided). -
Page 13: Framing
CLEARANCE TO COMBUSTIBLES FRAMING MAINTAIN THESE MINIMUM CLEARANCES TO COMBUS- can be installed with a rectangular opening. TIBLES: It is best to frame your fi replace after it is positioned and the Fireplace framing - 0” to stand-offs (top, rear & sides) vent system is installed. -
Page 14: Electrical Connection
MANTLE CLEARANCES Combustible mantle clearance can vary according to the mantle depth. Use the graph to help evaluate the clearance needed. FIGURE 30 MANTLE WIDTH ELECTRICAL CONNECTION Do NOT use the fireplace if any part has been under HARD WIRING CONNECTION water. -
Page 15: Finishing
FINISHING DOOR REMOVAL FIGURE 34 DOOR FIGURE 32 LOG SHIPPING BRACKET SCREWS HEARTH STRIP The glass door is secured to the fi rebox with 7 latches 2 on each side, and 3 across the top and 2 screws. Pull the handle Before the glass door can be removed, the control doors of the latch forward, then lift the hooks out from the slot in the must be opened and the hearth strip and screen assembly... -
Page 16: Brick Panel Installation
Sandstone. During initial use, the panels will darken temporarily. The appearance of the panels will permanently lighten in colour with use. NOTE: Refer to the FINISHING section of the BGD90NT/ PT Installation Manual for instructions on removing the door and log shipping bracket before proceeding. -
Page 17: Andiron Placement
ANDIRON PLACEMENT Andirons are pack- aged seperately in- side the unit and must be installed prior to the log installation. Place the Andiron on the Andiron brackets 4. Place the small branch of log#5 into the notch on log#3. located at the front of The notches on the bottom edge of log #5 should sit on the unit lining up the the fi... -
Page 18: Charcoal Embers
fl ame. Use only certifi ed “glowing embers” and phazer™ logs available from your NAPOLEON® dealer. NIGHT LIGHT REPLACEMENT Your comes equipped with 2 “Night Lights™”. The... -
Page 19: Remote And Valve Access
REMOTE AND VALVE ACCESS The control area can be accessed either through the control door or through the access panel inside the fi rebox. INNER ACCESS PANEL VALVE REMOVAL Follow the door removal instructions. Remove the right side The valve on The is piped with two fl... -
Page 20: Operation / Maintenance
OPERATION / MAINTENANCE desired fl ame height. Six fl ame levels are included, from 1 TIME OUT (minimum) to 6 (maximum). An acoustic signal from the If the appliance is turned on and the Receiver does not receive Receiver confi rms the reception of the command. any command for 24 hours, it automatically turns the appliance and the Remote Control off. - Page 21 5. FAN SPEED SETTING CHILD SAFETY LOCK-OUT This function controls the speed of the hot air circulating fan. This function is to deactivate con- To change the fan speed, use the UP and Down button until trol button. The function is active the cursor (small triangle) is left of the fan icon.
- Page 22 ADDRESS SETTING PROCEDURE Use the UP and DOWN key on the transmitter until the cursor (small triangle) is left of the clock icon. From time 0:00 press the LEFT key ten times. The display will show then the trans- mitter address. Press the LEFT key to exit this function. The transmitter address is required to be equal to the Receiver.
- Page 23 W415-0614_05.15.07...
-
Page 24: Operating Instructions
FOR YOUR SAFETY READ BEFORE OPERATING INSTRUCTIONS LIGHTING: When lit for the fi rst time, the fi replace will emit a slight A. This fi replace is equipped with a pilot which must be odour for a few hours. This is a normal temporary condi- lit by hand while following these instructions exactly. -
Page 25: Maintenance
A 5 to 10 second total light-up period is satisfactory. If ignition takes longer, con- 1. In order to properly clean the burner and pilot sult your NAPOLEON® dealer / distributor. assembly, remove the logs to expose both assem- blies. -
Page 26: Replacements
ERIAL UMBER OF FIREPLACE ability of replacement parts. Normally all parts can be ordered 2. I NSTALLATION DATE OF FIREPLACE through your NAPOLEON® dealer or distributor. 3. P UMBER When ordering replacement parts always give the following 4. D ESCRIPTION OF PART information: 5. - Page 27 0:00 FEATURE SELECT ON/OFF * WARNING: This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting ther- mocouple supplied by Wolf Steel Ltd. W415-0614_05.15.07...
-
Page 28: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN SYMPTOM PROBLEM TEST SOLUTION Main burner fl ame Blockage in vent. - remove blockage. In really cold conditions, ice buildup may occur on is a blue, lazy, the terminal and should be removed as required. - Page 29 SYMPTOM PROBLEM TEST SOLUTION Pilot burning; no Remote receiver - disconnect switch wires &connect a jumper wire across terminals gas to main burner; 1 & 3; if the main burner lights, check the wires for defects and / or Flame height is on replace wires.
- Page 30 W415-0614_05.15.07...
- Page 31 NOTES W415-0614_05.15.07...
