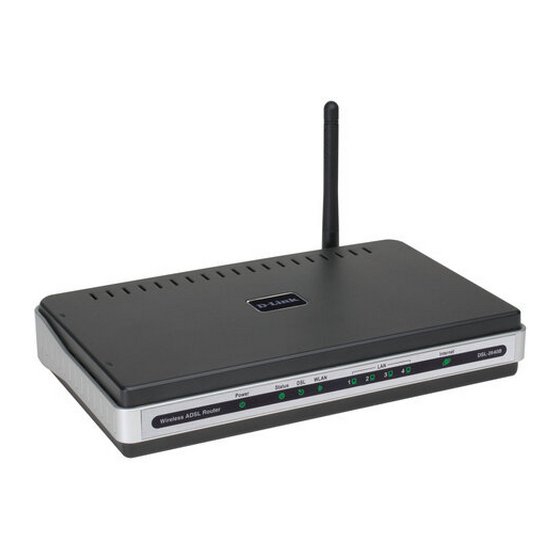

D-Link DSL-2640B User Manual

Hide thumbs Also See for DSL-2640B:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-2640B

Summary of Contents for D-Link DSL-2640B

  • Page 2: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Summary Information of the Router............... 109 Information you will need from your ADSL service provider.......8 DHCP Client ....................109 Information you will need about DSL-2640B............9 WAN Interface Information................110 Information you will need about your LAN or computer: ........9 Route Table Information................. 110 Device Installation ....................

  • Page 4: Before You Begin

    Computer with: • 200 MHz Processor • 64MB Memory • CD-ROM Drive • Ethernet Adapter with TCP/IP Protocol Installed • Internet Explorer v6 or later, FireFox v1.5 • Computer with Windows 2000, Windows XP, or Windows Vista D-Link DSL-2640B User Manual...

  • Page 5: Features

    TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-2640B supports TCP/IP protocol, the language used for the Internet. It is compatible with access servers manufactured by major vendors. • RIP-1/RIP-2 – The DSL-2640B supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to communicate with all RIP enabled devices. •...

  • Page 6: Hardware Overview

    Product Overview Hardware Overview Connections D-Link DSL-2640B User Manual...

  • Page 7: Led Indicators

    Device is ready for new WPS to setup. WPS (on the side Blink WPS is successfully triggered Blue panel) Connection is successfully established between the router and the client, the LED would remain in solid light for 5s. D-Link DSL-2640B User Manual...

  • Page 8: Installation

    Gently fasten the two slots with the screws. Step 3 Slowly take your hands off the device. Ensure that the device is properly mounted on the wall with the support of the screws. See the following figure: D-Link DSL-2640B User Manual...

  • Page 9: Installation Notes

    Operating Systems The DSL-2640B uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, and Windows Vista.
  • Page 10 802.1b wireless network card installed to use the Wireless ADSL Router. In addition the workstations must be configured to operate on the same channel and SSID as the Wireless ADSL Router. If wireless security is used, the wireless workstations must be properly configured for the security settings used. D-Link DSL-2640B User Manual...

  • Page 11: Information You Will Need From Your Adsl Service Provider

    If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface. D-Link DSL-2640B User Manual...

  • Page 12: Information You Will Need About Dsl-2640B

    Ethernet NIC If your computer has an Ethernet NIC, you can connect the DSL-2640B to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-2640B to connect to other computer or Ethernet devices.

  • Page 13: Device Installation

    Note: A factory reset will erase the current configuration settings and reset them to the default settings. After it has restarted, log in to the router’s web-based management interface and use the Setup Wizard to configure the basic settings. D-Link DSL-2640B User Manual...

  • Page 14: Network Connections

    Router’s wireless access point must have the same SSID and channel. If wireless security is used, the wireless clients must be configured with the correct security information to use the Router. More information on configuring the wireless settings is found later in this manual. D-Link DSL-2640B User Manual...

  • Page 15: Introduction To Web Configuration

    IP address of the Modem, that means the communication of the PC and the Modem is normal. Note: When you manage the Modem through Web, you must keep the Modem power on. Otherwise, the Modem may be damaged. D-Link DSL-2640B User Manual...

  • Page 16: Logging In To The Modem

    You need to reboot the DSL router to enable your modification or configuration effective in some cases, for example, after you modify the PVC configuration. Some modification, such as adding a static route, takes effect at once, and does not require modem reboot. D-Link DSL-2640B User Manual...
  • Page 17 “PPP Username” and “PPP Password” provided by your ISP for PPPoE connection. Click “Save/Reboot” to take the settings into effect. Click “Cancel” to cancel the configuration. Note: If you have not configure the PPP connection, the system will remind you. D-Link DSL-2640B User Manual...

  • Page 18: Home Configuration

    Click “Advance Setup” to login into the home page. In the left pane, click “Quick Setup” to return to the above page. Home Configuration Wizard This chapter is concerned with using your computer to configure the WAN connection of IP v4. D-Link DSL-2640B User Manual...
  • Page 19 Web Configuration Choose Home > Wizard, the right page appears. D-Link DSL-2640B User Manual...
  • Page 20 The user name or password can only be less than 16 characters. To ignore the step, click Skip. After proper configuration, the right page appears. In this page, you can set the Internet time. To ignore the step, click Skip. D-Link DSL-2640B User Manual...
  • Page 21 VPI: The virtual path between two points in an ATM network, ranging from 0 to 255. VCI: The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols) Connection mode: You can choose LLC and VC-Mux. D-Link DSL-2640B User Manual...
  • Page 22 If you select PPPoE or PPPoA as the protocol, the right page appears. Your ISP should provide you with the following information: PPP Username PPP Password If you select Dynamic IP as the protocol, the right page appears. D-Link DSL-2640B User Manual...
  • Page 23 Web Configuration If you select Static IP or IPoA as the protocol, the right page appears. Your ISP should provide you with the following information: WAN IP Address SubnetMask Default gateway Primary DNS server Secondary DNS server D-Link DSL-2640B User Manual...
  • Page 24 You can set the SSID, WPA Pre-Shared Key, and WPA update session Key interval. You can select the Network authentication from the drop-down list. You can select the WPA Encryption from the drop-down list. To ignore the step, click Skip. D-Link DSL-2640B User Manual...
  • Page 25 PVC. Click Save/Reboot to take the settings into effect. Click Cancel to cancel the configuration. Click Advance Setup to continue other settings. Note: If you have not configure the PPP connection, the system will remind you. D-Link DSL-2640B User Manual...
  • Page 26 Web Configuration Click Save/Reboot, the rebooting page appears. D-Link DSL-2640B User Manual...

  • Page 27: Basic Wireless Configuration

    In the current software version, three virtual access points can be configured. Click Apply to save the basic wireless options and make the modification effect. D-Link DSL-2640B User Manual...
  • Page 28 Select SSID: Select the wireless LAN of SSID to configure security features. Network Authentication: Select the authentication mode for the selected wireless LAN of SSID to be open. WEP Encryption: Disable WEP Encryption. D-Link DSL-2640B User Manual...
  • Page 29 You can set 4 types of the WEP key. The authentication modes are as follows: 802.1X, WPA, WPA-PSK,WPA2, WPA2 –PSK, Mixed WPA2/WPA, Mixed WPA2/WPA –PSK. After proper configuration, click Apply to save the wireless security options and make the modification effect. D-Link DSL-2640B User Manual...

  • Page 30: Wan Configuration

    Web Configuration WAN Configuration Click WAN and the right page appears, so you can modify and configure the WAN interface. Click Add or Remove to configure WAN interface. D-Link DSL-2640B User Manual...
  • Page 31 32 to 65535 (1 to 31 are reserved for known protocols). Encapsulation Mode: You can select it from the drop-down list. Service Category: You can select it from the drop-down list. Enable Quality Of Service: Enable or disable QoS. D-Link DSL-2640B User Manual...
  • Page 32 After proper configuration, click Next and the right page appears. In this page, you can set the service description, enable 802.1Q VLAN and IPv6. If you enable 802.1Q VLAN and IPv6, the right page appears. After proper configuration, click Next. D-Link DSL-2640B User Manual...
  • Page 33 IEnable NAT: Select the checkbox to apply Fullcone NAT mode. Use Static IPv6 Address: Enable to use a static IPv6 address. Enter the address in the IPv6 Address field. GMP Multicast: IGMP proxy. For example, if you want PPPoE mode to support IPTV, enable it. D-Link DSL-2640B User Manual...
  • Page 34 Web Configuration After enter the PPP Username and PPP Password, click Next, and the right page appears. In this page, select a preferred WAN interface as the system default gateway. D-Link DSL-2640B User Manual...
  • Page 35 In this page, you can get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses. D-Link DSL-2640B User Manual...
