Quick Installation Guide

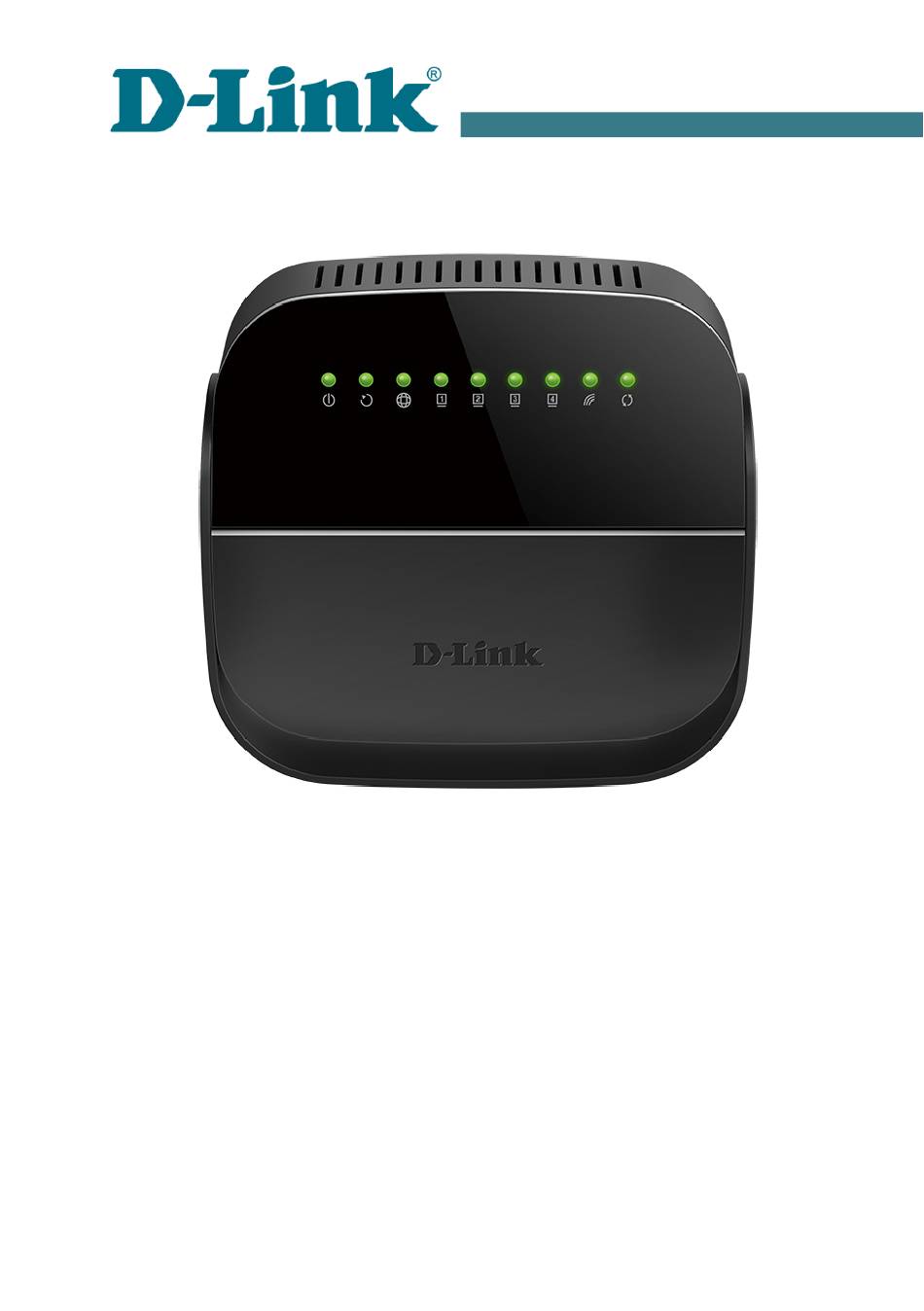

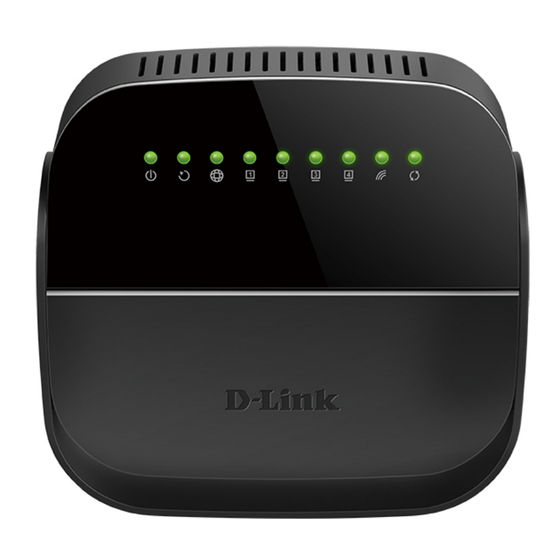

DSL-2640U
Wireless N150 ADSL2+ Router

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-2640U

Summary of Contents for D-Link DSL-2640U

  • Page 1 Quick Installation Guide DSL-2640U Wireless N150 ADSL2+ Router...

  • Page 2: Before You Begin

    If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: Default Settings

    DSL-2640U Quick Installation Guide Default Settings dlinkrouter.local. Domain name of device IP address of device 192.168.1.1 Username (login) admin admin Password DSL-2640U Name of wireless network (SSID) see WPS PIN on the Network key (PSK) barcode label on the back...

  • Page 4: System Requirements And Equipment

    DSL-2640U Quick Installation Guide System Requirements and Equipment A computer with any operating system that supports a web browser. • A web browser to access the web-based interface of the router: • ◦ Apple Safari 8 and later ◦ Google Chrome 48 and later ◦...

  • Page 5: Pc With Ethernet Adapter

    DSL-2640U Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC. 2. To connect the router to a DSL line: connect a phone cable between the DSL port of the router and the ADSL OUT port of the splitter.
  • Page 6 DSL-2640U Quick Installation Guide Obtaining Address Automatically (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 7 DSL-2640U Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.

  • Page 8: Pc With Wi-Fi Adapter

    DSL-2640U Quick Installation Guide PC with Wi-Fi Adapter 1. To connect the router to a DSL line: connect a phone cable between the DSL port of the router and the ADSL OUT port of the splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone cable between a phone jack and the ADSL IN port of the splitter.
  • Page 9 DSL-2640U Quick Installation Guide Obtaining Address Automatically Connecting to Wireless Network (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 10 DSL-2640U Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.
  • Page 11 Quick Installation Guide 9. In the opened window, in the list of available wireless networks, select the wireless network DSL-2640U and click the Connect button. 10. In the opened window, enter the network key (see WPS PIN on the barcode label on the back panel of the device) in the Security key field and click the OK button.

  • Page 12: Configuring Router

    DSL-2640U Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the domain name of the router (by default, dlinkrouter.local) with a dot at the end and press the Enter key. Also you can enter the IP address of the device (by default, 192.168.1.1).
  • Page 13 DSL-2640U Quick Installation Guide If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.
  • Page 14 DSL-2640U Quick Installation Guide The Summary page displays general information on the router and its software.
  • Page 15 DSL-2640U Quick Installation Guide The Home page displays links to the most frequently used pages with device's settings. The web-based interface of the router is multilingual. You can select the needed language upon the initial configuration of the web-based interface of the router or in the System / Configuration section of the menu.

  • Page 16: Initial Configuration Wizard

    Click the OK button and wait until the factory default settings are restored. If you perform initial configuration of the router via Wi-Fi connection, please make sure that you are connected to the wireless network of DSL-2640U (see the WLAN name (SSID) in the Default Settings section, page 3) and click the NEXT button.
  • Page 17 DSL-2640U Quick Installation Guide 1. Click YES in order to leave the current language of the web-based interface or click NO to select another language. 2. On the next page, click the CONTINUE button.

  • Page 18: Selecting Operation Mode

    DSL-2640U Quick Installation Guide Selecting Operation Mode In order to connect your device to an ADSL line, on the Device mode page, from the Connection method list, select the ADSL value. In this mode you can configure a WAN connection, set your own settings for the wireless network, configure LAN ports to connect an STB or VoIP phone, and set your own password for access to the web-based interface of the device.

  • Page 19: Configuring Lan Port As Wan Port

    DSL-2640U Quick Installation Guide Configuring LAN Port as WAN Port This configuration step is available for the Ethernet (LAN) mode. 1. On the Device connection page, select the WAN/LAN port. Click the NEXT button.
  • Page 20 DSL-2640U Quick Installation Guide Configuring Ethernet WAN Connection This configuration step is available for the Ethernet (LAN) mode. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.
  • Page 21 DSL-2640U Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 22 DSL-2640U Quick Installation Guide Configuring ADSL WAN Connection This configuration step is available for the ADSL mode. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.
  • Page 23 DSL-2640U Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoA: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.

  • Page 24: Configuring Wireless Network

    DSL-2640U Quick Installation Guide Configuring Wireless Network 1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router. 2. In the Password field, specify your own password for access to the wireless network or leave the value suggested by the router (WPS PIN of the device, see the barcode label).
  • Page 25 DSL-2640U Quick Installation Guide 4. If you want to create an additional wireless network isolated from your LAN, select the Enable guest network checkbox. 5. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.

  • Page 26: Configuring Lan Ports For Iptv/Voip

    DSL-2640U Quick Installation Guide Configuring LAN Ports for IPTV/VoIP 1. On the IPTV page, select the Is an STB connected to the device checkbox. 2. Select a free LAN port for connecting your set-top box. For the Ethernet (LAN) mode: If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.
  • Page 27 DSL-2640U Quick Installation Guide 6. On the VoIP page, select the Is an IP phone connected to the device checkbox. 7. Select a free LAN port for connecting your IP phone. For the Ethernet (LAN) mode: If the VoIP service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.

  • Page 28: Changing Web-Based Interface Password

    DSL-2640U Quick Installation Guide Changing Web-based Interface Password On this page you should change the default administrator password. To do this, enter a new password in the Admin password and Password confirmation fields. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout.

  • Page 29: Configuring Local Area Network

    DSL-2640U Quick Installation Guide Configuring Local Area Network Go to the Connections Setup / LAN page. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Mask fields in the Local IP Address section.
  • Page 30 DSL-2640U Quick Installation Guide 4. IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the...
  • Page 31 DSL-2640U Quick Installation Guide 5. IPv6 address assignment. By default, the devices of the LAN automatically assign IPv6 addresses to themselves (the Stateless value is selected from the Mode of dynamic IPv6 address assignment drop-down list in the Dynamic IPv6 Addresses section on the IPv6 tab).

  • Page 32: Specifications

    DSL-2640U Quick Installation Guide SPECIFICATIONS Hardware · Processor RTL8676S (450MHz) · 32MB, SDRAM, built in processor · Flash 4MB, SPI · RJ-11 ADSL port Interfaces · 4 10/100BASE-TX LAN ports · POWER LEDs · · INTERNET · 4 LAN LEDs ·...
  • Page 33 DSL-2640U Quick Installation Guide DSL Parameters · ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 ADSL Standards (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU- T G.994.1 (G.hs) · ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU- T G.992.4 (G.lite.bis) Annex A ·...
  • Page 34 DSL-2640U Quick Installation Guide Software · DHCP server/relay Network functions · Advanced configuration of built-in DHCP server · Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation · DNS relay · Dynamic DNS · Static IP routing · Static IPv6 routing ·...
  • Page 35 Management and monitoring through TELNET/WEB (HTTP/HTTPS) · Bilingual web-based interface for configuration and management (Russian/English) · Support of D-Link Assistant application for Android and iPhone smartphones · Firmware update via web-based interface · Automatic notification on new firmware version ·...
  • Page 36 DSL-2640U Quick Installation Guide Wireless Module Parameters · IEEE 802.11b: 1, 2, 5.5, and 11Mbps Wireless connection rate · IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps · IEEE 802.11n: from 6.5 to 150Mbps (from MCS0 to MCS7) ·...
  • Page 37 DSL-2640U Quick Installation Guide Physical Parameters · Dimensions (L x W x H) 114 x 46 x 110 mm (4.49 x 1.81 x 4.33 in) · Weight 150 g (0.33 lb) Operating Environment · Power Output: 12V DC, 0.5A ·...

  • Page 38: Safety Rules And Conditions

    DSL-2640U Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.

  • Page 39: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e-mail/Internet.
