Installation

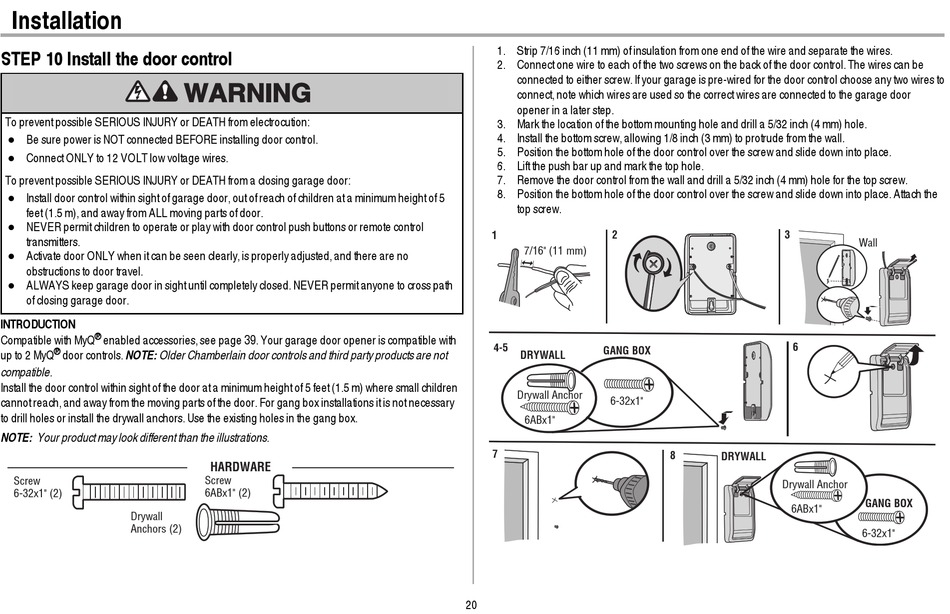

STEP 10 Install the door control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
Be sure power is NOT connected BEFORE installing door control.
l
Connect ONLY to 12 VOLT low voltage wires.
l
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
Install door control within sight of garage door, out of reach of children at a minimum height of 5
l
feet (1.5 m), and away from ALL moving parts of door.
NEVER permit children to operate or play with door control push buttons or remote control
l
transmitters.
Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no
l
obstructions to door travel.
ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path
l
of closing garage door.
INTRODUCTION
®
enabled accessories, see page 39. Your garage door opener is compatible with
Compatible with MyQ
®
up to 2 MyQ door controls. NOTE: Older Chamberlain door controls and third party products are not
compatible.
Install the door control within sight of the door at a minimum height of 5 feet (1.5 m) where small children
cannot reach, and away from the moving parts of the door. For gang box installations it is not necessary
to drill holes or install the drywall anchors. Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
Screw
6-32x1" (2)
Drywall
Anchors (2)
HARDWARE
Screw
6ABx1" (2)
1. Strip 7/16 inch (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be
connected to either screw. If your garage is pre-wired for the door control choose any two wires to
connect, note which wires are used so the correct wires are connected to the garage door
opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32 inch (4 mm) hole.
4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32 inch (4 mm) hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place. Attach the
top screw.
2
1
7/16" (11 mm)
4-5
GANG BOX
DRYWALL
Drywall Anchor
6-32x1"
6ABx1"
7
20
3
6
8
DRYWALL
Drywall Anchor
6ABx1"
Wall
GANG BOX
6-32x1"
