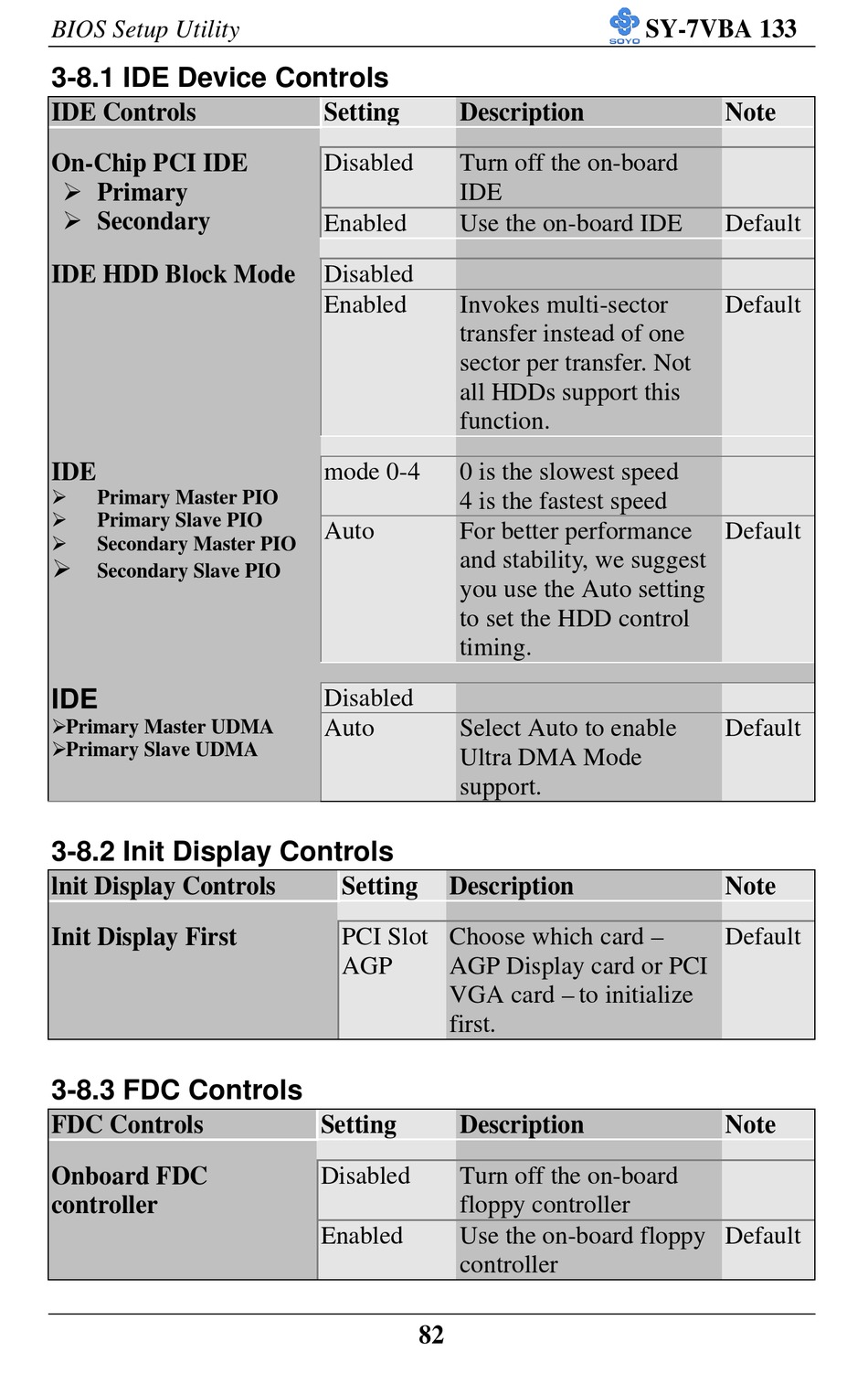

SOYO SY-7VBA 133 User Manual page 86

BIOS Setup Utility
3-8.1 IDE Device Controls
IDE Controls
On-Chip PCI IDE
Ø Primary
Ø Secondary
IDE HDD Block Mode
IDE
Ø
Primary Master PIO
Ø
Primary Slave PIO
Ø
Secondary Master PIO
Ø
Secondary Slave PIO
IDE
Ø Primary Master UDMA
Ø Primary Slave UDMA
3-8.2 Init Display Controls
lnit Display Controls
Init Display First
3-8.3 FDC Controls
FDC Controls
Onboard FDC
controller
Setting Description
Disabled Turn off the on-board
IDE
Enabled Use the on-board IDE
Disabled
Enabled Invokes multi-sector
transfer instead of one
sector per transfer. Not
all HDDs support this
function.
mode 0-4 0 is the slowest speed
4 is the fastest speed
Auto For better performance
and stability, we suggest
you use the Auto setting
to set the HDD control
timing.
Disabled
Auto Select Auto to enable
Ultra DMA Mode
support.
Setting Description
PCI Slot Choose which card –
AGP AGP Display card or PCI
VGA card – to initialize
first.
Setting Description
Disabled Turn off the on-board
floppy controller
Enabled Use the on-board floppy
controller
82
SY-7VBA 133
Note
Default
Default
Default
Default
Note
Default
Note
Default
